Nobody I know likes the pink/salmon color that Parma casts their crown gears in! I know why they do it but I too hate the color choice they use. Well, instead of hunting down good straight surviving Cox gear or going with some weird foreign job I suggest the simply option of dying the pink any other color!!!


Rit dye is made for fabrics, but will work very well with plastics and nylon. It is about two bucks a box at the local fabric store. A package that will last for a couple years if stored in jars once cool (as shown). A white nylon endbell or pick-up guide can be dyed any color of course. But a pink Parma gear can only be dyed something in the red side of the color wheel. Scarlet/red, orange, black, or purple or are pretty much your only choices. Toss one in blue and it will come out violet because blue and red make violet!


I only add a cup or two of water and two table spoons of vinegar to the stuff in the package. Bring to a slow rolling boil.

Then run a copper wire through the gear so it is easy to find and remove...


The dye should be hot enough to steam but not bubbling too much or it will splatter dye on your shirt marking it FOREVER!!!


Only took eight minutes to make it this black!


Cold water and a toothbrush will set the color and remove any extra dye. Polish up the aluminum and it's ready for installation.

Done, now go have a beer, because the Kingie can no longer turn his nose up when your car shows its tail in the turns!



  • PCH Parts Express likes this

Jairus H Watson - Artist
Need something painted, soldered, carved, or killed? - jairuswtsn@aol.com

www.slotcarsmag.com

www.jairuswatson.net
http://www.ratholecustoms.com
Check out some of the cool stuff on my Fotki!





#2 Mark Wampler

Mark Wampler

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 7,008 posts
  • Joined: 17-July 07
  • Gender:Male
  • Location:Santa Maria, CA

Posted 16 August 2010 - 08:13 PM

How about Cox Gray color?:)
You can quote me.

-Mark

#3 Pablo

Pablo

    Builder

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,395 posts
  • Joined: 20-February 06
  • Gender:Male
  • Location:Johnson Bayou, Mississippi Gulf Coast

Posted 16 August 2010 - 08:17 PM

Very nice, Jairus. :)

What does the vinegar do?
Paul Wolcott

#4 68Caddy

68Caddy

    The Direktor

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 10,546 posts
  • Joined: 17-March 07
  • Gender:Male
  • Location:CA, by the beach of course

Posted 16 August 2010 - 08:19 PM

Ask a woman, and I don't mind pink. :rolleyes: :laugh2:


Nesta
- Gabriel
Nesta Szabo

In this bright future you can't forget your past.
BMW (Bob Marley and the Wailers)

United we stand and divided we fall, the Legends are complete.
I'm racing the best here at BP but Father time is much better then all of us united.
Not a snob in this hobby, after all it will be gone, if we keep on going like we do, and I have nothing to prove so I keep on posting because I have nothing to gain.
It's our duty to remember the past so we can have a future.

Pistol Pete you will always be in my memory.

#5 Jairus

Jairus

    Body Painter Extraordinaire

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 9,398 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:Salem, OR

Posted 16 August 2010 - 08:23 PM

How about Cox Gray color?:)

You have to start with white and use black for a shorter length of time.

What does the vinegar do ?

Helps the dye to penetrate.

Jairus H Watson - Artist
Need something painted, soldered, carved, or killed? - jairuswtsn@aol.com

www.slotcarsmag.com

www.jairuswatson.net
http://www.ratholecustoms.com
Check out some of the cool stuff on my Fotki!


#6 Mopar Rob

Mopar Rob

    Retro Snob as of 1/12/2011

  • Full Member
  • PipPipPipPipPipPipPip
  • 3,445 posts
  • Joined: 13-December 07
  • Gender:Male
  • Location:By a Great Lake

Posted 16 August 2010 - 09:52 PM

Does the wear area of the gear eventually show the pink again?
Rob Hanson

Shops at Mid-America Raceway and uses R-Geo Products


Rob was right!


#7 team burrito

team burrito

    Checkered Flag in Hand

  • Full Member
  • PipPipPipPipPipPip
  • 1,695 posts
  • Joined: 15-September 06
  • Gender:Male
  • Location:SF Bay area

Posted 16 August 2010 - 10:12 PM

Yes, it will.
Russ Toy (not Troy)
First Place Loser in the JK Products
International D3 Builders Competition

#8 Jairus

Jairus

    Body Painter Extraordinaire

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 9,398 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:Salem, OR

Posted 18 August 2010 - 09:46 AM

Does the wear area of the gear eventually show the pink again?

I have never seen it on my gears.

All colored nylon guides by Jet Flag (vintage stuff) are dyed. The color rubs off on the guide fin where it contacts the slot, but those are generally light colors.

But I have never seen a gear ever show any pink again. How could it? Nylon is semi translucent and the black dye has completely darkened it like turning off the lights! Longer it is left in the dye the deeper the dye goes.

Even if you were to take a knife and scrape a tooth you would barely lighten the color tint to a dark red or maroon. The only place a gear wears is the tooth face and that gets oil and track dirt in it anyway which is... BLACK! ;)

No, this is a permanent solution in my book!

Jairus H Watson - Artist
Need something painted, soldered, carved, or killed? - jairuswtsn@aol.com

www.slotcarsmag.com

www.jairuswatson.net
http://www.ratholecustoms.com
Check out some of the cool stuff on my Fotki!


#9 Mark Wampler

Mark Wampler

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 7,008 posts
  • Joined: 17-July 07
  • Gender:Male
  • Location:Santa Maria, CA

Posted 18 August 2010 - 10:35 AM

Thanks for the tip, Jairus. :)
You can quote me.

-Mark

#10 Noose

Noose

    Grand Champion Poster

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 21,288 posts
  • Joined: 08-November 06
  • Gender:Male
  • Location:Denville, NJ

Posted 18 August 2010 - 10:38 AM

Any problems with the gear remaining true? I know some of the Parma ones aren't to begin with wondered if the heat for the dying process caused it to go out round even more.

Joe "Noose" Neumeister
Sometimes known as a serial despoiler of the clear purity of virgin Lexan bodies. Lexan is my canvas!
Noose Custom Painting - Since 1967
Chairman - IRRA® Body Committee - Roving IRRA® Tech Dude - "EVIL BUCKS Painter"

"Team Evil Bucks" Racer - 2016 Caribbean Retro Overall Champion
The only thing bad about Retro is admitting that you remember doing it originally.


#11 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,948 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 18 August 2010 - 10:45 AM

Should be fine if you don't boil it. We used to do R/C suspension arms with no problem.

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#12 Jairus

Jairus

    Body Painter Extraordinaire

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 9,398 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:Salem, OR

Posted 18 August 2010 - 11:01 AM

I use a slow rolling boil and only once saw any deformation of a gear. And THAT was when I just tossed the gear in the pan and let it sit on the bottom. Three of the teeth showed marked rounding as the nylon softened, so it went into the trash.

That is why I now use a wire and stir the contents to keep heat from concentrating on the bottom. The gear can even be suspended from the bottom (source of heat, doncha know) with the wire wrapped around a rod.

Normally the temp is set about med-high.

Jairus H Watson - Artist
Need something painted, soldered, carved, or killed? - jairuswtsn@aol.com

www.slotcarsmag.com

www.jairuswatson.net
http://www.ratholecustoms.com
Check out some of the cool stuff on my Fotki!


#13 JerseyJohn

JerseyJohn

    Posting Leader

  • Full Member
  • PipPipPipPipPipPipPip
  • 3,894 posts
  • Joined: 05-September 07
  • Gender:Male
  • Location:Northern NJ

Posted 18 August 2010 - 01:02 PM

That is sooooooo kool. Thanks!

J
JJ TRADE MARK BANNER copy.jpg

John Chas Molnar

"Certified Newark Wise Guy since 1984" (retired)
"Certified Tony P Chassis God since 2007"
" Internationally Know Slot Car Racing Celebrity "
https://www.facebook...nchassisworks/#
Email me



#14 Dan Ruddock

Dan Ruddock

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 346 posts
  • Joined: 26-June 08
  • Gender:Male

Posted 18 August 2010 - 01:55 PM

This also works well for a clear controller handle. The handle will look like one of the colored Parma handles but only a different color, the one you chose.

Dan
Dan Ruddock
DR Racing Products
40256 Crestridge Way
Palmdale, CA 93551
(661) 224-1185
dr-40@juno.com

#15 JerseyJohn

JerseyJohn

    Posting Leader

  • Full Member
  • PipPipPipPipPipPipPip
  • 3,894 posts
  • Joined: 05-September 07
  • Gender:Male
  • Location:Northern NJ

Posted 18 August 2010 - 04:16 PM

This also works well for a clear controller handle. The handle will look like one of the colored Parma handles but only a different color, the one you chose.

Dan

Dan, you just took this to the next level......What about lexan??
JJ TRADE MARK BANNER copy.jpg

John Chas Molnar

"Certified Newark Wise Guy since 1984" (retired)
"Certified Tony P Chassis God since 2007"
" Internationally Know Slot Car Racing Celebrity "
https://www.facebook...nchassisworks/#
Email me



#16 Dan Ruddock

Dan Ruddock

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 346 posts
  • Joined: 26-June 08
  • Gender:Male

Posted 18 August 2010 - 05:04 PM

Dan, you just took this to the next level......What about lexan??



Handle's are lexan, all I know is I have done it many times in slow boiling water with out a problem. This might not work with a lexan body as it might try to return to it's original shape. Maybe cooler water would help but then it might be harder for the color to set. Dan
Dan Ruddock
DR Racing Products
40256 Crestridge Way
Palmdale, CA 93551
(661) 224-1185
dr-40@juno.com

#17 mdiv

mdiv

    Checkered Flag in Hand

  • Full Member
  • PipPipPipPipPipPip
  • 1,948 posts
  • Joined: 13-December 06
  • Gender:Male
  • Location:Wall, NJ, USA

Posted 18 August 2010 - 06:11 PM

Every time I see the brand name "Cox" my mind spells it "Wanx."

Cool thread, J! :)

Mikey

Mike DiVuolo



C.A.R.S. Vintage Slot Car Club

"Prosecutors will be violated"


#18 Noose

Noose

    Grand Champion Poster

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 21,288 posts
  • Joined: 08-November 06
  • Gender:Male
  • Location:Denville, NJ

Posted 18 August 2010 - 07:24 PM

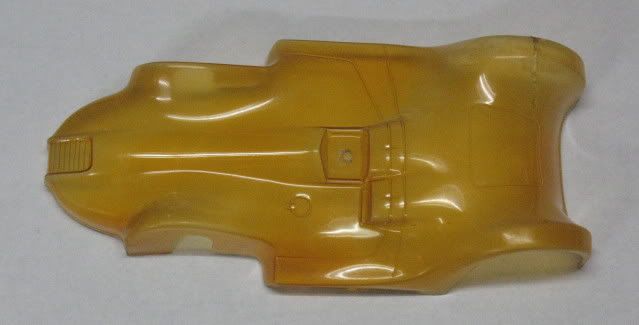

I actually may have been one of the first painters to use this technique in the 60s. When undercoated it gives you some pretty awesome candy effects.

Joe "Noose" Neumeister
Sometimes known as a serial despoiler of the clear purity of virgin Lexan bodies. Lexan is my canvas!
Noose Custom Painting - Since 1967
Chairman - IRRA® Body Committee - Roving IRRA® Tech Dude - "EVIL BUCKS Painter"

"Team Evil Bucks" Racer - 2016 Caribbean Retro Overall Champion
The only thing bad about Retro is admitting that you remember doing it originally.


#19 Zippity

Zippity

    Posting Leader

  • Full Member
  • PipPipPipPipPipPipPip
  • 4,632 posts
  • Joined: 05-March 06
  • Gender:Male
  • Location:Wellington, New Zealand

Posted 18 August 2010 - 07:29 PM

Real men like pink :laugh2: :laugh2: :laugh2:

#20 The Groove

The Groove

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 327 posts
  • Joined: 14-December 08
  • Gender:Male
  • Location:MI

Posted 18 August 2010 - 08:46 PM

This rocks I hate pink its so un retro looking, I wonder if i have any easter egg dye? and will it work?


Rich Attee, THE GROOVE-PSC race team

PRECISION SLOT CARS - BUILT TO WIN
Check out my track at Precision Slot Cars

#21 MG Brown

MG Brown

    Grand Champion Poster

  • Administrator
  • PipPipPipPipPipPipPipPip
  • 5,757 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:The Land of Lincoln, where governors make the license plates.

Posted 18 August 2010 - 11:59 PM

Thanks for the tip- same technique we used back in the day to dye jet flags.... pink.

I had good success coloring the outside of the gears with a silver sharpie while the motor is run at low RPM. The result caused a retro event tech inspector in the recent past to question what kind of gear I was using....

"I'm just here for the entertainment." George Carlin


#22 Gus Kelley

Gus Kelley

    Race Leader

  • Member at Peace
  • PipPipPipPipPip
  • 501 posts
  • Joined: 23-August 09
  • Gender:Male
  • Location:Sacramento, CA - always

Posted 19 August 2010 - 12:44 AM

Hey Rich ! You won't catch me walking into the "Groove" and running my cars with your statement. My whole fleet of cars are "Pink". Gus in Sacto
Gus Kelley
12/01/54-7/22/14
Requiescat in Pace

#23 Jairus

Jairus

    Body Painter Extraordinaire

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 9,398 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:Salem, OR

Posted 19 August 2010 - 08:52 AM

This rocks I hate pink its so un retro looking, I wonder if i have any easter egg dye? and will it work?



Rich,
Easter egg dye is food based and the colors weak, being mostly pastels anyway. It might work but I highly doubt you will find the color "black"... ;)

Rit dye is very strong, quick and cheap.... although I do like M.G.'s idea! :clapping:

Jairus H Watson - Artist
Need something painted, soldered, carved, or killed? - jairuswtsn@aol.com

www.slotcarsmag.com

www.jairuswatson.net
http://www.ratholecustoms.com
Check out some of the cool stuff on my Fotki!


#24 32Deuce

32Deuce

    non-recovering slotaholic

  • Full Member
  • PipPipPipPip
  • 224 posts
  • Joined: 25-February 06
  • Gender:Male
  • Location:USA

Posted 19 August 2010 - 04:06 PM

I actually may have been one of the first painters to use this technique in the 60s. When undercoated it gives you some pretty awesome candy effects.

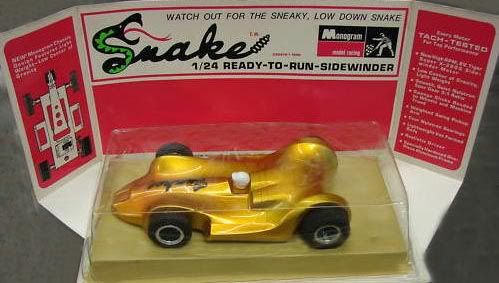

I was recently very surprized when I "stripped" the paint off of a gold metallic Monogram Snake body and found that the body was not clear but rather "tinted" goldish yellow. The body was simply painted silver underneath to create a cool "candy" effect as Noose eluded to. I wonder how many other factory bodys were done this way that we are unaware of?

Z
Mike Zimmerman
Posted Image

#25 Duffy

Duffy

    a dearly-missed departed member

  • Member at Peace
  • PipPipPipPipPipPipPip
  • 3,791 posts
  • Joined: 25-January 09
  • Gender:Male
  • Location:Geographically Brooklyn, Politically Berkeley

Posted 19 August 2010 - 05:15 PM

This rocks I hate pink its so un retro looking, I wonder if i have any easter egg dye? and will it work?

Only if you have "Rabbit Ears" on your guide tongue.
Michael J. Heinrich
1950-2016
Requiescat in Pace

And I am awaiting
perpetually and forever
a renaissance of wonder





Electric Dreams Online Shop
