Posted 31 July 2015 - 07:46 PM

That's probably good advice, Bill. But I just hate to mess with a new original arm especially since balancing was Thorp's claim to fame.

It's time to move on to the chassis and the body is still undecided.

I've got a new plan. Howie thinks the chassis most likely had a 3.9" wheelbase and a .9" guide lead. I'm going to build the chassis to that wheelbase. That will fit all the bodies shown below but the Mirage, so the Mirage is out of the mix once I start the chassis.

For the guide lead, I'll have to fit it to whichever body has the shortest nose.

I've added another possible body to the quoted post below. It's the Dynamic Lotus 40:



Here is a vintage butyrate plastic Dynamic Mirage. This one is now out of the running. The wheelbase is too long.


Vintage butyrate plastic Dynamic McLaren Mk 3:


TrueScale Lexan reproduction Dynamic McLaren Mk 6:


TrueScale Lexan reproduction Dynamic Lola T70:


I forgot to add another possibility so here's the TrueScale Lexan reproduction of the Dynamic Handling Body Lotus 40:




This is the later version of the Lola T70 that Dynamic introduced a month or so after the Arco Nats. The main difference from the rare first generation version is a slightly longer nose.


Howie, even if you haven't decided on a body yet, if you know of any of the bodies you definitely don't want to use, let me know. :)

Also if your were really considering the 4" wheelbase Mirage let me know that too and I'll put the brakes on the chassis build.


  • miko likes this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...





#102 Half Fast

Half Fast

    Keeper Of Odd Knowledge

  • Subscriber
  • PipPipPipPipPipPip
  • 1,644 posts
  • Joined: 02-May 07
  • Gender:Male
  • Location:NYC, Long Island

Posted 31 July 2015 - 09:31 PM

That $5.49 Thorp arm would be about $40 adjusted for inflation. So it only looks inexpensive now, but it wasn't then.



Cheers,


Bill Botjer

Faster then, wiser now


#103 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 01 August 2015 - 04:56 AM

Rick, my money is on that rare wide Russkit T70 with the moveable engine detail.


"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#104 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 01 August 2015 - 10:05 AM

I wouldn't bet against you, Tony! :D

Below is what I just PM'd Howie about the Dynamic and Russkit first and second generation Lola T70 bodies used for the race:


Okie Dokie, Howie. Below are some pictures of the bodies. First are the Dynamic Lola T70s. The first generation "short nose" is on the right. The easiest way for me to tell them apart is by the header pipes behind the engine detail on the first generation car.

You can also see the anglewinder influence on the newer body on the left. Note the wider rear tire bulge to clear spur gears of the anglewinders:


Below are a couple of shots of the Russkit Lola T70 TonyP mentioned. I think you and Sandy may have run this second generation Russkit body in the Car Model races:


It is a bit longer, lower and wider than the first generation car and has a separate engine detail piece that, at first, you could cut out the body for and mount it back over the crown gear. Later production like the ones in the pictures, had the hole already cut out to where it would be on the real car.

Here is my buddy Rodney's built up version:


Hope this helps,

Rick


  • Tex, miko and George Kimber like this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#105 SlotStox#53

SlotStox#53

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 3,820 posts
  • Joined: 13-March 13
  • Gender:Male
  • Location:TX

Posted 01 August 2015 - 11:03 PM

Wow, that Russkit Lola shell is sweet.  :D

Never seen one of them before. The one pictured by Rodney is way cool!



#106 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 07 August 2015 - 05:38 PM

Well, this just goes to show that miracles can happen. :shok: Howie has managed to get hold of a real Russkit Pro Lola T70 body. That's the body that he ran in the race just as Tony P suspected.



Here's a gen 2 "Pro" body (note the big round wheel openings)...






... compared to a first gen body as used on the Russkit Black Widow twin-motor cars:






Pro body on the bottom:






Pro body shown on the right:









Pro version interior, drivers head, and motor details shown on top:






OK, time to get the acid flux a-smokin'.  :D


  • endbelldrive likes this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#107 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 07 August 2015 - 06:04 PM

What do I win?
  • SlotStox#53 likes this

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#108 SlotStox#53

SlotStox#53

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 3,820 posts
  • Joined: 13-March 13
  • Gender:Male
  • Location:TX

Posted 07 August 2015 - 06:08 PM

Way to go, Howie!

That is one beautiful-looking Russkit shell :heart: Wonder where that rare beast was hiding?



#109 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 07 August 2015 - 06:37 PM

What do I win?





:crazy: Thanks, Tony!


Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#110 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 8,319 posts
  • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 07 August 2015 - 06:46 PM

Rick,



How does the thickness of these two bodies compare?


Bill Fernald



I for I, like roman numerals.


#111 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 07 August 2015 - 08:06 PM

Hi Bill,



This particular body doesn't seem to be one of the fabled Russkit "ten thou" lightweight bodies. It is thinner plastic than the earlier version I have however.


Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#112 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 07 August 2015 - 08:18 PM

I don't believe the thin ones ever came cut out. I remember ruining the first one I tried to mount when I tried to cut out the wheel wells

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#113 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 8,319 posts
  • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 07 August 2015 - 08:46 PM

I had a two-piece Russkit Eagle F1 with a thin body that might have been less than .010". The rear engine piece was molded black styrene. I would have bought this in 1967 or '68. I was wondering if the T70 Pro body was a similar thickness.


Bill Fernald



I for I, like roman numerals.


#114 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 07 August 2015 - 09:13 PM

I don't believe the thin ones ever came cut out. I remember ruining the first one I tried to mount when I tried to cut out the wheel wells


Yes. I have an uncut Lotus 40 like that ,Tony. Thank goodness this body isn't like that. It's one thing to deal with modern .010" Lexan bodies. It's quite another to deal with .010" 50-year old super brittle butyrate!


I had a two-piece Russkit Eagle F1 with a thin body that might have been less than .010". The rear engine piece was molded black styrene. I would have bought this in 1967 or '68. I was wondering if the T-70 Pro body was a similar thickness.


A vacuum-formed body's plastic thickness varies as the body is being pulled down over the mold. Usually the top of the body will be closest to the original thickness of the plastic sheet used to form the body. The bottom of the body will usually be the thinnest.



The Pro Lola body we're using is about .020" on top and about .010" on the bottom sides.


Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#115 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 08 August 2015 - 07:43 AM

The game is afoot.
  • Cheater likes this

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#116 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 09 August 2015 - 07:16 PM

Indeed.  :)



I had to take today off because of a prior "real world" commitment. Tomorrow I plan on getting back to the important stuff... vintage slot cars.   :crazy:


Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#117 Don Weaver

Don Weaver

    Checkered Flag in Hand

  • Subscriber
  • PipPipPipPipPipPip
  • 1,143 posts
  • Joined: 26-October 07
  • Gender:Male
  • Location:Lexington. SC

Posted 09 August 2015 - 07:32 PM

You're gonna have to get your priorities straight :D!



Don


Don Weaver
The supply of government exceeds demand.
L.H. Lapham

If the brain-eating amoeba invades Washington
it will starve to death...



How do you spell "leverage"?

........R-A-N-S-O-M


#118 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 11 August 2015 - 12:38 PM

I'm back on track, Don, although my progress is slow... as usual. :wacko2:

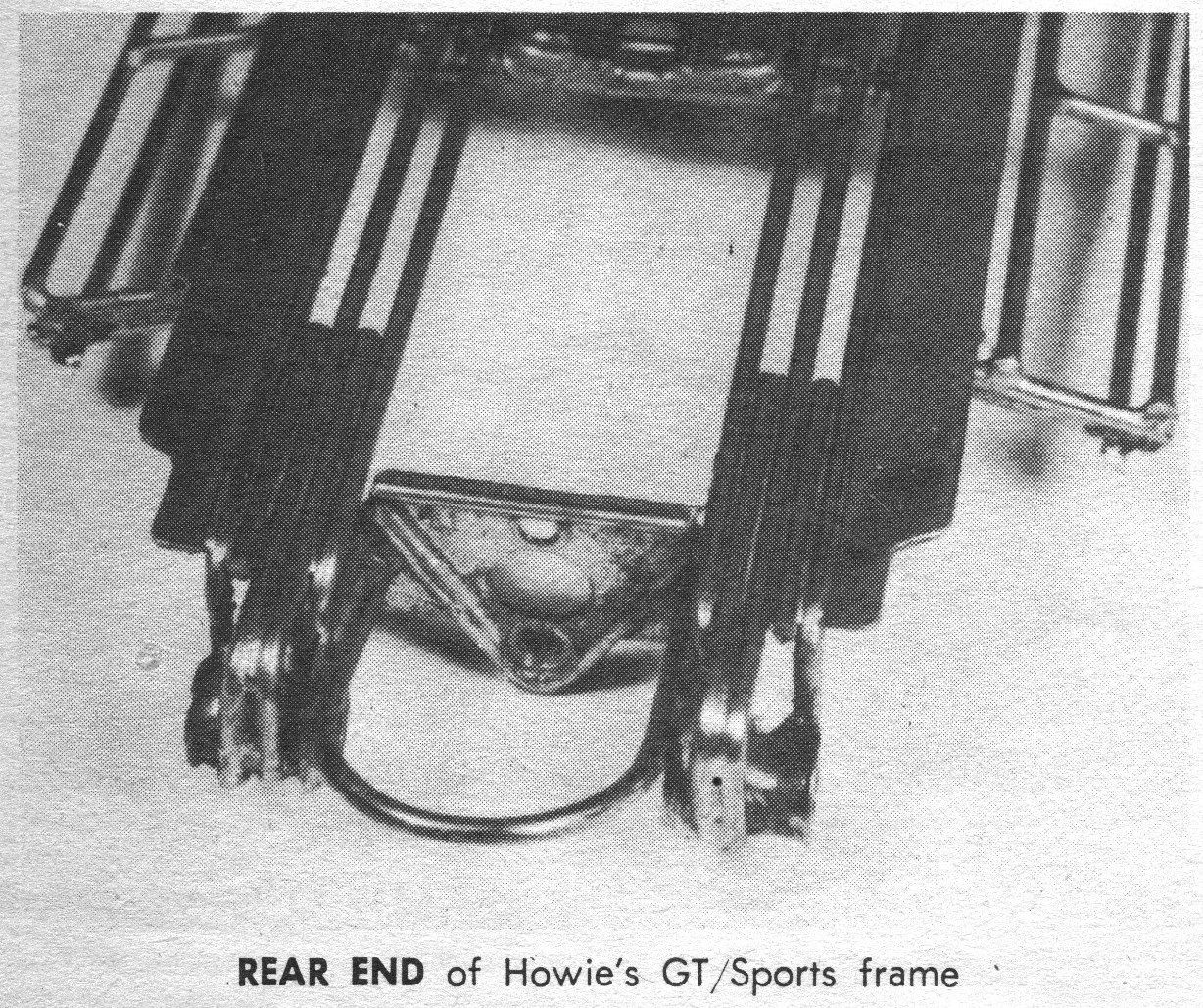

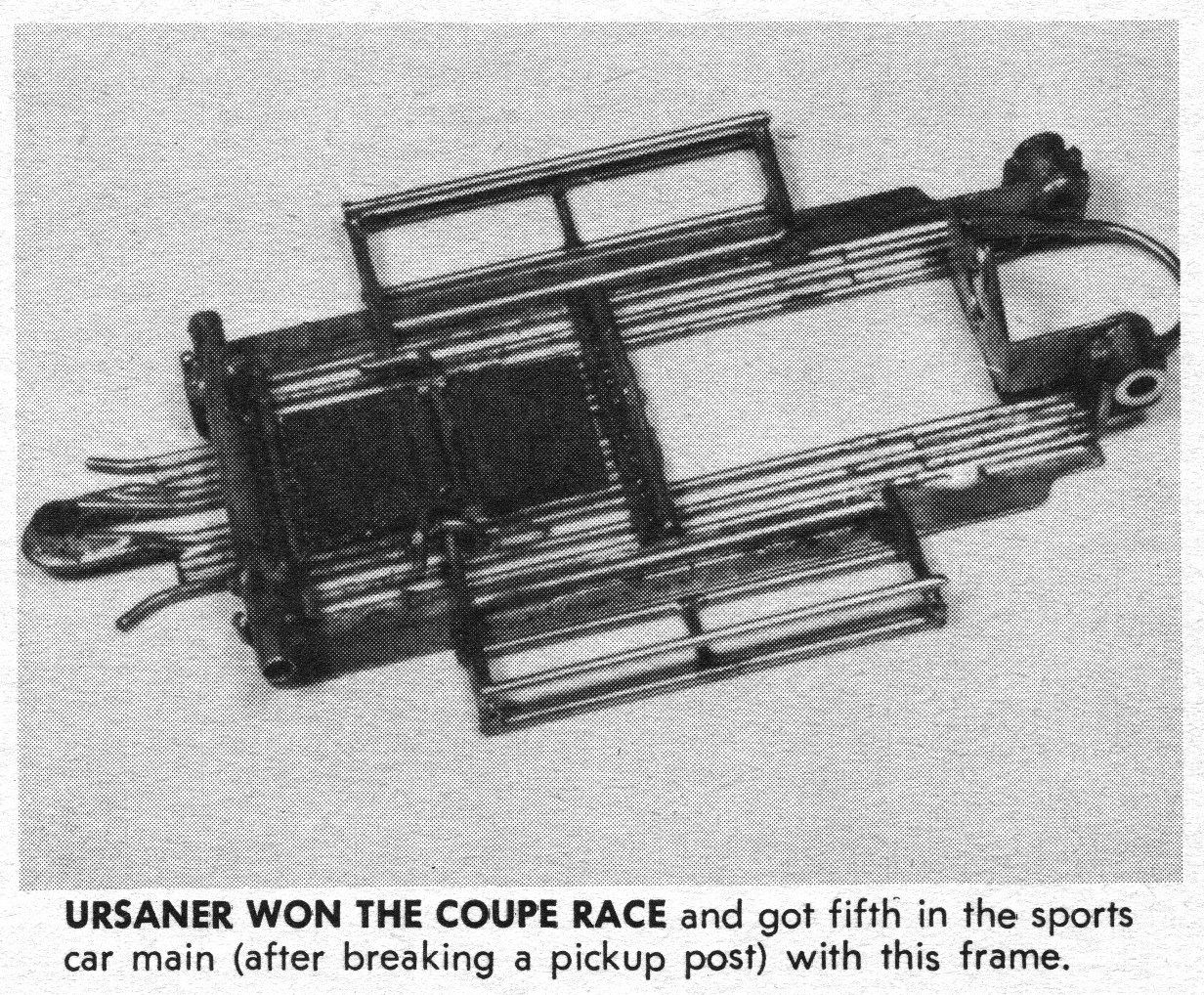

Here's the first page of the Mike Morrissey construction article I'm following. I'll be posting pictures that more or less follow his steps while pointing out what I'll be doing differently to keep in line with Howie's original:



MCJ V1N3 p4.jpg

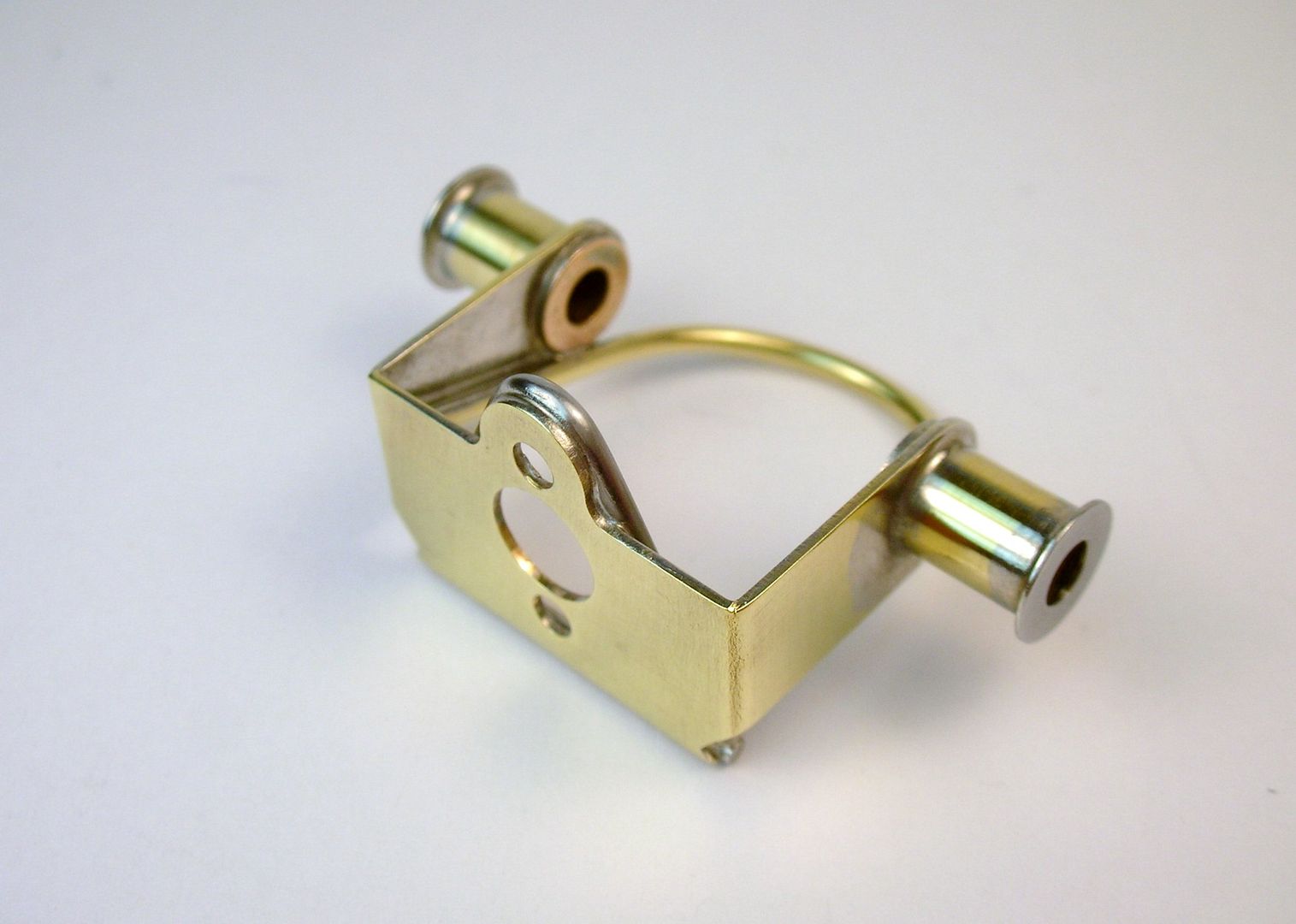

Step 1: Russkit bracked reamed out 3/16" OD. Bearings mounted from the inside facing outward. 7/32" tube slipped over the bearing. What Howie did differently is solder his thrust washer in place:

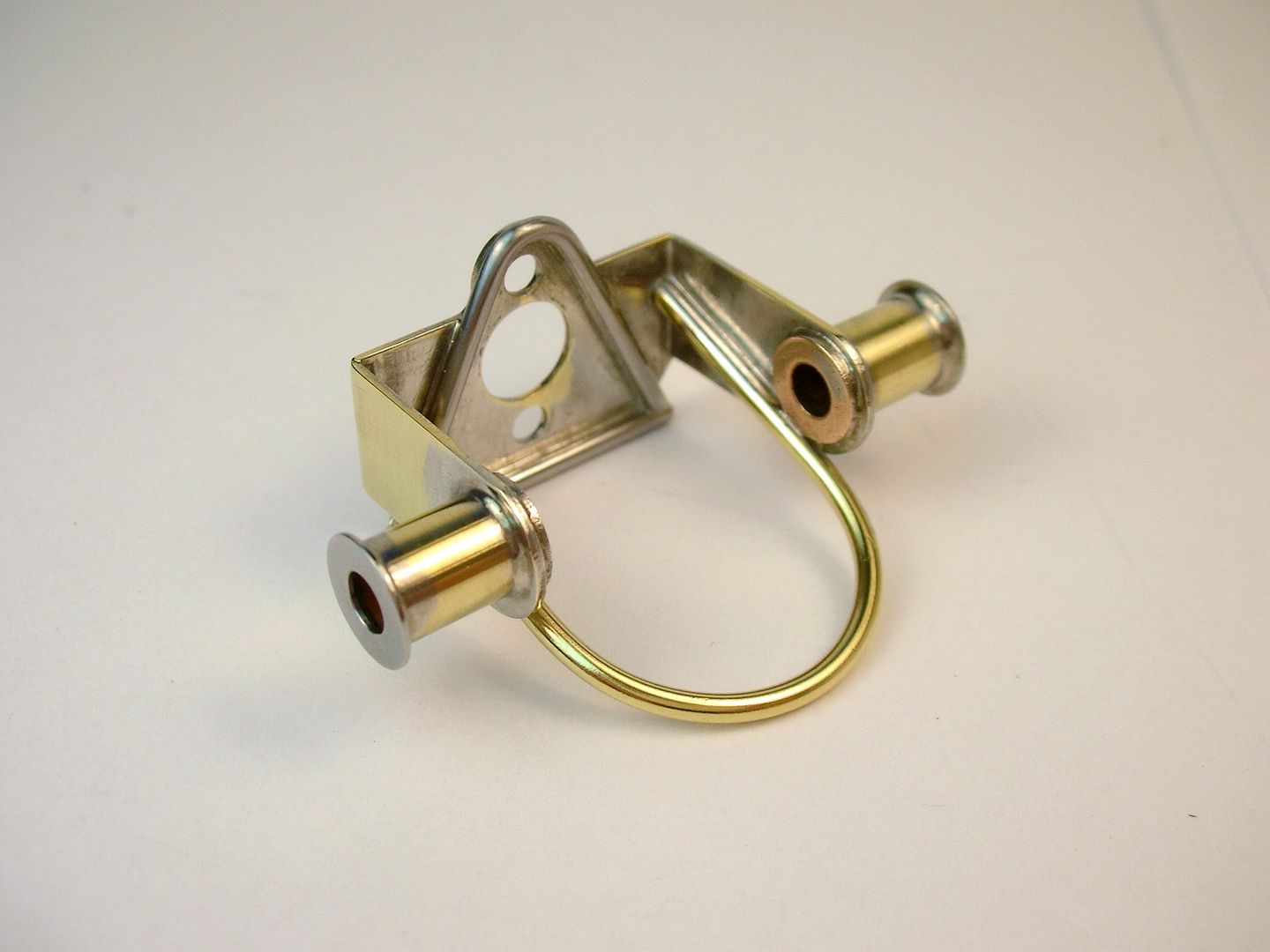

Step 2:  Everything fixtured up in my Rick's jig and the main rails soldered in place:






Step 3:  Reinforcing rods soldered between the main rails to combat chatter:






Next up will be the 1/4" wide brass strips and drop arm pivot... but first, lunch. :laugh2:


  • slotbaker, miko and Peter Horvath like this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#119 SlotStox#53

SlotStox#53

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 3,820 posts
  • Joined: 13-March 13
  • Gender:Male
  • Location:TX

Posted 11 August 2015 - 01:04 PM

Everything stops for lunch.  :D :laugh2:

Great progress so far, Rick; looks sweet already. Will have to remember about those reinforcing rods to stop chatter .



#120 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 11 August 2015 - 05:51 PM

Lovely.

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#121 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 11 August 2015 - 09:32 PM

Thanks! So far, so good...



Step 4.  Here's the bracket bracing ala Howie and a peek at the 1/4" brass strips:






Step 5. More views of the bracket bracing:






Skipping the step 6 comparo of Mike and Howie's chassis we move to...



Step 7.  The pickup pivot. I still need to cut out the center of it:






Finishing off for tonight here are some shots of the brass strips soldered onto the center section:












Onward... :victory:


  • endbelldrive, slotbaker, miko and 2 others like this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#122 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 12 August 2015 - 06:26 AM

Makes me want to throw away my jigs and never turn my iron on again.
  • Cheater, slotbaker, Tex and 2 others like this

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#123 Tex

Tex

    Grand Champion Poster

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 8,827 posts
  • Joined: 07-July 06
  • Gender:Male
  • Location:Denton, TX

Posted 12 August 2015 - 08:09 AM

Can't say enough about how much I enjoy your artistry, Rick.


Richard L. Hofer

Remember, two wrongs don't make a right... but three lefts do! Only you're a block over and a block behind.

#124 Hworth08

Hworth08

    Posting Leader

  • Full Member
  • PipPipPipPipPipPipPip
  • 3,563 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:Springfield, TN

Posted 12 August 2015 - 09:22 AM

Looking good!


Don Hollingsworth

#125 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 12 August 2015 - 09:37 AM

Thanks Tony, but if you never "turned your iron on again" I wouldn't have any chassis designs to copy! :crazy: Pros like you and Howie came up with the design innovation, built chassis quickly, efficiently and raced the pee out of them. I have the luxury of using every tool I can find and spending as much time as necessary to try and make a fitting tribute to the originals.


  • Half Fast likes this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#126 Howie Ursaner

Howie Ursaner

    Checkered Flag in Hand

  • Full Member
  • PipPipPipPipPipPip
  • 1,266 posts
  • Joined: 01-March 07
  • Gender:Male

Posted 12 August 2015 - 09:52 AM

So much fun to see this coming along. The artist is creating another masterpiece.



Thanks, Rick.


Howie Ursaner

#127 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 12 August 2015 - 11:05 AM

Thanks, Howie.  :)



The drop arm is up next (Howie's original is on the left below):






I love lots of brass rod!




But first, I have to prepare for lunch...  :laugh2:  My wife it taking me to the Historic Oakland Tavern for one of their "OT Grinder" Sandwiches (olive oil and Italian seasonings with ham, salami, pepperoni, tomato, green pepper, onion, melted provolone, and red wine vinegar)...and, of course, several pints of PBR.  :dance3:






WEEE!!!


  • endbelldrive, Tex, Howie Ursaner and 1 other like this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#128 Pablo

Pablo

    Builder

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 12,274 posts
  • Joined: 20-February 06
  • Gender:Male
  • Location:Johnson Bayou

Posted 13 August 2015 - 01:59 PM

Must have been some sandwich.  :D :good:


  • Howie Ursaner likes this
Paul Wolcott

#129 Don Weaver

Don Weaver

    Checkered Flag in Hand

  • Subscriber
  • PipPipPipPipPipPip
  • 1,143 posts
  • Joined: 26-October 07
  • Gender:Male
  • Location:Lexington. SC

Posted 13 August 2015 - 03:52 PM

PBR??? :shok:  Didn't know they still made the stuff...


Don Weaver
The supply of government exceeds demand.
L.H. Lapham

If the brain-eating amoeba invades Washington
it will starve to death...



How do you spell "leverage"?

........R-A-N-S-O-M


#130 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 13 August 2015 - 04:06 PM

Must have been some sandwich.  :D :good:



Hi Pablo... you're right!



Im%20so%20full%20I%20couldnt%20eat%20ano



PBR??? :shok:  Didn't know they still made the stuff...






I'm recovered now and working on the drop arm.  :D


  • Tex likes this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#131 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 14 August 2015 - 05:17 PM

Here are the final steps in Part 1 of Mike Morrissey's how-to build article:



MCJ V1N3 p5.jpg



Here's my version with Howie's built-up rod drop arm:



No Step 9 as we're not using plate for the arm...



Step 10. The same 1/16" clearance but thank goodness I'm using a "Rick's Jig" and not that Adjust-O Jig!!!






Step 11. The brass rod guide pivot tube mounts:






Step 12. A conventional drop arm upward stop instead of Mike's "fancy lad" version :) :






Step 13 isn't completed yet, the down stop and weights...



Step 14. The guide pickup pivot stops:






Step 15. The cross piece that prevents the chassis from spreading or squeezing is placed in front of the pivot per Howie's chassis:






Step 16. Top view of the completed swing arm in the chassis:






Here's the drop arm by itself. Quite time consuming for me to do compared to a plate arm but I think it looks cool!









Time to move on to Part 2 of the construction article and finish up the chassis....


  • endbelldrive, slotbaker, Pablo and 3 others like this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#132 Howie Ursaner

Howie Ursaner

    Checkered Flag in Hand

  • Full Member
  • PipPipPipPipPipPip
  • 1,266 posts
  • Joined: 01-March 07
  • Gender:Male

Posted 15 August 2015 - 12:27 AM

That is some sano work. Your build brings back memories of my bedroom in my moms apartment on the 11th floor in Forest Hills, NY, where i built all my cars, including full motor winding, balancing, armature, magnets ,etc.



Sandy was my teammate and close friend and my biggest rival... we both built cars and motors and did not share them with each other. We shared all speed secrets but it was my cars against his cars and he had great cars also. He made every race tough...



 It was really exciting to  have a car this good at the Arco Nats. It was the best thing I ever had or seen to that point.


  • Pablo and Tex like this
Howie Ursaner

#133 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 15 August 2015 - 10:46 AM

Thanks, Howie, I'm glad you're happy so far. I will try my best to make the chassis neat and shiny to show off your design.



This car won't have the same performance your original car had. There's just something magical (really!) the top Pros brought to a build that mere mortals can't duplicate. That's why you guys won all the time! :good:


  • Pablo and Howie Ursaner like this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#134 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 15 August 2015 - 12:38 PM

You had to sell your soul to the devil.
  • Pablo and Howie Ursaner like this

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#135 Pablo

Pablo

    Builder

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 12,274 posts
  • Joined: 20-February 06
  • Gender:Male
  • Location:Johnson Bayou

Posted 15 August 2015 - 01:09 PM

Evil Bucks.  :D





Paul Wolcott

#136 don.siegel

don.siegel

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 3,794 posts
  • Joined: 17-February 06
  • Gender:Male
  • Location:Paris, France

Posted 16 August 2015 - 09:46 AM

Question for Howie,



Why did you make the drop arm of rod, if a plate arm was already available at the time?



Aesthetics? Material availability? Cost?



Thanks,



Don



#137 Howie Ursaner

Howie Ursaner

    Checkered Flag in Hand

  • Full Member
  • PipPipPipPipPipPip
  • 1,266 posts
  • Joined: 01-March 07
  • Gender:Male

Posted 16 August 2015 - 10:26 AM

Hi Don ,



I always cut up the previous chassis to make the new one. That is why none of my cars exist. We rarely ran the same car twice back then.



That drop arm was probably in a few chassis. I think I just liked the way that one worked.


  • Tex likes this
Howie Ursaner

#138 don.siegel

don.siegel

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 3,794 posts
  • Joined: 17-February 06
  • Gender:Male
  • Location:Paris, France

Posted 16 August 2015 - 11:49 AM

Thanks Howie, should have thought of that!



I guess we were all cannabilizing old chassis to make the next one, but didn't really think of recovering a drop arm! Of course, mine were nowhere near as nice as this one...



Don



#139 Tex

Tex

    Grand Champion Poster

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 8,827 posts
  • Joined: 07-July 06
  • Gender:Male
  • Location:Denton, TX

Posted 16 August 2015 - 12:14 PM

Interesting.
Richard L. Hofer

Remember, two wrongs don't make a right... but three lefts do! Only you're a block over and a block behind.

#140 Hworth08

Hworth08

    Posting Leader

  • Full Member
  • PipPipPipPipPipPipPip
  • 3,563 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:Springfield, TN

Posted 16 August 2015 - 02:10 PM

The better builders at our track sold their old frames. Motor bracket and brass for a new frame was a dollar or two, a decent used frame would sell for $8 to 12 plus saving some time melting and cleaning old parts.



Our track owner encouraged this. That way the non-builders could have good cars that increased business. Everybody came out ahead.


  • Cheater likes this
Don Hollingsworth

#141 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 16 August 2015 - 02:28 PM

On the drop arm... Cukras won two weeks before the Arco with a plate arm on his F1 that was the first time a pro racer used it. With no internet back then Howie probably never saw it before Atlanta.

I agree cars were sold off or scavenged for parts. Drop arms sucked making so they used to see a lot of mileage on various cars.

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#142 Samiam

Samiam

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 3,987 posts
  • Joined: 18-January 12
  • Gender:Male
  • Location:Long Island, NY

Posted 16 August 2015 - 04:33 PM

The better builders at our track sold their old frames. Motor bracket and brass for a new frame was a dollar or two, a decent used frame would sell for $8 to 12 plus saving some time melting and cleaning old parts.

Our track owner encouraged this. That way the non-builders could have good cars that increased business. Everybody came out ahead.


Sounds like what goes on now in Retro. It's like déjà vu all over again.
Sam Levitch

When the only tool you have is a hammer, everything is a nail.
Support your local raceway, or you won't have one.
Slot cars are quad-pods.
Support your "Local Racer."
:laugh2:

#143 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 16 August 2015 - 08:44 PM

Drop arms sucked making so they used to see a lot of mileage on various cars.


I couldn't agree more, Tony!  :laugh2:  I love the way this arm looks... especially now that it's almost finished. But, it was a painful process.  :crazy:  :D
  • Howie Ursaner likes this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#144 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 19 August 2015 - 11:21 AM

I'm coming to the conclusion of the chassis build... here is Mike Morrissey's "Part 2" construction article with my pics matching Mike's where possible:

MCJ V1N4 p4.jpg

No Step 1 as the bracing is already finished on Howie's:

Step 2.  Mike used a pair of pan hinge tubes, Howie used a one-piece job. I use a one-piece with a "blow hole" to allow me to blow out the acid flux and water. It also allows removal of the drop arm pivot rod:


Step 3. I soldered the body mount pin tubes to the pan hinges first. That way I'm not going to accidentally soldered them up solid :shok: :


Here's my "Rick's Jig" setup for the pans:


OK, time to get soldering :D :

  • Tex, Howie Ursaner, miko and 1 other like this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#145 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 19 August 2015 - 12:14 PM

I loved the round rear braces. I used to bend mine sitting on my bed where I built all my chassis with pliers and an old rim. LOL.
  • Pablo and Howie Ursaner like this

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#146 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 19 August 2015 - 01:21 PM

Hi Tony,

I like the look of the round brace, too... but it's the last piano wire version I'll be making... I hope! :shok:  I almost blew my thumbs out trying to bend that stuff around a piece of round stock.

:laugh2:
  • Howie Ursaner likes this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#147 tonyp

tonyp

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 13,419 posts
  • Joined: 12-February 07
  • Gender:Male
  • Location:Sanford, FL, land of lizards and big roaches

Posted 19 August 2015 - 01:53 PM

It's tough.

"And if my thought-dreams could be seen they'd probably put my head in a guillotine. But it's alright, Ma, it's life, and life only." - Dylan

1965 "Evil Bucks Racer" Team
Revtech Team Trinity
Noose Painted Bodies
Retro East co-founder
American King track single lap world record holder & 40 minute total lap record
First IM Nationals Champion
Arco Champion
Car Model Magazine Series Amateur Champion
2016 ORS Anglewinder Constructors Championsh
ip


#148 dc-65x

dc-65x

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 4,961 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 20 August 2015 - 07:43 PM

Finishing the chassis up. I went back to do step 13 in part 1 of Morrissey's build article. I wanted to wait to finish the pan down stop before doing this step:

Step 13. I used lead instead of brass for weights as I think (hope!) Howie did, too. Also in place is the down stop:


I now realize I am truly crazed. I spent over an hour squaring up the lead weights with a file and machinist square. :wacko2: :laugh2:


As I built the tilting body mounts I got carried away and didn't stop for pictures. Here are several of Mike's steps in one shot:

Steps 4, 5, & 6. Building up the tilting body mounts:


Step 7. The downward stops:


Step 8. The prescribed 3/32" of upward tilt:


Finished!


Here are three shots each of the top and bottom of the finished chassis:







I hope you like it, Howie.


  • Jairus, endbelldrive, slotbaker and 4 others like this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#149 Tex

Tex

    Grand Champion Poster

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 8,827 posts
  • Joined: 07-July 06
  • Gender:Male
  • Location:Denton, TX

Posted 20 August 2015 - 09:33 PM

Mmmmm... shiny brass! Very shiny brass!



When I retire, Rick, I'm comin' up there to be your gopher for a week, hoping you'll let me drive some of your cars on your track.


Richard L. Hofer

Remember, two wrongs don't make a right... but three lefts do! Only you're a block over and a block behind.

#150 Howie Ursaner

Howie Ursaner

    Checkered Flag in Hand

  • Full Member
  • PipPipPipPipPipPip
  • 1,266 posts
  • Joined: 01-March 07
  • Gender:Male

Posted 20 August 2015 - 10:57 PM

I like it. It is a masterpiece. I might be a little biased but I think it's the nicest one I have seen. :bomb:



Thank you for creating this, Rick!



Here is the Russkit Adjust-O-Jig I built all my cars on.



RUSSKIT JIG.JPG


  • Cheater, endbelldrive and MSwiss like this
Howie Ursaner





Electric Dreams Online Shop
