Posted 17 October 2015 - 06:08 PM

true craftsmanship is always beautifull to see






#27 Jairus

Jairus

    Body Painter Extraordinaire

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 9,400 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:Salem, OR

Posted 17 October 2015 - 11:22 PM

You know... as editor, Gregg can only fire me.
Tell you what Régis, if Don is willing to help, I can promise you that this project will see the pages of Slot Cars Magazine. Damn the rules!


My justification is that the readership on this forum and FOLM is so small as to make publication in an international magazine worthwhile.
Especially since the project is just too cool not to print!
Keep your photos high resolution as possible please...

... and just do what you do best.
J


Jairus H Watson - Artist
Need something painted, soldered, carved, or killed? - jairuswtsn@aol.com

www.slotcarsmag.com

www.jairuswatson.net
http://www.ratholecustoms.com
Check out some of the cool stuff on my Fotki!


#28 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 18 October 2015 - 03:41 PM

Thank you friends,

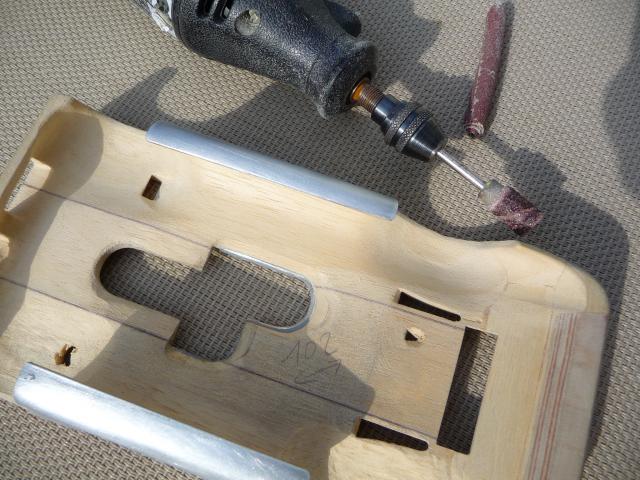

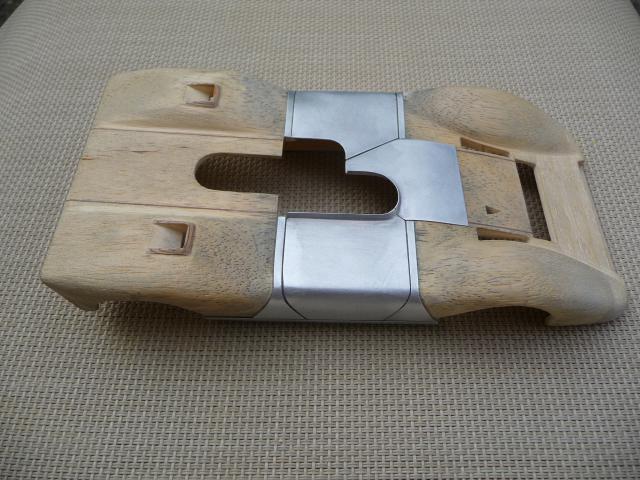

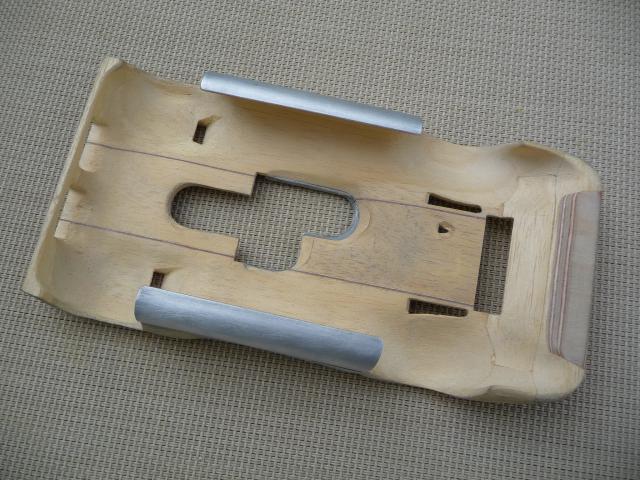

I currently reflected on the chassis and on the wing, and if the car is successful, I will do an article with photos.

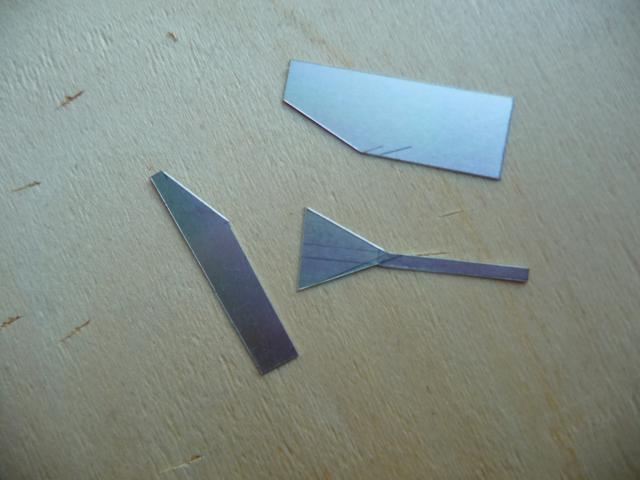

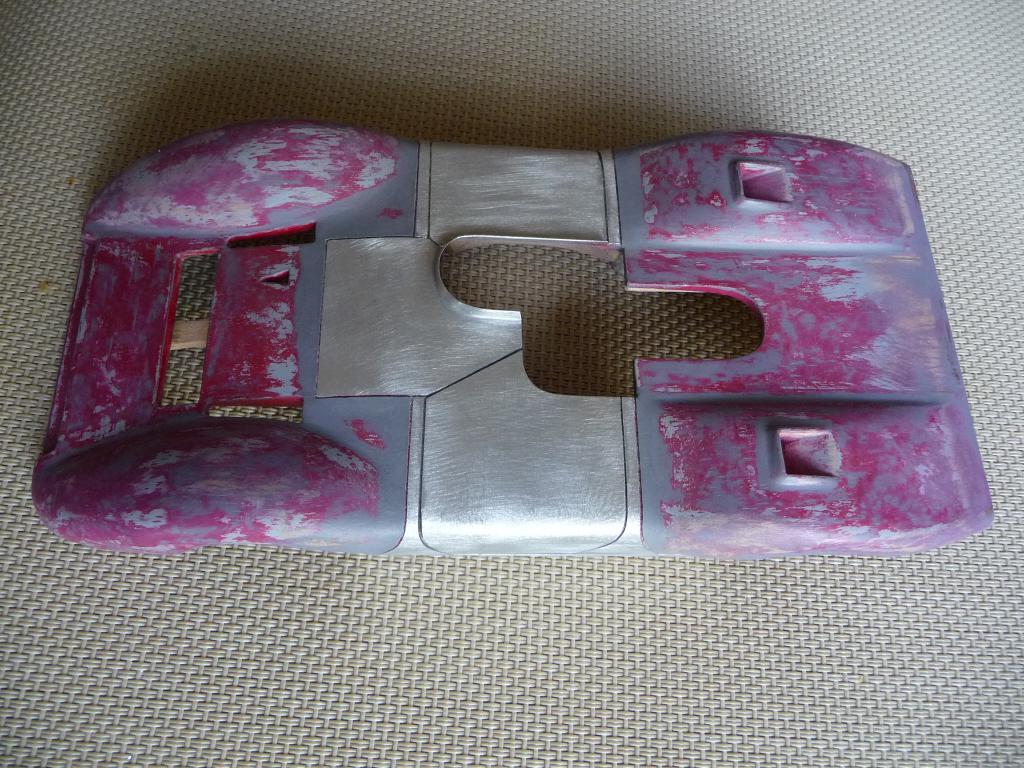

Here is the last piece of aluminum, rough cutting, it will be then adjusted formed and stuck to araldite on the body.

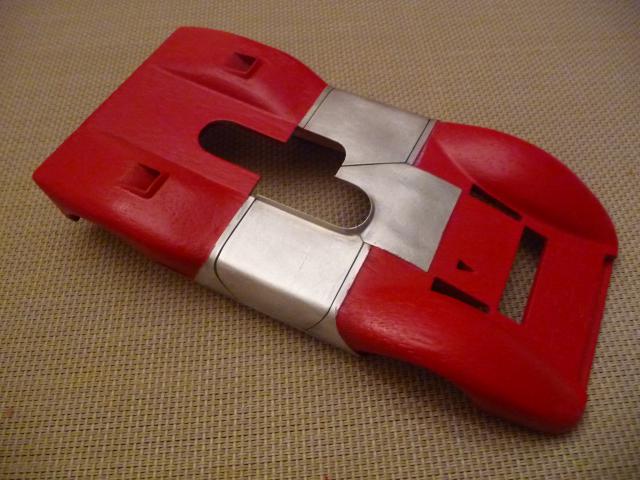

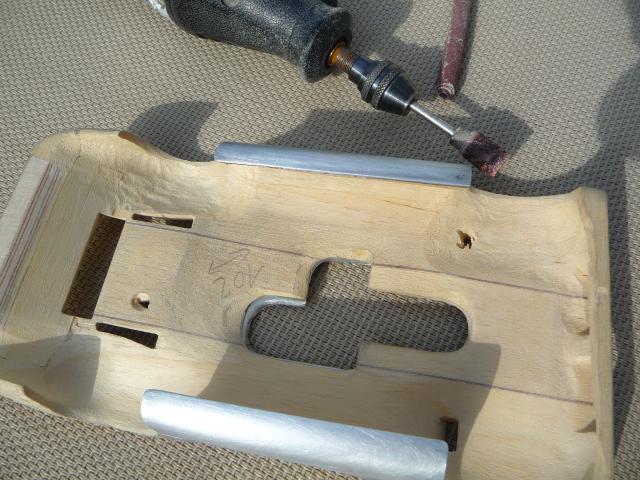

The body being slimming


body weighs 35 g with dimensions of 88 by 173 mm.

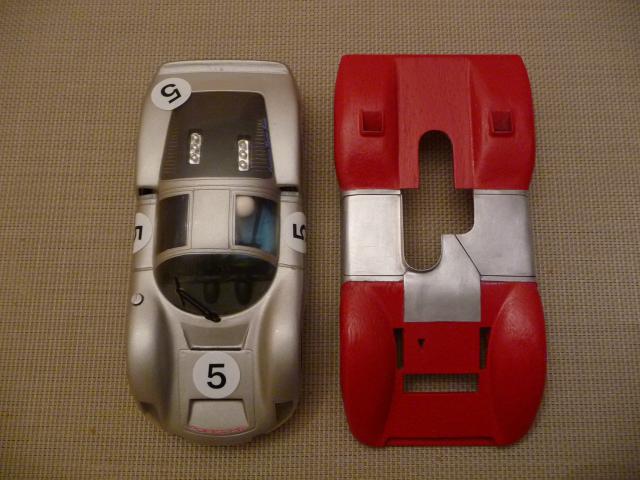

Real cars monsters, here next to a Porsche Russkit, I could not resist the urge to paint in red to see the car's curves

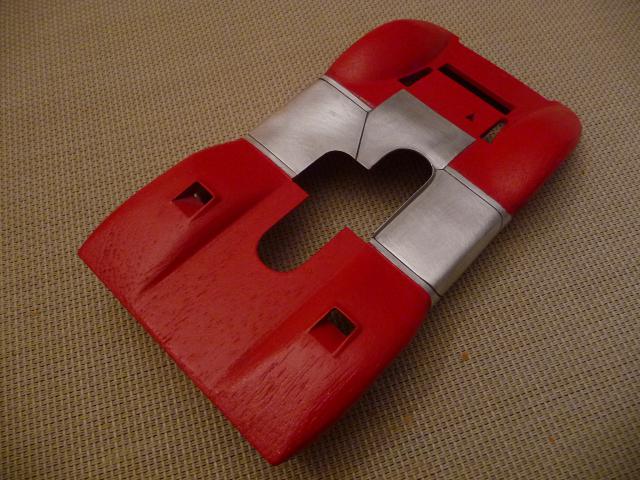

p1130070-4d2267d.jpg[/quote]
  • endbelldrive, miko and C. J. Bupgoo like this
Régis Baron

#29 Jairus

Jairus

    Body Painter Extraordinaire

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 9,400 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:Salem, OR

Posted 18 October 2015 - 06:38 PM

I learned doing the Balsa Proxy that that sealing the wood was of utmost importance.
So I painted a lot of clear sealer on first before primer and then base coat.

But then you already know that.... Carry on!
Official word from the publisher: "bend da rules".
Please excuse his use of slang Régis.


Jairus H Watson - Artist
Need something painted, soldered, carved, or killed? - jairuswtsn@aol.com

www.slotcarsmag.com

www.jairuswatson.net
http://www.ratholecustoms.com
Check out some of the cool stuff on my Fotki!


#30 Marty N

Marty N

    Race Leader

  • Banned
  • PipPipPipPipPip
  • 544 posts
  • Joined: 23-February 11
  • Gender:Male
  • Location:Kingston, IL

Posted 21 October 2015 - 02:48 PM

These builds are the most interesting thing about this board. The shear talent display is awesome. Love this project. Loved Jairus project just as much.


Martin Nissen

So hard a judge they hope never to meet as themselves.

#31 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 23 October 2015 - 07:42 AM

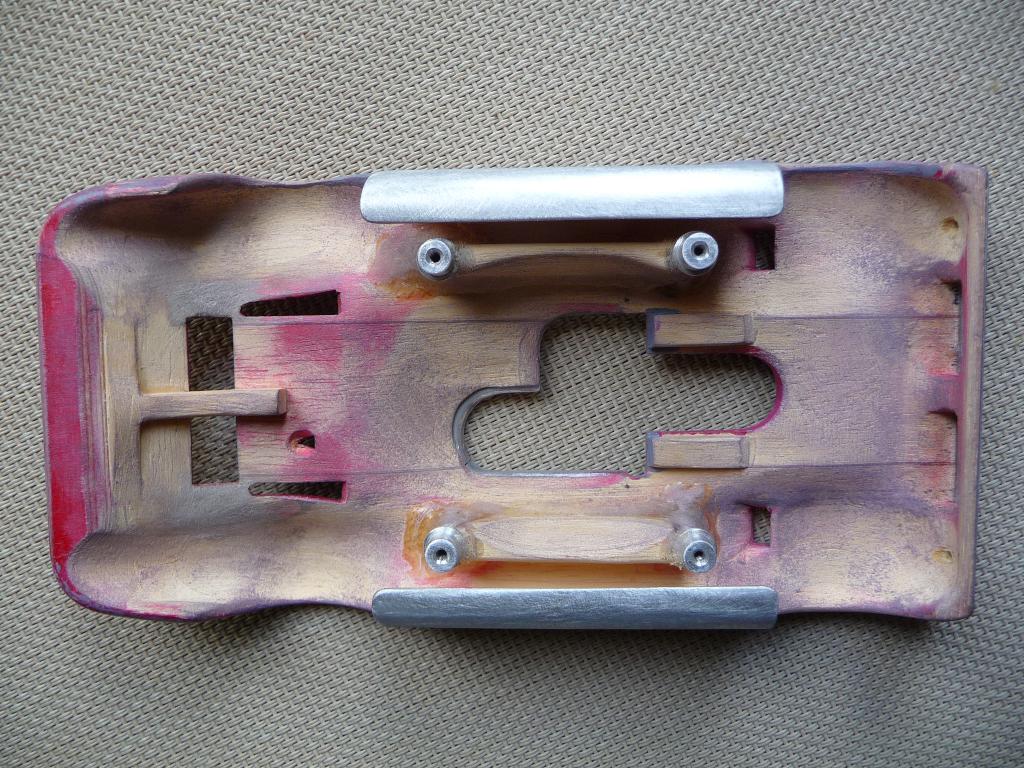

a little mahogany and aluminum to strengthen







  • slotbaker, n.elmholt, miko and 1 other like this
Régis Baron

#32 n.elmholt

n.elmholt

    Race Leader

  • Moderator
  • PipPipPipPipPip
  • 991 posts
  • Joined: 06-May 06
  • Gender:Male
  • Location:Denmark

Posted 23 October 2015 - 08:06 PM

I made a static 1:24 model of the same car in the last century. I think it was started 25-30 years ago, but was finished about 15-20 years ago.
I was based on a clear slot car body - i think it was from GT-Models (UK) - and the body was made in Glasfiber from a automotive repair kit - everything was very primitive then. But still today I wonder how I made it - the body parts are very thin and delicate.






Most of the parts came from the Heller Ferrari 330P4 plastic kit, including the engine. The model is not a great scale model, but looks good on my shelf :-)  the decals are deliberately fantasy as I did not like the sloppy livery the 1:1 CanAm cars had, so I dressed it in the "European" fashion :-)



I spent numerous hours on my model, so I really appreciate the amount of work Régis puts in his body.



Here is more pics of my model: http://racecars.dk/Ferrari612CanAm.htm





sorry for hijacking the tread, but I am crazy about this car :-)





Niels, DK


  • endbelldrive, Tex, miko and 1 other like this

Niels Elmholt Christensen, DK
www.racecars.dk - my Picasa Photos


#33 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 25 October 2015 - 02:58 AM

Niels It's ok, it is the same theme.

Thank you very much for your photos, you have done a remarkable job with many details.

Today I made exhausts and I started the aluminum fin because I was not able to stick corectement the aluminum sheet metal on a wooden wing.

  • Tex and C. J. Bupgoo like this
Régis Baron

#34 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 27 October 2015 - 03:38 AM

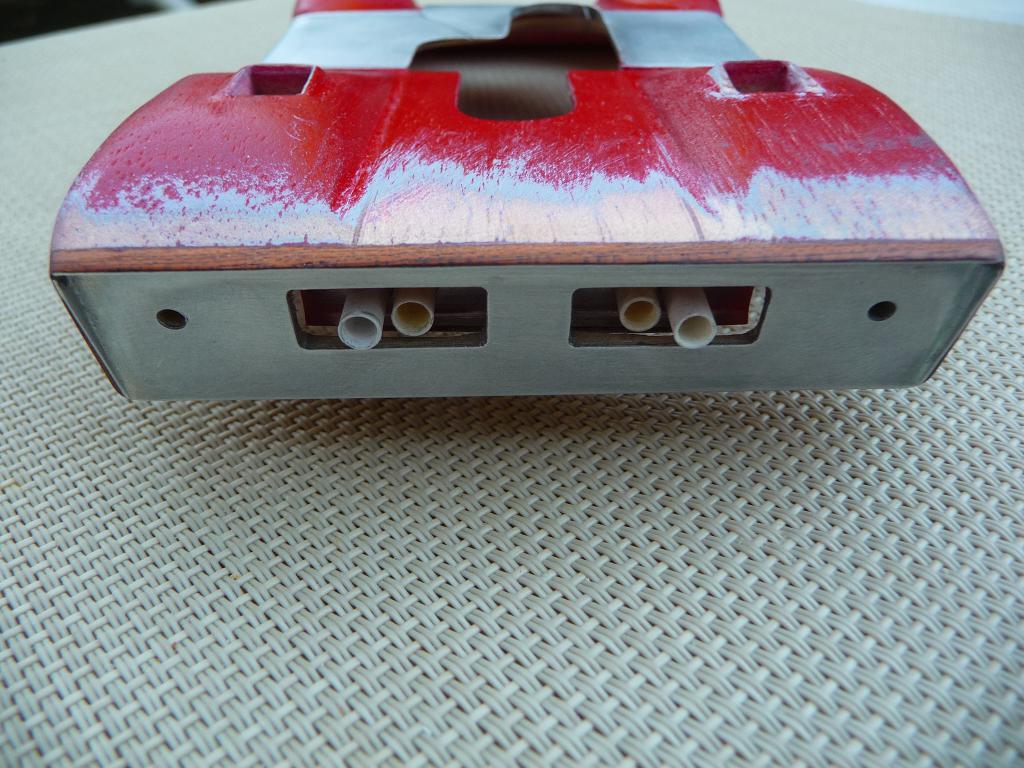

Here the picture exhausts glued aluminum plate and drilled for the mounting of the plastic tubes are more glued.



Here the wing made of aluminum, with its brake components



  • endbelldrive, slotbaker, Tex and 2 others like this
Régis Baron

#35 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 17 November 2015 - 12:26 PM

Here aluminum rims made on my metal lathe.

The resin inserts have been adjusted and glued on an aluminum washer, they must be painted.


  • slotbaker, Tex, miko and 1 other like this
Régis Baron

#36 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 21 November 2015 - 04:16 AM

It also requires that I look at how to fix the wing to the chassis, what is clear is that it will be removable and not too stuck in the body for not clamping the slight movements of the chassis.


  • Jairus, slotbaker, Tex and 2 others like this
Régis Baron

#37 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 06 December 2015 - 09:02 AM

It's almost the end.

Parts manufacturing of brass chassis.

The set is a little too heavy, the car weighs 197 g and it remains the details to mount.

















  • Jairus, endbelldrive, slotbaker and 6 others like this
Régis Baron

#38 racie35

racie35

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 359 posts
  • Joined: 14-May 13
  • Gender:Male
  • Location:Terre Haute, IN

Posted 06 December 2015 - 10:16 AM

Too cool for words!
Bruce Thomas

#39 Jairus

Jairus

    Body Painter Extraordinaire

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 9,400 posts
  • Joined: 16-February 06
  • Gender:Male
  • Location:Salem, OR

Posted 06 December 2015 - 10:35 AM

Régis, I love the chassis!
Not too heavy for a wood car and with the right gearing you'll find the 26D motor can pull it around just fine.  Might need to zap the magnets however if it's an old motor.  John Havlicek can build you one that will make that car SING!  (run fast)

Beautiful project sir.


Jairus H Watson - Artist
Need something painted, soldered, carved, or killed? - jairuswtsn@aol.com

www.slotcarsmag.com

www.jairuswatson.net
http://www.ratholecustoms.com
Check out some of the cool stuff on my Fotki!


#40 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 9,083 posts
  • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 06 December 2015 - 12:50 PM

Old Mabuchi magnets don't like zappers.


Bill Fernald


How old should a highway be before you tell it, that it has been adopted?


#41 dc-65x

dc-65x

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,141 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 06 December 2015 - 01:08 PM



Old Mabuchi magnets don't like zappers.




Bill is "Korrect". Mabuchi magnets were made by the process that makes them unable to be remagnetized by conventional means.....DON'T DO IT!



You'll kill or at the very least weaken them. :shok:


Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#42 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 06 December 2015 - 02:06 PM

thank you friends

Rest assured, I will not touch the engine.

I'm not sure I can make a run with a faster engine :wacko2:


Régis Baron

#43 Mark H

Mark H

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 590 posts
  • Joined: 02-September 09
  • Gender:Male
  • Location:SoCal

Posted 06 December 2015 - 09:26 PM

wow super cool! love that side shot!


Mark Haas

#44 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 12 December 2015 - 07:08 AM

Thank you friends for your advice and encouragement.



Today I made the rear lights, with pieces of a real car.

They are glued to the aluminum, and then I used my my lathe.




  • slotbaker, Tex, miko and 1 other like this
Régis Baron

#45 dc-65x

dc-65x

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,141 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 12 December 2015 - 12:50 PM

Now that's a nice little lathe project. Looks like fun! :good:


Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#46 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 20 December 2015 - 08:10 AM

Here is the strict minimum reduced engine for reasons of weight, the car with its frame now weighs 210g, and I still have to strengthen the front.






  • Jencar17, Tex, miko and 1 other like this
Régis Baron

#47 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 24 December 2015 - 10:26 AM

Latest photos before Christmas.
I'm happy as I managed to slip a driver PSK in full, copiously buffed, which I replaced the head.

I wish everyone, happy end of year celebrations






  • slotbaker, Tex, miko and 1 other like this
Régis Baron

#48 dc-65x

dc-65x

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,141 posts
  • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 24 December 2015 - 06:22 PM

Looks beautiful. Merry Christmas Regis.


Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...


#49 Régis4446

Régis4446

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 317 posts
  • Joined: 24-March 10
  • Gender:Male
  • Location:France

Posted 25 December 2015 - 05:50 AM

Rick merry christmas and all the others who encouraged me
  • endbelldrive likes this
Régis Baron

#50 Mark Johnson

Mark Johnson

    On The Lead Lap

  • Full Member
  • PipPipPipPip
  • 451 posts
  • Joined: 27-March 08
  • Gender:Male
  • Location:Minneapolis

Posted 26 December 2015 - 07:24 PM

superb
