#1 havlicek

havlicek

    OCD Rewinder

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 8,477 posts
  • Joined: 20-August 07
  • Gender:Male
  • Location:NY

Posted 08 March 2017 - 08:06 AM

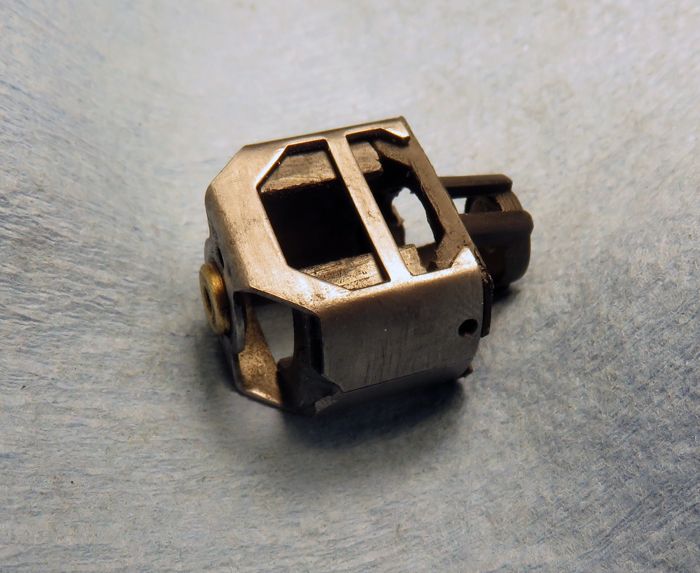

This is another one of those projects I've done and figured it was time to revisit... a shorty C motor. The motor is about the same length as a Hawk, even with the taller endbell tower. Mags were cut to get things to "land" in a reasonable place, can is way-shortened, so the endbell can be the stock length... which is a good thing because of heat and all.

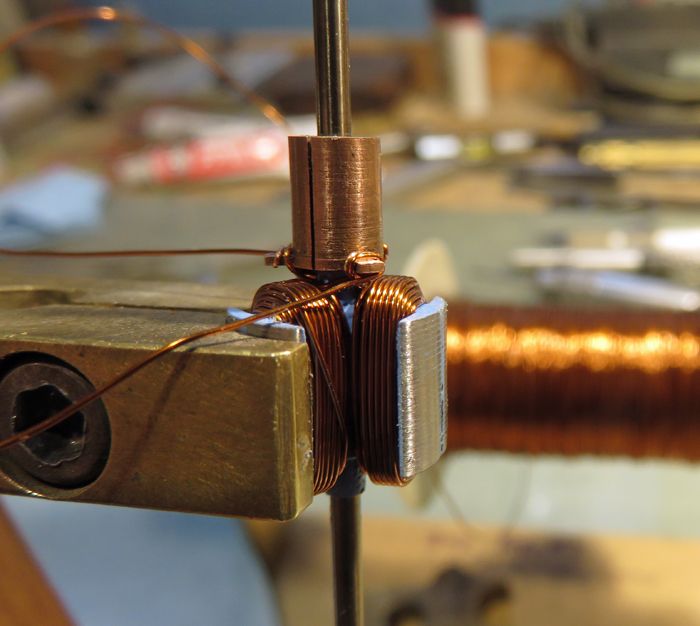

The arm will be a 38t/27 on a five-layer coil, wound on a .370" long blank. I could have gone to a .400" long stack, but opted to keep plenty of room on the tail-end of the arm. Instead of making a left turn at the top of the stack to get back to the comm, as would normally be necessary on an odd-number-layered coil, I used the last turn to get back diagonally. There's lots of ways to skin a cat when you're winding.


-john
  • Tex, Chris Stemman, B.C. and 4 others like this
John Havlicek




#2 Steve Deiters

Steve Deiters

    Checkered Flag in Hand

  • Full Member
  • PipPipPipPipPipPip
  • 1,760 posts
  • Joined: 28-May 07
  • Gender:Male
  • Location:Cincinnati, OH

Posted 08 March 2017 - 03:51 PM

Voodoo arm winding little person size!


  • havlicek likes this

#3 havlicek

havlicek

    OCD Rewinder

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 8,477 posts
  • Joined: 20-August 07
  • Gender:Male
  • Location:NY

Posted 08 March 2017 - 04:47 PM

It's pretty much the same thing as the C-can sized strap motor I did a while back, Steve... with a teeny bit more steel. :)

-john
John Havlicek

#4 havlicek

havlicek

    OCD Rewinder

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 8,477 posts
  • Joined: 20-August 07
  • Gender:Male
  • Location:NY

Posted 08 March 2017 - 05:33 PM

... and bam! Ready to go out for grind/balance. The little guy comes in at .134 ohms. which is way low for a #27, but not surprising considering the .370" long stack. I'm sure it will whistle the theme song from the Andy Griffiths Show... or something!


-john


  • Samiam and C. J. Bupgoo like this
John Havlicek

#5 Geary Carrier

Geary Carrier

    all there...???

  • Full Member
  • PipPip
  • 67 posts
  • Joined: 23-April 16
  • Gender:Male
  • Location:CT

Posted 08 March 2017 - 06:56 PM

Hi John,



Macro Block to Micro Block...



Man, you got it going on...



Thanks,



g


Yes, to be sure, this is it...


#6 havlicek

havlicek

    OCD Rewinder

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 8,477 posts
  • Joined: 20-August 07
  • Gender:Male
  • Location:NY

Posted 08 March 2017 - 08:18 PM

Thanks, Geary. You know what they say about "idle hands"!   :)



 Lately I have a pretty good flow going where I do projects for me (meaning projects that I just want to do, not that I'll keep them) on the side of projects for other people. I have a couple of Hawk arms to do for a racer, and that doesn't take much head-scratching... so this little bad boy made it's way to the front of the line.   :)



-john
