The earliest proven commercial slot/rail racing system was undoubtedly invented by Patrick Kennedy in England in the early 30s, with famous Bentley boy Sir Henry Birkin as an inventor. This popped up on a topic in SlotForum,

So I decided to compile the literature on the subject, as published in the two main British motor racing magazines of the mid-20th century, The Autocar and The Motor. With great thanks to Roger W. Greenslade, who did some of the earliest research into this subject, and cited all the known sources in his 1986 book, A History of Electric Model Roads and Racetracks.

There were three main systems that actually got up and running as far as we know, starting with the above-mentioned Kennedy system, first cited in the March 13, 1931 issue of The Autocar:


The next mention was in the February 19, 1932 issue of The Autocar, where it's called "quite the most fascinating toy that has ever been made." That's Mr. Kennedy, by the way Kensington-Moir's brother-in-law.

Autocar0232-amostexcitinggame_zpsec50df8

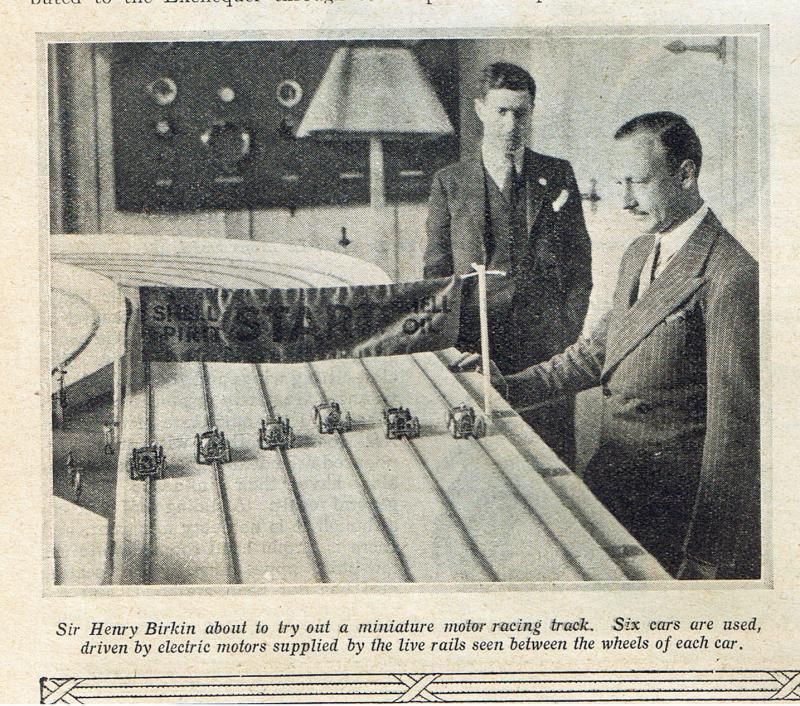

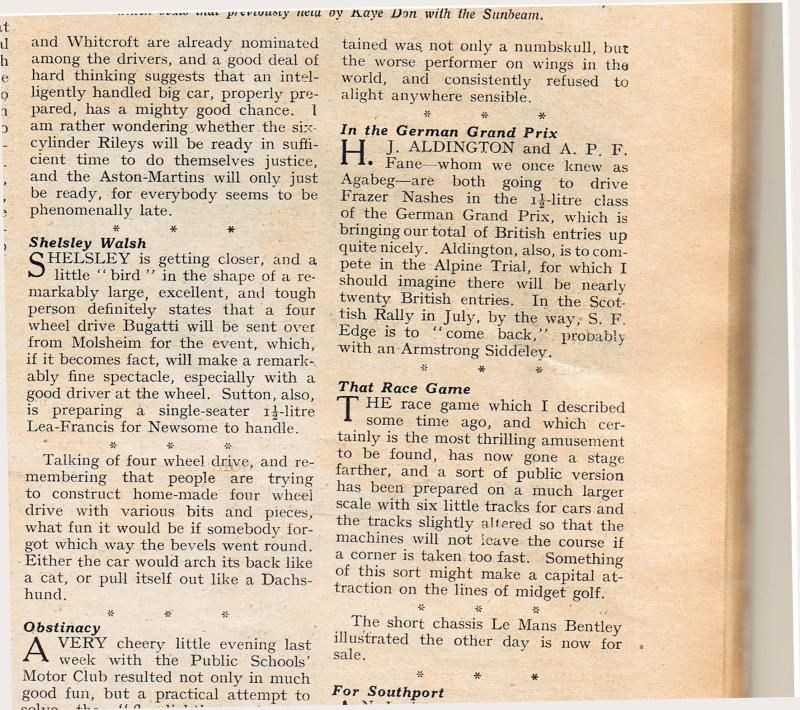

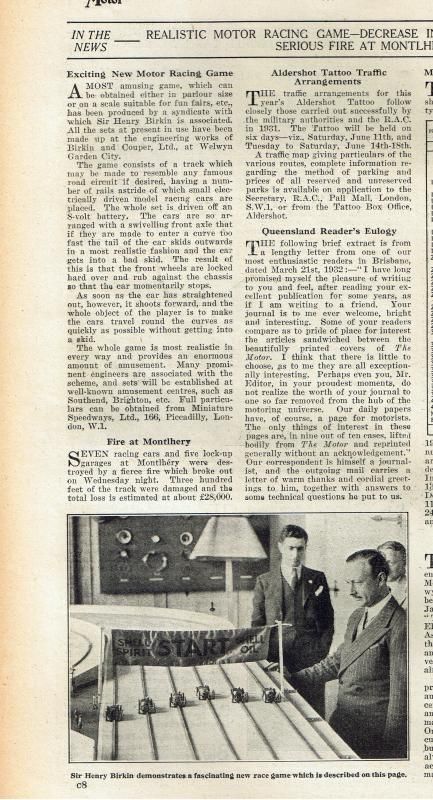

The big news comes in May of 1932, with the involvement of Henry Birkin, and the same photo in The Autocar (May 20, 1932) and The Motor (May 17)

Autocar0532-Birkinracegame_zpse09d5f72.j


Motor0532-Birkinnewracinggame_zps23fdeef

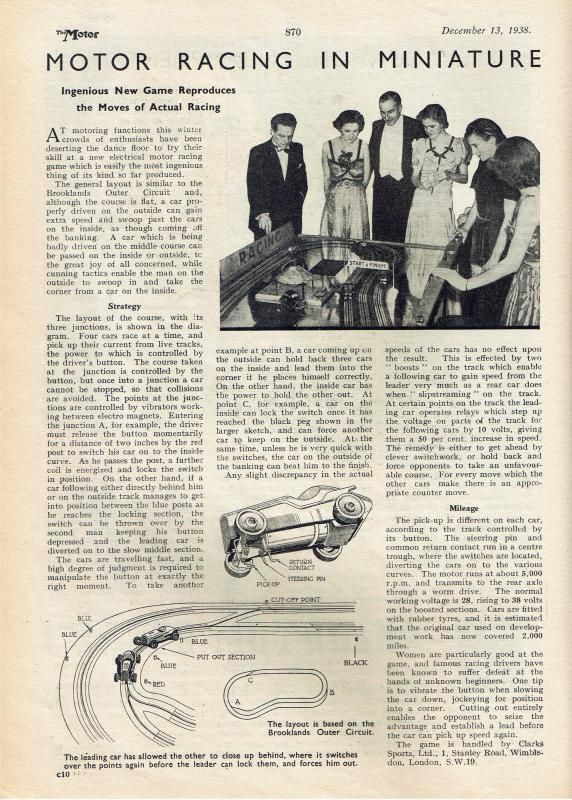

We didn't hear a lot more about the Kennedy game after this, at least no written traces that have been found. The next system to actually be constructed was mentioned in the December 13, 1938 issue of The Motor. A real slot setup, and what seems to be a pretty developed commercial system by Clarks Sports, with a power boost system and high voltage. But it came out less than a year before the outbreak of the war.... and you had to wear a tux to play...

Motor1238-MotorRacinginMiniature_zps9614

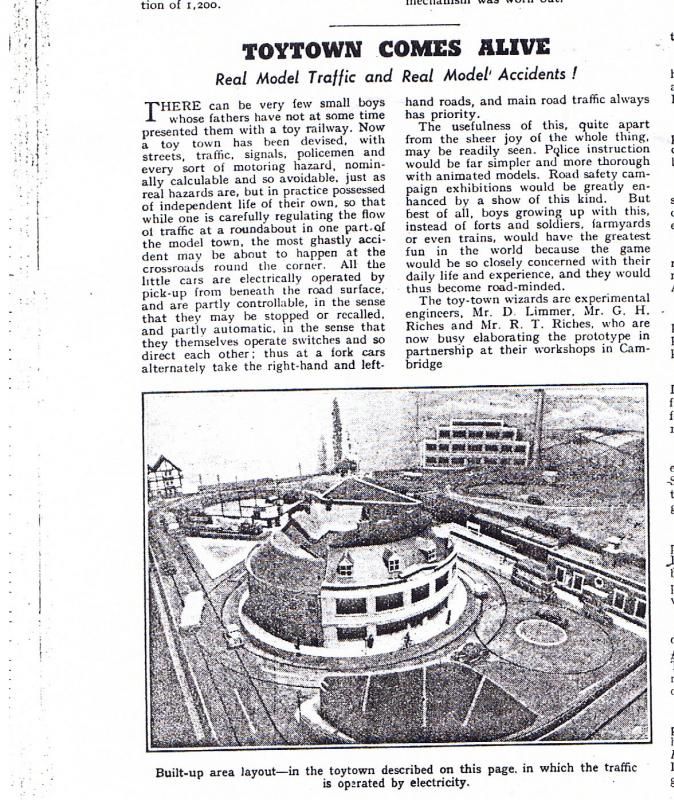

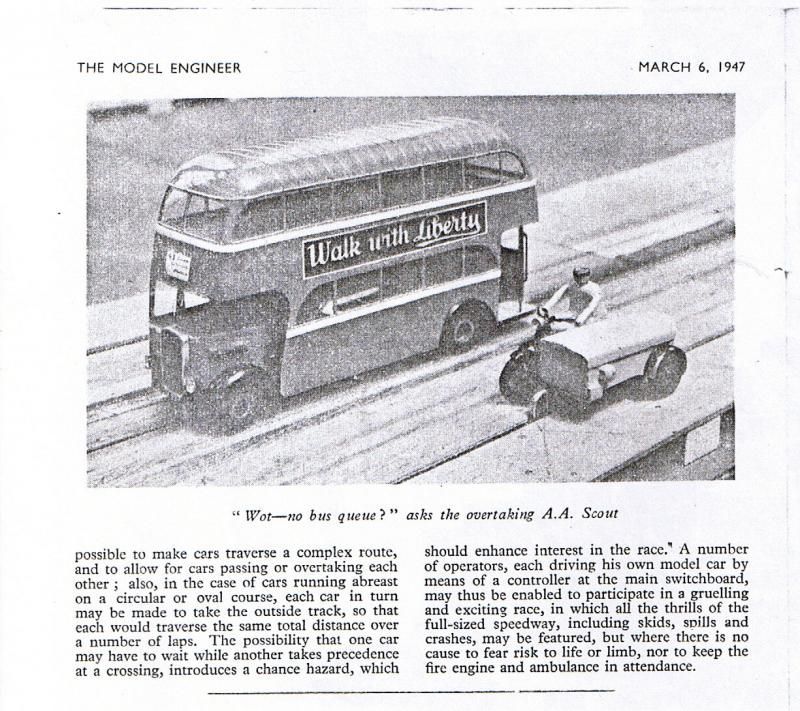

The next system that actually seems to have been built is by a Mr. Riches, and Bernard seems to have found a few of these cars too! First mention is in the January 31, 1947 issue of The Autocar, where it's still an animated toytown...

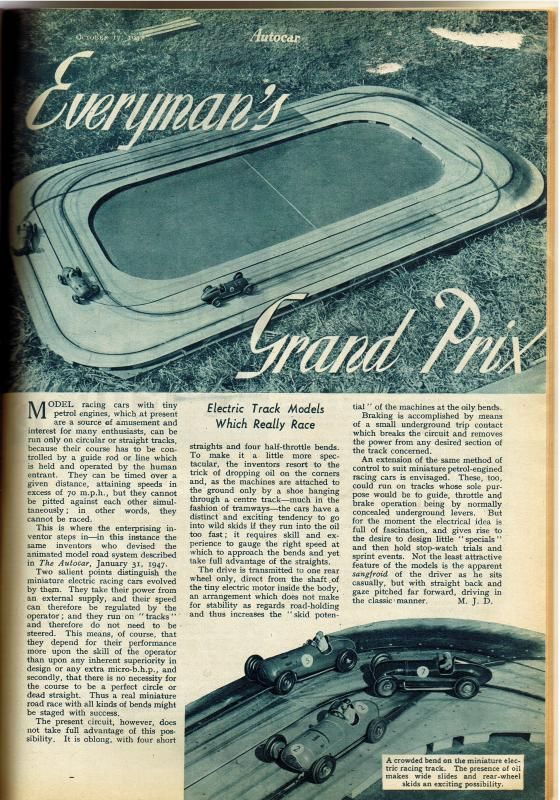

By the October 17, 1947 issue, this seems to have been developed as a real racing system (like the Clarks, this is a slot type system, not rail), but again it looks more complicated than needed and, shades of early Scalextric, they're introducing oil on the track to make it more dicey!


By this time, we were beginning to see early experimental systems in the Briitsh model mags, Model Cars and Model Maker especially, and those will be covered next.

Don

  • n.elmholt likes this




#2 Tex

Tex

    Grand Champion Poster

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 9,247 posts
  • Joined: 07-July 06
  • Gender:Male
  • Location:Denton, TX

Posted 04 October 2014 - 07:54 PM

We are participants in a long history... be proud!


Richard L. Hofer

Remember, two wrongs don't make a right... but three lefts do! Only you're a block over and a block behind.

#3 don.siegel

don.siegel

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,878 posts
  • Joined: 17-February 06
  • Gender:Male
  • Location:Paris, France

Posted 05 October 2014 - 05:06 PM

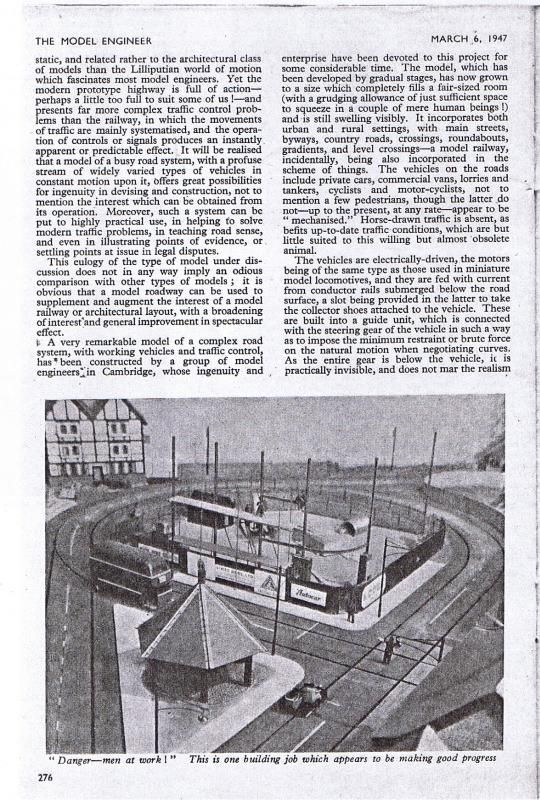

Next installment. One curious thing is that there seems to have been a lot of experimentation in England, but not in the United States! At least not with any published traces. Come on you Americans, find us some pioneers!


Here's where the hobbyists start getting involved (of course they probably were before, but we don't have much record of it). To bridge the gap, the March 6, 1947 issue of The Model Engineer covered the same system invented by the Riches, but in greater detail.

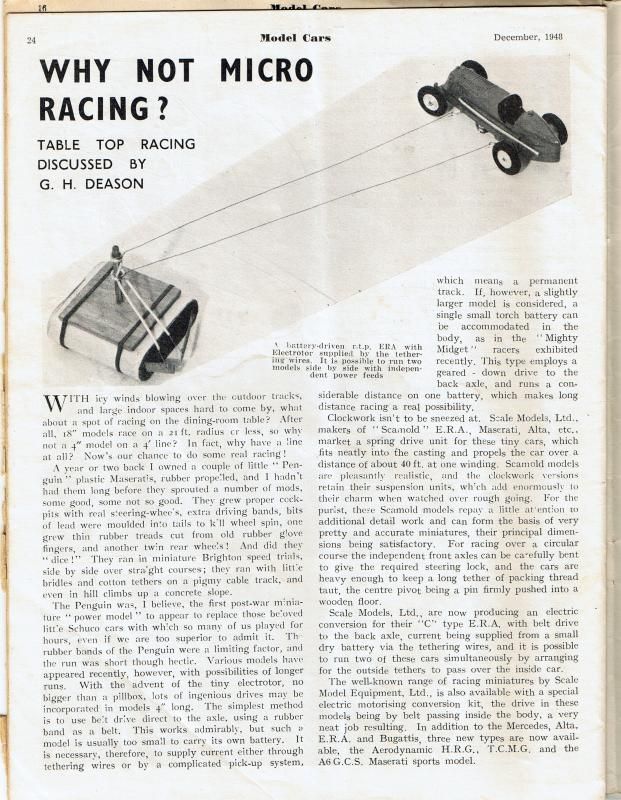

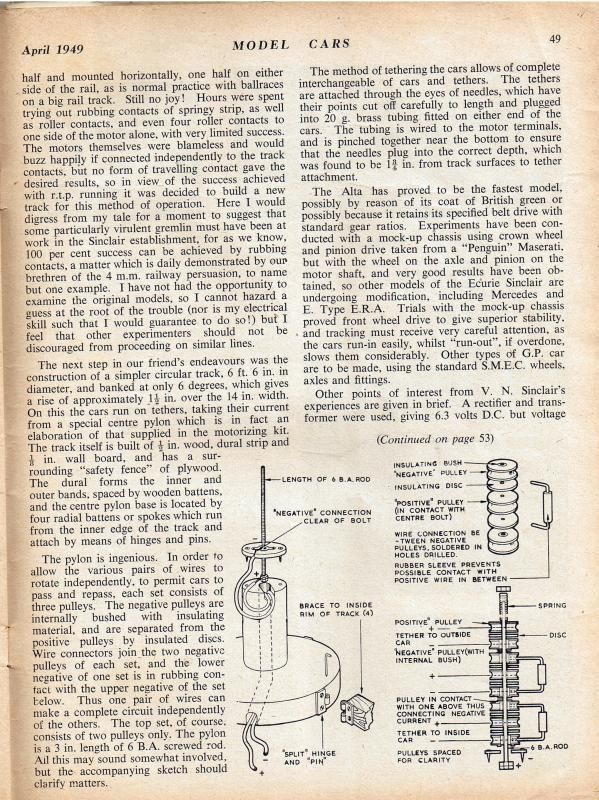

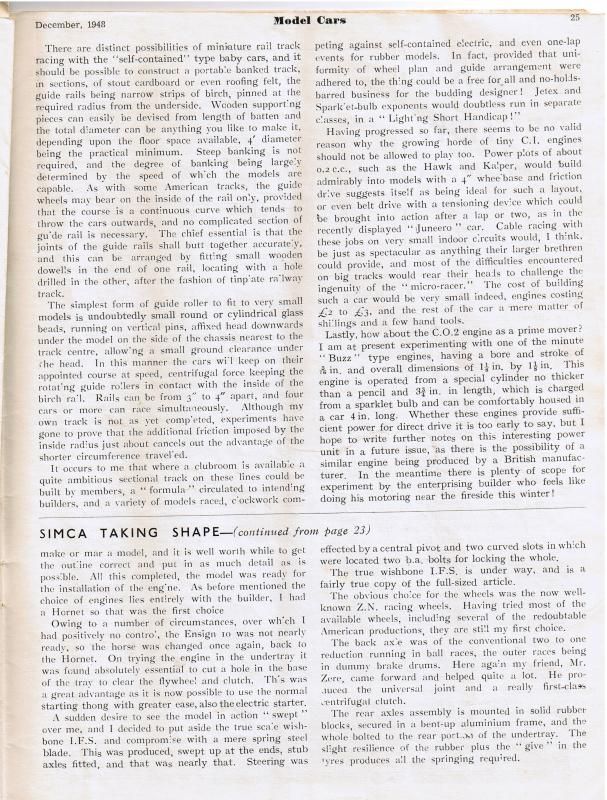

Next we move over to Model Cars in its first iteration, one of a couple British publications that mainly covered the RTP and rail gas cars of the time. It started with a couple articles by G.H. Deason, well known writer and hobbyist of the time, who had just published a book on gas car racing... First article is from December 48 issue and the second from April 49

WhynotmicroracingMC1248-1_zpse5787df5.jp

WhynotmicroracingMC1248-2_zpsecba3706.jp

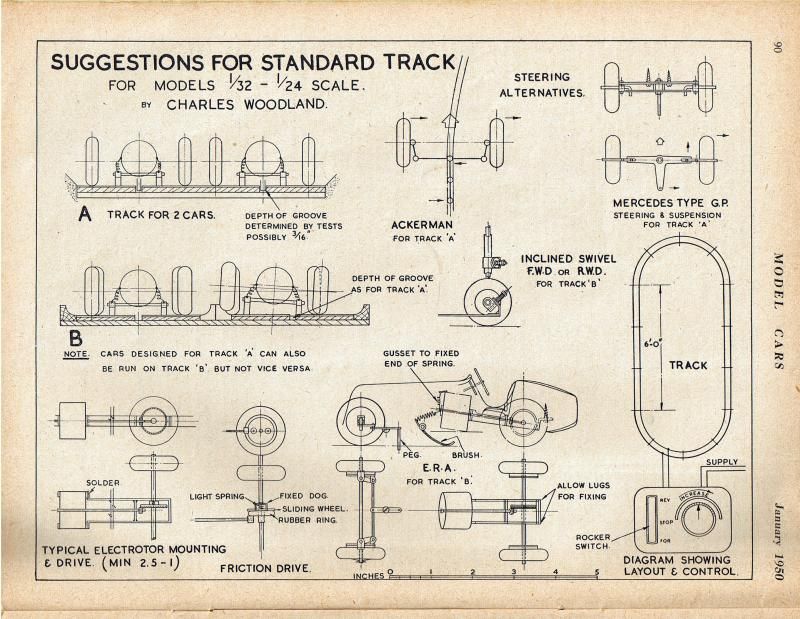

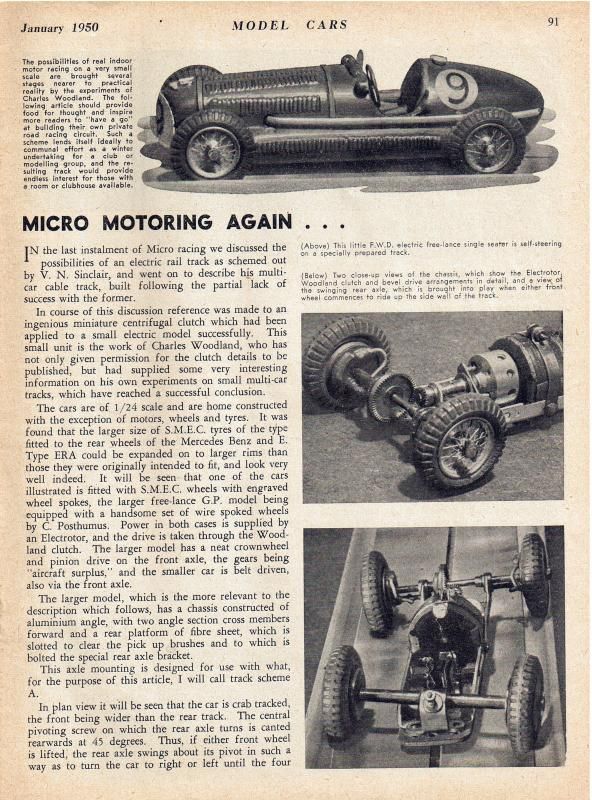

Then we move to January 1950 and Charles Woodland makes his appearance. Mr. Woodland is often credited as one of the first to come up with a practical slot system, and one of his cars seems to have survived, originally in the RW Greenslade collection, now I think in Bernard's museum. Again, a variety of different schemes are proposed, as was often the case in this period.

MicroMotoringagainMC0150-0_zps9efe2483.j

MicroMotoringagainMC0150-1_zps7de7afb9.j

MicroMotoringagainMC0150-2_zpse61825c8.j

MicroMotoringagainMC0150-3_zps417f2000.j

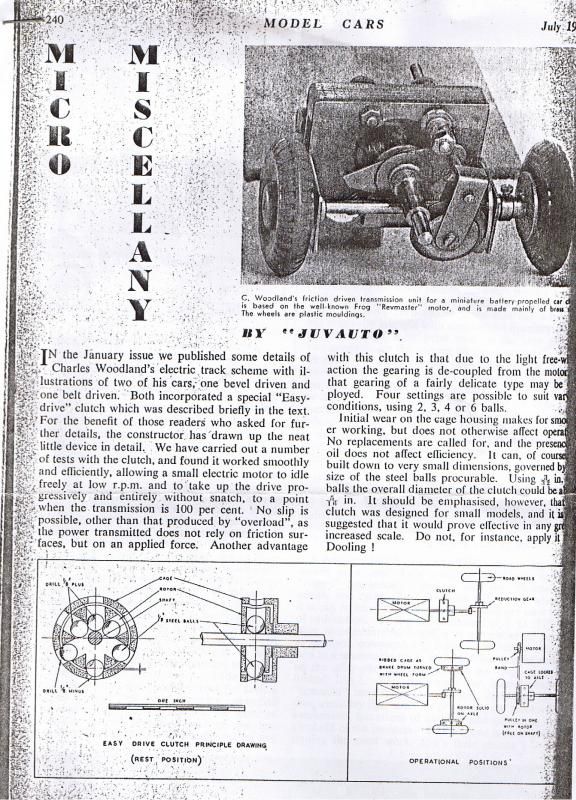

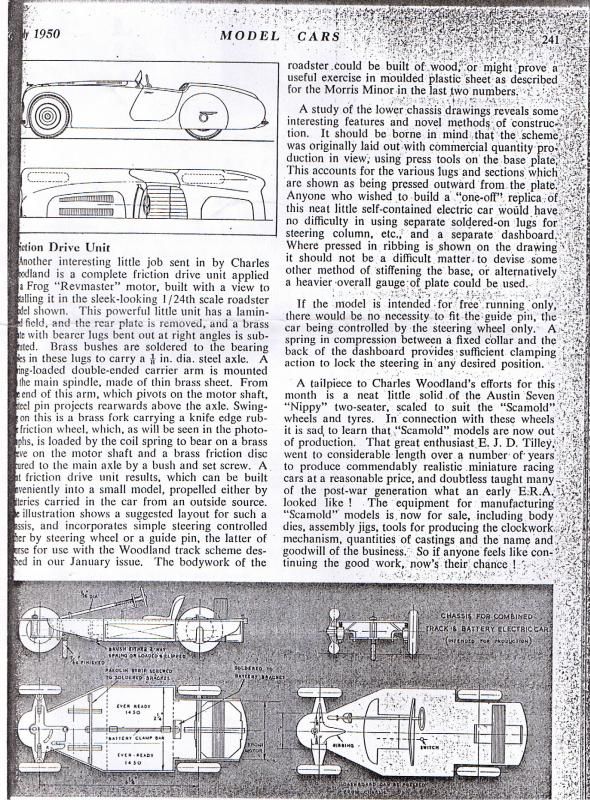

A few more reflections in the July 1950 issue, then we leave Model Cars...




#4 don.siegel

don.siegel

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,878 posts
  • Joined: 17-February 06
  • Gender:Male
  • Location:Paris, France

Posted 05 October 2014 - 05:56 PM

A few more schemes, by Ivor Lewis, Deason again and B.E.G Clark, leading up to the big breakthrough in December 1954...

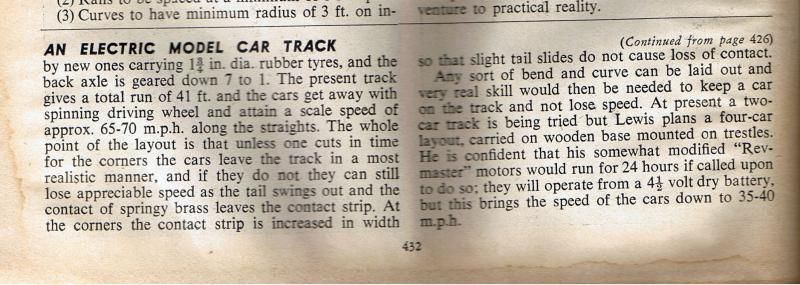

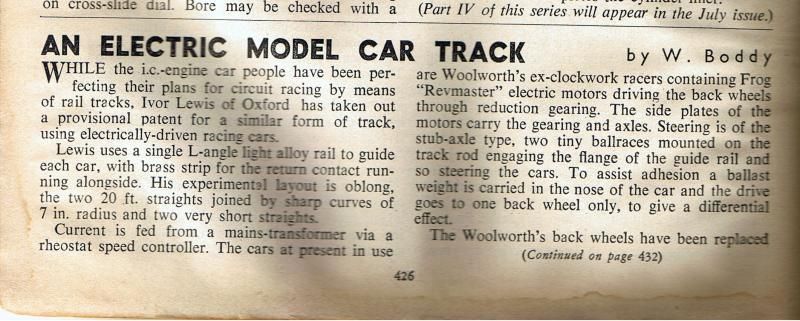

First, from June 1951 issue of Model Maker, which seems to have taken over from Model Cars... Ivor Lewis

anelectricmodelcartrackMM0651-1_zps6e8f8

anelectricmodelcartrackMM0651-2_zps498b1

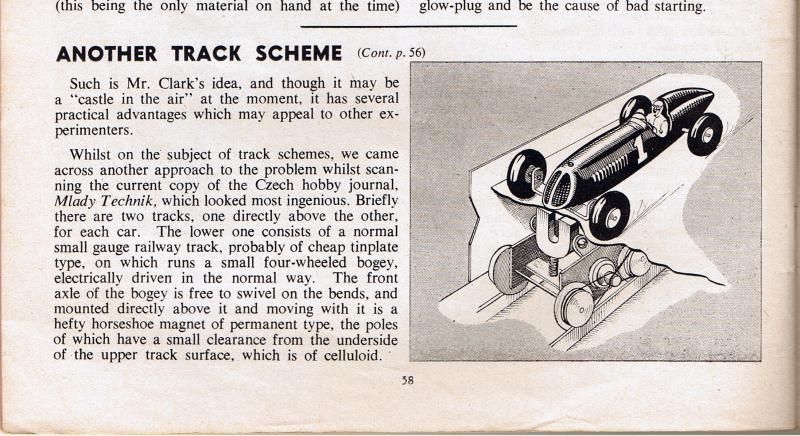

In December 1951, Clark gets into the picture, plus a Czech concept that looks a lot like the Jr. Midget Speedway, already produced in the States...

anothertrackschemeMM1251-1_zpsa0475ed3.j

anothertrackschemeMM1251-2_zpsc9495005.j

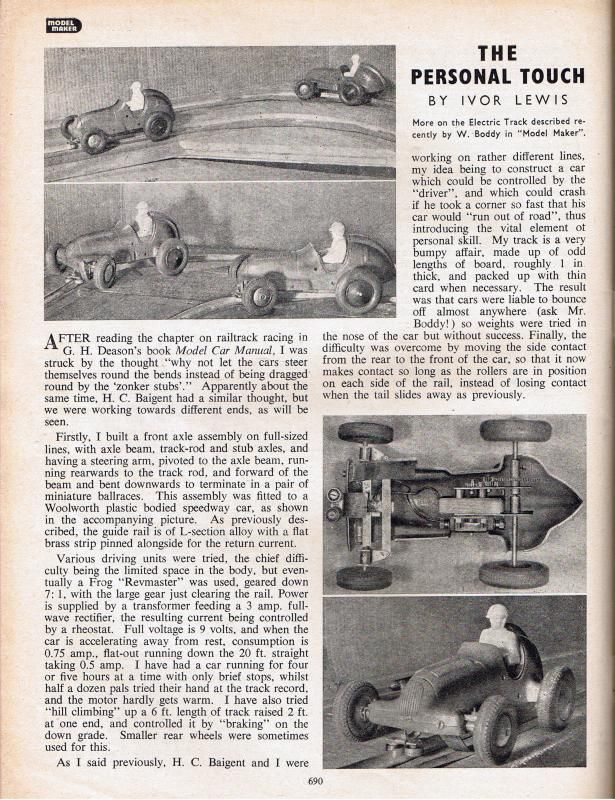

More details on Ivor's system in the October 1951 issue, rather similar to the early rail systems, although pickups not quite there yet.

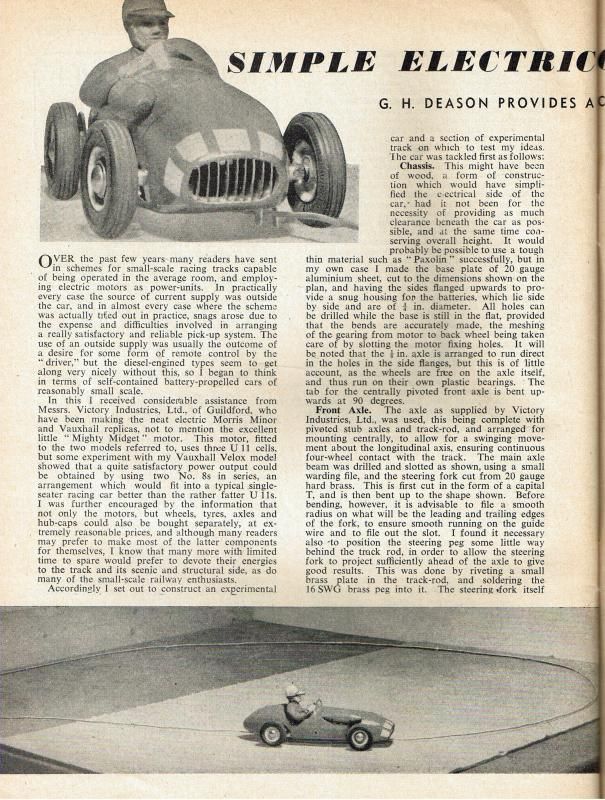

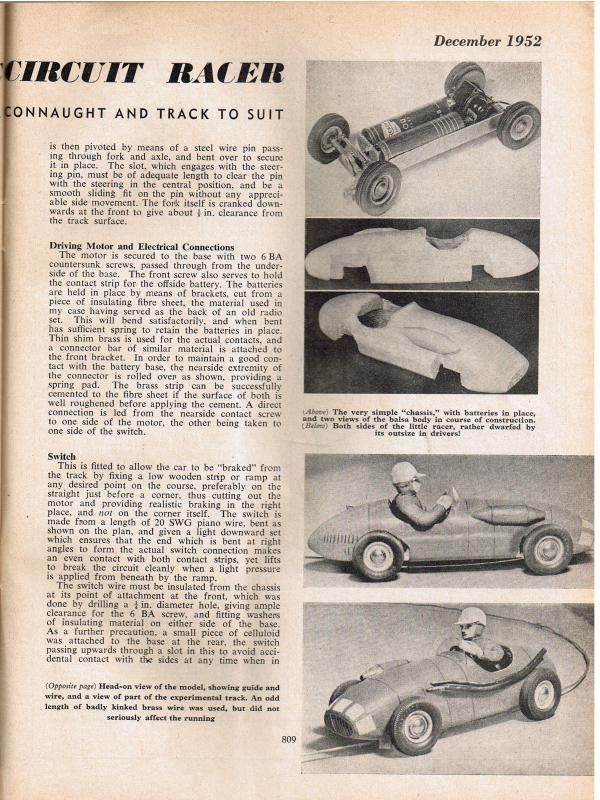

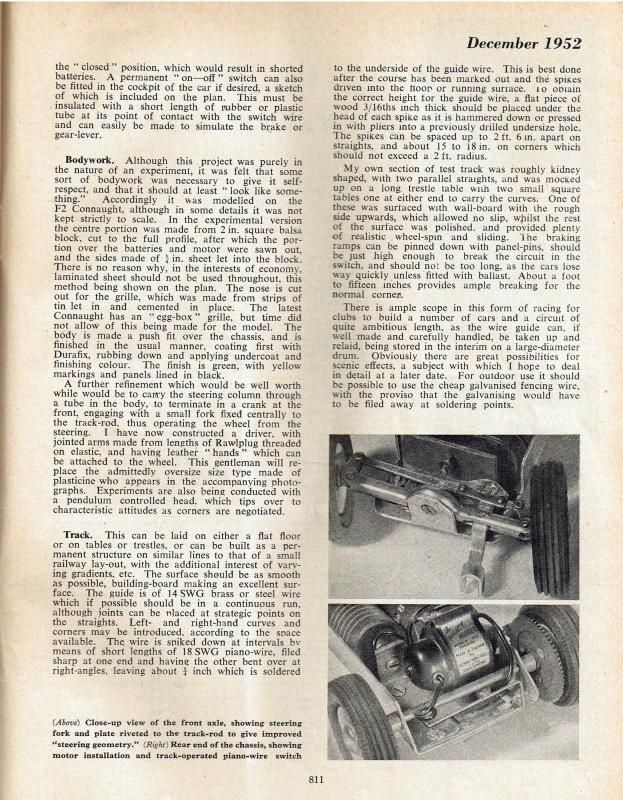

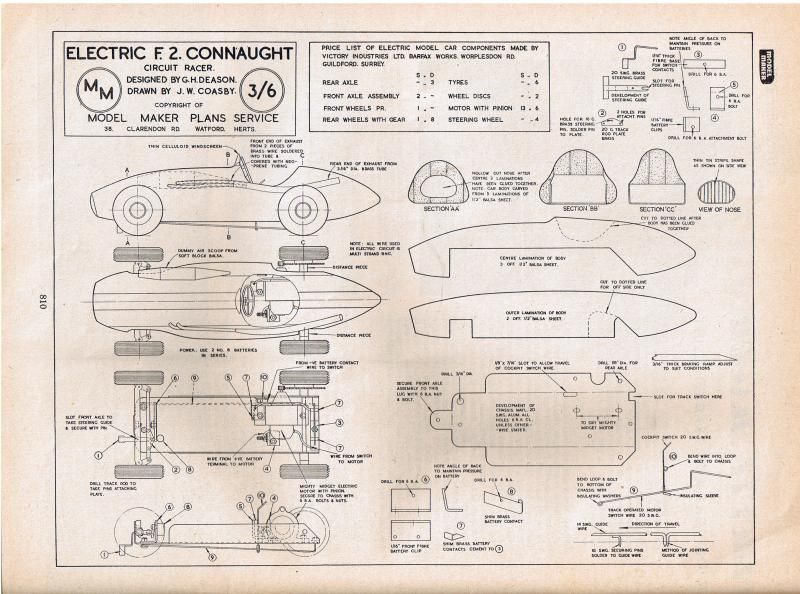

And then another scheme by G.H. Deason in the December 52 issue - and this one, battery powered, seems to have inspired a later American scheme from the Mechanix Illustrated story in December 54, but that's another story! It's funny that he would go back to onboard power after all the independent systems, but nothing was too sure at the time. Nothing too much seems to have been published until later 1954.

simpleelectriccircuitracer-MM1252-1_zps6

simpleelectriccircuitracer-MM1252-2_zps6

simpleelectriccircuitracer-MM1252-3_zps4

simpleelectriccircuitracer-MM1252-4_zps0

  • endbelldrive and slotbaker like this

#5 don.siegel

don.siegel

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,878 posts
  • Joined: 17-February 06
  • Gender:Male
  • Location:Paris, France

Posted 07 October 2014 - 03:23 PM

Well, this topic doesn't seem to have inspired you guys very much, but I wanted to finish it anyway! And I'm still looking for more evidence of other American experimenters in the pre- and post-war years!

To close out this subject, we come to the pivotal moment, when all the stars are aligned for a practical tabletop electric racing system.

And, naturellement, ze French were first!

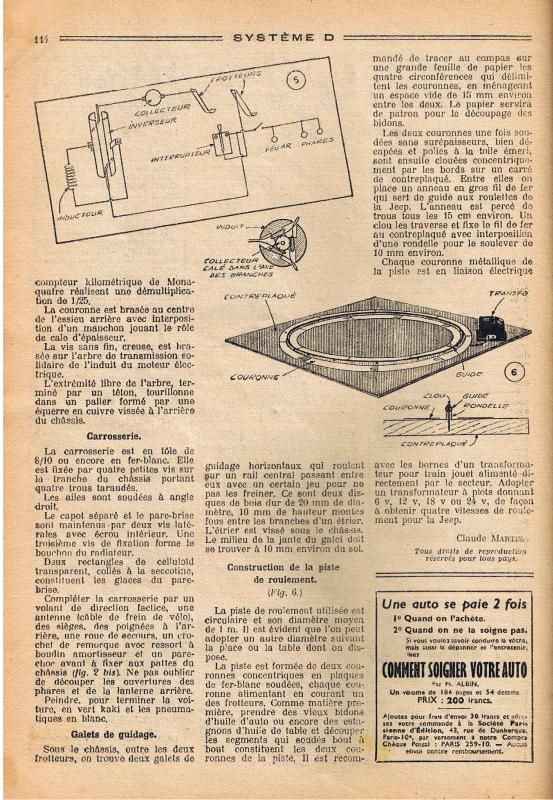

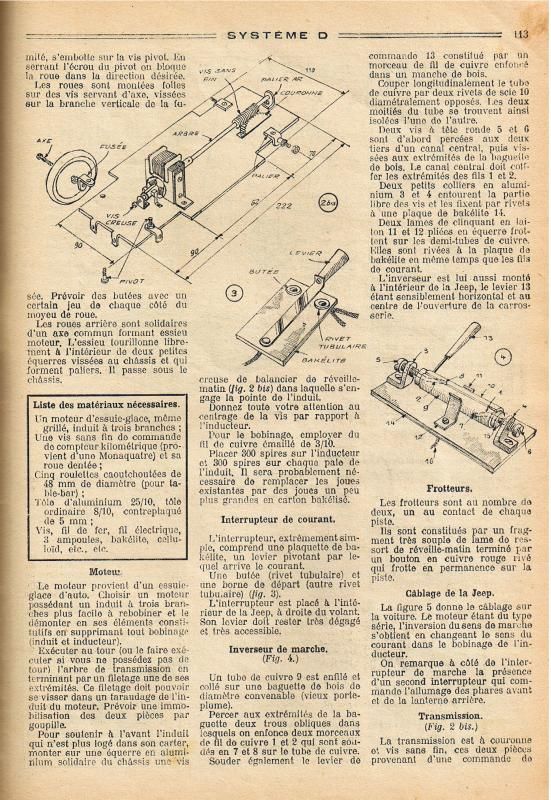

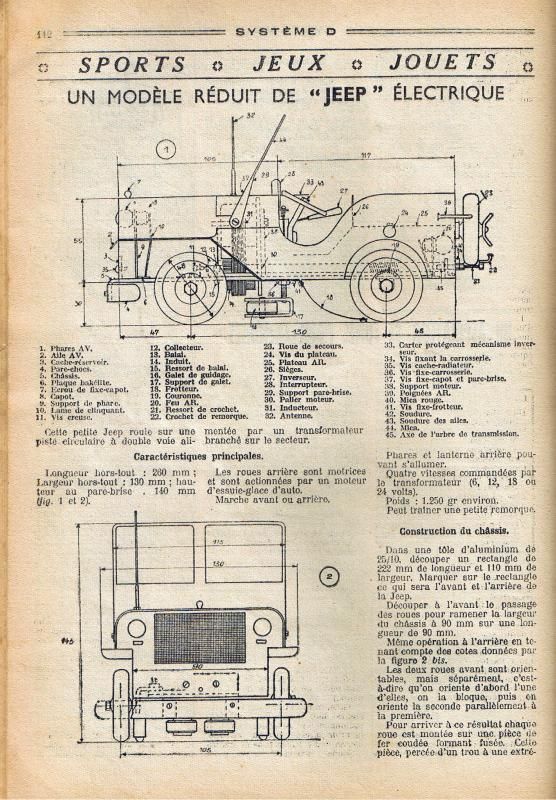

I happened to find this article in a French DIY magazine from February 1953, really setting out the principle of rail racing, but nothing seems to have come of it (and the worst thing is, when I first started collecting, I found this jeep, or a copy, at a flea market, but I didn't know what it was, and it seemed a bit expensive at the time!). As with all three of the articles I'm showing here, the emphasis wasn't on remote-control racing as we know it, but the premises were there... In this one, the car's the thing and there's just a little oval track to show it off!

SystemeD0253CircuitJeep-1_zpsb878a774.jp

SystemeD0253CircuitJeep-2_zpsb5cb372c.jp

SystemeD0253CircuitJeep-3_zpsdff08ac6.jp

Now we come to a pretty amazing coincidence: two articles, in US and UK magazines, in the same month, December 1954, both proposing real electric rail racing systems, but in each one it was just an afterthought! The system in the British mag Model Maker mostly talks about a table-top system using rubber-band powered cars, and then mentions the possibility of electric, while the main thrust in the article in the US magazine, Science and Mechanics, is for battery-powered cars, with independent control mentioned in passing as another possibility. I thought that was quite a coincidence that they should appear at the same time, but as my friend Charles of Seattle pointed out, the American system adapted one of the ideas in an earlier British article, about using ramps to control the cars' power, and even out the inner and outer lanes...

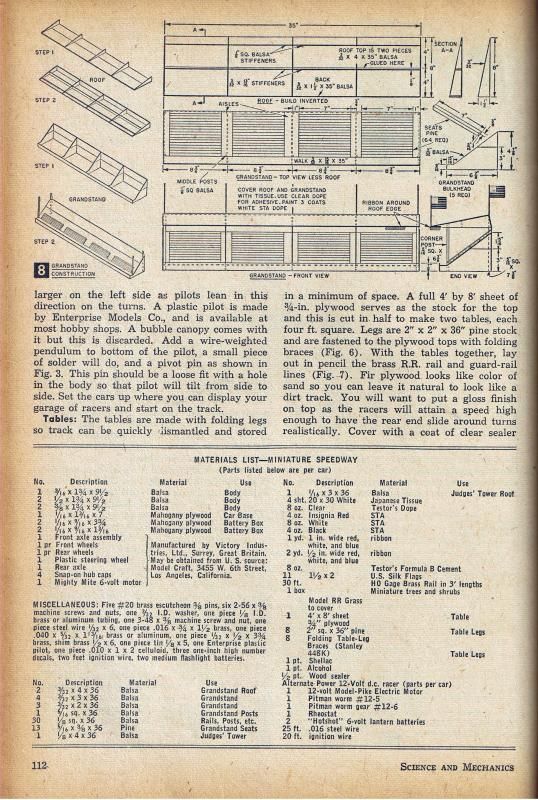

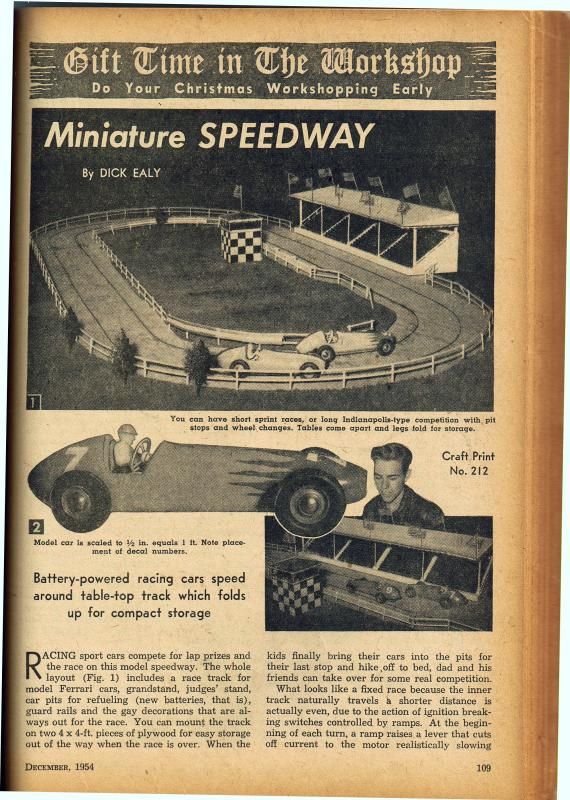

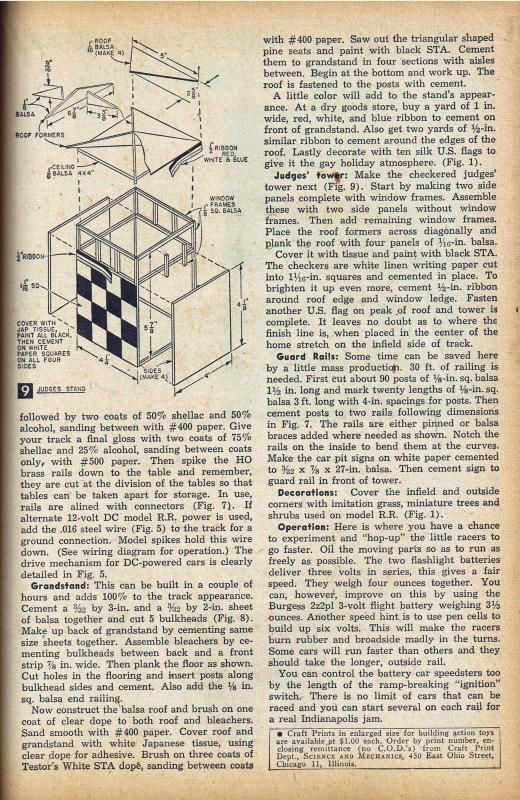

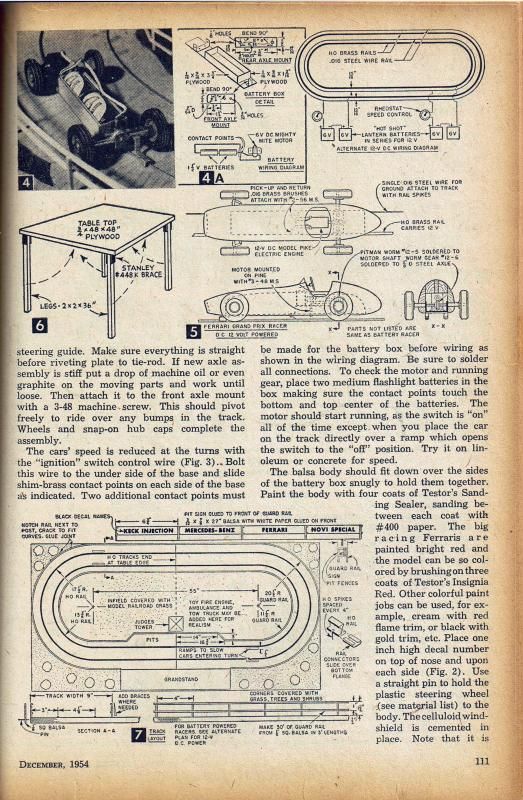

Anyway, here's the Miniature Speedway, from Science and Mechanics, December 1954:

SM1254-miniaturespeedway-1_zps9c1eb3b9.j

SM1254-miniaturespeedway-2_zpsf6fce8e1.j

SM1254-miniaturespeedway-3_zps660750b3.j

SM1254-miniaturespeedway-4_zps512b5cea.j

SM1254-miniaturespeedway-5_zps7bf2a8b1.j

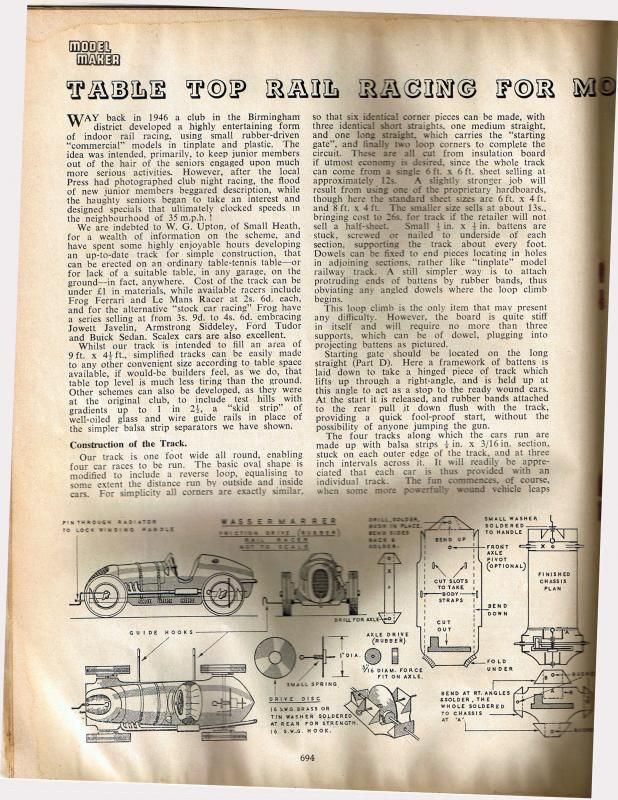

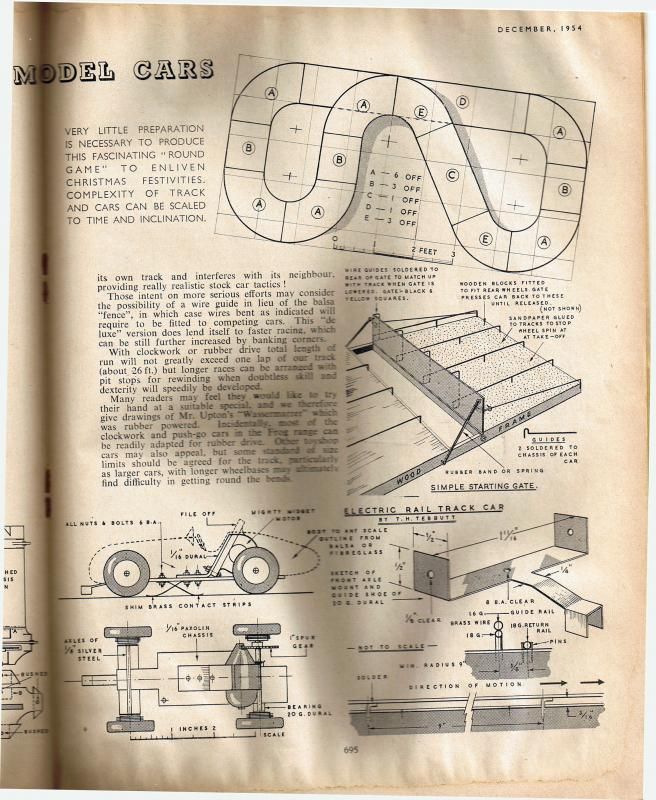

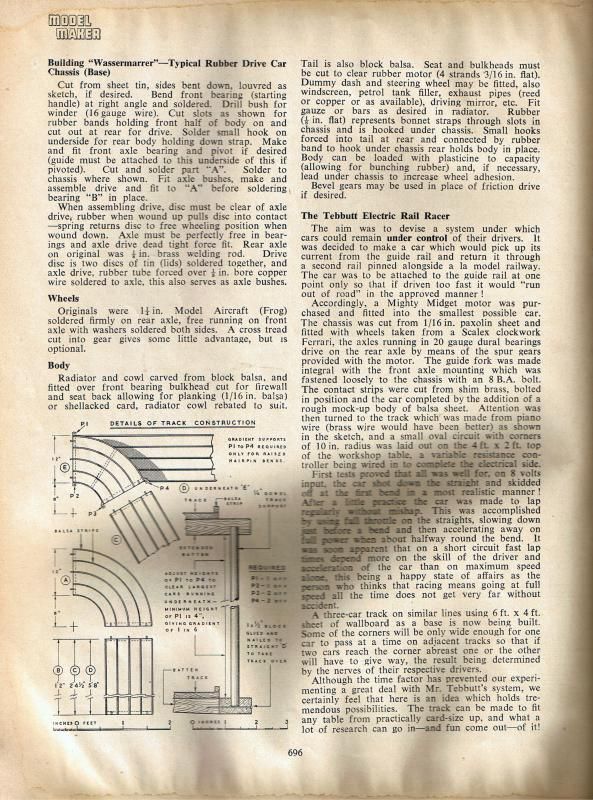

And now the article on the Tebbutt Electric Rail Racer, from the December 1954 issue of Model Maker.

MM1254-tebbuttrailracer-1_zpscf6f1bef.jp

MM1254-tebbuttrailracer-2_zpsf8657f3a.jp

MM1254-tebbuttrailracer-3_zpsba474631.jp

For what it's worth, the latter article has always been credited in classic slot literature for inspiring the Southport club to build the first large rail track the following year, therefore kicking off the whole movement and craze. (the story goes they were looking for an attraction for their upcoming model engineering exhibition, but the popular gas cars were too noisy and cumbersome, so they wanted something simpler, and seized on the electric rail racing idea from this article, thereby proving electric tabletop racing was feasible - and other clubs and individuals took up the cudgel).

This story was spread by the editors of Model Maker, who got very involved, and was repeated by early US slot racers and others, like José Rodriguez Jr. Now, I've heard a few knowledgeable friends say that this isn't the real story, but I have yet to hear a plausible alternative version.

There was obviously a fair amount of experimentation, theorizing and actual building going on since the early years of the 20th century, but this was really the thread that led to slot racing as we know it.

Gentlemen, and ladies, I rest my case.

Don


#6 Dennis David

Dennis David

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 3,424 posts
  • Joined: 05-April 06
  • Gender:Male
  • Location:SF Bay Area

Posted 07 October 2014 - 07:52 PM

Don thank you so much for your work in preparing this. Can I use some of this material on my website?

Dennis David




#7 Mike Patterson

Mike Patterson

    Village Luddite

  • Subscriber
  • PipPipPipPipPipPipPip
  • 2,585 posts
  • Joined: 14-October 07
  • Gender:Male
  • Location:Zanesville, OH

Posted 07 October 2014 - 08:39 PM

Don,



Please don't think your work is unappreciated. I just don't have any information to add to the story.


I am not a doctor, but I played one as a child with the girl next door.


#8 Tom Thumb Hobbies

Tom Thumb Hobbies

    Posting Leader

  • IRRA National Director
  • PipPipPipPipPipPipPip
  • 3,623 posts
  • Joined: 16-October 07
  • Gender:Male
  • Location:Planet Earth

Posted 07 October 2014 - 09:19 PM

I also think it's extremely interesting. Thank you very much for all the work you put into your posts. I would also like to include some of the info you have posted on my website.

Mike McMasters



Former home of the ORIGINAL American blue King


#9 don.siegel

don.siegel

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,878 posts
  • Joined: 17-February 06
  • Gender:Male
  • Location:Paris, France

Posted 08 October 2014 - 05:46 AM

Yes, of course guys, feel free to use this info on your websites. And thanks for the kind words.



Just noticed there was a typo in my first post: Tim Birkin was an investor in the Kennedy system, not an inventor... Greg, if you see this could you change it?



Don



#10 Matt Sheldon

Matt Sheldon

    Duffy's HMI Executive

  • Full Member
  • PipPipPipPipPipPipPip
  • 2,242 posts
  • Joined: 19-January 10
  • Gender:Male
  • Location:Platteville, CO

Posted 08 October 2014 - 08:19 PM

Really cool stuff Don. The live rail would make marshaling pretty interesting.


Matt Sheldon

Owner - Duffy's SlotCar Raceway (Evans, CO)


#11 don.siegel

don.siegel

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,878 posts
  • Joined: 17-February 06
  • Gender:Male
  • Location:Paris, France

Posted 26 October 2014 - 09:09 AM

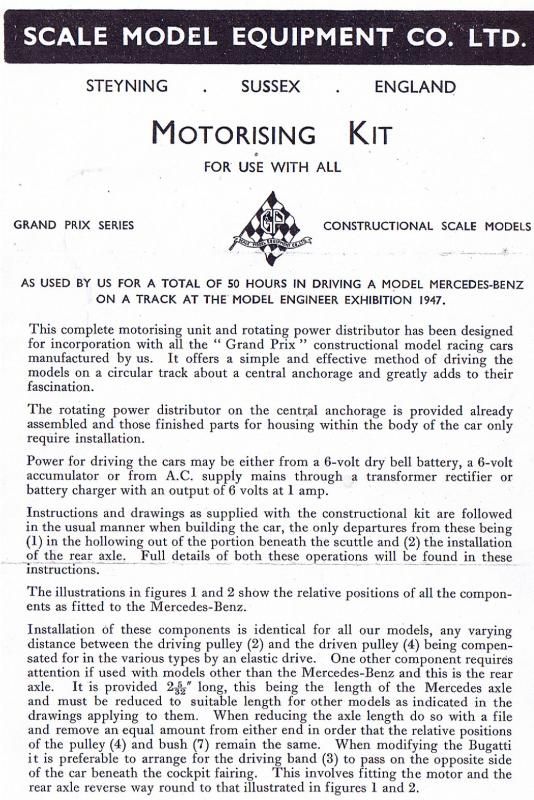

In other rather amazing news, I was cleaning up papers that have been cluttering up my desk for the last couple years, and came across this rather astounding bit - mysterious too, because I don't remember who sent it to me!

Notice that it is already talking about a 50-hour demonstration of a SMEC electric model car on a track in 1947!




So, not really so amazing, just another variation on the round-the-pole racing popular in gas cars at the time. But still an electric model running on a track. and also that SMEC, with their pioneering wood-bodies cars, were already offering a motorizing kit in 1947...

Don


#12 TSR

TSR

    The Dokktor is IN

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 42,304 posts
  • Joined: 02-February 06
  • Gender:Male
  • Location:Marxifornia

Posted 17 November 2014 - 07:08 PM

Don, thanks!
Terrific job. As far as the Americans, they were also busy, but were no more successful to confer their often complex elucubrations to actual production. Hence it will be up to the Brits (I guess greater dreamers?) to come up with the "Final Solution" in 1957, with a public suddenly willing to cough up the dough to buy the new toys for their kids or..., themselves.
Let's not forget that the first patents for electric model car racing are American even if not commercially successful, and that it appears that the hobbyists on our side of the pond appear to have been more interested, before WW2, in toys that fly than toys that roll...





Philippe de Lespinay


#13 don.siegel

don.siegel

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,878 posts
  • Joined: 17-February 06
  • Gender:Male
  • Location:Paris, France

Posted 18 November 2014 - 04:50 AM

Glad you like it Philippe.



I think everybody was more interested in toys/models that fly at the time - that was the main thrust of most hobbyists.



But I also had another theory to explain why the Brits were much more active and successful in post-WWII experiments: the RTP hobby was much more established in the US, with many more manufacturers, and perhaps people and companies weren't ready to move to something that would threaten this entrenched business.



Just a theory...



Don



#14 Dennis David

Dennis David

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 3,424 posts
  • Joined: 05-April 06
  • Gender:Male
  • Location:SF Bay Area

Posted 18 November 2014 - 09:35 AM

Could it also be the various clubs and societies in the UK that served as incubators helped move this along?

Dennis David




#15 don.siegel

don.siegel

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 5,878 posts
  • Joined: 17-February 06
  • Gender:Male
  • Location:Paris, France

Posted 18 November 2014 - 09:43 AM

Could well be Dennis - they were often model engineering societies instead of model car clubs, as in the US.



Don



#16 Dennis David

Dennis David

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 3,424 posts
  • Joined: 05-April 06
  • Gender:Male
  • Location:SF Bay Area

Posted 18 November 2014 - 03:53 PM

And these were real machinest who could and would make something if it was not available.
