I reread the thread and one person seems to remember a tagged GP40 arm and another person remembers an arm with no tag but the stack engraved S26. So we seem to be back where we left off...

[dc-65x]

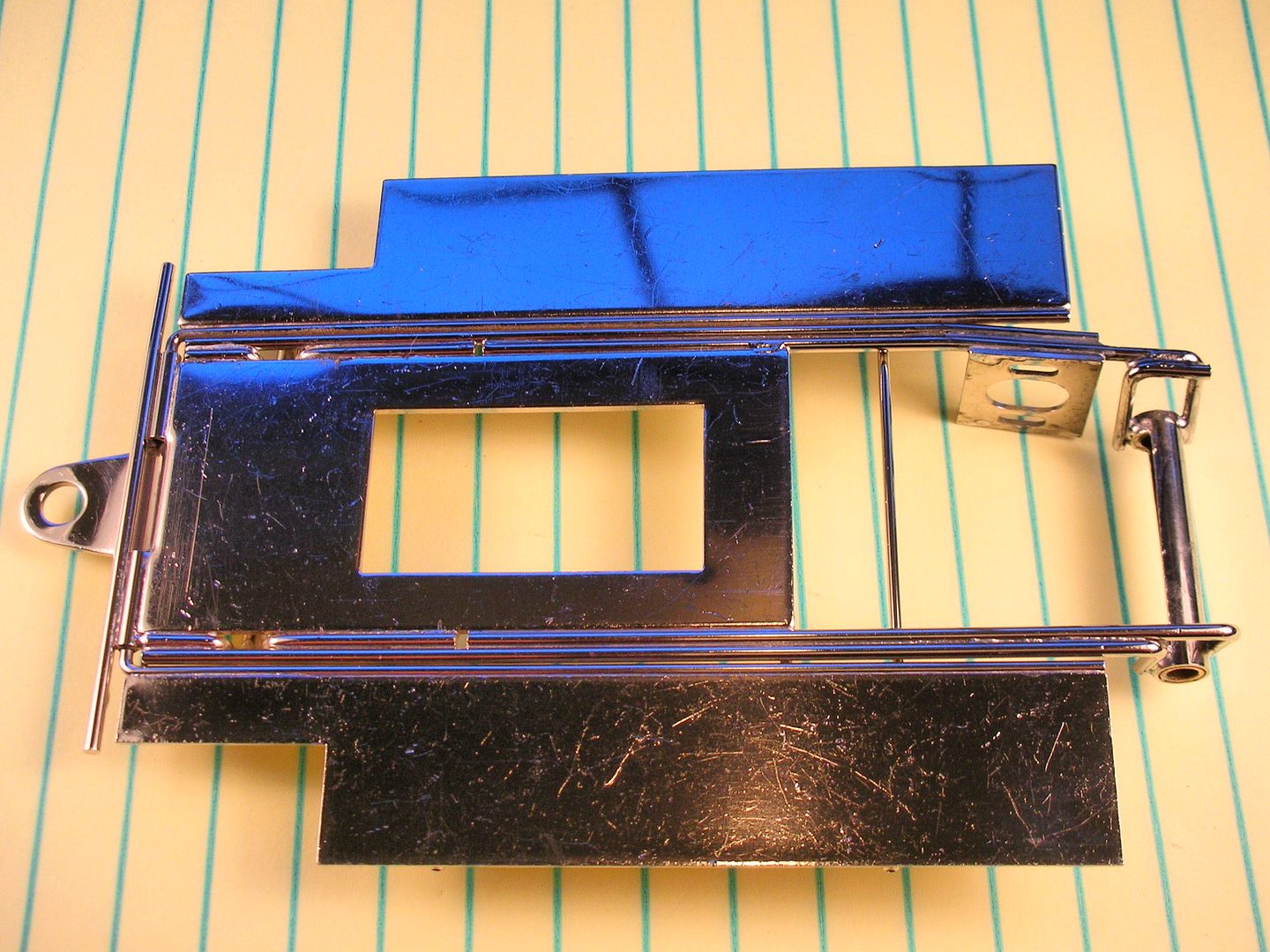

Here's the finished chassis. I lightened it up as much as possible:



Just kidding!

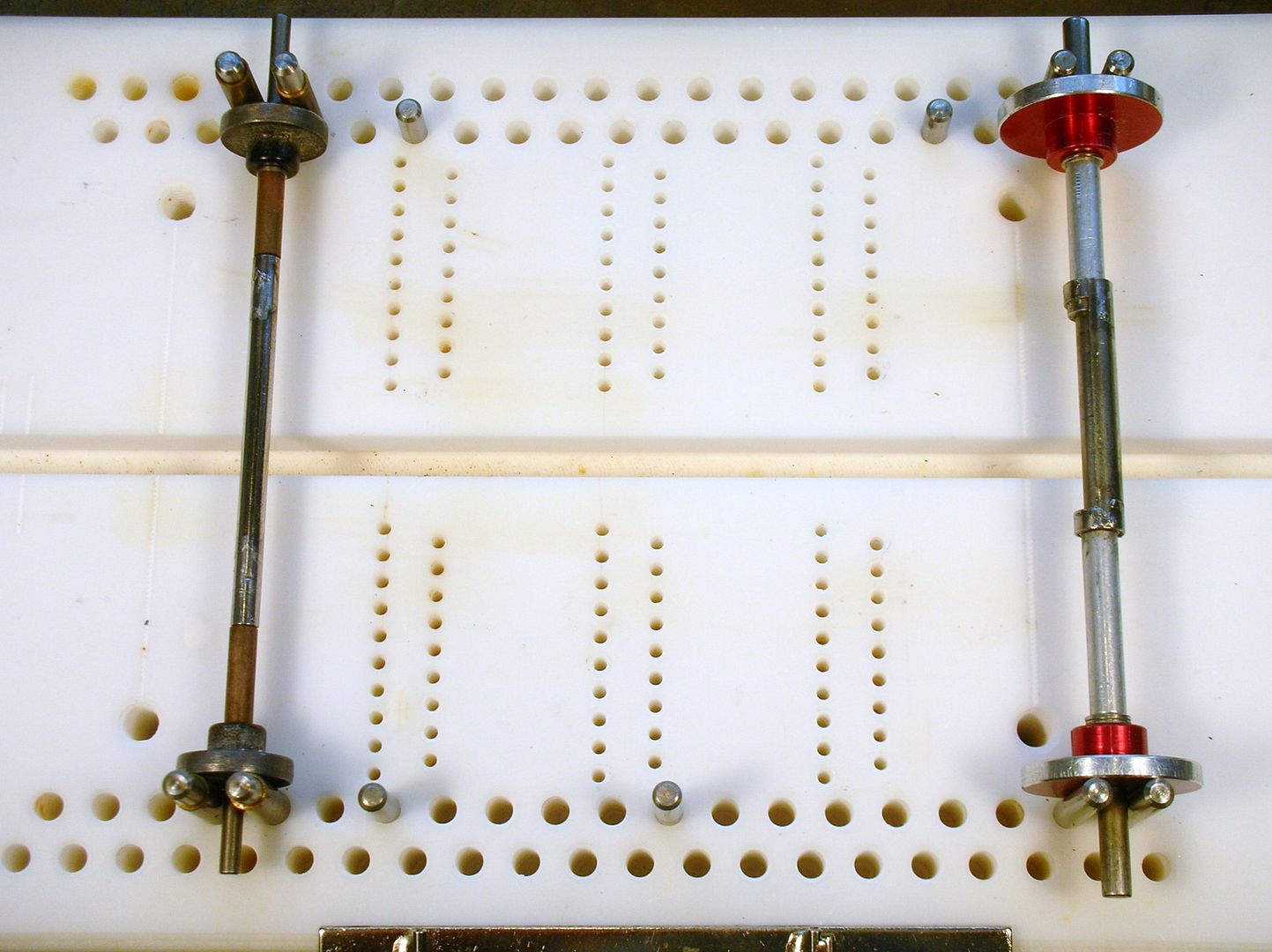

The chassis had user soldered and broken joints on the front and rear axle tubes and the front tube was bent so I removed and repaired the tubes as shown above.

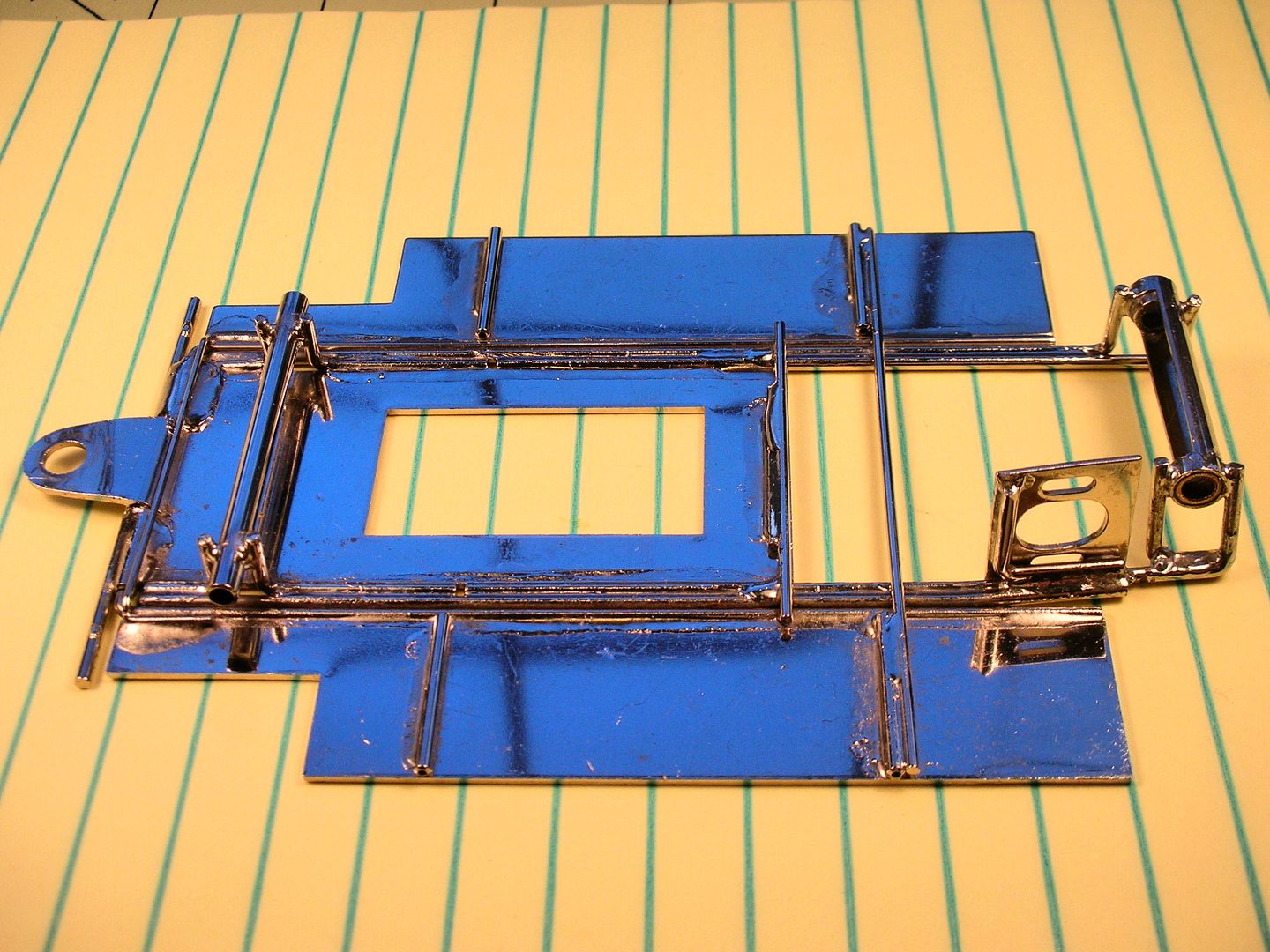

Here's the repaired chassis. It's probably in better shape now than when it was new. It's nice and flat and squared up:

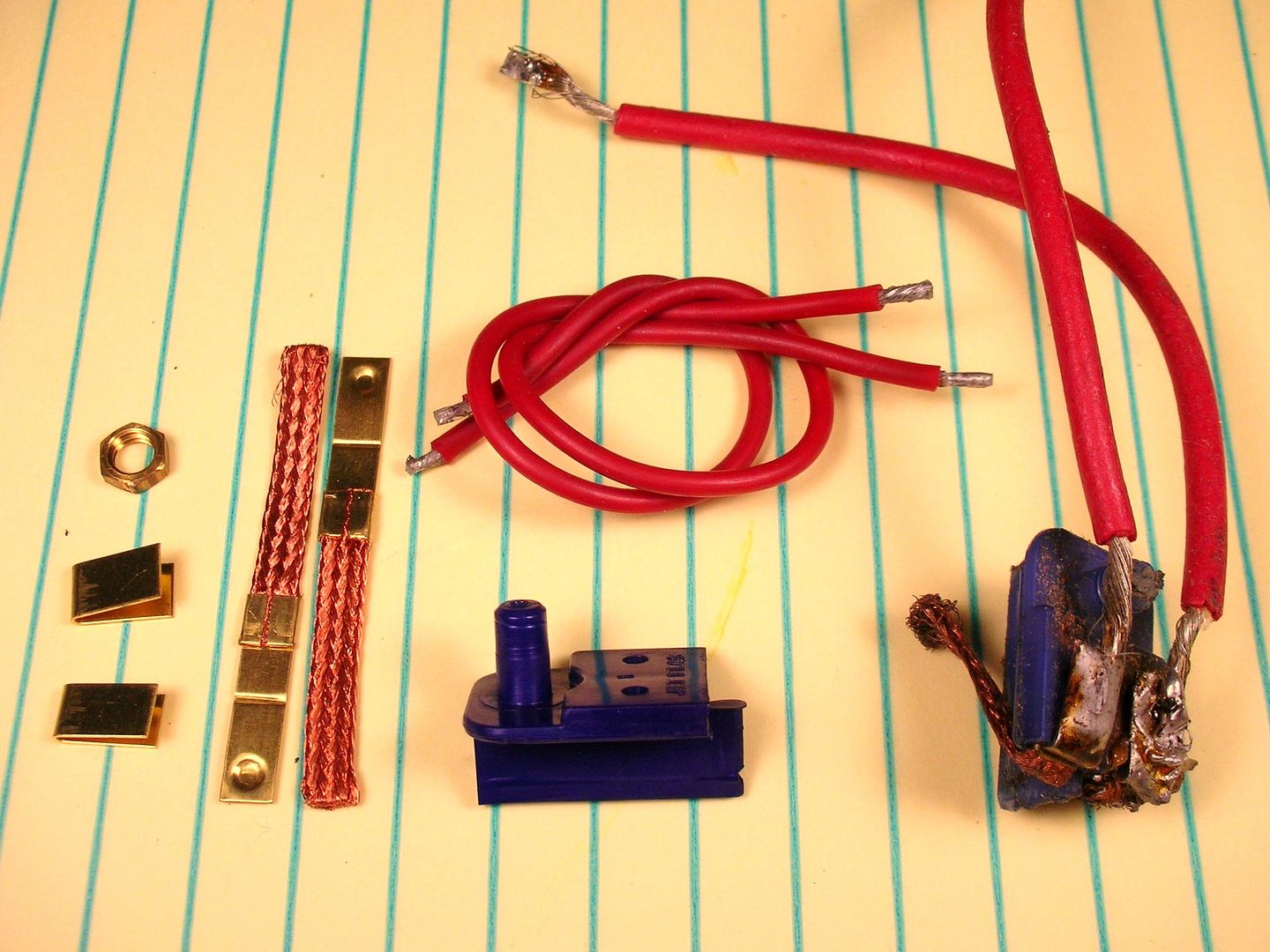

The original Jet flag and 220v high voltage cables are being replaced with the new old stock parts on the left:

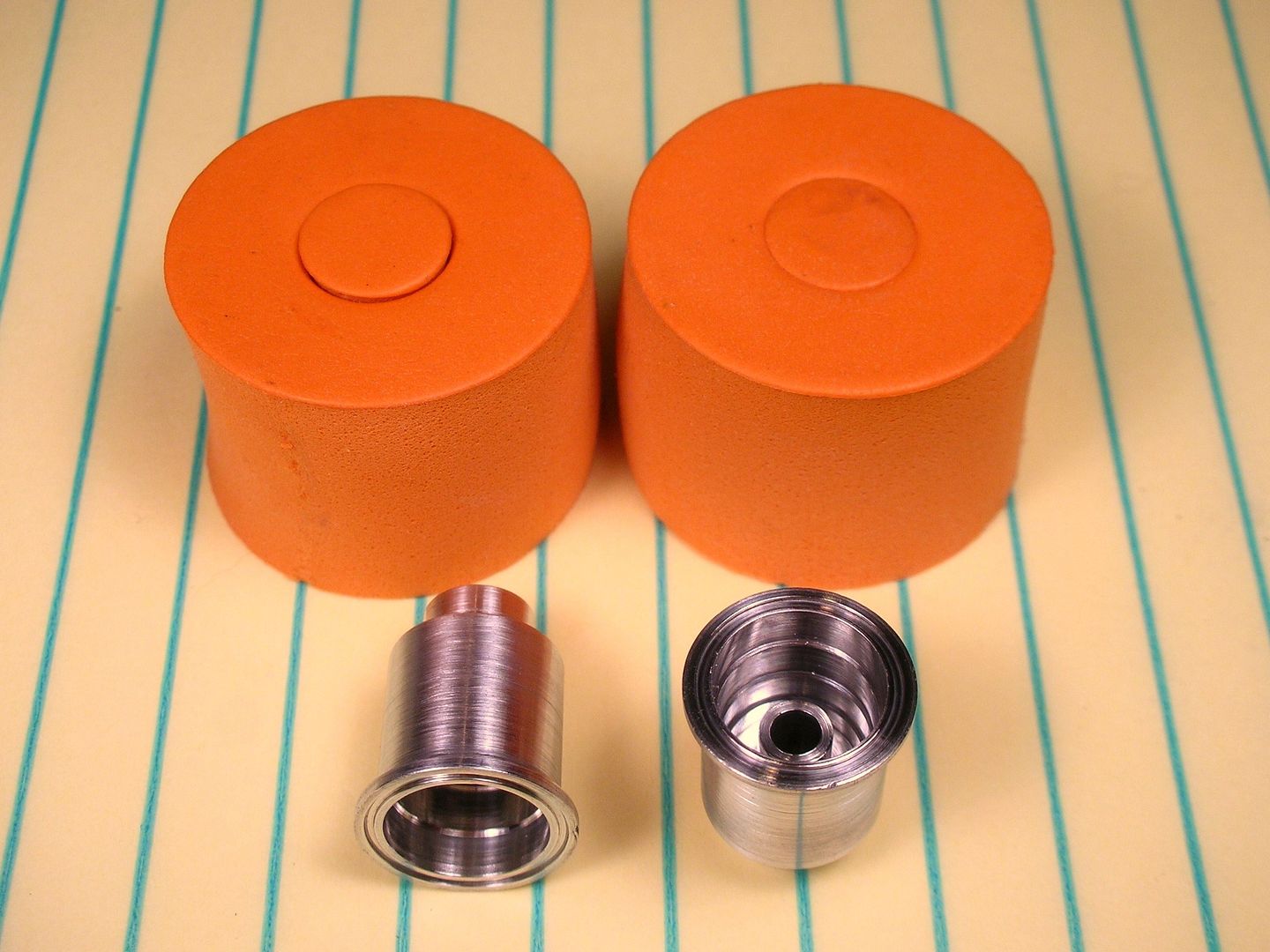

The original tires were toast but the wheels weren't bent so were cleaned up and new rubber rounded up:

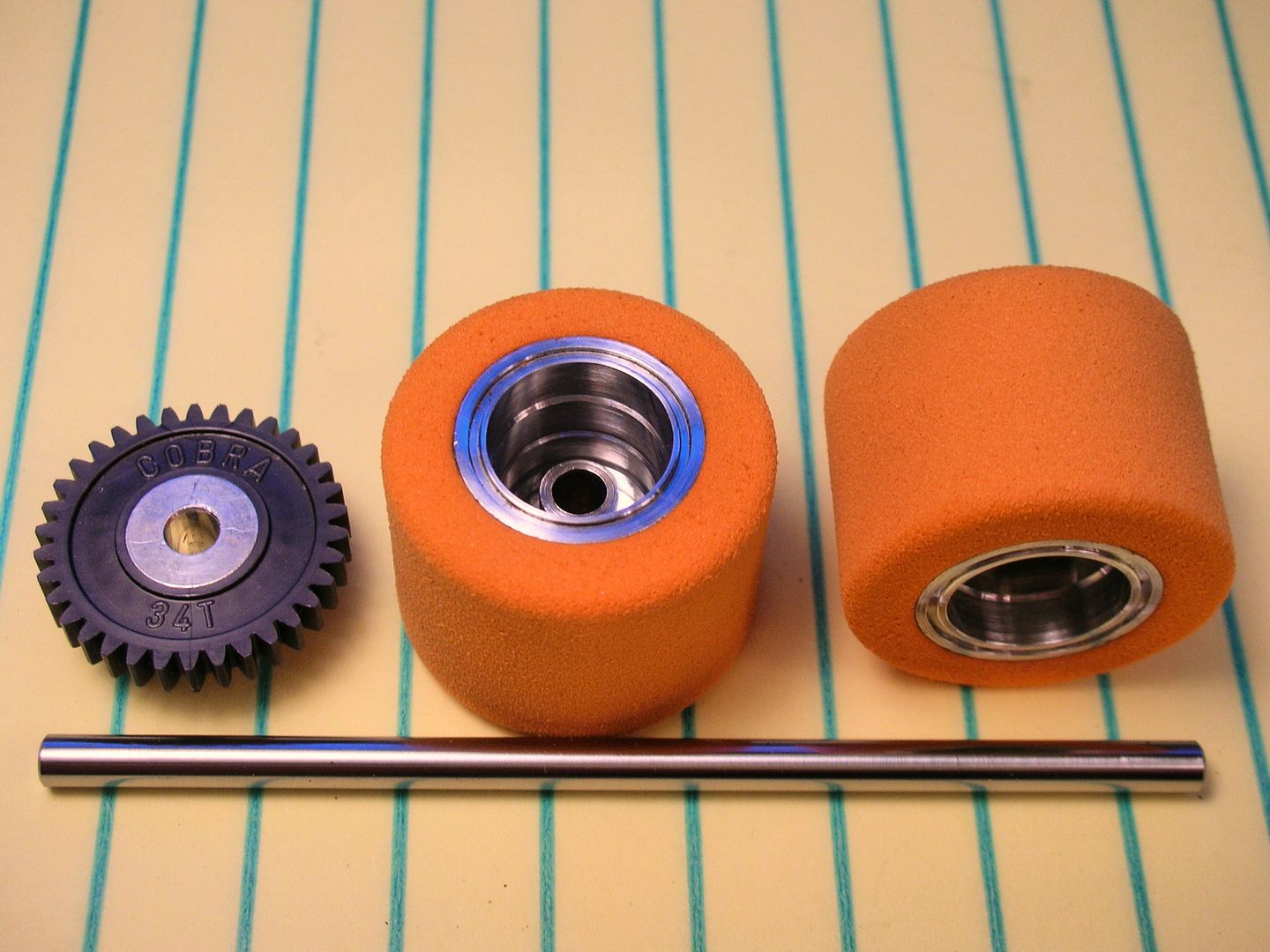

Here they are with the fresh Riggen rubber mounted and ground. Also shown is a new gear to replace the original chewed up Cobra 34t and the polished-up original rear axle:

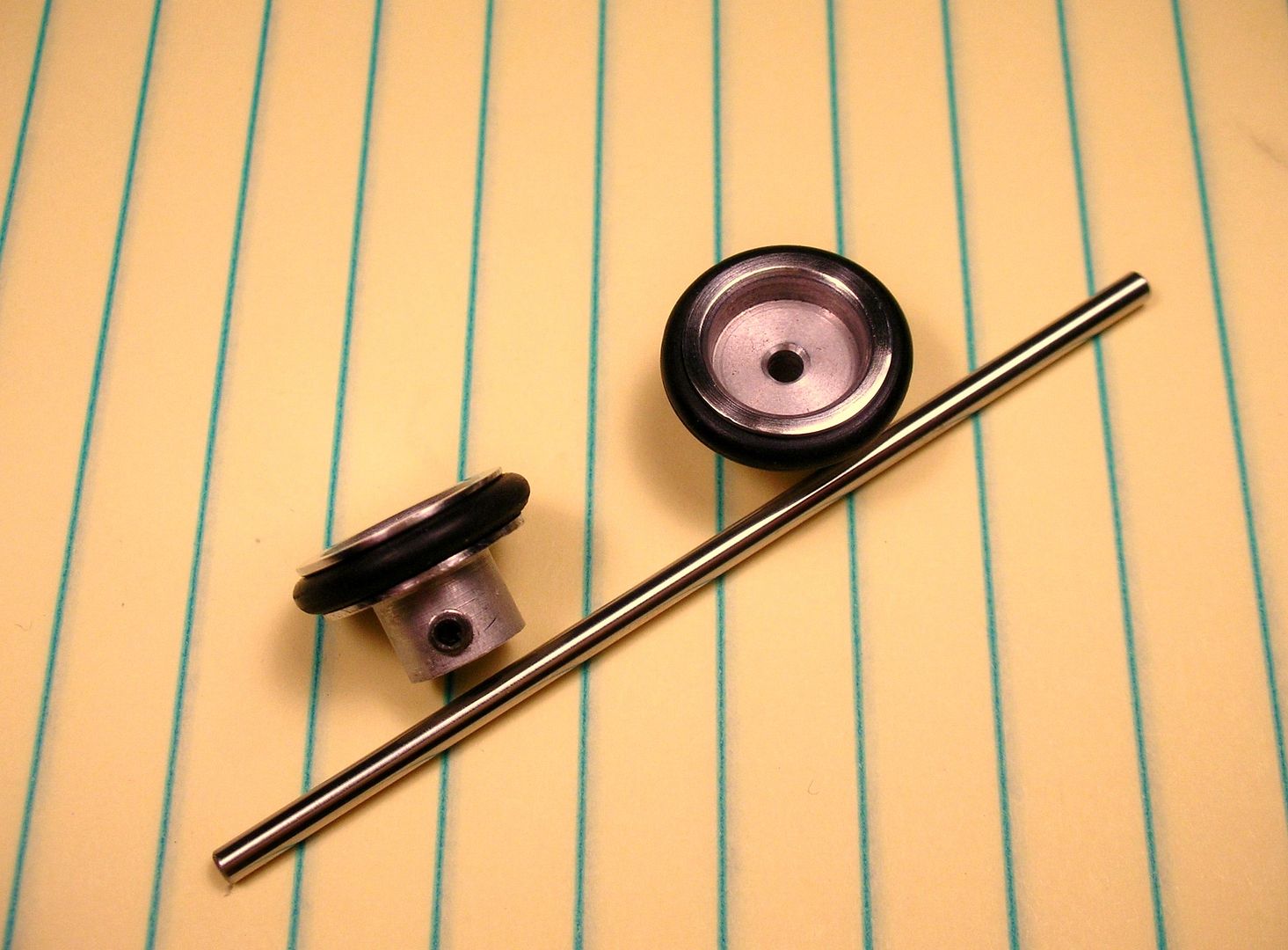

The factory bead blasted front wheels got the rims polished to bling them up a bit:



So, now I have to decide what arm to stuff in my set-up...

[Bill from NH]

Rick, are the chassis mainrails two .063" piano wire? That's what they look like in the photos.

[dc-65x]

They sure are, Bill... good eye!

[dc-65x]

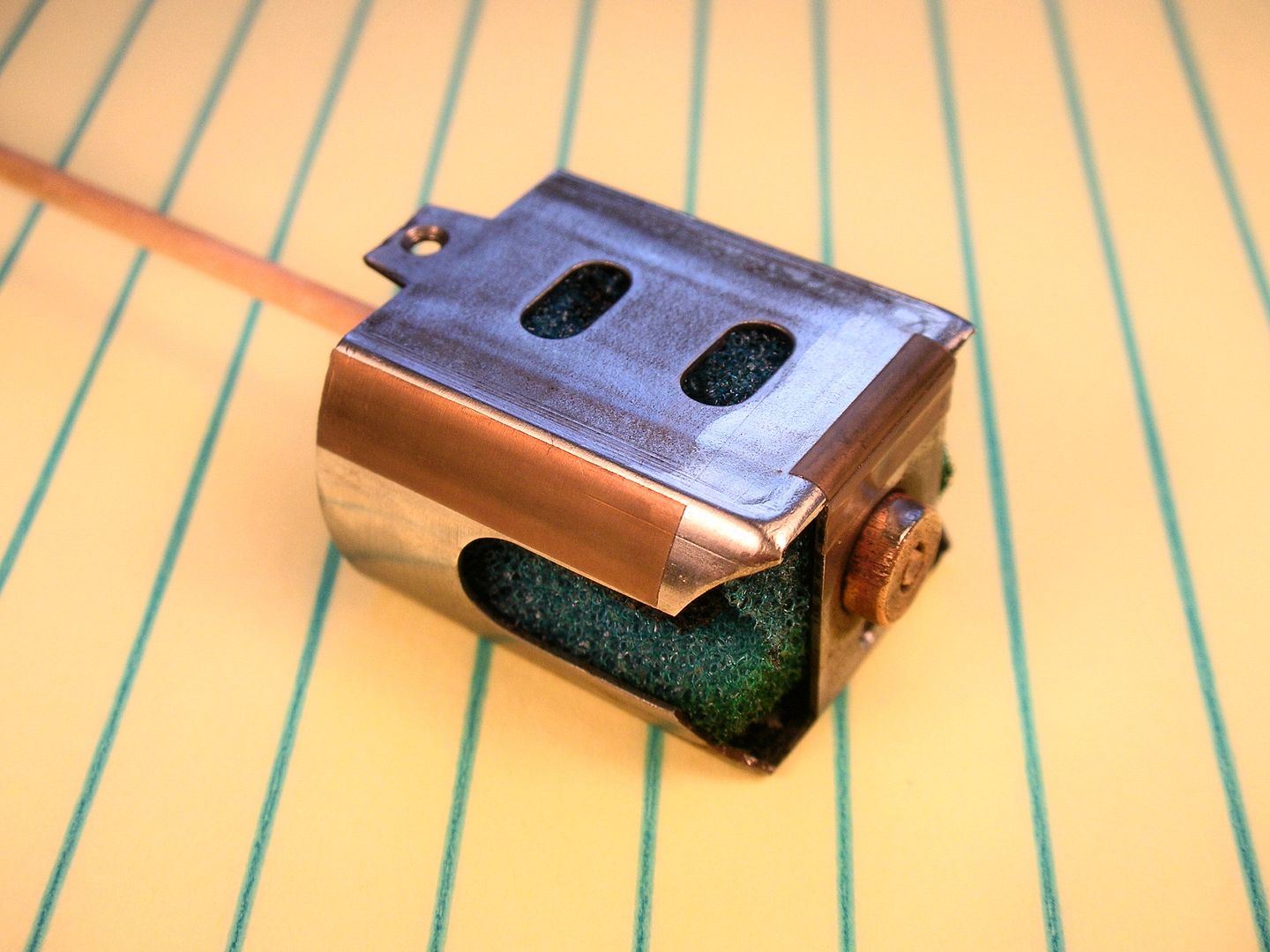

The CEE can's paint was stripped and the areas to be soldered during motor installation tinned with solder and masked for painting:

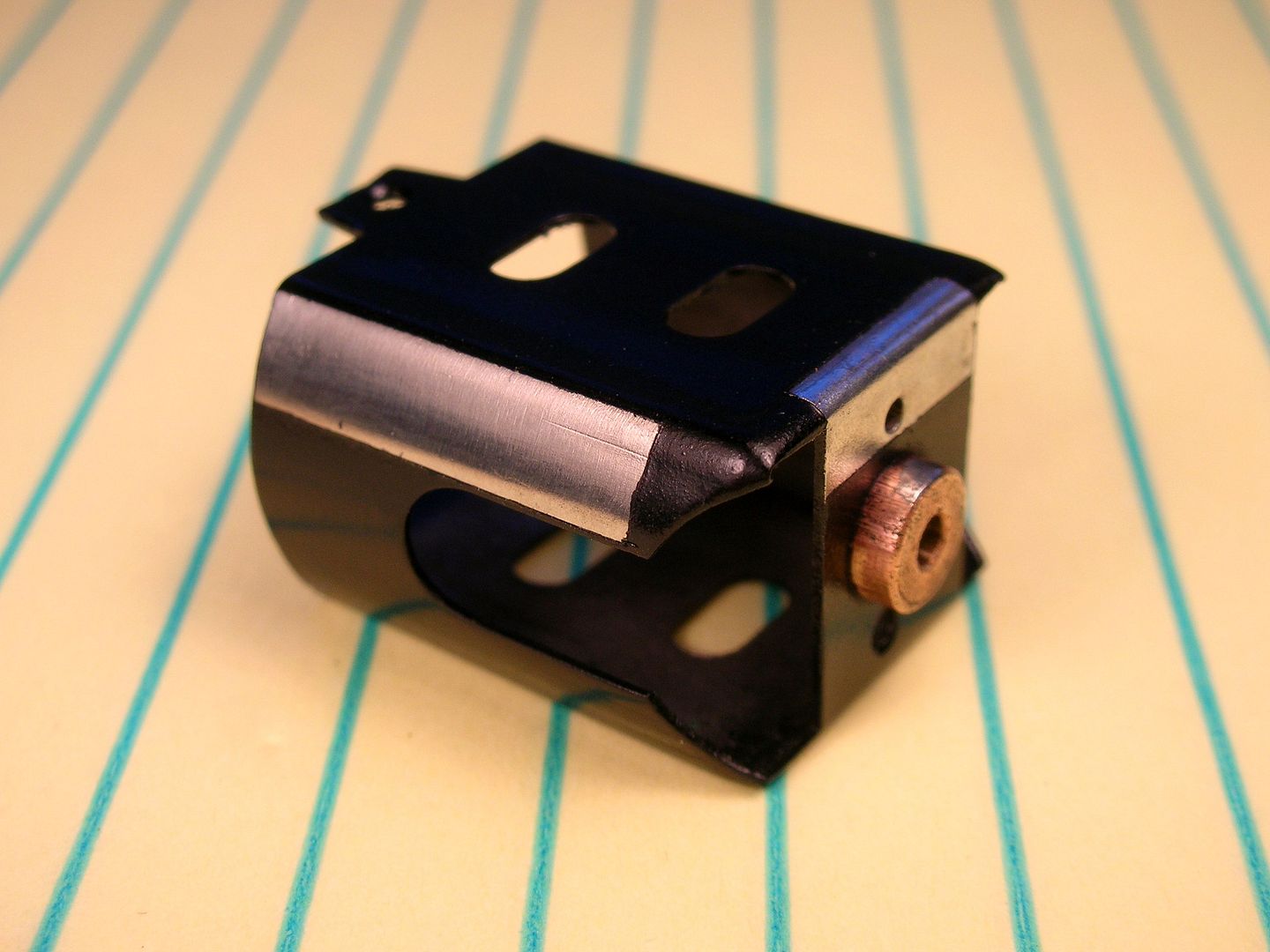

The finished can with a few coats of Krylon semi-gloss black:



I decided to use the GP27 arm since my factory box is marked for a GP27.
Here is the lovely Camen hand would GP27 arm I showed earlier. I gave it a light comm trim and a fresh coat of Camen purple arm dye:

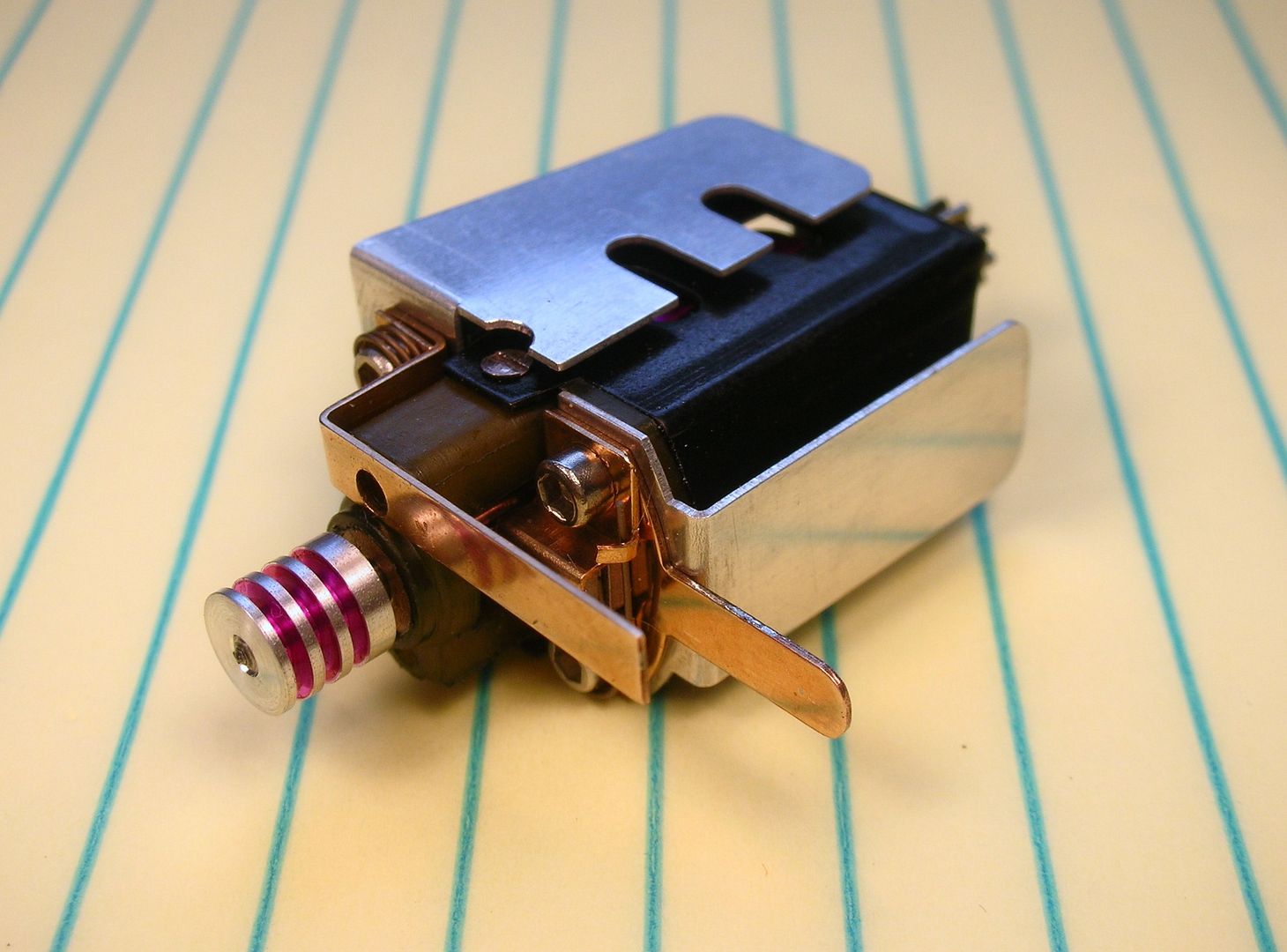

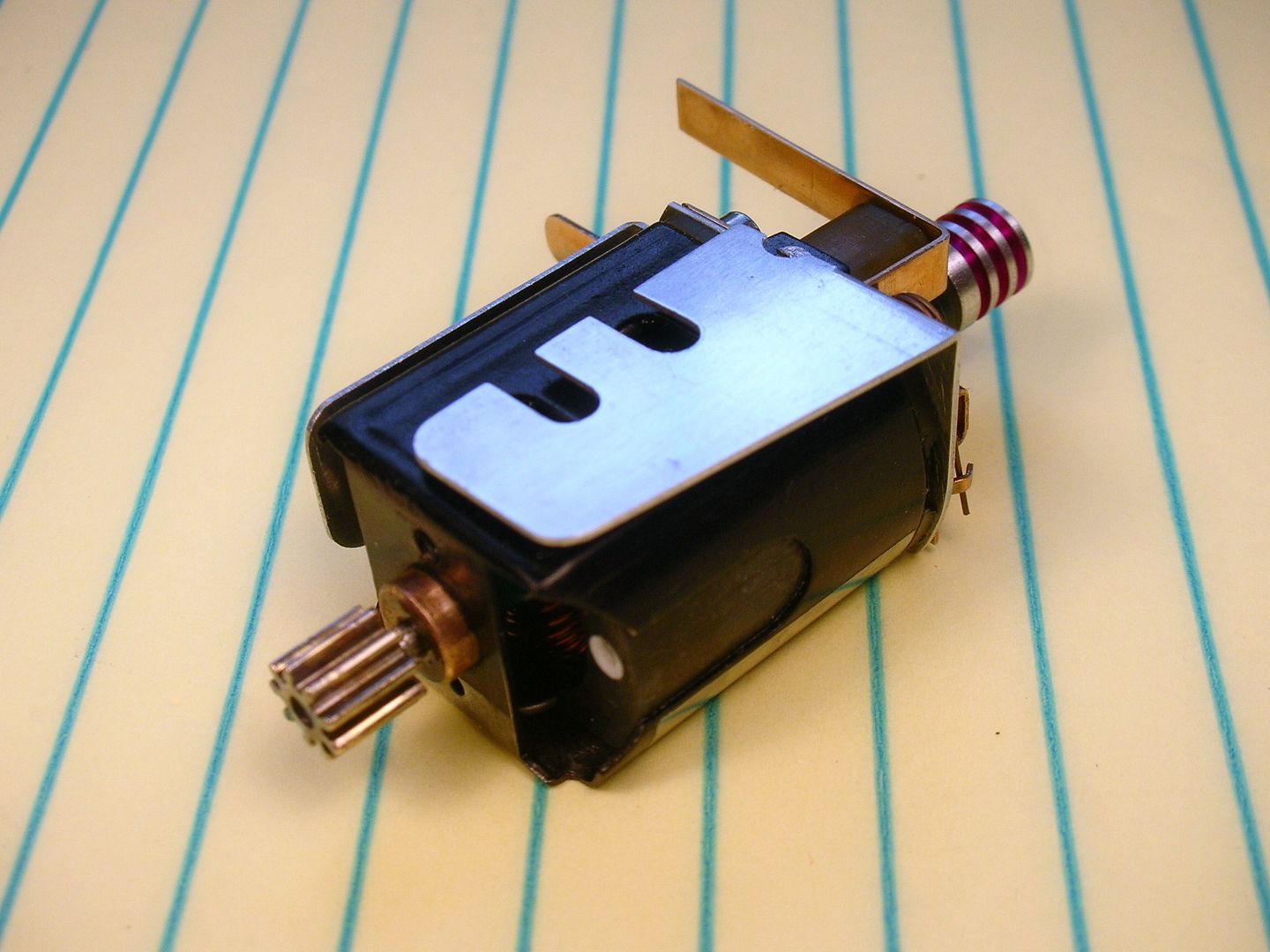

The finished motor:

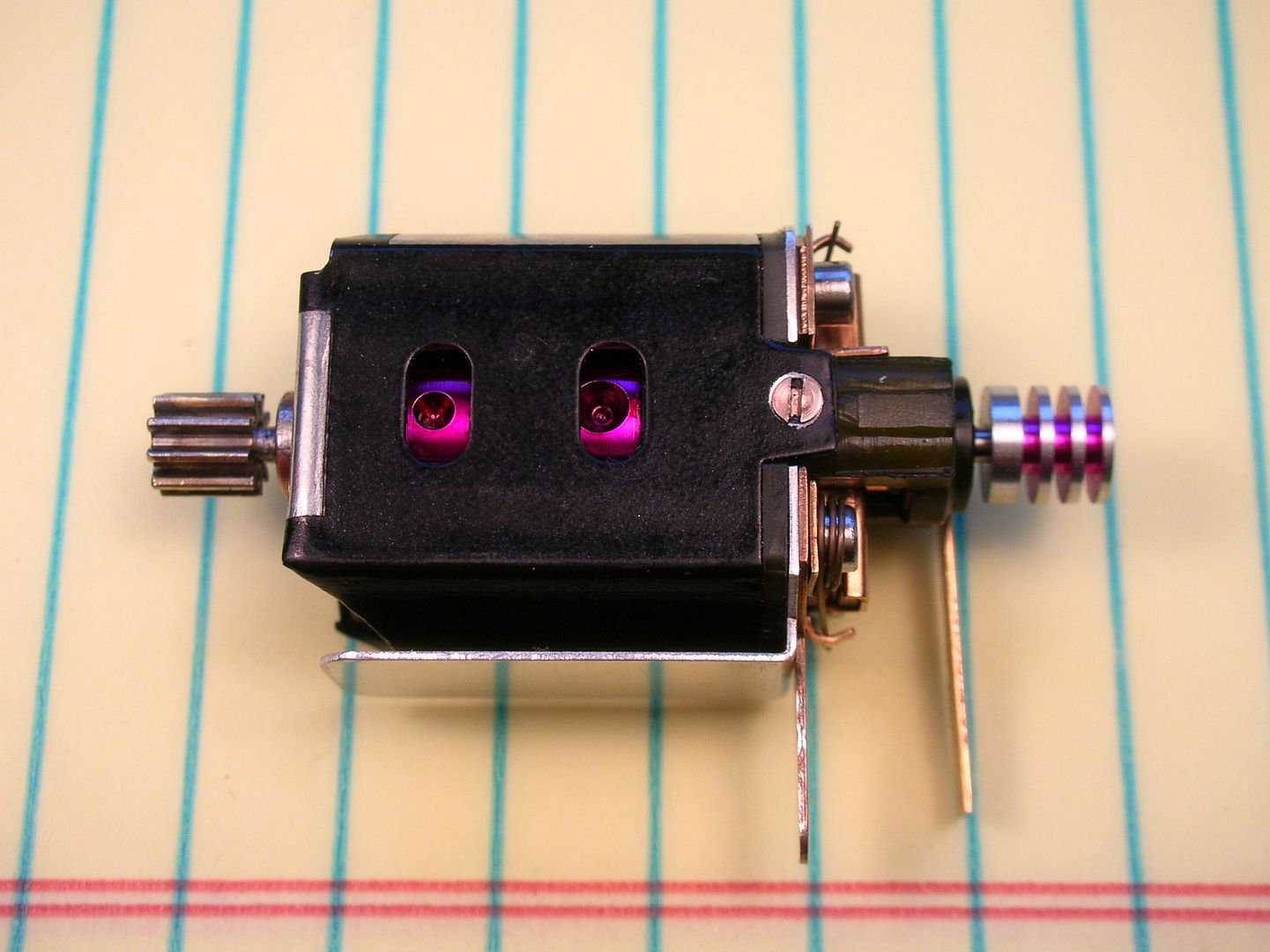

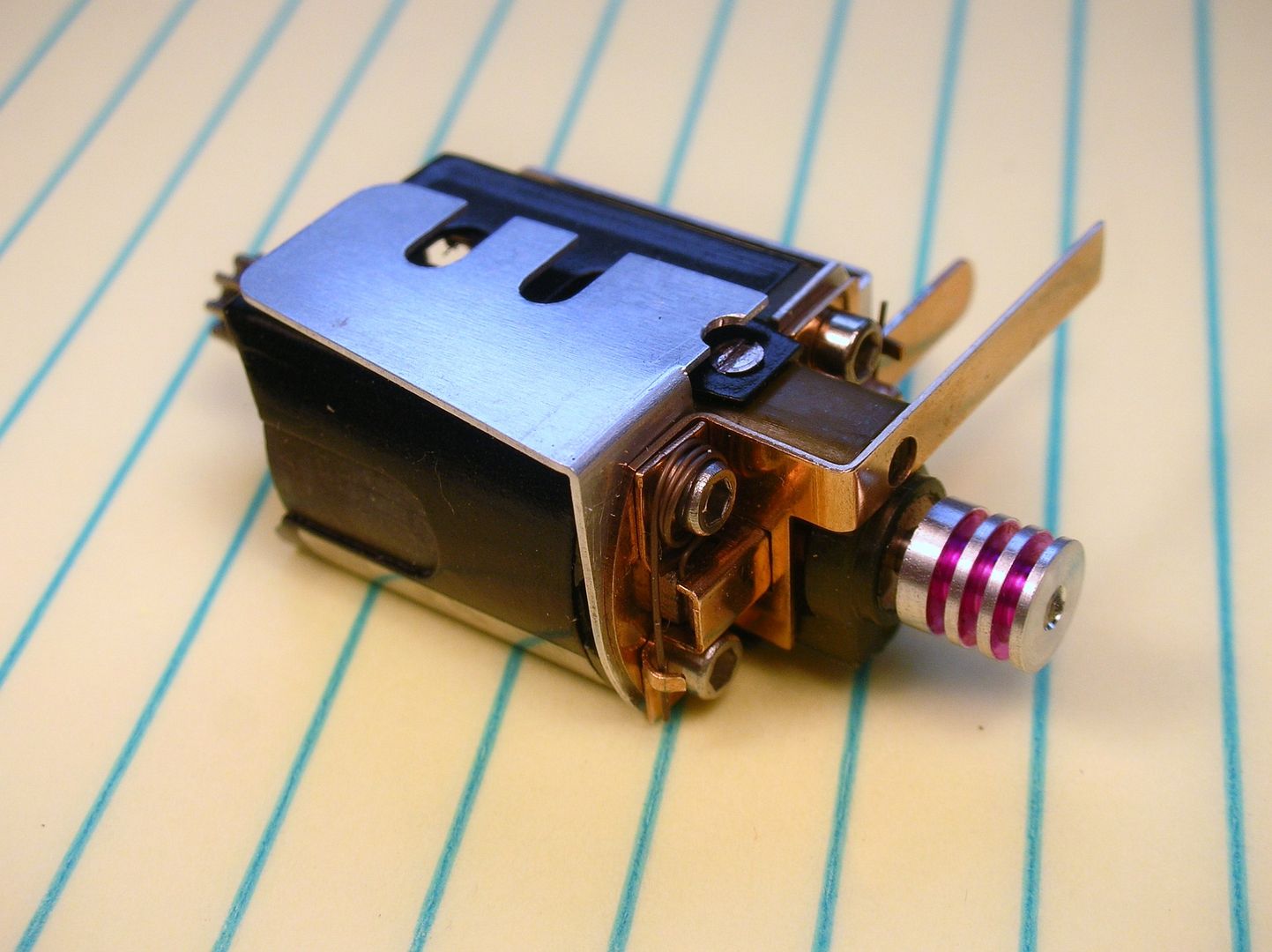

I installed a comm cooler because I think they look cool. It can easily be removed if a future owner doesn't like it:



The Champion White Dot magnets and factory 9t pinion were reused:

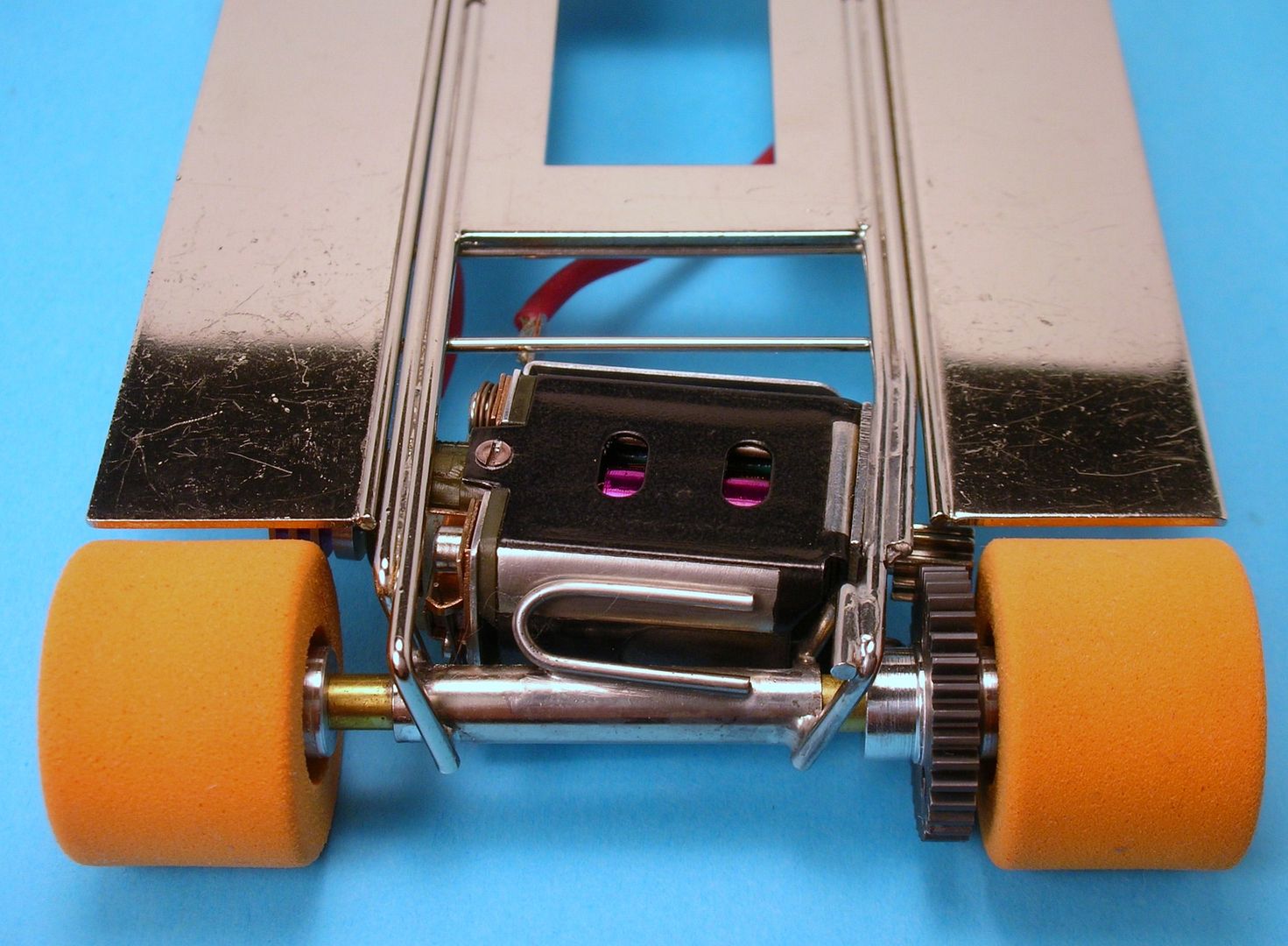

I love the way a purple-dyed arm looks in a black setup



Time to put all the pieces into one lump and get it on the track...

[Phil Donaldson]

I just saw this post and I believe I can be of some help.

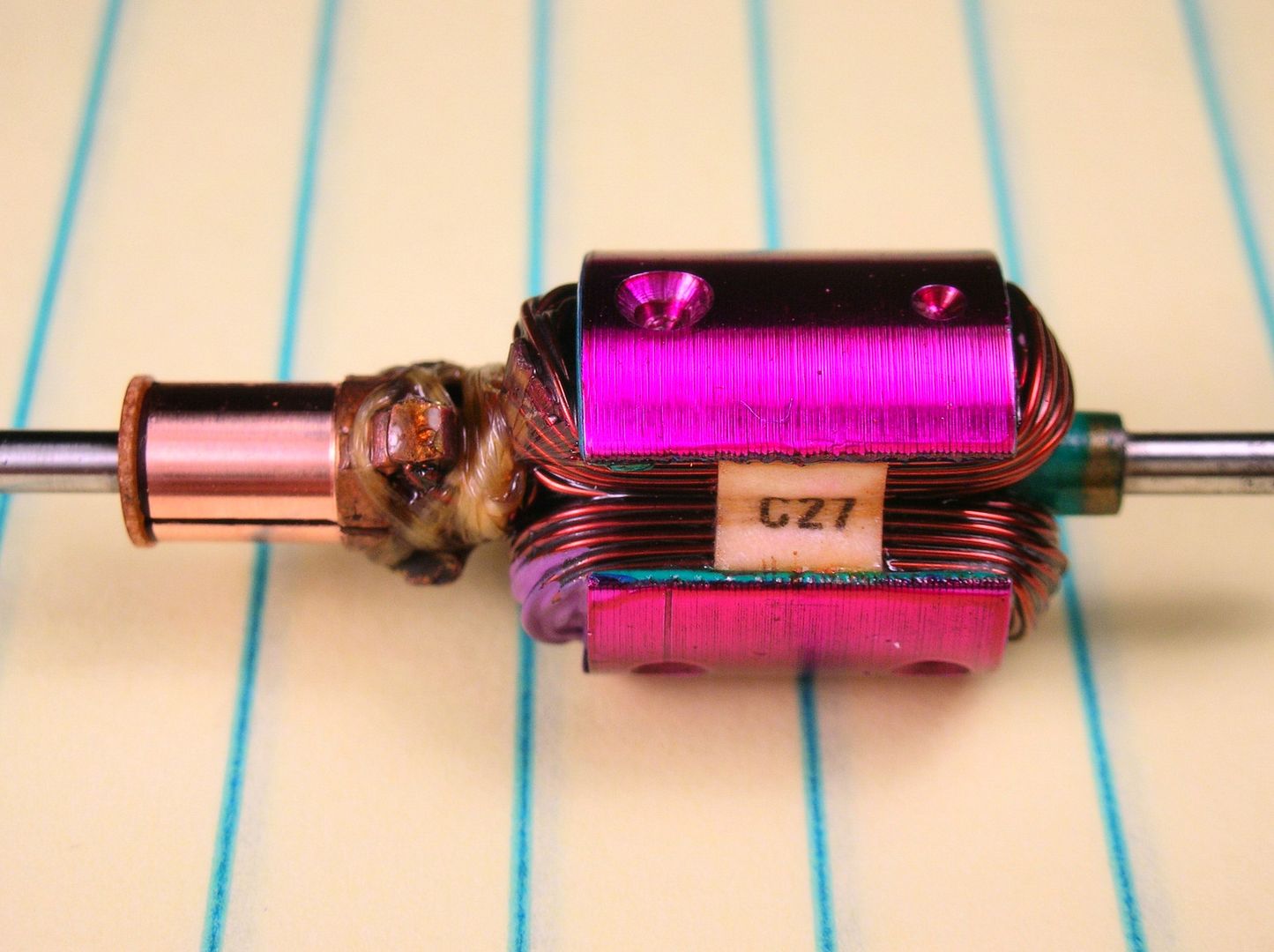

The armature with the C27 tag is a Mura Cheetah Grp 27.



This armature is a Champion Grp 27.



This armature is a Camen Grp 27.

[Pablo]

Beyond awesome, Rick. The Slotblog police limit emoticons to three, so I won't even try.

Stunning X5, I absolutely love it

[dc-65x]

Thanks, Pablo!

Phil, thanks for the armature pictures. Mine looks like it could be a Mura-Bob Green handwound arm. Whatever it is I think it's a nice upgrade for the Bandito.

Thanks again.

[dc-65x]

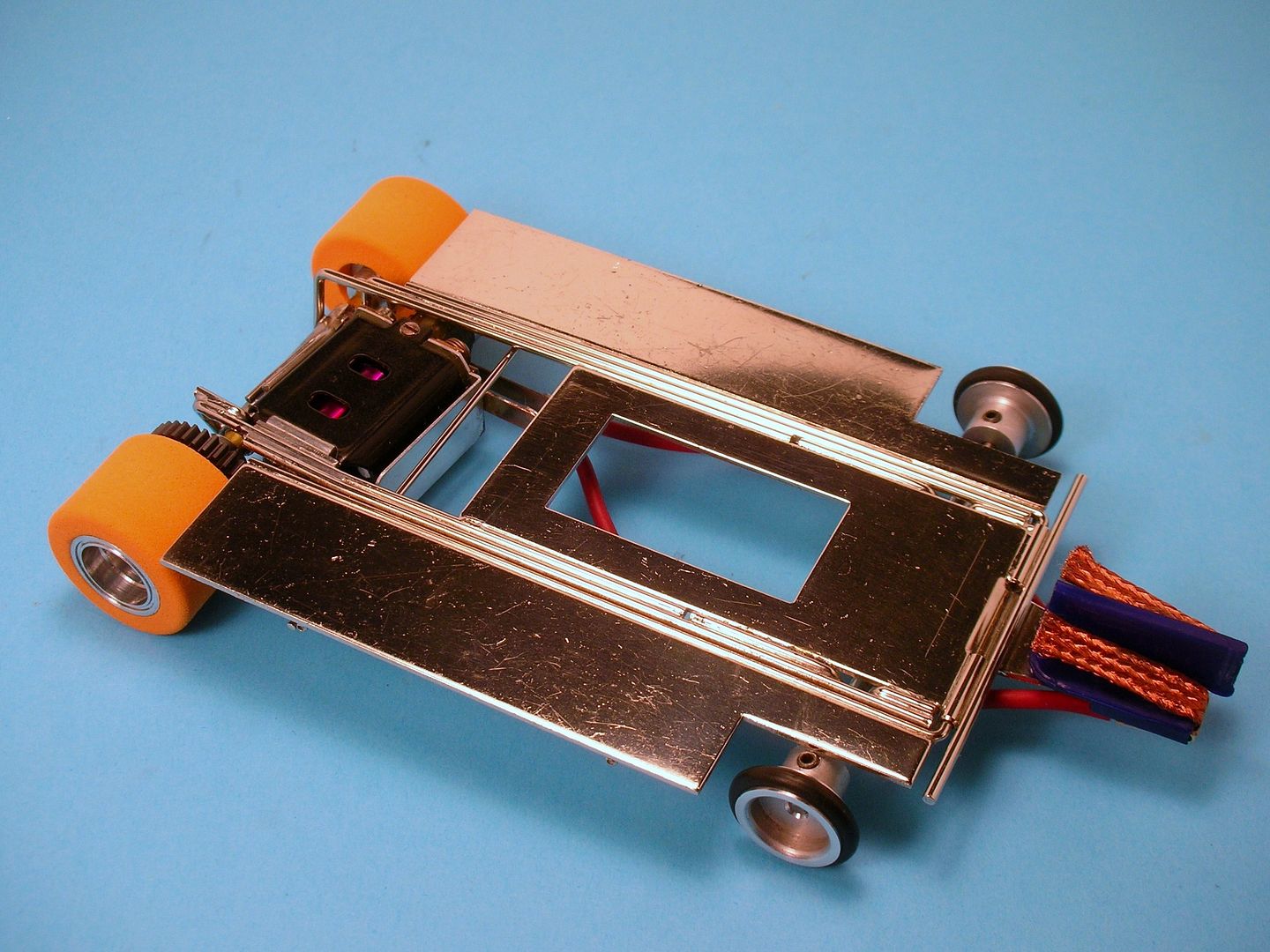

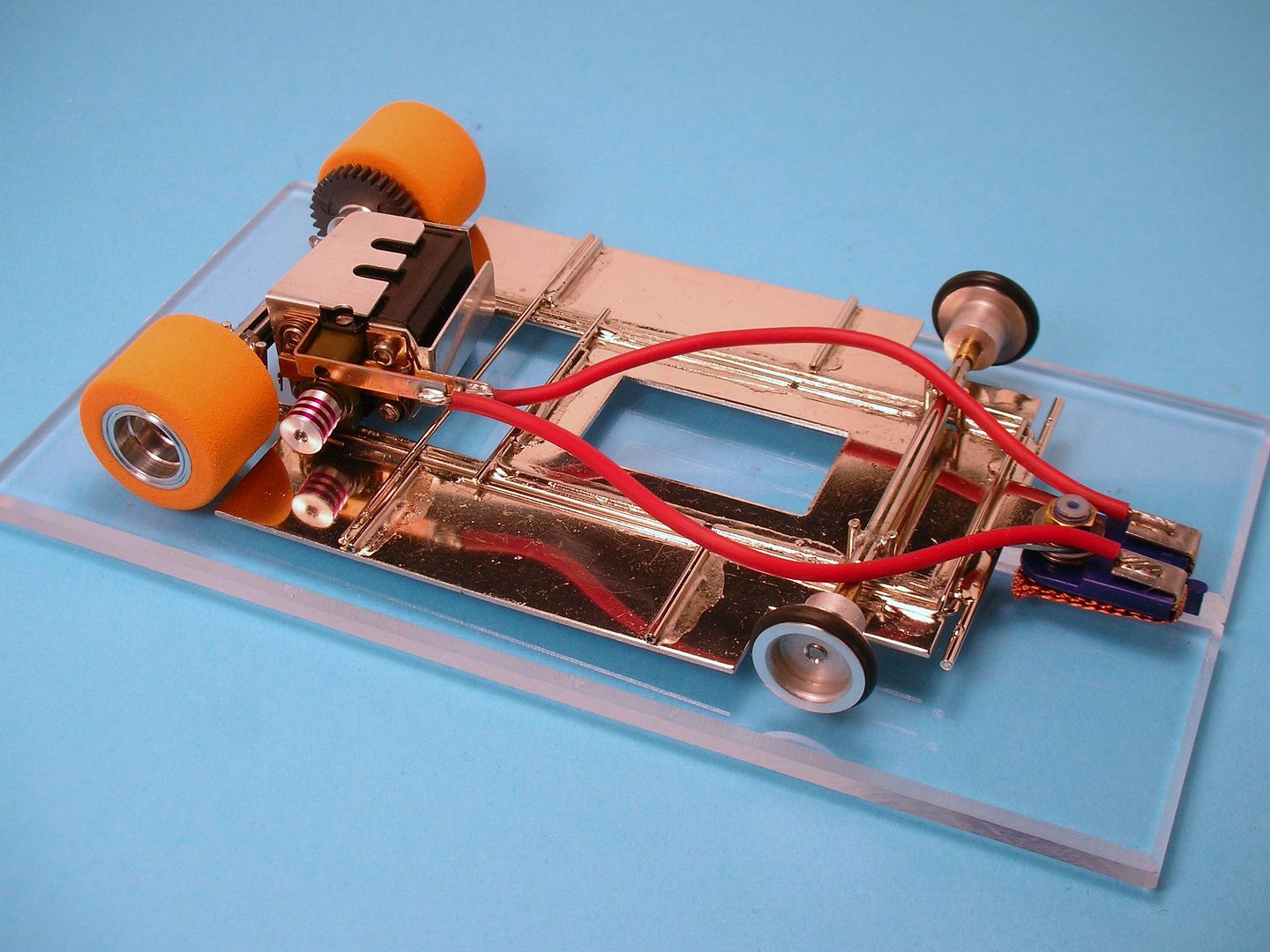

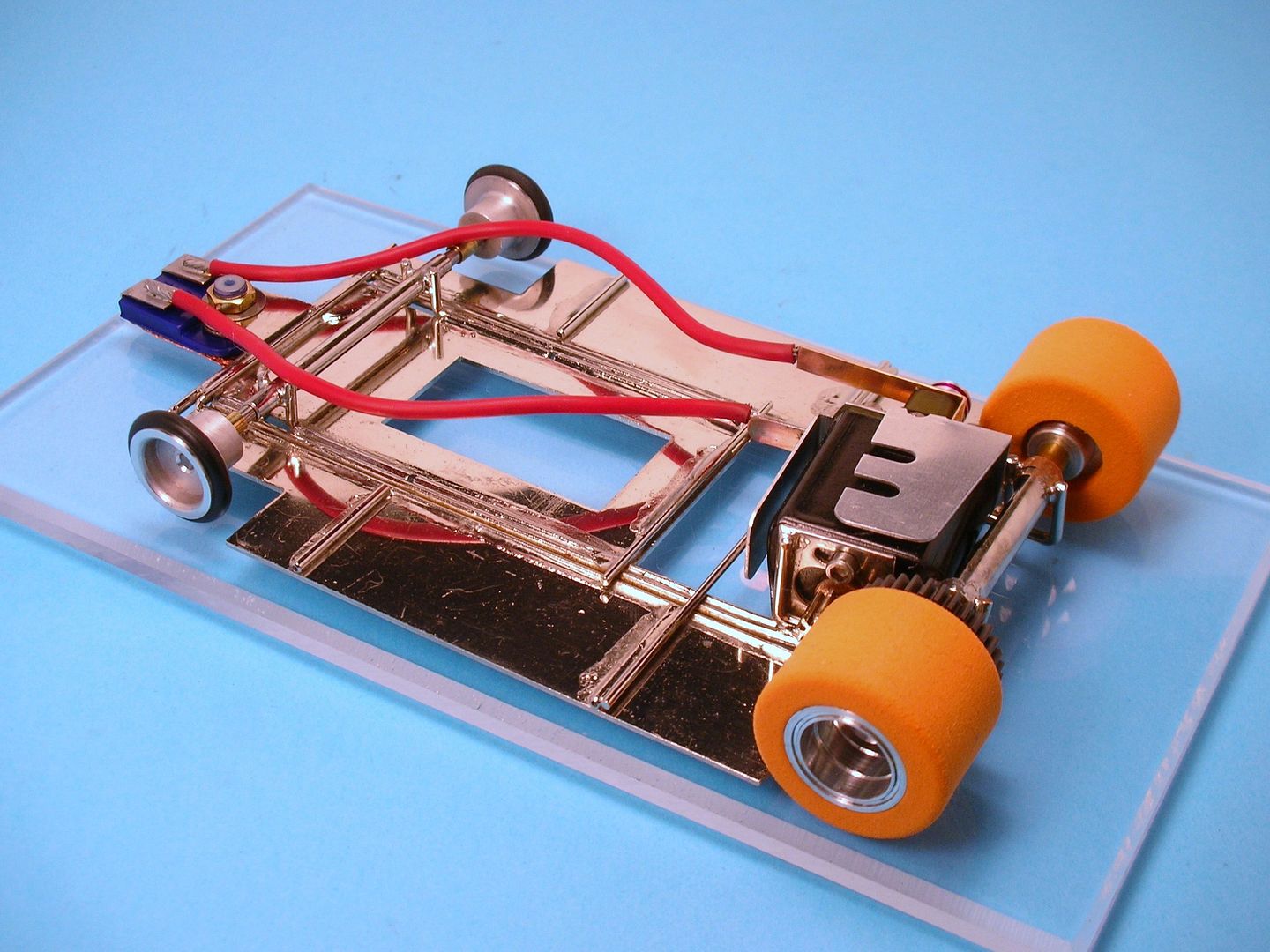

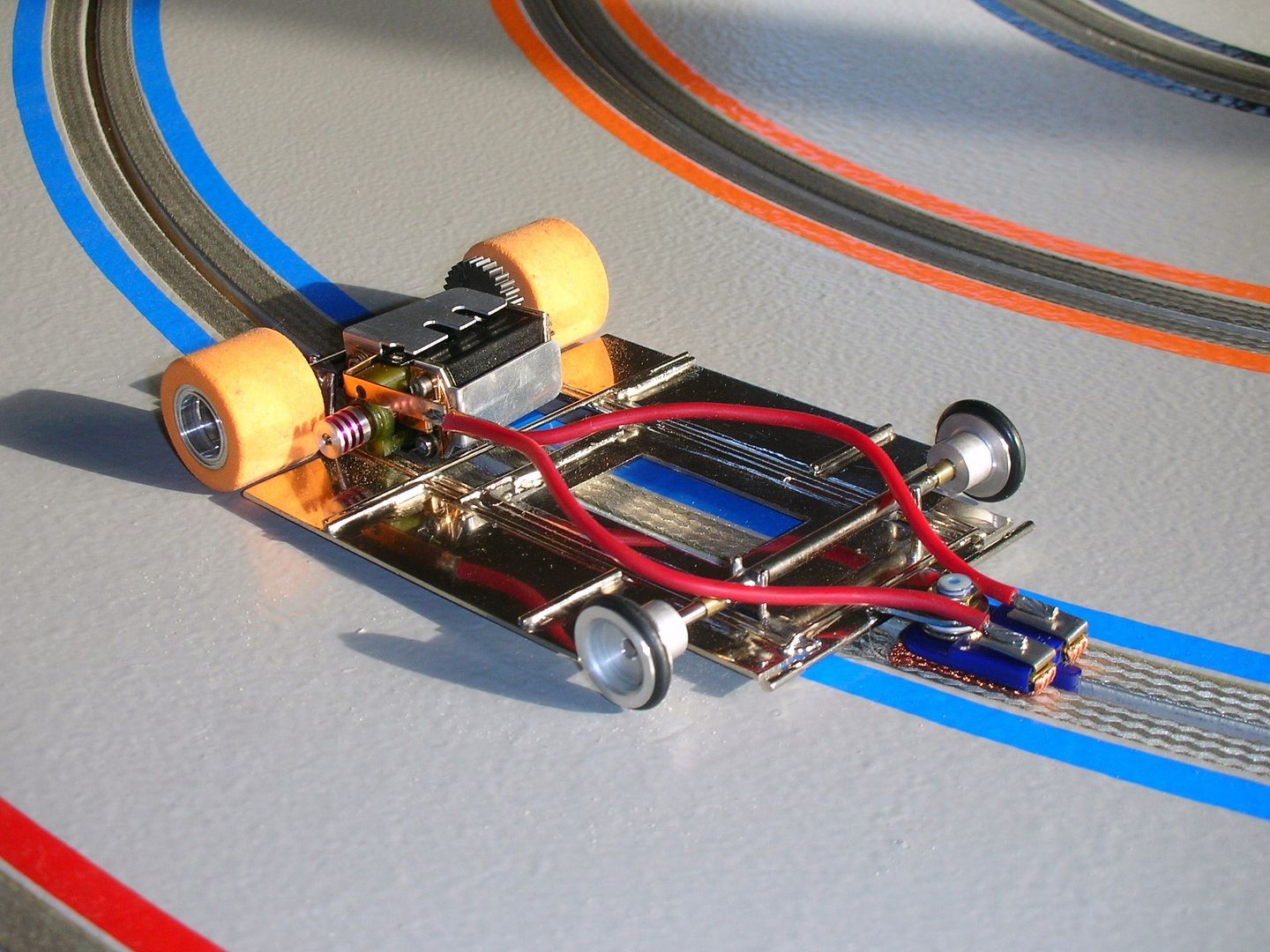

The roller is finished and has seen a little track time, too:



Another look at where it started:



And all freshened up:









Something really cool is being worked on for this cars body. Stay tuned!

[Jairus]

Sweet!

So... how's it handle?

I am guessing that lowering the gear ratio might improve lap times for these older motors.

[dc-65x]

It's handles a little loose mainly because of the orange tires along with my very lightly glued track. I'd love to see it on a clean and freshly spray-glued blue King.

[Mbloes]

Something really cool is being worked on for this cars body. Stay tuned!


Bodies are the best part.

[Jairus]

Painting bodies is my favorite part, too... but I love the look of brass, steel, and wire when a chassis is done well even better.

[Pablo]

My favorite visual parts are the purple arm/comm cooler dye and the low CG curved brace.

[Bill from NH]

You didn't include the Cobra gear? I'm waiting to see if the body is primarily painted purple, too.

[TSR]

Rick,



Superb job as usual from the best of pro cars builders.



Here is the original item as offered by Champion:





They should have hired you!

[Jairus]

I've seen that reproduced somewhere recently...

[dc-65x]

Hi Philippe,



Scott gets all the neat stuff!       And I'm glad he does as that's what makes LASCM so great.



I do enjoy trying to restore an almost "lost cause" car when I have the parts and I think I do it some justice.



Thank you very much for the neat pictures!



Jairus, it's like deja vu all over again as I think I've seen that body somewhere, too.

[Jairus]

Found one:

Champion '34 Ford Coupe

[Mike Patterson]

Sorry to be late (again!) to the party, but THIS is the arm you have. It's definitely a Mura.

Nice restoration!

[dc-65x]

Boy, it sure looks like it to me. Thanks Mike.
