Larry, how kind of you! Comparing me to Rick certainly makes me proud, however he is a jeweler and I "string beads"
Maurizio Salerno



#27 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 15,317 posts
    • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 17 May 2025 - 02:10 PM

"string pearls"  :clapping:   :)


  • Jaeger Team likes this
Bill Fernald

I intend to live forever!  So far, so good.  :laugh2:  :laugh2:

#28 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 26 June 2025 - 01:15 PM

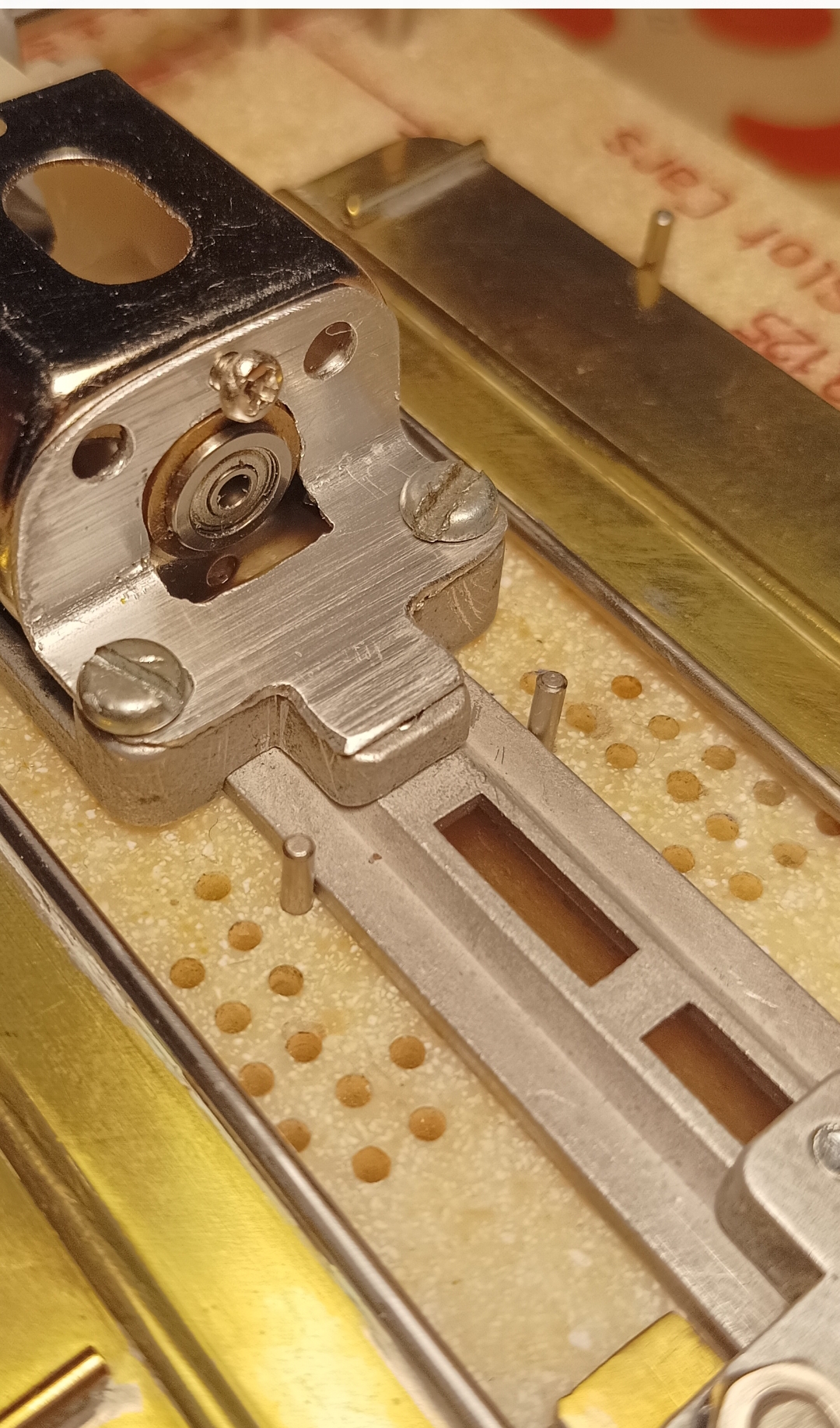

...back to this "lento pede" project, here it is a scratchbuilt rear support for motor stability...

Attached Images

  • Screenshot_2025-06-26-20-09-44-737_com.miui.gallery-edit.jpg

  • MSwiss, Alchemist, Slot Car Rod and 3 others like this
Maurizio Salerno

#29 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 27 June 2025 - 06:21 AM

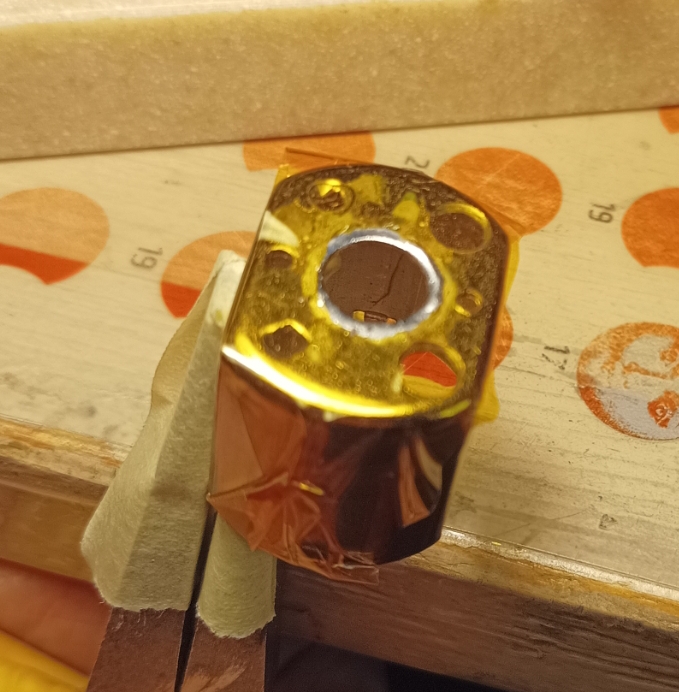

...prepping to solder the ball bearing and it's adapter...

Attached Images

  • Screenshot_2025-06-27-13-19-23-918_com.miui.gallery-edit.jpg

  • vfr750 likes this
Maurizio Salerno

#30 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 27 June 2025 - 07:52 AM

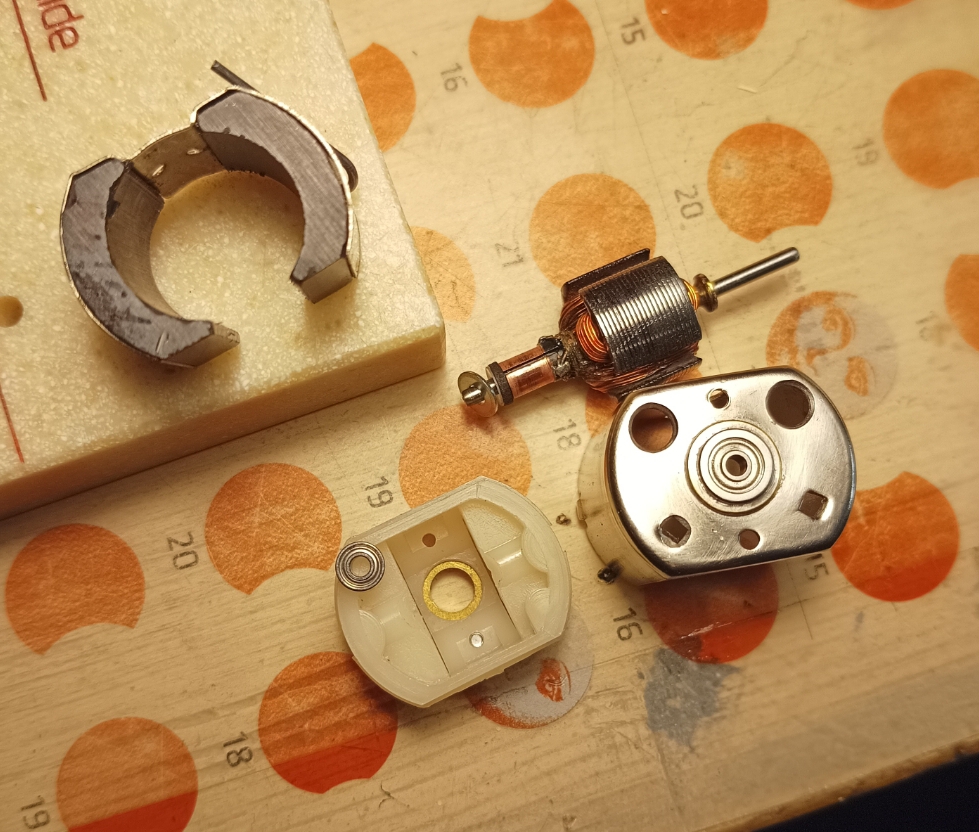

I soldered the bearing into the can using an old (but not bad) arm, the endbell adapter has a very precise snap fit, I will probably glue the bearing with loctite...

Attached Images

  • Screenshot_2025-06-27-14-38-40-112_com.miui.gallery-edit.jpg

  • Pablo likes this
Maurizio Salerno

#31 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 27 June 2025 - 10:05 AM

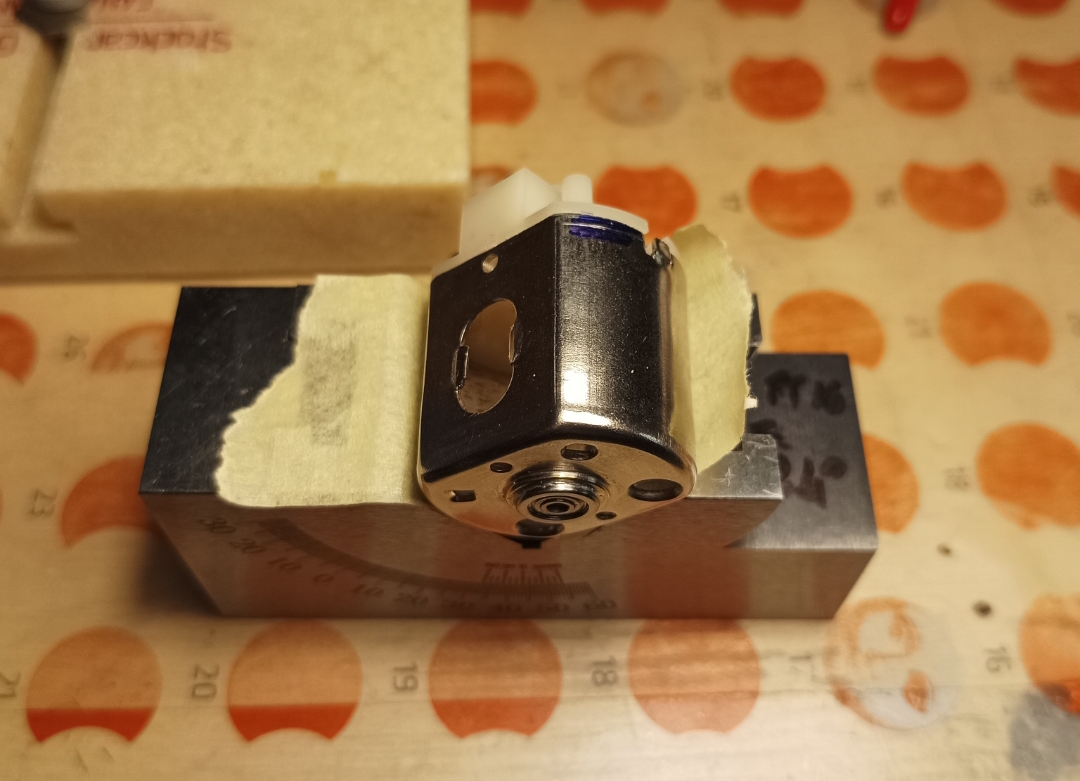

This Champion can already has two holes as standard for fixing the endbell, however I feel more confident if I make two more on the side...

Attached Images

  • Screenshot_2025-06-27-16-56-16-692_com.miui.gallery-edit.jpg

  • Pablo, vfr750 and old & gray like this
Maurizio Salerno

#32 Mark Onofri

Mark Onofri

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 2,981 posts
    • Joined: 18-November 20
  • Gender:Male
  • Location:Syracuse, NY

Posted 27 June 2025 - 09:01 PM

Where did you find the bearing adapter? I've been looking for over a year for them?

#33 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 28 June 2025 - 01:02 AM

Where did you find the bearing adapter? I've been looking for over a year for them?

A friend of mine made them on a lathe.
Unfortunately he's retired now. In 2007 I inherited from my father a little gem that is a "Meccanica Cortini" lathe, it has slept in the basement since then...
Maurizio Salerno

#34 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 28 June 2025 - 05:28 AM

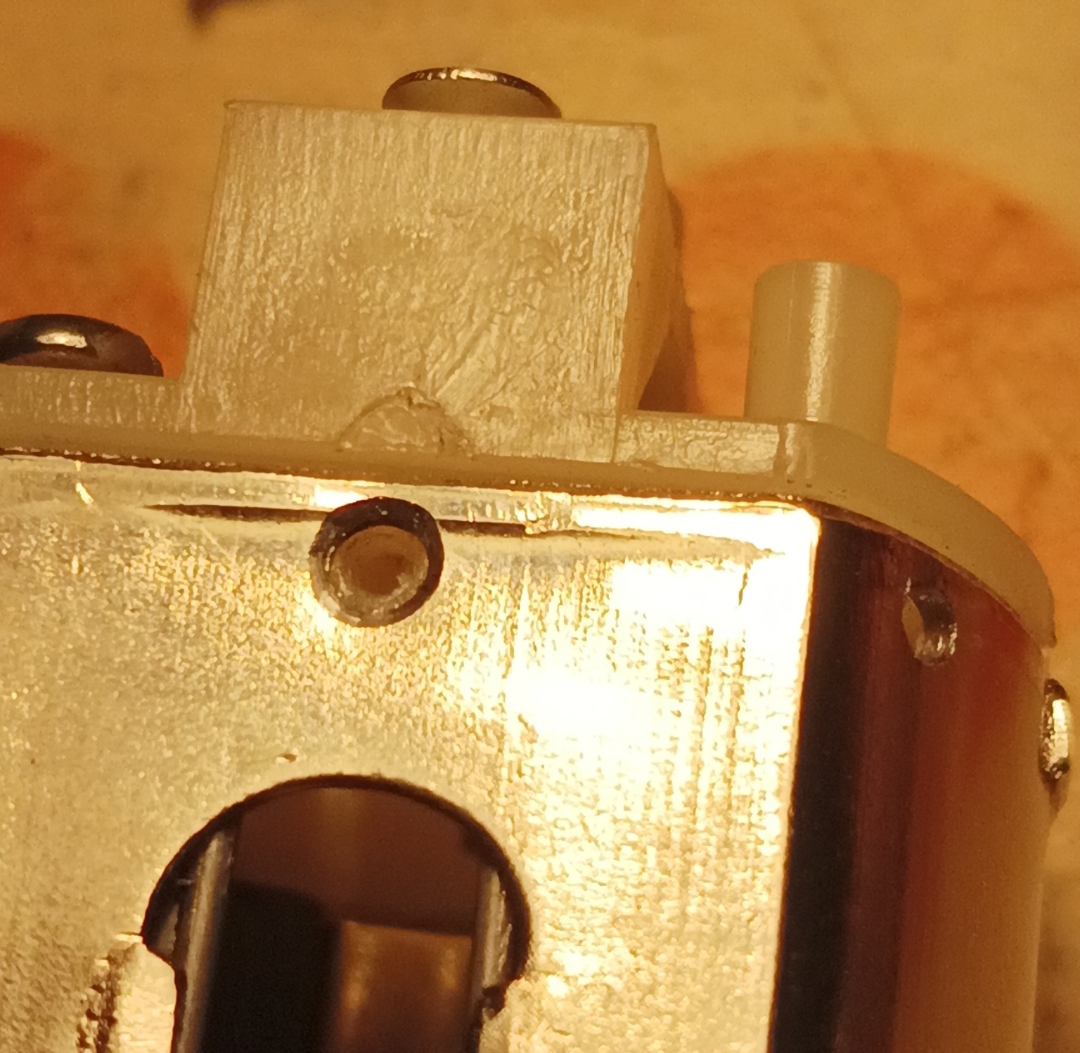

...this hole chamfered for flush...


...this hole chamfered for flush...

Attached Images

  • Screenshot_2025-06-28-12-20-42-237_com.miui.gallery-edit.jpg
  • Screenshot_2025-06-28-12-17-49-589_com.miui.gallery-edit.jpg

  • vfr750 likes this
Maurizio Salerno

#35 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 28 June 2025 - 01:27 PM

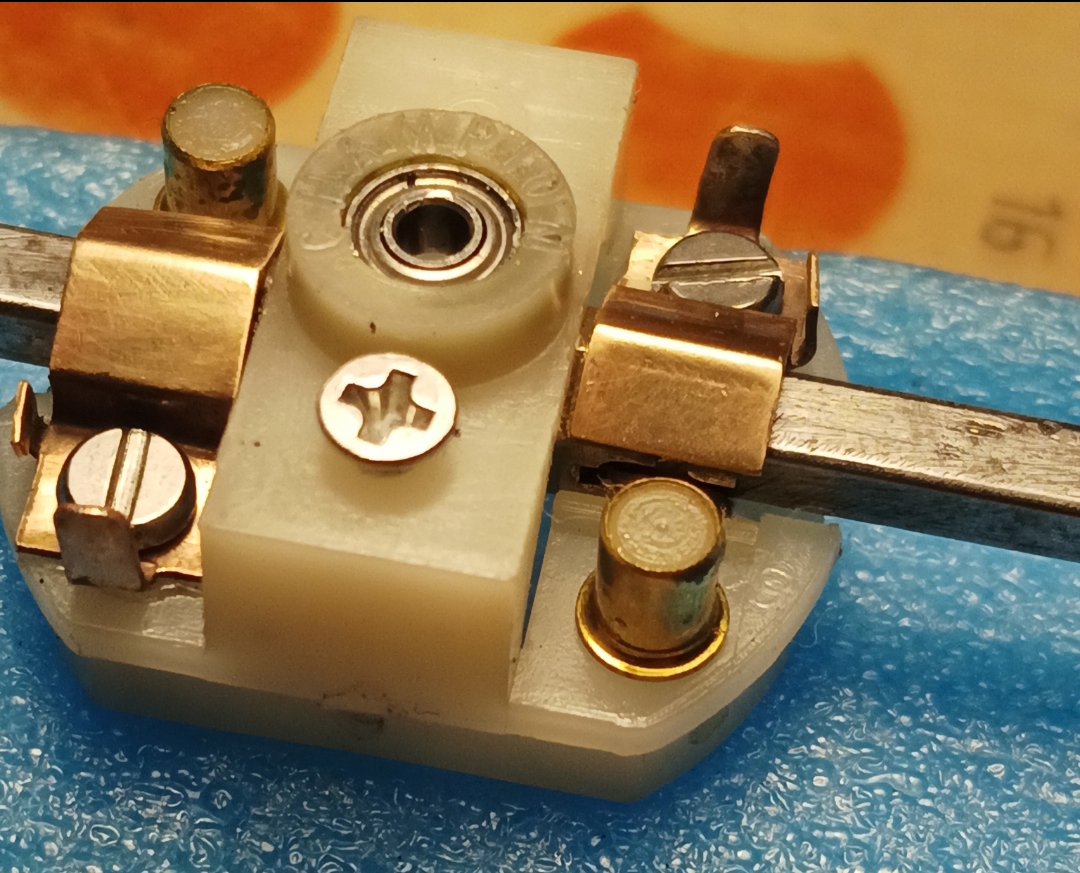

..endbell done, pentroof hoods soldered to the brush tubes and a set of spring post sleeves...

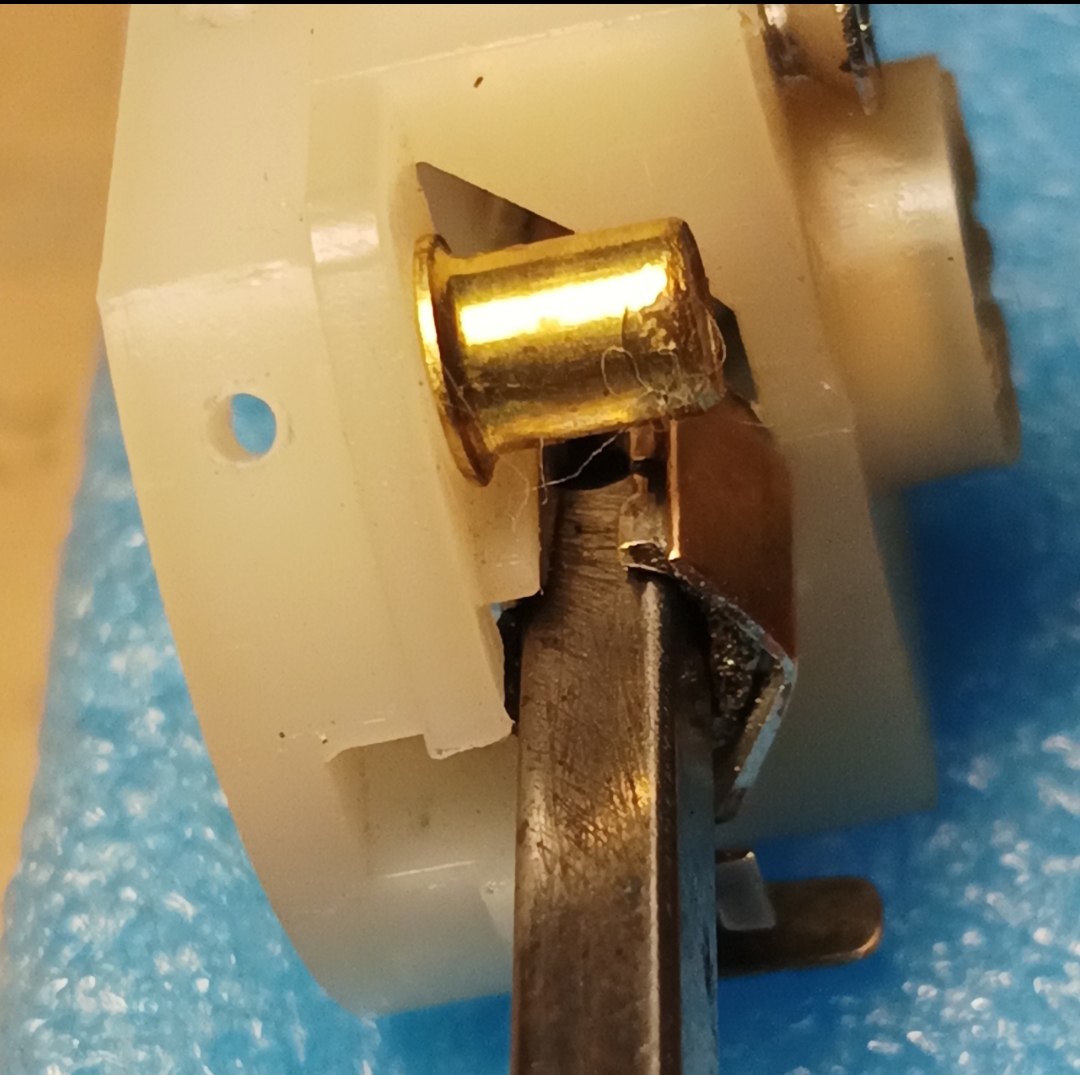

...and made room for the shunts to pass...

Attached Images

  • Screenshot_2025-06-28-20-22-51-958_com.miui.gallery-edit.jpg
  • Screenshot_2025-06-28-20-09-44-601_com.miui.gallery-edit.jpg

  • Pablo and vfr750 like this
Maurizio Salerno

#36 Mark Onofri

Mark Onofri

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 2,981 posts
    • Joined: 18-November 20
  • Gender:Male
  • Location:Syracuse, NY

Posted 28 June 2025 - 02:26 PM

Funny, that's where I sleep too. Nice build.
  • Jaeger Team likes this

#37 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 15 July 2025 - 05:41 PM

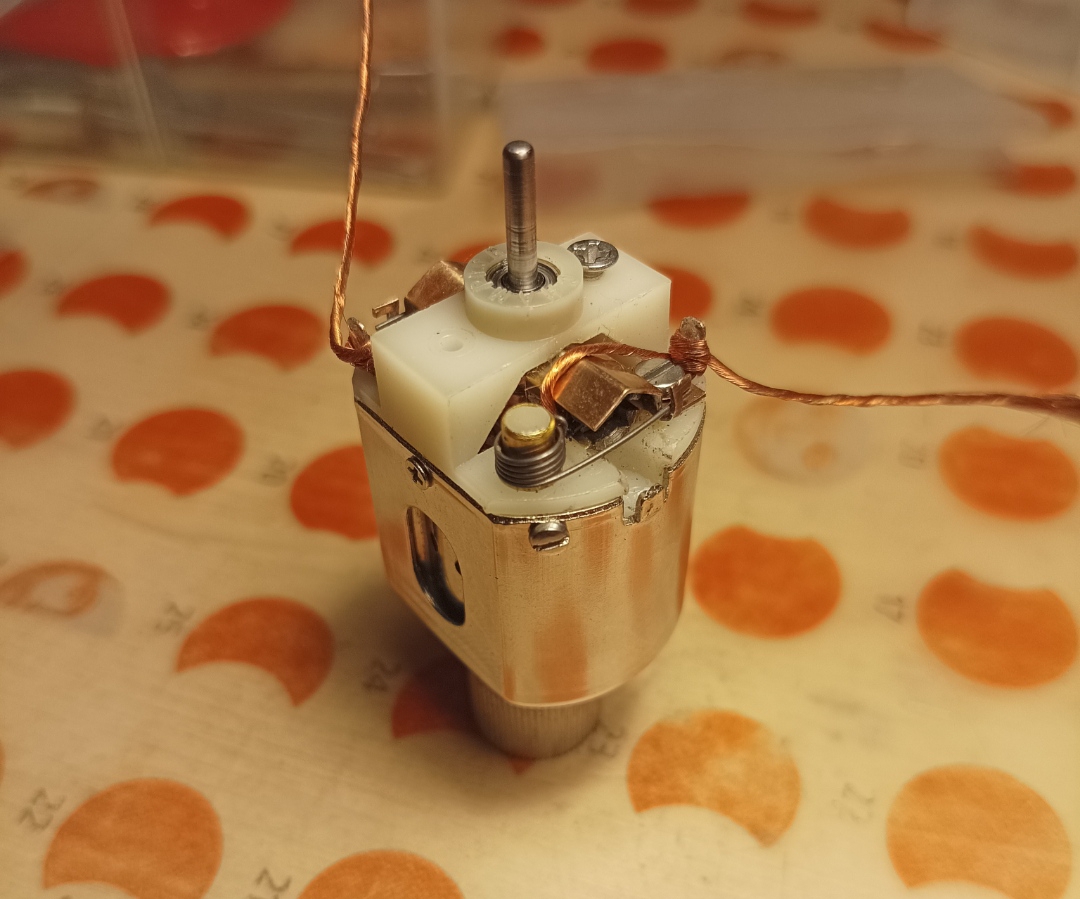

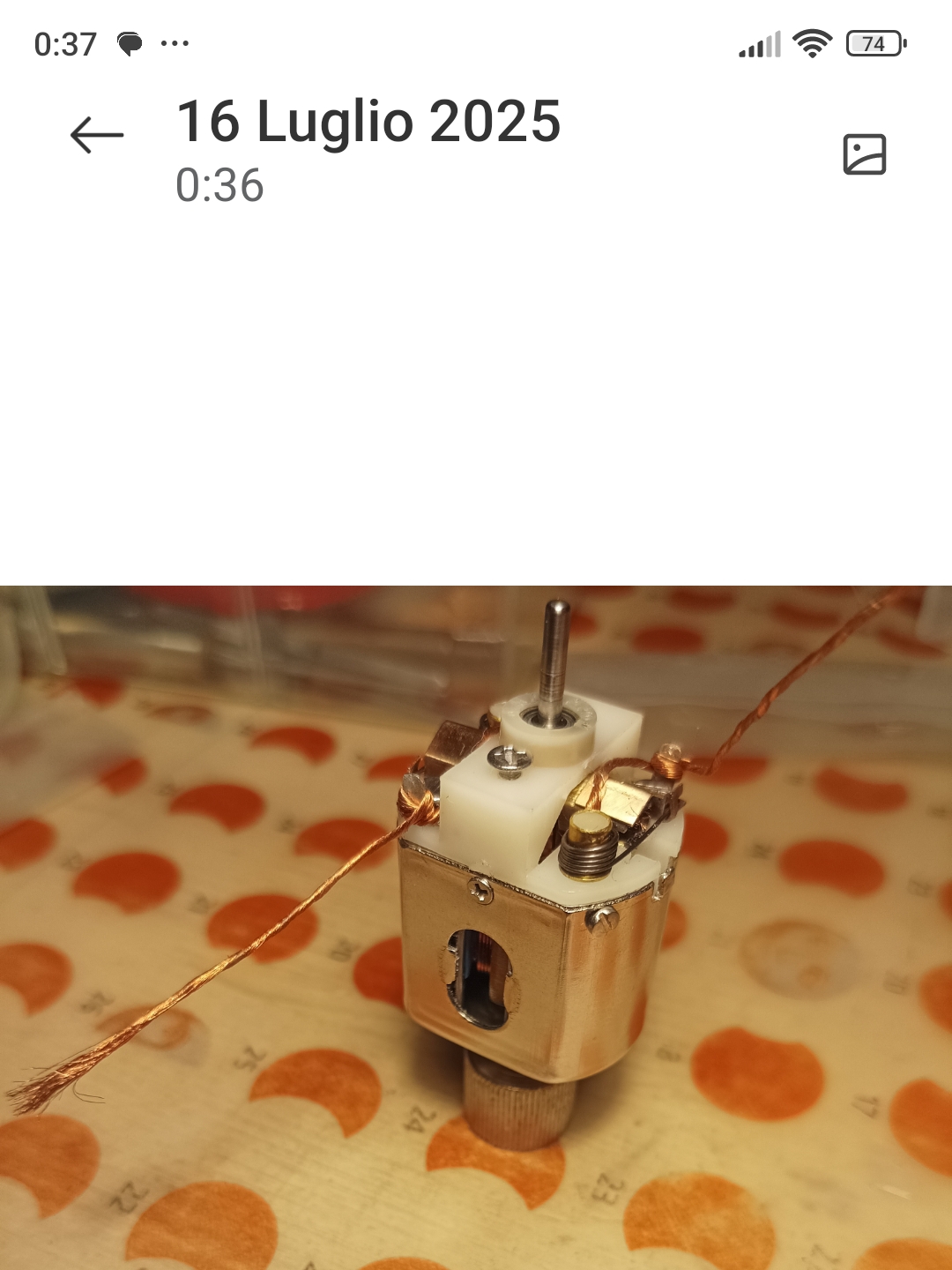

...motor almost done

Attached Images

  • Screenshot_2025-07-16-00-37-46-626_com.miui.gallery-edit.jpg
  • Screenshot_2025-07-16-00-37-26-809_com.miui.gallery-edit.jpg

  • vfr750 and Slot Car Rod like this
Maurizio Salerno

#38 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 15,317 posts
    • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 15 July 2025 - 06:30 PM

Nice build! Are you going to use spring insulation on the motor springs?  :)


  • Jaeger Team likes this
Bill Fernald

I intend to live forever!  So far, so good.  :laugh2:  :laugh2:

#39 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 16 July 2025 - 12:32 AM

Nice build! Are you going to use spring insulation on the motor springs?  :)

Yes, I used a black insulation on the side where the spring touch the shunt against the carbon..
For the other side I'd like to find some transparent silicon tube...
this is for aesthetics because, in fact, with a single insulation it has interrupted the flow of current and protected the spring where it is hottest
🙂
  • Bill from NH and olescratch like this
Maurizio Salerno

#40 dc-65x

dc-65x

    Grand Champion Poster

  • Subscriber
  • PipPipPipPipPipPipPipPip
  • 7,204 posts
    • Joined: 14-February 06
  • Gender:Male
  • Location:Captain Rick: The only vintage slot car nut in SW Oregon?

Posted 16 July 2025 - 11:08 AM

............For the other side I'd like to find some transparent silicon tube...

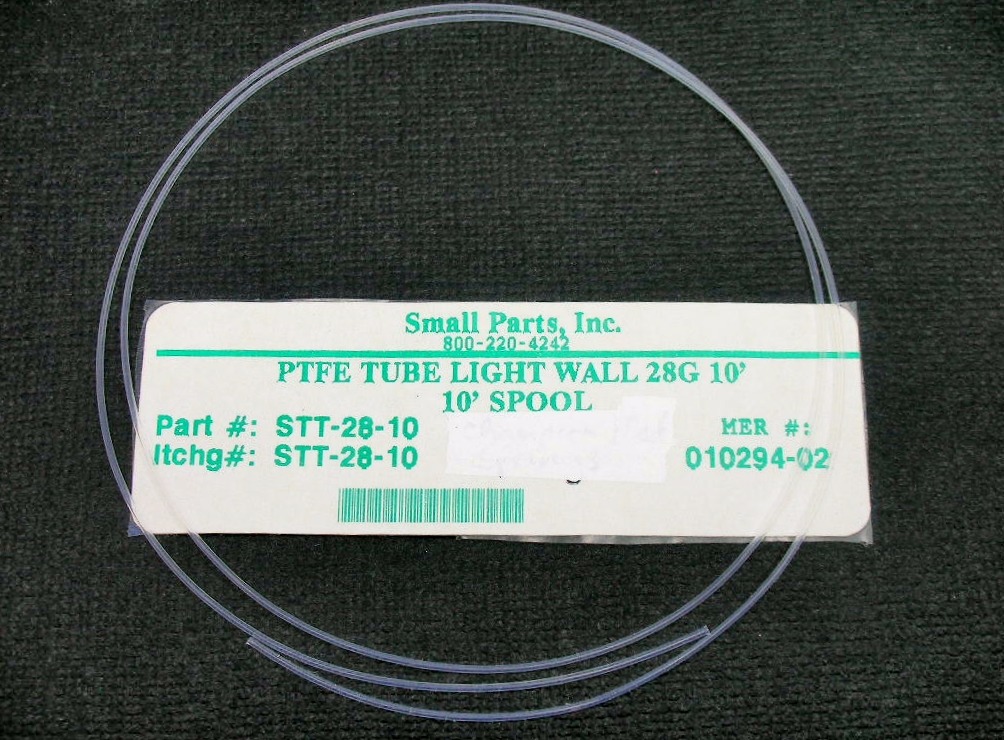

Here is what I've been using Maurizio. It comes in different gauges and wall thicknesses. Unfortunately Small Parts, Inc is no more. Hope this gives you an idea of what to search for.





  • Jaeger Team likes this

Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...

#41 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 15,317 posts
    • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 16 July 2025 - 11:44 AM

Amazon sells 250' for about $90. OnlineMetals.com selis it in 1' or 2' lengths for less than $20. Both places have 28 ga.


Bill Fernald

I intend to live forever!  So far, so good.  :laugh2:  :laugh2:

#42 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 17 July 2025 - 02:22 AM

Thanks guys. I sent a request to onlinemetals.com, hope they can provide a couple of meters

Maurizio Salerno

#43 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 17 July 2025 - 03:38 AM

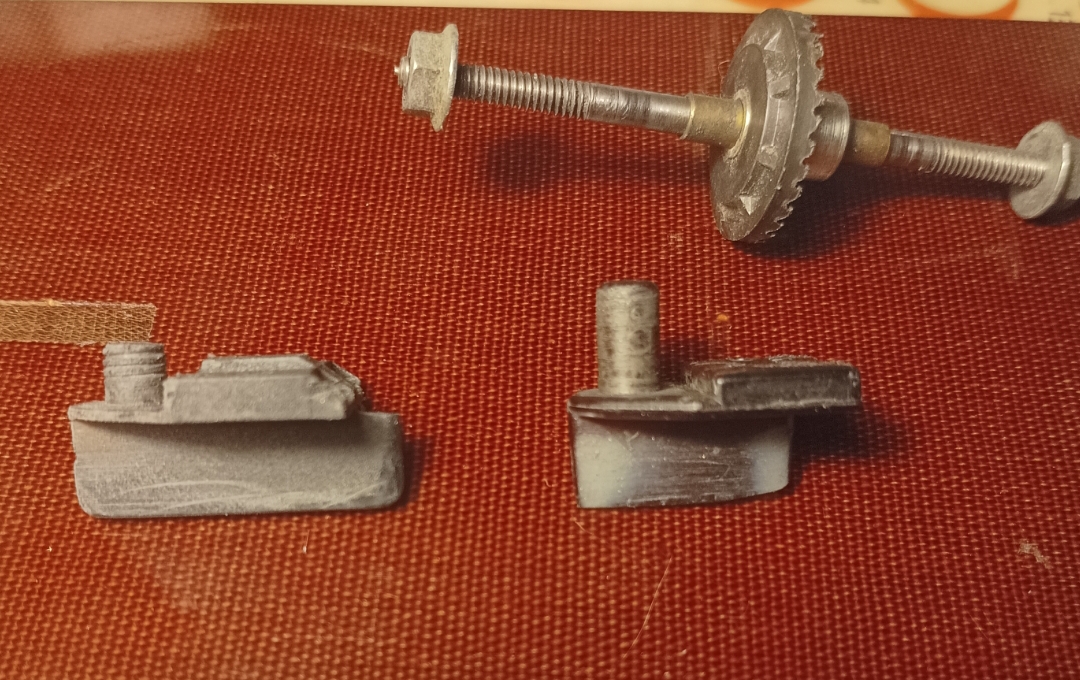

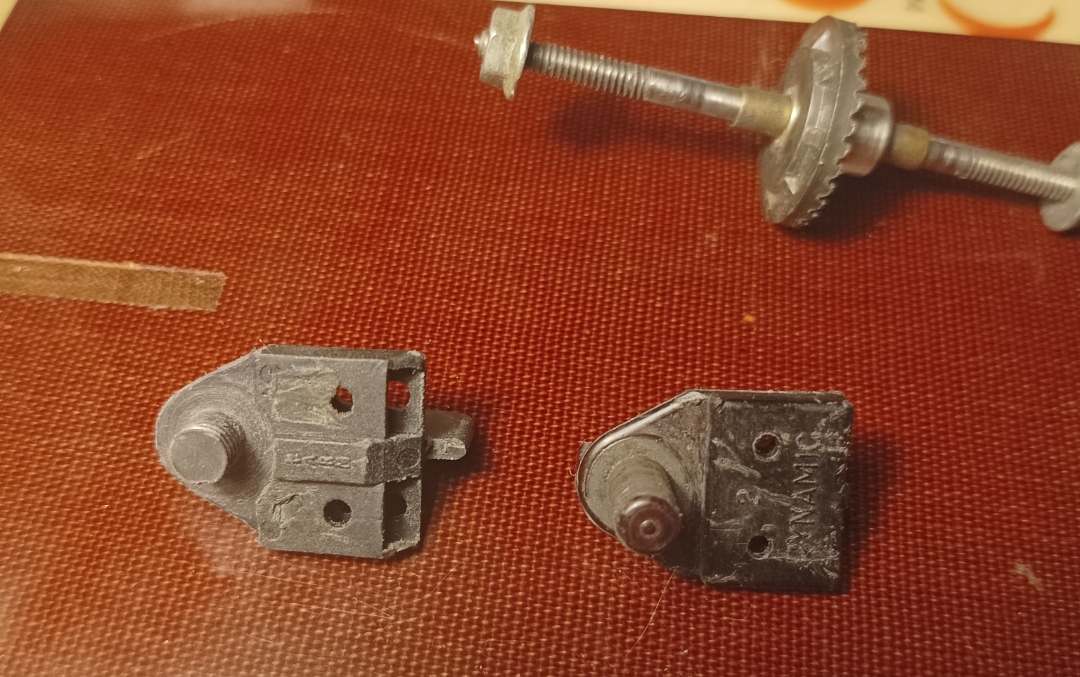

...on the right the original guide, on the left a modern one suitably reshaped...

Attached Images

  • Screenshot_2025-07-17-08-13-19-929_com.miui.gallery-edit.jpg
  • Screenshot_2025-07-17-08-12-56-873_com.miui.gallery-edit.jpg

  • Pablo and vfr750 like this
Maurizio Salerno

#44 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 17 July 2025 - 04:47 AM

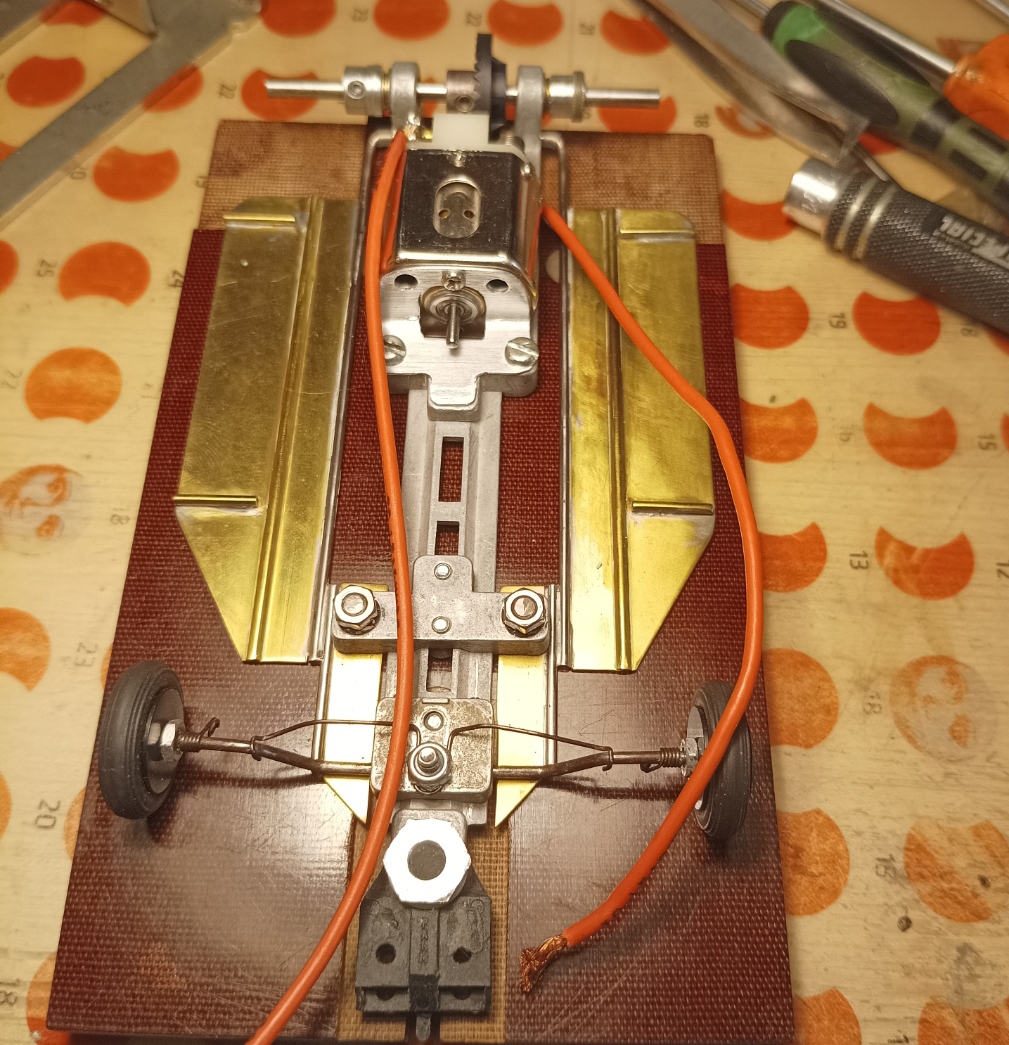

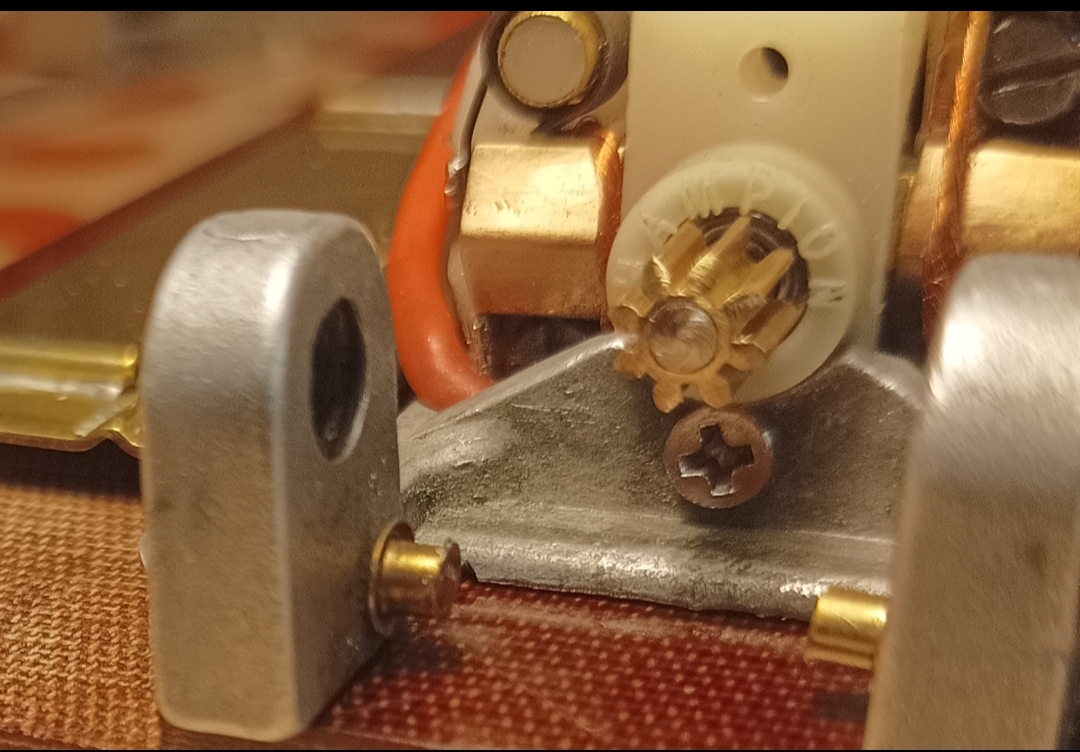

...Let's go ahead and finalize at least the mechanics, after that the most difficult moment for me will come...the body!

Attached Images

  • Screenshot_2025-07-17-11-40-15-884_com.miui.gallery-edit.jpg
  • Screenshot_2025-07-17-11-33-06-414_com.miui.gallery-edit.jpg
  • Screenshot_2025-07-17-11-31-53-846_com.miui.gallery-edit.jpg

  • Pablo, vfr750, NSwanberg and 4 others like this
Maurizio Salerno

#45 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 22 February 2026 - 11:01 AM

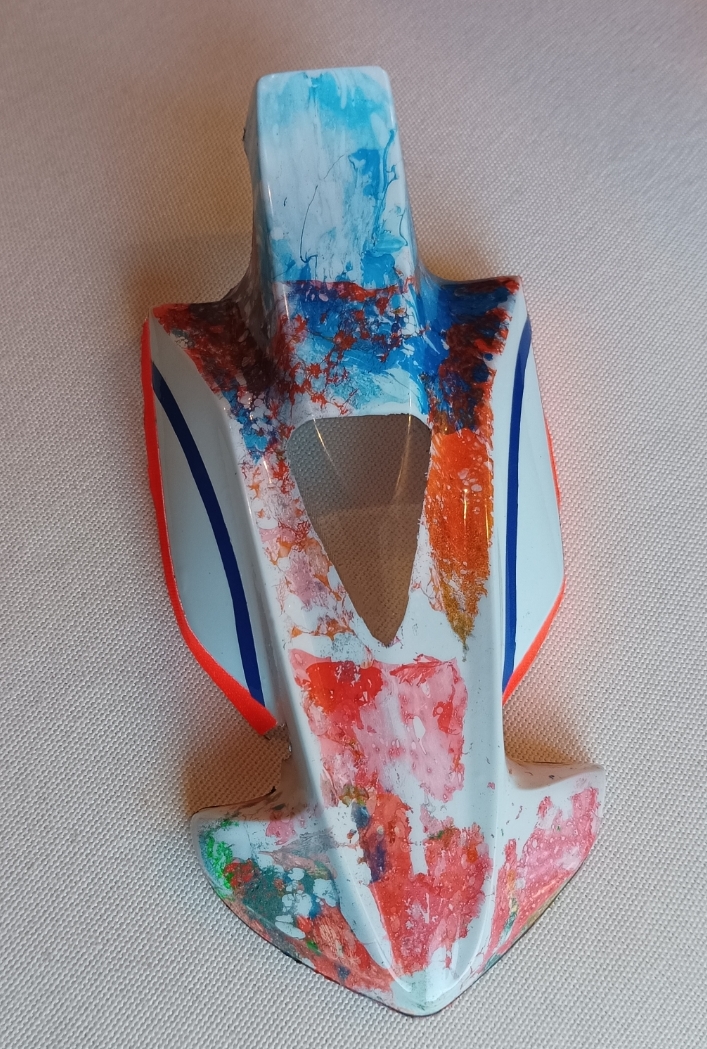

Finally, thanks to the inexhaustible source Dario Gueci, I was able to get my hands on this body that I painted "a la" pop artist...

Attached Images

  • Screenshot_2026-02-22-16-42-54-796_com.miui.gallery-edit.jpg

  • Bill from NH likes this
Maurizio Salerno

#46 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 22 February 2026 - 05:06 PM

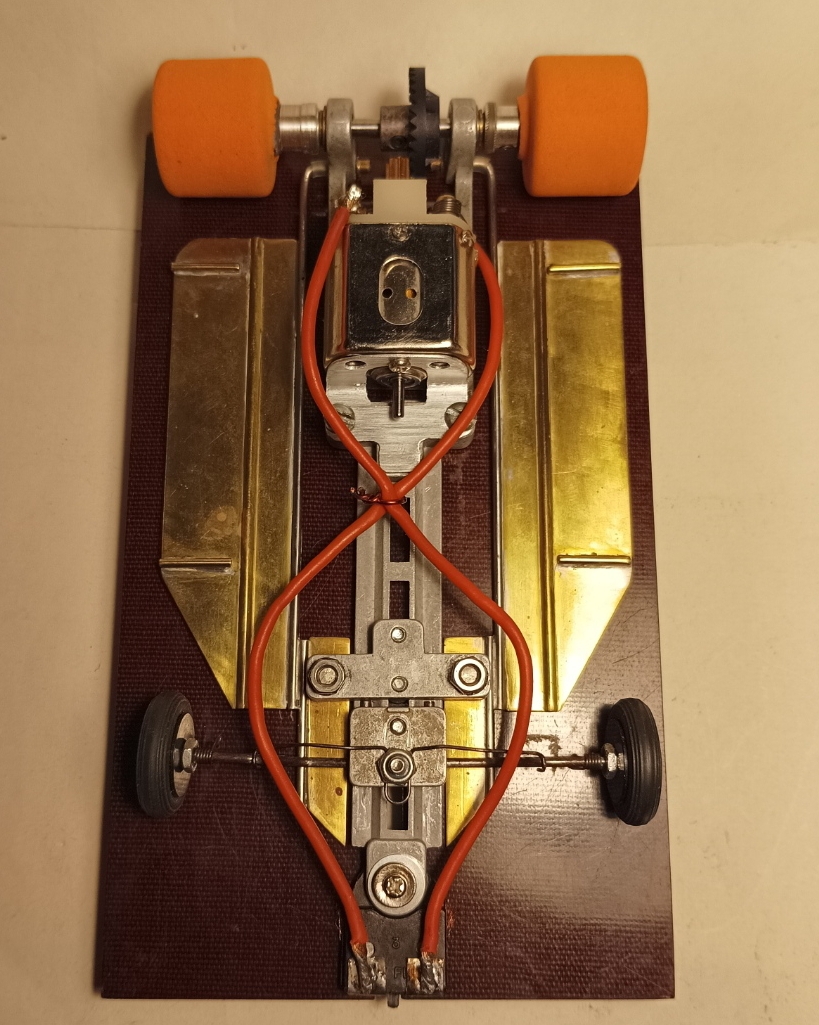

I'm going ti finalize...

Attached Images

  • Screenshot_2026-02-22-22-52-41-965_com.miui.gallery-edit.jpg

  • Fergy likes this
Maurizio Salerno

#47 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 22 February 2026 - 05:12 PM

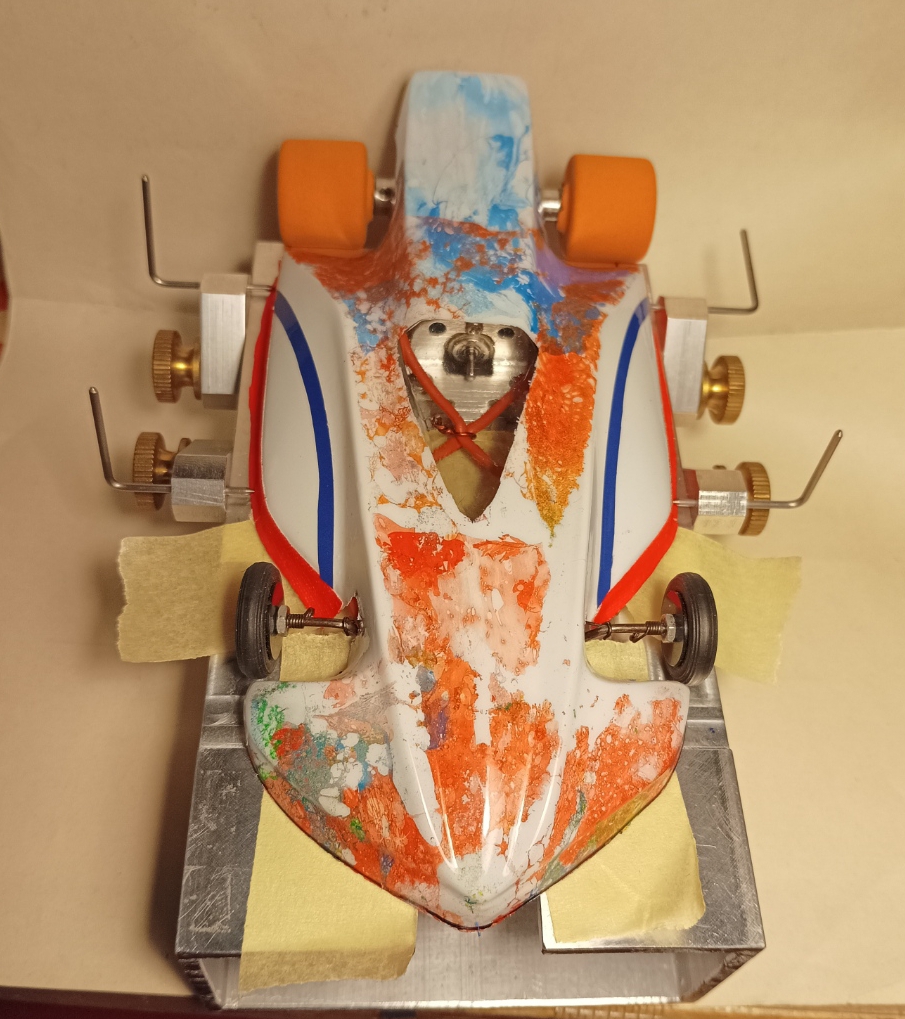

...it seems my friend Dario doesn't like the livery of this body, but I'll build it up for a test on the track...

Attached Images

  • Screenshot_2026-02-22-22-53-20-330_com.miui.gallery-edit.jpg

Maurizio Salerno

#48 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 15,317 posts
    • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 22 February 2026 - 09:29 PM

Tell your friend, that at speed, this body will look altogether different!  :laugh2:  :laugh2:  :laugh2:


  • Jaeger Team likes this
Bill Fernald

I intend to live forever!  So far, so good.  :laugh2:  :laugh2:

#49 Martin

Martin

    Posting Leader

  • Moderator
  • PipPipPipPipPipPipPip
  • 4,649 posts
    • Joined: 22-February 09
  • Gender:Male
  • Location:US

Posted 23 February 2026 - 12:32 AM

I have to honest Maurizio, the paint job was not one of my favorites either. I am with Dario on this one.



The chassis looks great BTW. :good:

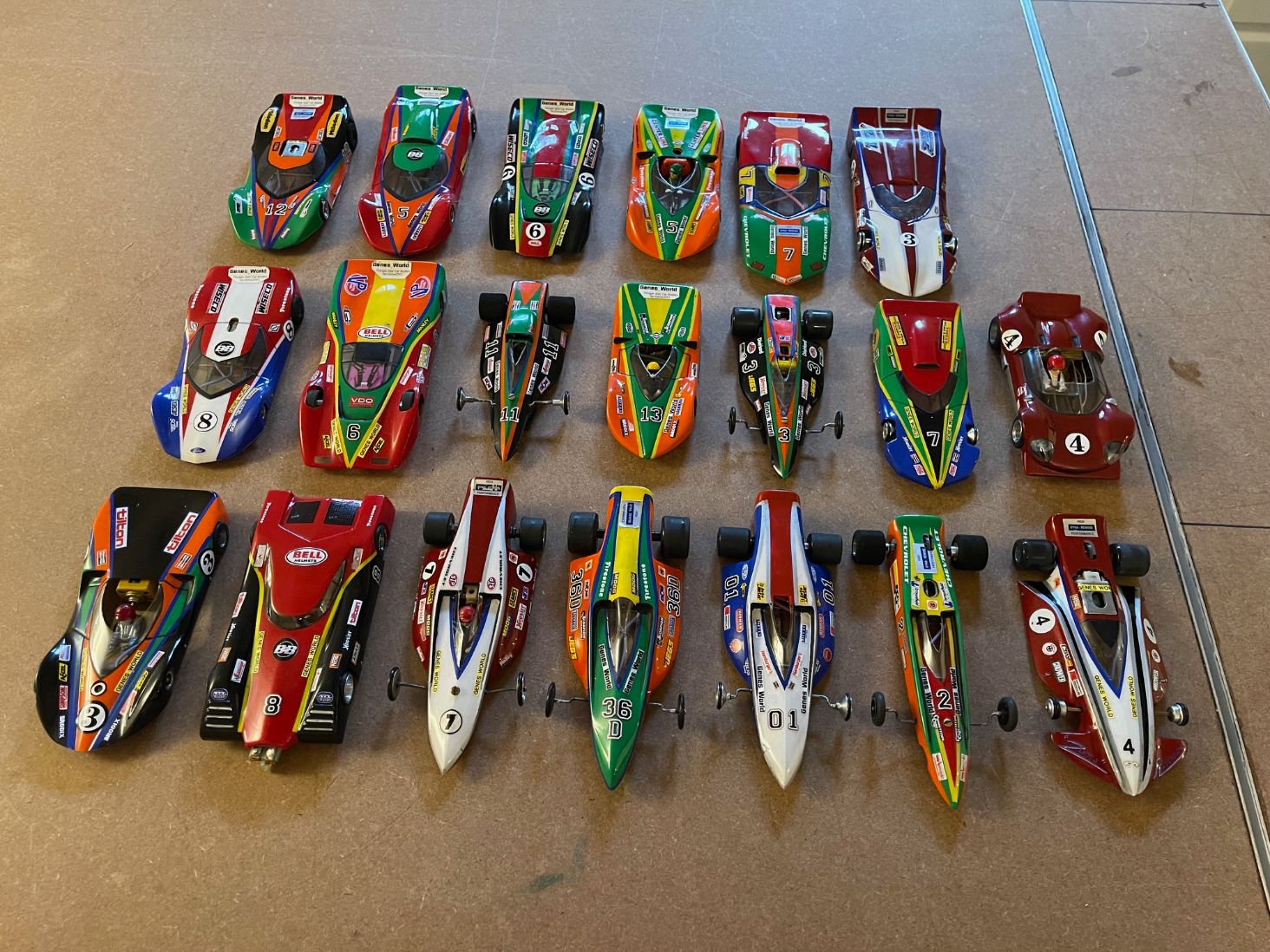

Here are a few paint ideas from Gene's world. Gene has a great line of Thingy bodies.





  • Jencar17, olescratch and Jaeger Team like this
Martin Windmill

#50 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 15,317 posts
    • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 23 February 2026 - 08:24 AM

I believe Gene's cars are hand-painted. He does a great job building the chassis too. He's had a least one "how-to" chassis article posted on here.
