10 replies to this topic

[Slot Car Rod]

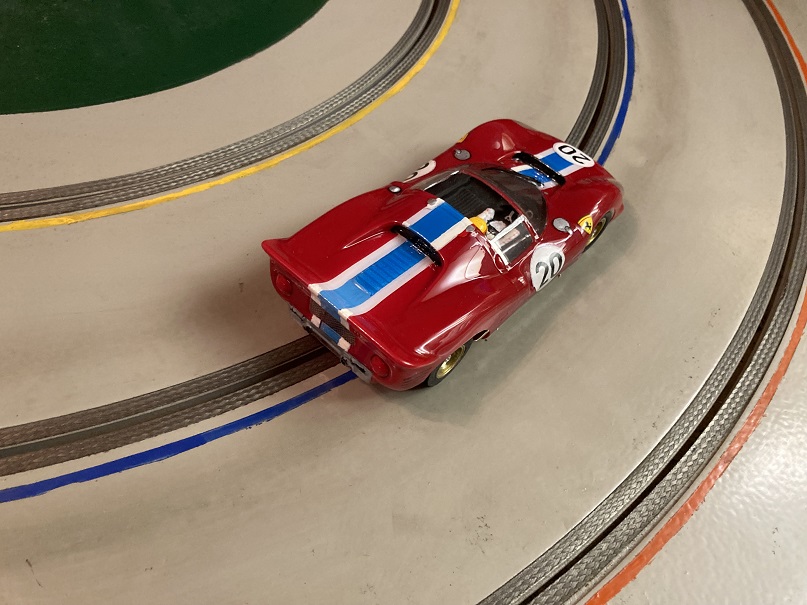

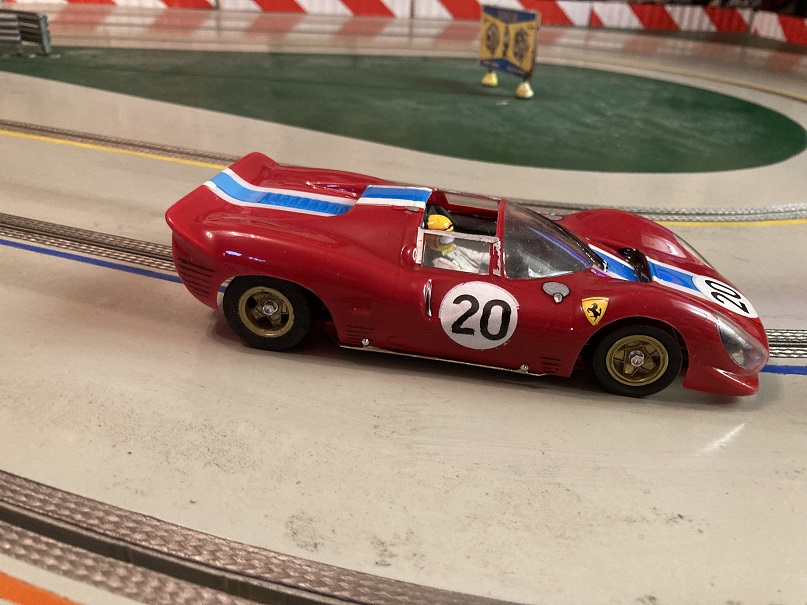

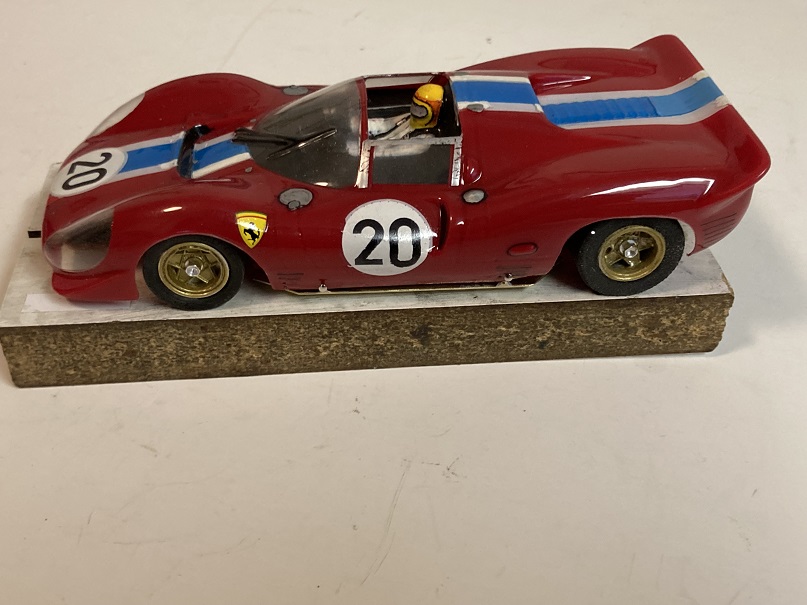

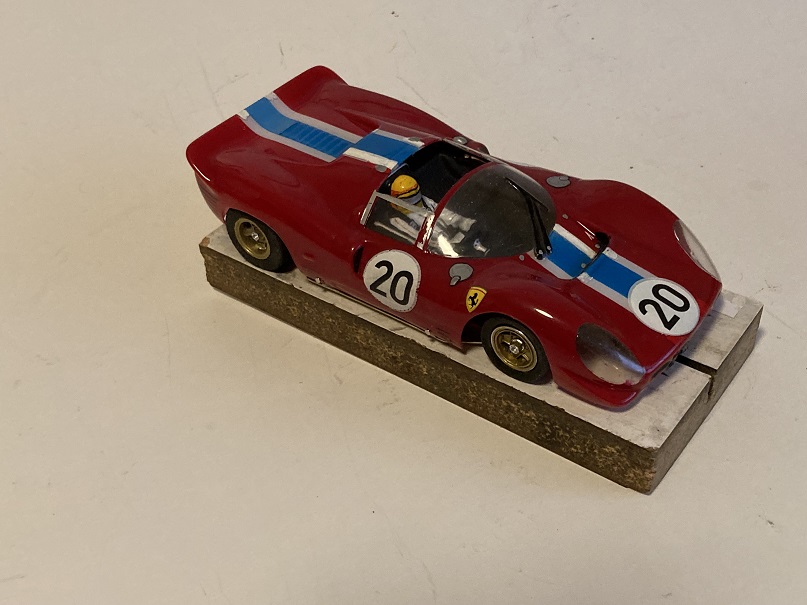

I decided to build a car around a painted Ferrari 330 P3 body/interior I purchased years ago.  An inline chassis was found that seemed to fit the period of the body.  I narrowed and shortened the chassis to fit the body.  A Champion 617 motor was assembled from parts.  The motor can ball bearing was replaced with a bronze bearing.  The wheels are set screw Russkits.  Rear tires are modern fish foam, and front tires are cut down Cox.  BRM brand Ferrari wheel inserts were cut down and fitted into the wheels.  The Cox guide originally fitted was changed to a shorter Riggen guide to better clear the nose of the car.  The car is really fast and handles great.  Lap times were amazing.





















[dc-65x]

A slot car that looks like the real car and is fast to boot.     Beautiful car Rodney.

[Mark Onofri]

Sexy. A different twist from the normal Ferret chassis.

[don.siegel]

Yep, great looking car Rod.



But how did you shorten this chassis?



Don

[Mark Onofri]

The stripes really set it apart from all the other red cars

Attached Images

•
•
•

[Slot Car Rod]

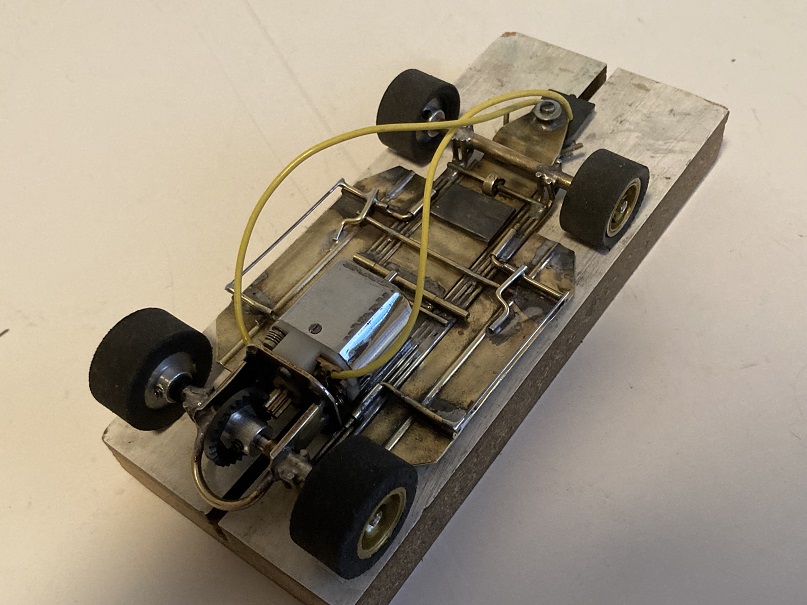

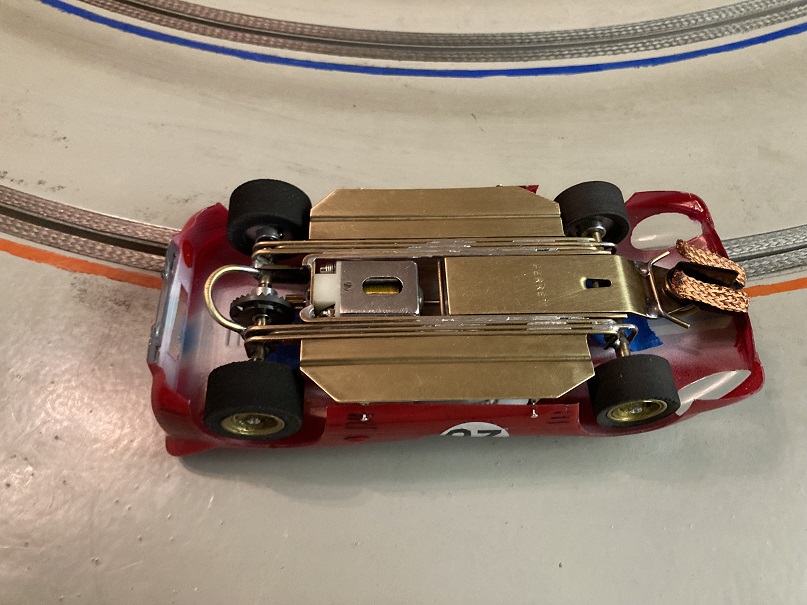

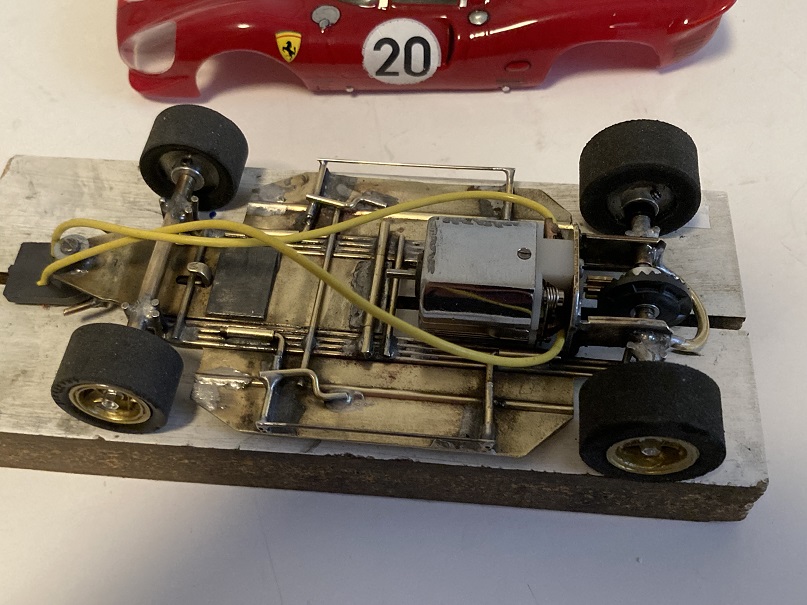

Thanks everyone.  Re-bent the main rails that go to the front axle tube to shorten the chassis.  Moved the drop arm and the pans have been cut (shortened and narrowed).  Four main rails per side.  Large diameter front tires.  Everything has been resoldered with silver solder.

[John Luongo]

well done! real model motoring!

[Mark Onofri]

I'm glad to hear that this chassis makes for a great handling car. Now if I could only find a couple of Ferret drop arms!

[Bill from NH]

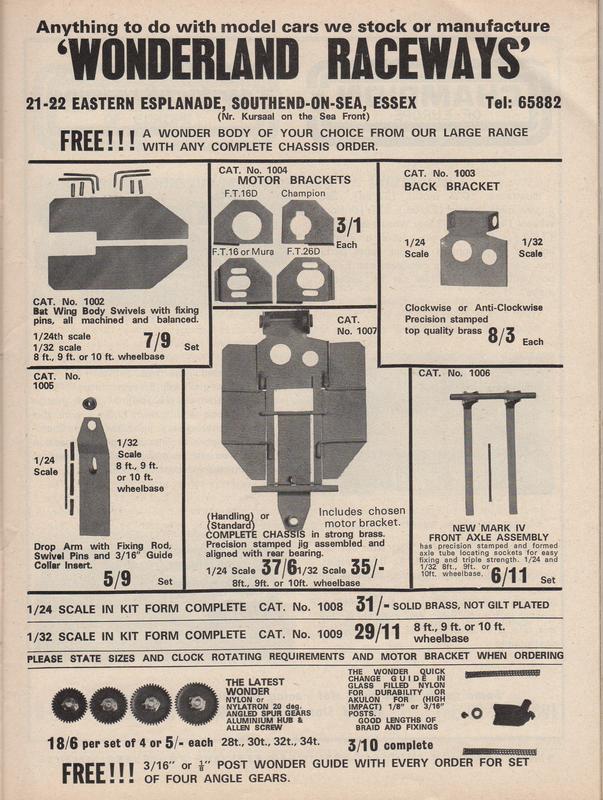

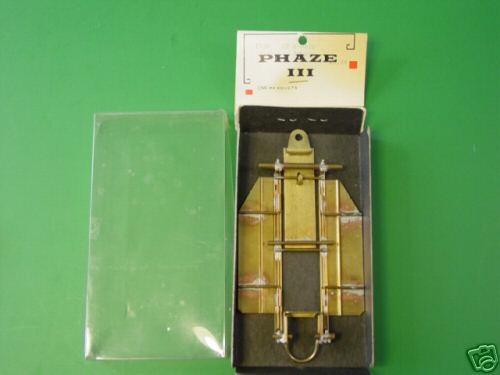

Look for old Ferret or Phaze III anglewinder chassis or kits with the narrow drop arm. I believe they are 1" wide & came both solid & with a rectangular cutout.

[Larry Horner]

Lovely car Rodney! Hey, where are you doing your track testing these day? The white track doesn't look like Motown.

[pn6]

Beautiful car! Love those inserts!!
