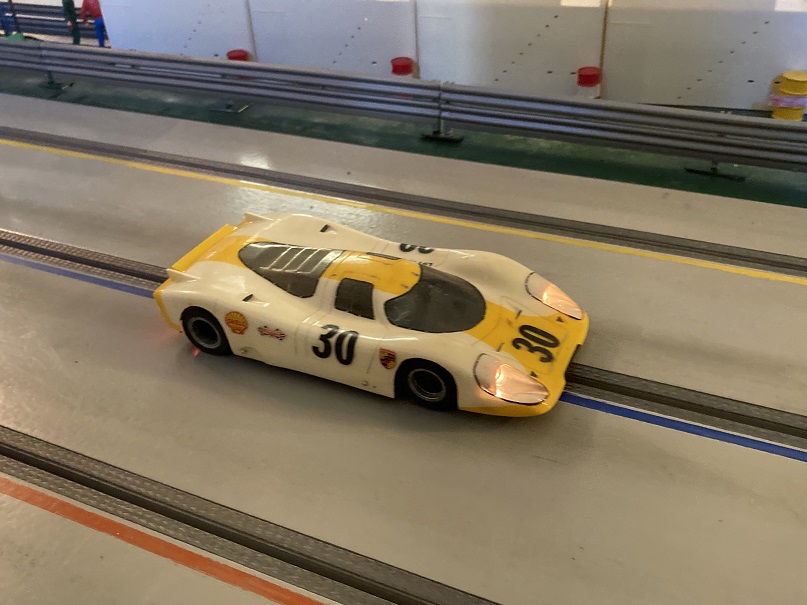

Victor was kind enough to send me another MESAC car to restore.  This endurance class MESAC Porsche 917 short tail was built and raced by MESAC member Lee Stokley.



The body had the cracks repaired and one fender uncurled.  The body once had a full width rear spoiler.  Residual rubber glue for the spoiler remains.  We do not know what size the spoiler was, so no spoiler has been added yet.  The other Porsches of this type in Victor's collection did not have rear spoilers.



I mocked up a Mura A-can and an early Mura C-can motor to try in the chassis.  The C-can motor fit perfectly.  The chassis was mildly cleaned.  The C-can motor was assembled with Champion blue dot magnets and shims, and an NCC 20 armature.  Russkit wheels were used along with Russkit front tires and modern natural rubber rear tires (7/8" diameter fronts and rears).  Wheel inserts are Russkit.  The battery holders and the light wiring were repaired.

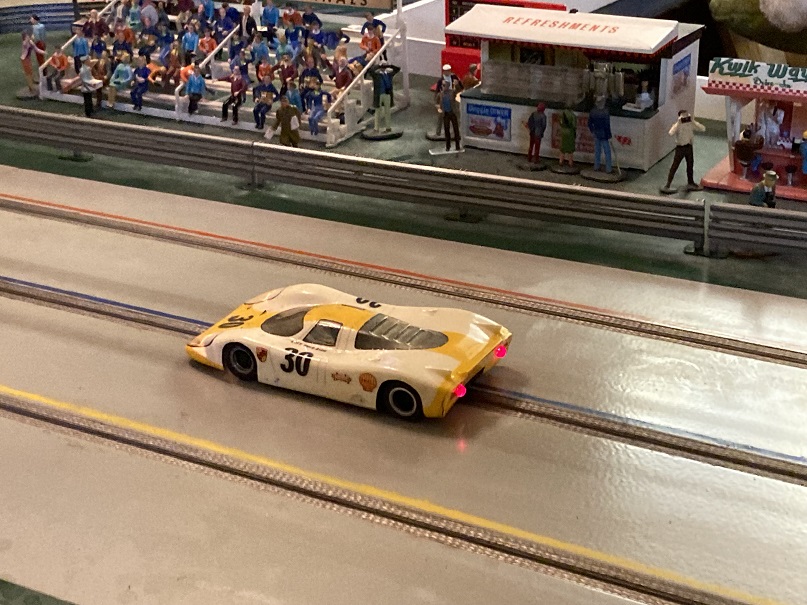

The car drives great with neutral handling.  The motor is very strong and has great brakes.  You barely notice the extra mass from the batteries.  The natural rubber tires work great with no track glue.  I do not know how long the tires will last before drying out.  Thanks, Victor.

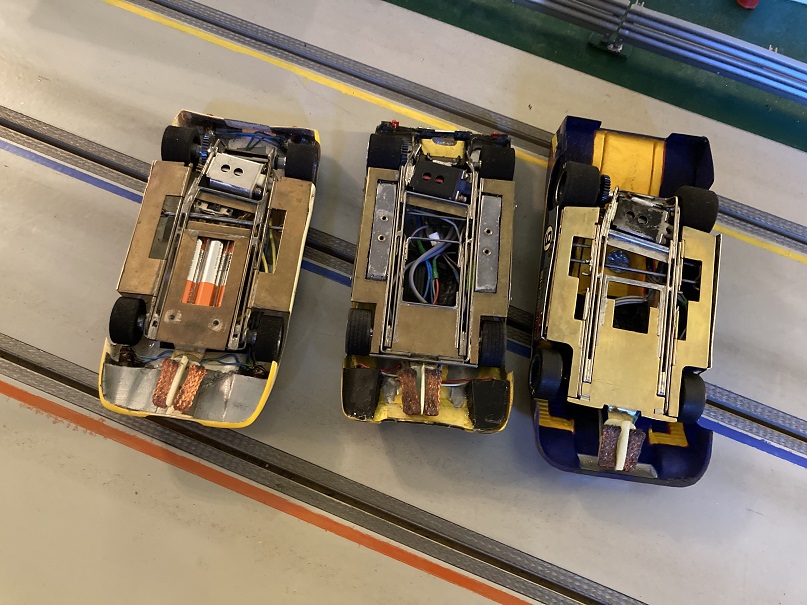

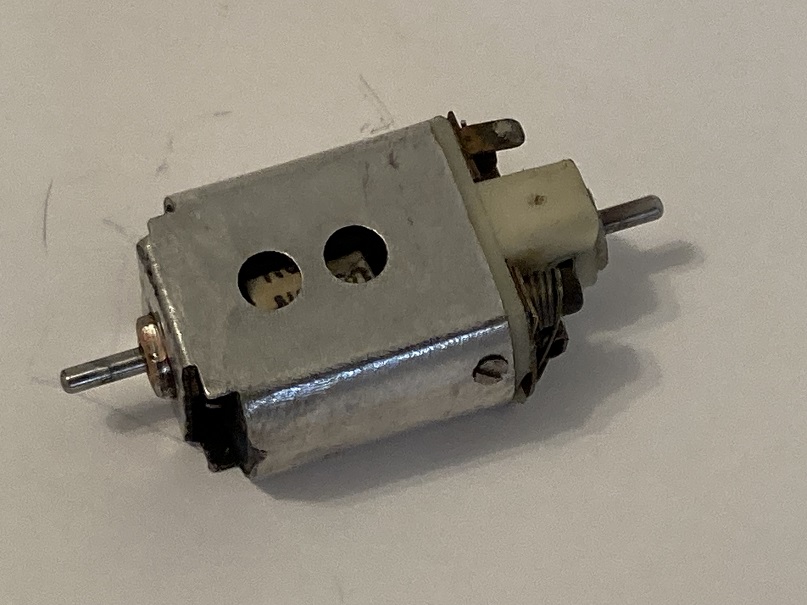

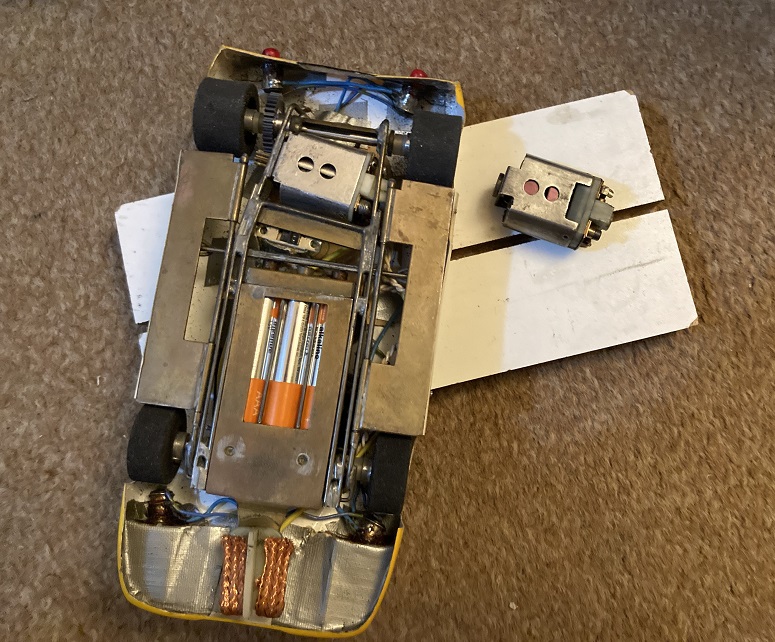

Early C-can in car.  A-can assembled for trial fit.

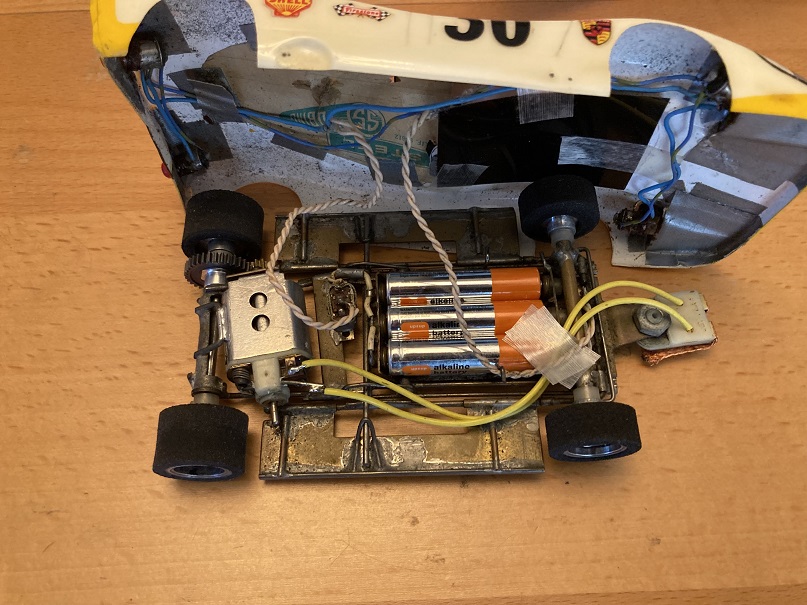

AAA bateries

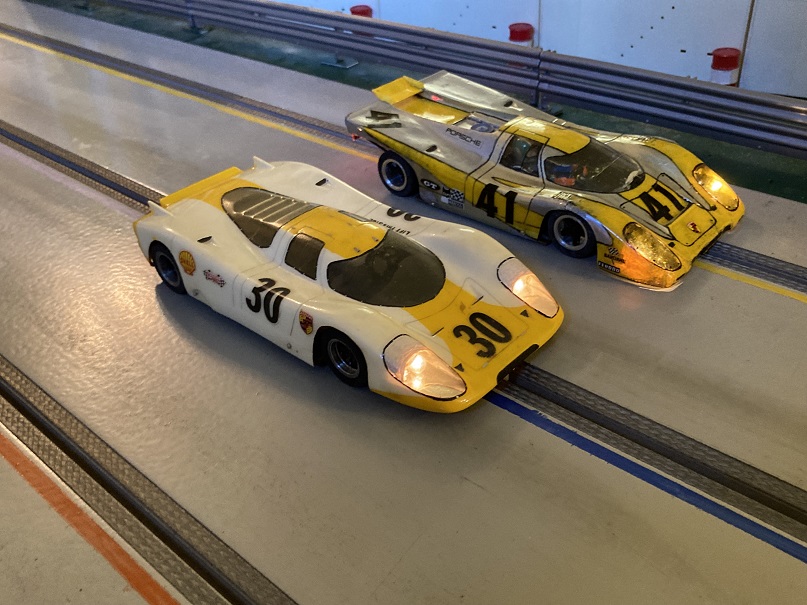

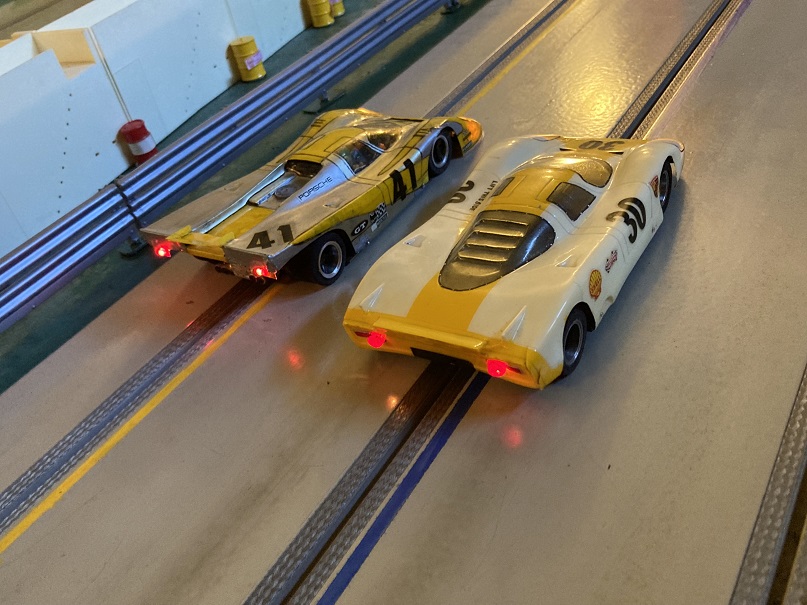

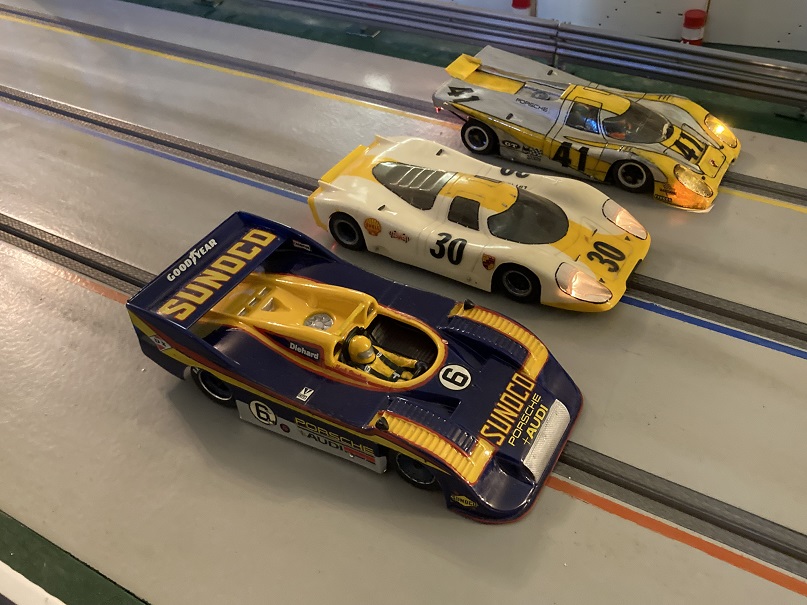

Two MESAC endurance class Porsches.



Attached Images

•

[Bill from NH]

Nice restoration Rodney. It looks great along the side of the 41 coupe.

[Slot Car Rod]

Thanks Bill.

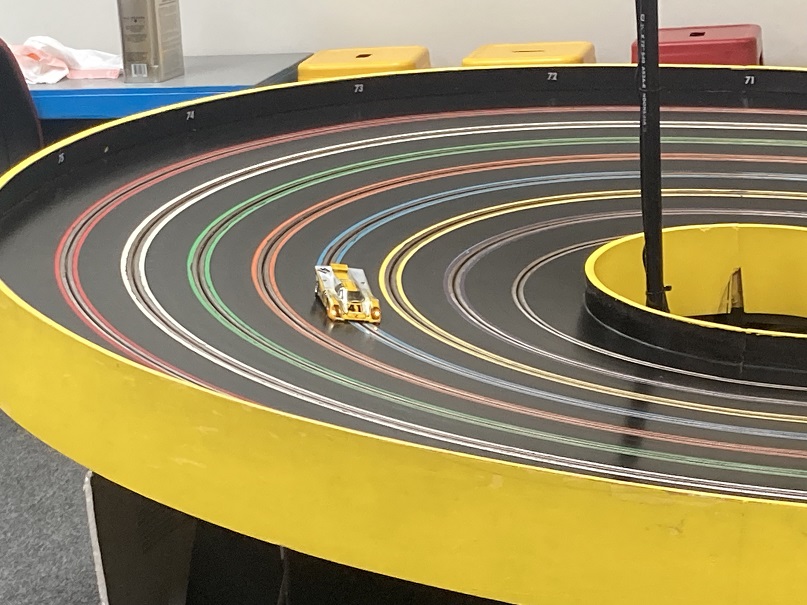

And a 917/30



[Mark Onofri]

Some people have all the luck.
I'm sure that I'm not the only one who would like MORE PICTURES please.
Ps: what with are you running the tyers at? I've been fighting with this for months now 🙄 on the 312 Ferrari from Victor. The 7/8" od doesn't work for this body, especially in the front.

[Slot Car Rod]

Mark, I have not worked on a 312 from Victor.  If 7/8" front and rear does not work, try 3/4" fronts and 7/8" rears.

[Mark Onofri]

👍I'd post a picture but, it's your thread. A excellent one at that

[Slot Car Rod]

Thanks.  Please post a picture of the Ferrari body.



[Mark Onofri]

I've been working on a simpler version of the bazillion hinged silver porsche chassis that I posted a video of. I don't have available the w&d of the tyers that I found work for this. They are ProSlot gold anodized.

Attached Images

•
•

[dc-65x]

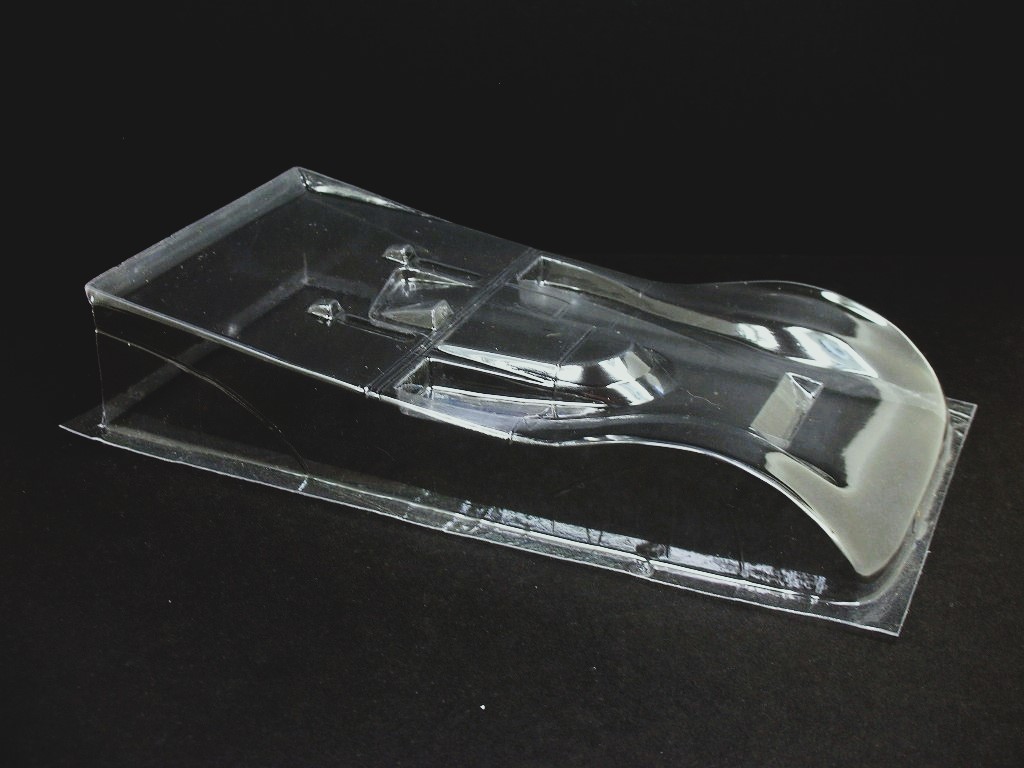

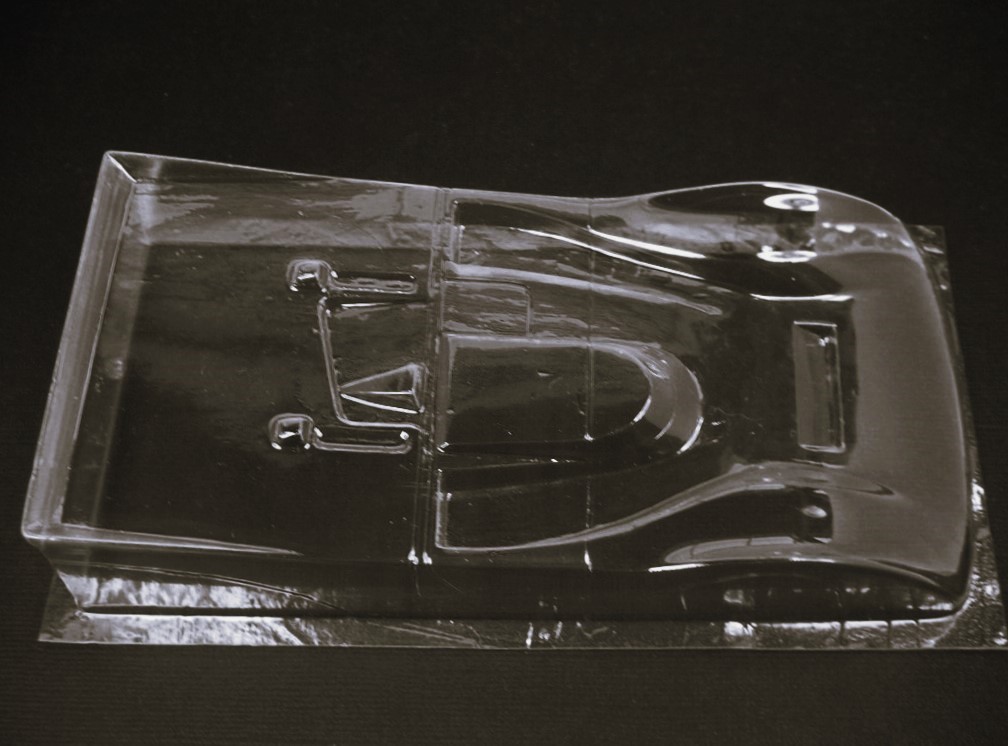

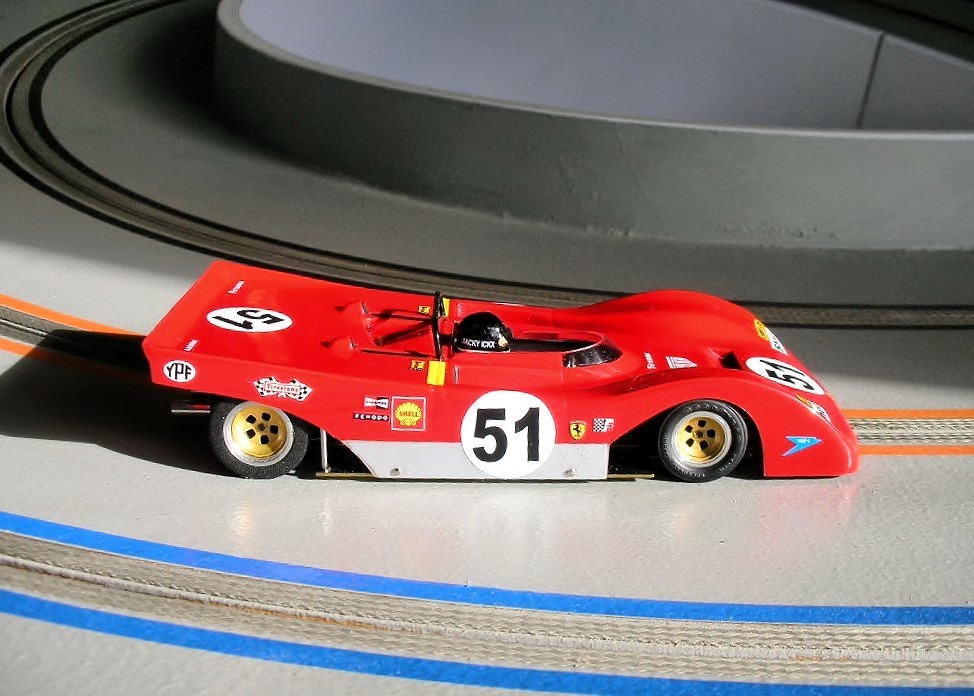

Those are pictures lifted from my thread of Victor's MESAC Ferrari 312 body build.



Link to my thread below:



MESAC inspired Ferrari 312 P

[Mark Onofri]

The only ones that I had available. It's the same body.

[dc-65x]

...............Ps: what with are you running the tyers at? I've been fighting with this for months now 🙄 on the 312 Ferrari from Victor. The 7/8" od doesn't work for this body, especially in the front.

Mark, I have not worked on a 312 from Victor.  If 7/8" front and rear does not work, try 3/4" fronts and 7/8" rears.

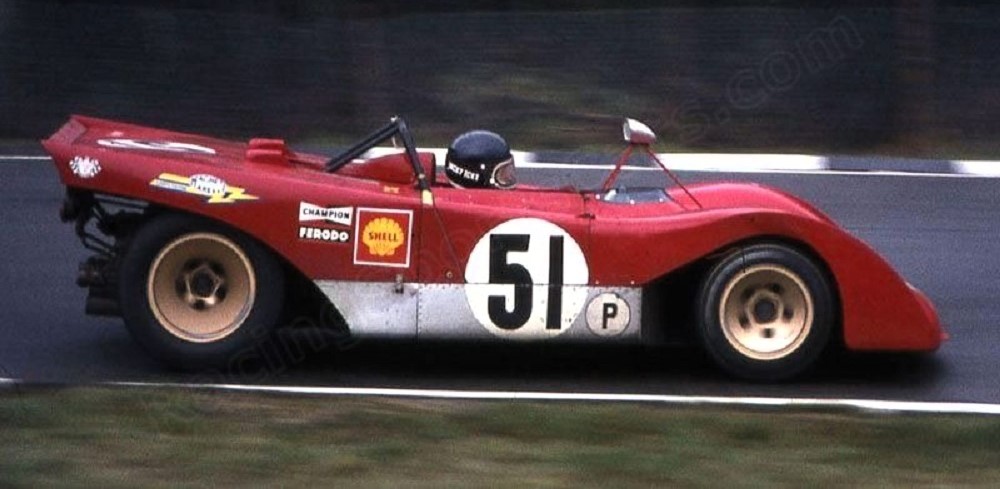

Mark, I used 7/8" rears and smaller fronts, as Rodney suggests above, to match the staggered wheel and tire sizes on the real car:





Even more important, the rear tires must be INSIDE the bodywork or you'll really have to butcher up the body:





[Slot Car Rod]

One of your best builds Rick.  Beautiful.

[dc-65x]

Thanks Rodney, it's one of my favorite builds too. And please thank Victor for me. Working with a real MESAC body was the most fun I've had building a car I can remember!

[Mark Onofri]

Thanks guys. I've got a photo of the black rear skirts on this car somewhere. Can't wait to resume the build.
