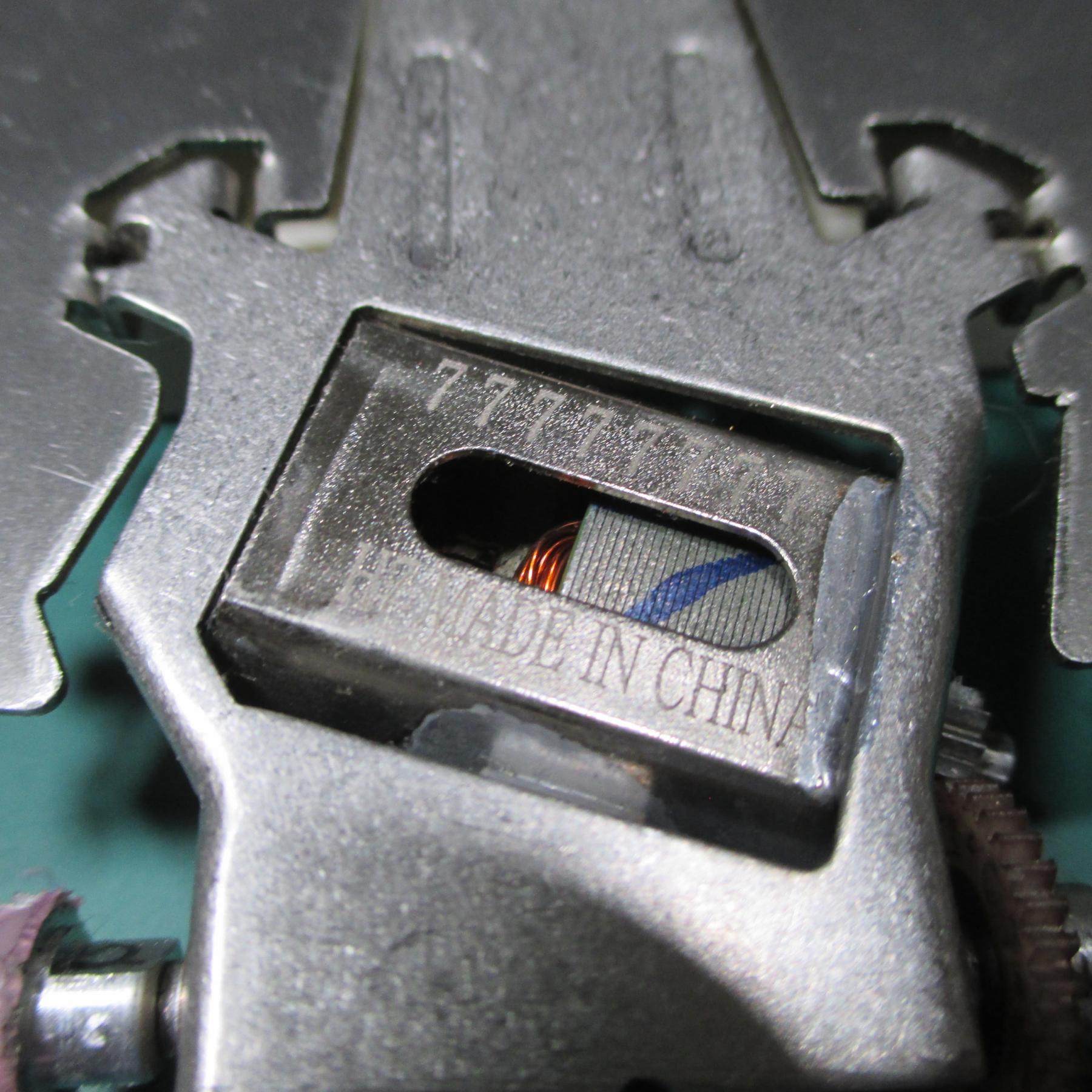

Why is the rectangular opening on a JK 1/32 C5 chassis too short for a JK Hawk 7?
The opening is .925" long and an FK can is .990" long, requiring the gear end of the motor to sit atop the lip
Am I missing something here?
JK C5 1/32 chassis question
Started by
Pablo
, Jul 21 2026 12:14 AM
11 replies to this topic
#1
Pablo
-
- Administrator
-
- 18,579 posts Joined: 20-February 06
Builder
- Gender:Male
- Location:Cleveland, Tennessee
Posted 21 July 2026 - 12:14 AM
Paul Wolcott
#2
Mike Patterson
-
- Subscriber
-
- 2,681 posts Joined: 14-October 07
Village Luddite
- Gender:Male
- Location:Zanesville, OH
Posted 21 July 2026 - 12:07 PM
Is there a reason you can't enlarge the opening?
It's weird being the same age as Old People.
#3
Brian Czeiner
-
- Full Member
-
- 601 posts Joined: 04-March 08
Race Leader
- Gender:Male
- Location:Tyler, TX
Posted 21 July 2026 - 12:50 PM
Is there a reason you can't enlarge the opening?
I would guess rule restrictions.
If it's not a Caveman, It's HISTORY! Support Your local raceways!
#4
Pablo
-
- Administrator
-
- 18,579 posts Joined: 20-February 06
Builder
- Gender:Male
- Location:Cleveland, Tennessee
Posted 21 July 2026 - 01:30 PM
Sure I could hog out the opening. But why would they make the opening too small for the motor it was designed for (Hawk 7)?
Paul Wolcott
#5
brnursebmt
-
- Full Member
-
- 863 posts Joined: 17-February 06
Race Leader
- Gender:Male
- Location:Glencoe, AL
Posted 21 July 2026 - 02:51 PM
Are all FK motors .990? I'm at work and can't measure one.
Bobby Robinson RN, BMTCN
"Nobody rides for free." - Jackson Browne, 1980
"Positivity and optimism can overcome a lot of things." - Tom Brady, 2019
"Trying is the first step towards failure." - Homer Simpson
#6
MSwiss
-
- Subscriber
-
- 26,207 posts Joined: 16-April 06
Grand Champion Poster
- Gender:Male
Posted 21 July 2026 - 03:16 PM
FK"s are all approximately .990" long.
That chassis came out 2 owners ago.
If Pablo wants, I'll give him Jerry Kulich's #. Lol
We raced them in approx. 2013 at my last location.
I forget what motor we used.
It might have been a Hawk 6 or Proslot minimotor, which both have a real endbell and are much shorter.
- Pablo likes this
Mike Swiss
Inventor of the Low CG guide flag 4/20/18
Former IRRA® Components Committee Chairman
Five-time USRA National Champion (two G7, one G27, two G7 Senior)
Two-time G7 World Champion (1988, 1990), eight G7 main appearances
Eight-time G7 King track single lap world record holder
17B West Ogden Ave., Westmont, IL 60559, (708) 203-8003, mikeswiss86@hotmail.com (also my PayPal address)
Note: Send all USPS packages and mail to: 692 Citadel Drive, Westmont, Illinois 60559
#7
Pablo
-
- Administrator
-
- 18,579 posts Joined: 20-February 06
Builder
- Gender:Male
- Location:Cleveland, Tennessee
Posted 21 July 2026 - 03:31 PM
Mystery solved, thanks Mike

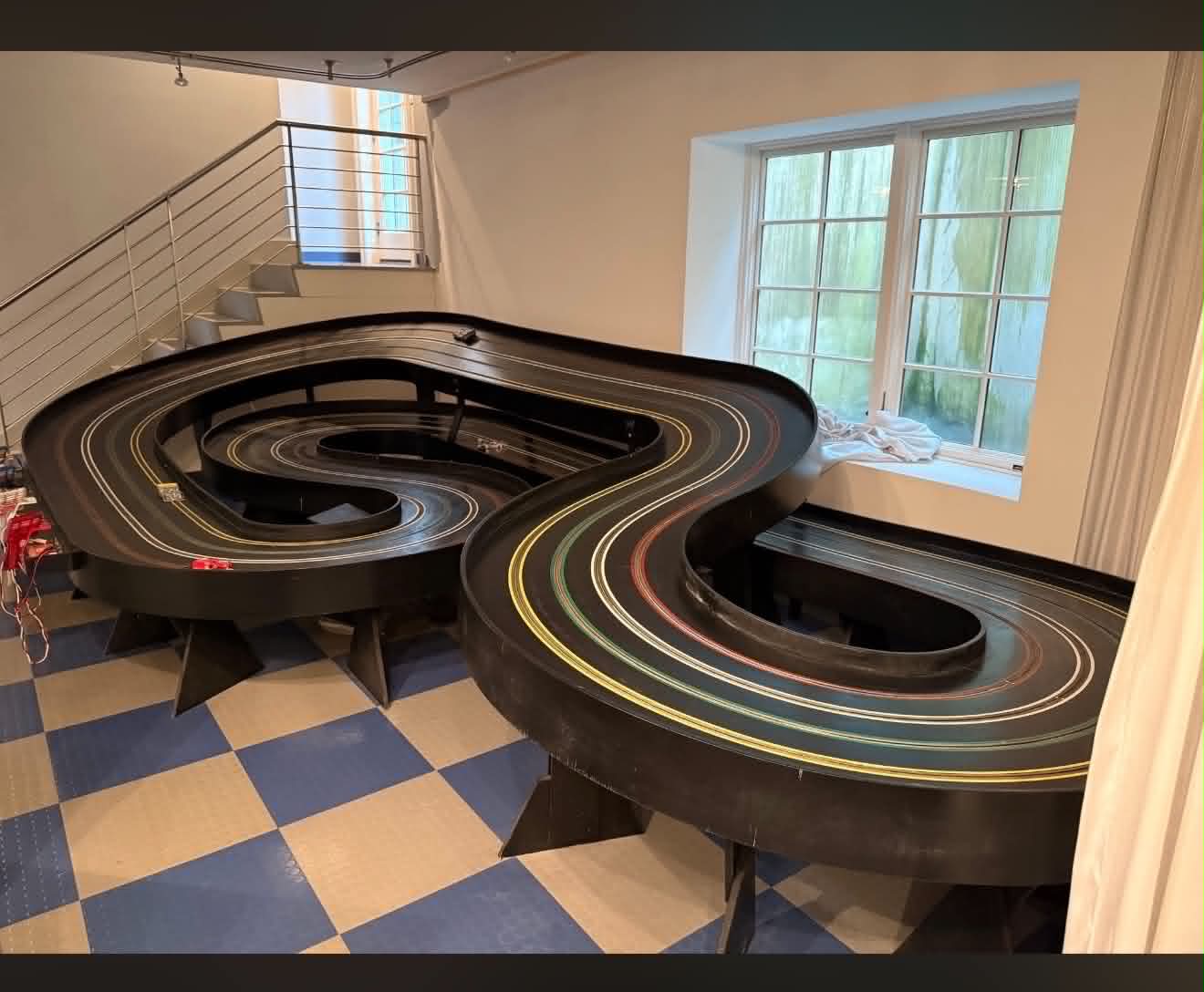

Next question - for a track like this, Hawk, or Hawk 6?
What ballpark gearing for .700-ish wheels?
Paul Wolcott
#8
MSwiss
-
- Subscriber
-
- 26,207 posts Joined: 16-April 06
Grand Champion Poster
- Gender:Male
Posted 21 July 2026 - 03:33 PM
You should probably query the owner.
Mike Swiss
Inventor of the Low CG guide flag 4/20/18
Former IRRA® Components Committee Chairman
Five-time USRA National Champion (two G7, one G27, two G7 Senior)
Two-time G7 World Champion (1988, 1990), eight G7 main appearances
Eight-time G7 King track single lap world record holder
17B West Ogden Ave., Westmont, IL 60559, (708) 203-8003, mikeswiss86@hotmail.com (also my PayPal address)
Note: Send all USPS packages and mail to: 692 Citadel Drive, Westmont, Illinois 60559
#9
Pablo
-
- Administrator
-
- 18,579 posts Joined: 20-February 06
Builder
- Gender:Male
- Location:Cleveland, Tennessee
Posted 21 July 2026 - 03:54 PM
Track isn't set up yet. I'm just now setting up some cars for it.
Chattanooga, TN home track.
I did a Slotblog search Hawk vs Hawk 6, I'll try a Hawk 6 and gear it conservative.
Thanks for solving my quandary, now I can live happily at ground zero
Paul Wolcott
#10
Bill Seitz
-
- Subscriber
-
- 714 posts Joined: 20-February 21
always in last place
- Gender:Male
- Location:Tucson, AZ
Posted 21 July 2026 - 05:51 PM
I haven't run a track as short as this one looks, but my gearing guess for an H6 is 4:1 min. There was an early arm for the hawk that looks to be about a 30K motor, but today the main difference is the Hawk has ceramic mags, and the H6 poly neos.
#11
Dominator
-
- IRRA National Director
-
- 3,134 posts Joined: 19-September 07
Posting Leader
- Gender:Male
Posted 21 July 2026 - 06:39 PM
I would start with 64 pitch 10/36 then try maybe 9/35.
72 pitch 11/42 or possible 10/40.
72 pitch 11/42 or possible 10/40.
A motor is only as fast as the chassis it's in.
Dominic Luongo
Like Dominator Custom Chassis on Facebook
NERR photos from 2012-April 2016
NERR photos from 2016 to now
#12
Pablo
-
- Administrator
-
- 18,579 posts Joined: 20-February 06
Builder
- Gender:Male
- Location:Cleveland, Tennessee
Posted 21 July 2026 - 08:05 PM
Thanks guys
