You have great tools and skills Rick. Super nice motor build !
Help: What is the dia. and length of the XL-500 arm?
Ram XL500... going... going... man, it's GONE!
Started by
dc-65x
, Dec 17 2006 07:20 PM
35 replies to this topic
#26
Gator Bob
-
- Banned
-
- 13,391 posts Joined: 12-April 11
Grand Champion Poster
- Gender:Not Telling
- Location:.
Posted 13 February 2015 - 07:14 PM
Bob Israelite
#27
dc-65x
-
- Subscriber
-
- 7,204 posts Joined: 14-February 06
Grand Champion Poster
- Gender:Male
- Location:Captain Rick: The only vintage slot car nut in SW Oregon?
Posted 13 February 2015 - 09:22 PM
Hi Bob,
I don't have an XL-500 apart to measure but I would think it is close to the Pittman 705/706 which is:
.625" diameter
1.205" long including the pinion gear or about 1.045" with out gear.
Interesting you should bring up this thread........I have what might be an interesting project for a RAM I've been ruminating on.
Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...
#28
Gator Bob
-
- Banned
-
- 13,391 posts Joined: 12-April 11
Grand Champion Poster
- Gender:Not Telling
- Location:.
Posted 13 February 2015 - 10:53 PM
Thanks Rick, that is very helpful.
I'm thinking it would be cool under a 1964 A/Stock Automatic Galaxie XL-500 w/ Teardrop scoop of course...
Bob Israelite
#29
hiline2
-
- Full Member
-
- 468 posts Joined: 22-February 06
On The Lead Lap
- Gender:Male
- Location:Piney Woods around Tyler, TX
Posted 02 April 2015 - 03:34 PM
Paul Bass
#30
dc-65x
-
- Subscriber
-
- 7,204 posts Joined: 14-February 06
Grand Champion Poster
- Gender:Male
- Location:Captain Rick: The only vintage slot car nut in SW Oregon?
Posted 02 April 2015 - 04:41 PM
The RAM 222 (compared to the XL500) has a taller magnet, larger diameter armature and adjustable axle brackets. The RAM426/500XL are essentially RAM made versions of the Pittman DC705 size motor.
What the seller is showing in the eBay instruction sheet is the super small 1/32 scale version RAM DC-283 motor is some sort of kit form.
Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...
#31
mdiv
-
- Full Member
-
- 2,361 posts Joined: 13-December 06
Posting Leader
- Gender:Male
- Location:Wall, NJ, USA
Posted 09 April 2015 - 07:14 PM
RAM K283....was available at EJ's Hobbies, not sure how many he has left.
This is one that I have left:
Never got around to messing with them...have to wind the armature....then build a car around it...
possibly for trade...
Mikey
PS working on this right now:
Mike DiVuolo
C.A.R.S. Vintage Slot Car Club
"Prosecutors will be violated"
#32
SlotStox#53
-
- Full Member
-
- 4,084 posts Joined: 13-March 13
Posting Leader
- Gender:Male
- Location:TX
Posted 09 April 2015 - 07:55 PM
Cool! A build/wind it yourself kit by RAM
Is that a Tamiya R/C car?
Is that a Tamiya R/C car?
#33
mdiv
-
- Full Member
-
- 2,361 posts Joined: 13-December 06
Posting Leader
- Gender:Male
- Location:Wall, NJ, USA
Posted 13 April 2015 - 08:44 PM
Hi Paul.
Don't want to drift too far from Rick's thread but yes, that is a Lunchbox chassis.
Might do an article in the non-slot section.
Mikey
Mike DiVuolo
C.A.R.S. Vintage Slot Car Club
"Prosecutors will be violated"
#34
don.siegel
-
- Subscriber
-
- 5,954 posts Joined: 17-February 06
Grand Champion Poster
- Gender:Male
- Location:Paris, France
Posted 19 July 2026 - 05:01 AM
Hi Rick,
It's only 11 years later, but what ever happened to this project?
Sorry for all the thread drift, and my disappeared photos.

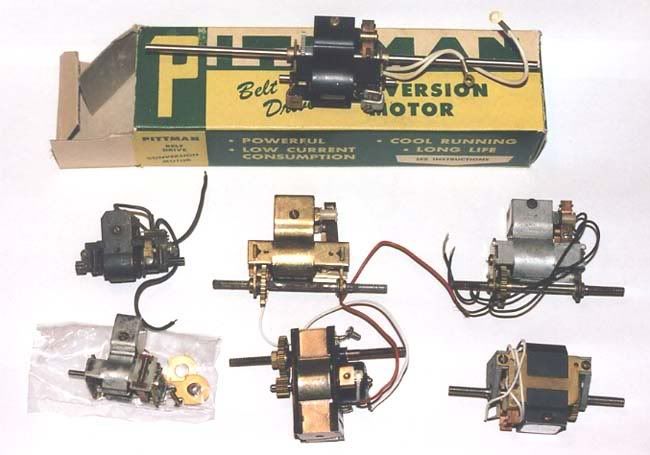

Here's the Pittman DC703 family photo again, with other integral geared sidewinder motors....
Don
- Pablo likes this
#35
dc-65x
-
- Subscriber
-
- 7,204 posts Joined: 14-February 06
Grand Champion Poster
- Gender:Male
- Location:Captain Rick: The only vintage slot car nut in SW Oregon?
Posted 20 July 2026 - 07:14 PM
Hi Don,

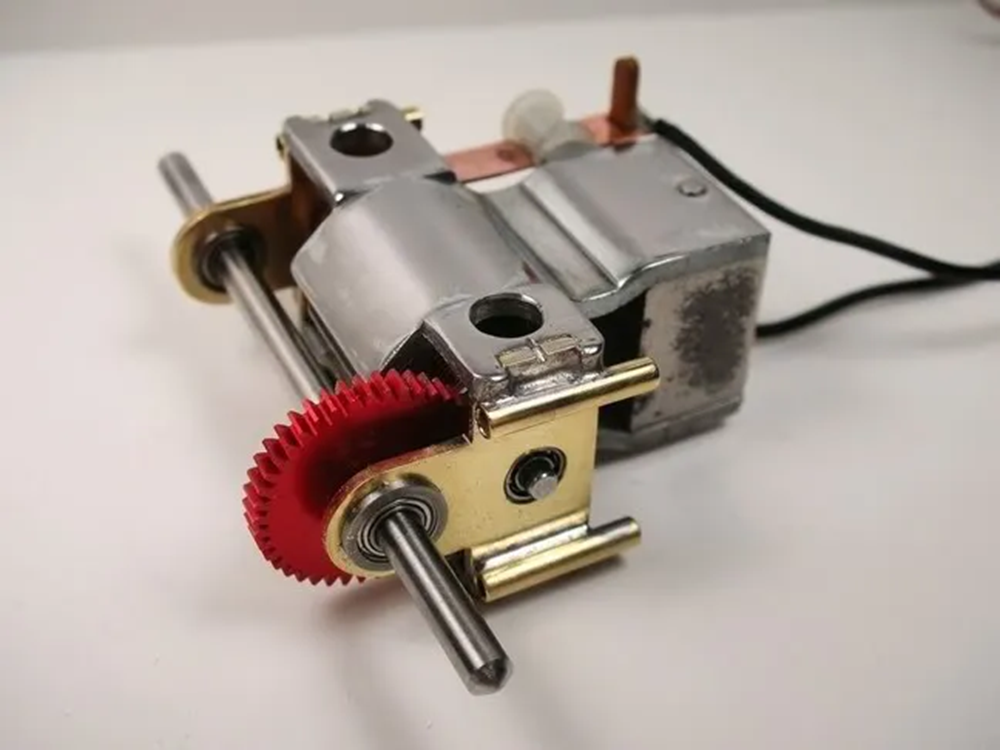

I still have the finished motor waiting for me to find a project car for it:
I tried it out for my McKee Plymouth Hemi build but it interferes with the full interior I want to use.
- Pablo and Jencar17 like this
Rick Thigpen
Check out Steve Okeefe's great web site at its new home here at Slotblog:
The Independent Scratchbuilder
There's much more to come...
#36
don.siegel
-
- Subscriber
-
- 5,954 posts Joined: 17-February 06
Grand Champion Poster
- Gender:Male
- Location:Paris, France
Posted 21 July 2026 - 03:13 AM
Thanks for quick reply Rick.
We'll be patient!
Don
