Strombecker TC32

Started by Jaeger Team , Jan 14 2026 04:28 AM

  • Please log in to reply
28 replies to this topic

#1 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 14 January 2026 - 04:28 AM

My buddy Dario Gueci, one of the finest collectors in Italy, gifted me this motor.

According to PdL, it is a "STROMBECKER TC32: sized like a Mabuchi FT16D. Pinion on the can side. Introduced in 1966 for the new 1/32 scale Strombecker kits using the two-piece brass chassis. Chrome-plated can, green wire on armature, royal blue endbell marked "Strombecker." The endbell is retained by four tabs stamped in the one-piece drawn can, folded in cavities molded on the Bakelite endbell. 1967 'Hemi 300' versions have red endbells and hotter armature specification with larger orange wire and were never sold in the 1966-only boxed kits, only in bagged kits or semi-RTR models.



Motor discontinued by late 1967 but still sold until the end of 1968 from existing inventories.

I will try to process it in a more performing motor...





  • SpeedyNH likes this
Maurizio Salerno



#2 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 15 January 2026 - 04:08 AM

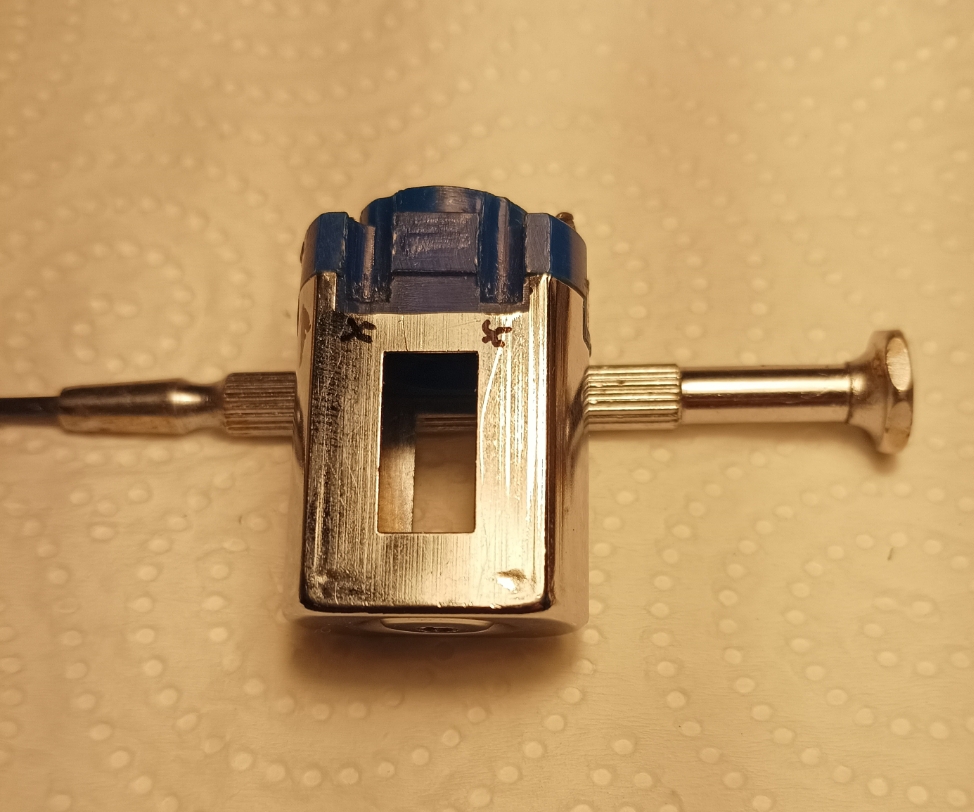

Since I plan to replace the endbell with a more reliable one, I first cut off the useless tabs...

Attached Images

  • Screenshot_2026-01-15-09-58-54-166_com.miui.gallery-edit.jpg

Maurizio Salerno

#3 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 15 January 2026 - 04:13 AM

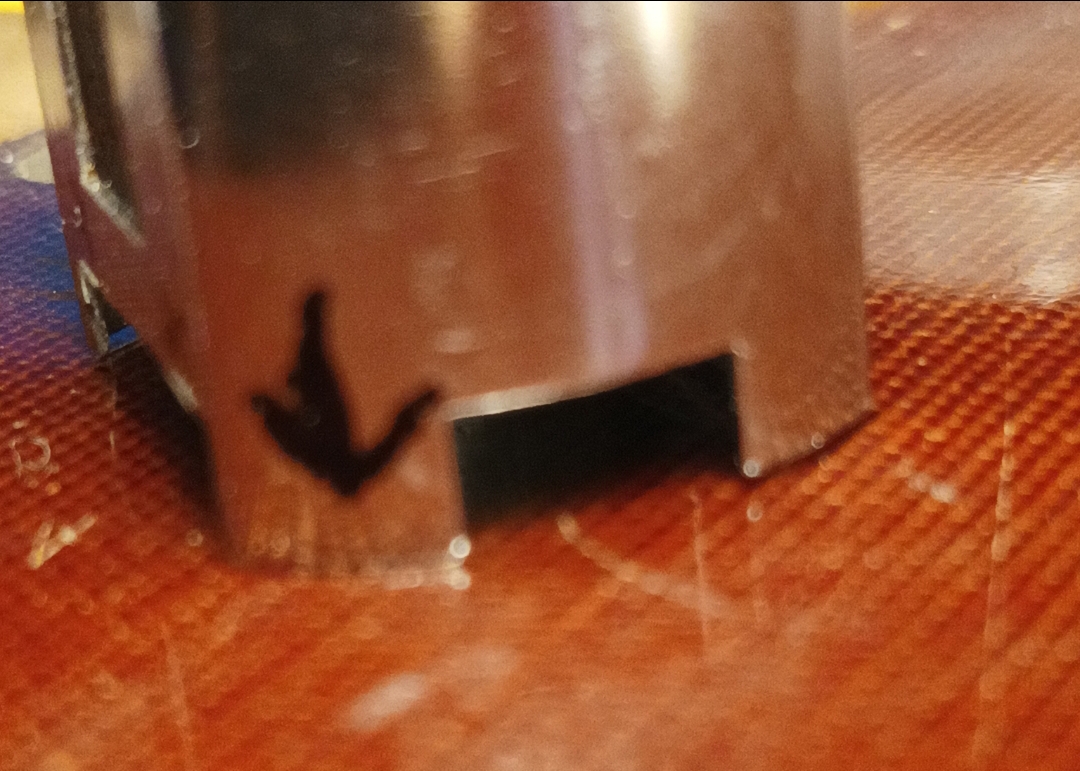

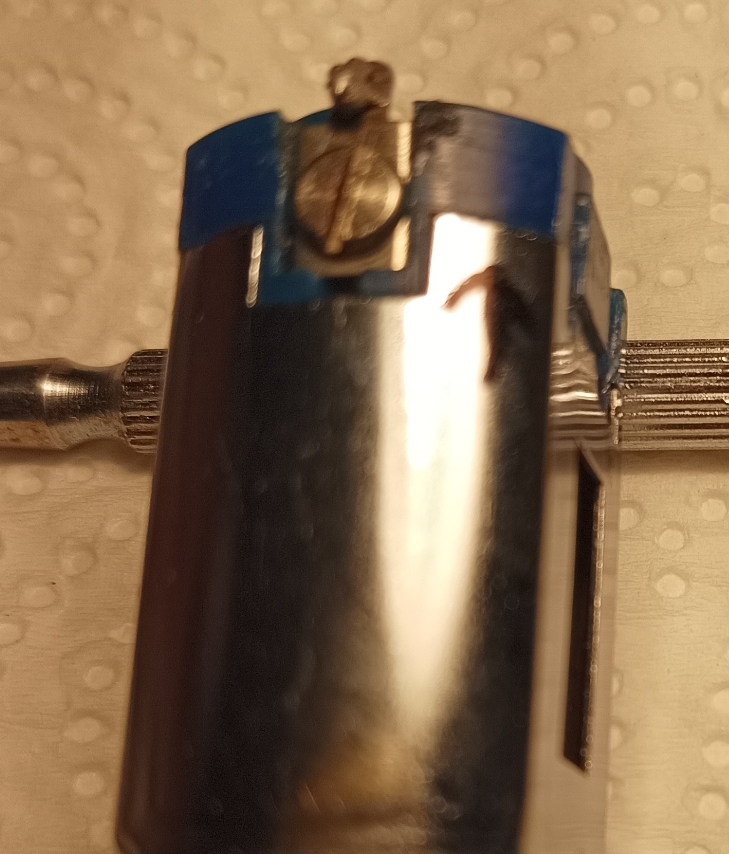

Now it is necessary to equalize the edge of the can which is asymmetrical at this point...

Attached Images

  • Screenshot_2026-01-15-10-01-00-019_com.miui.gallery-edit.jpg
  • Screenshot_2026-01-15-10-17-48-152_com.miui.gallery-edit.jpg

Maurizio Salerno

#4 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 15 January 2026 - 10:30 AM

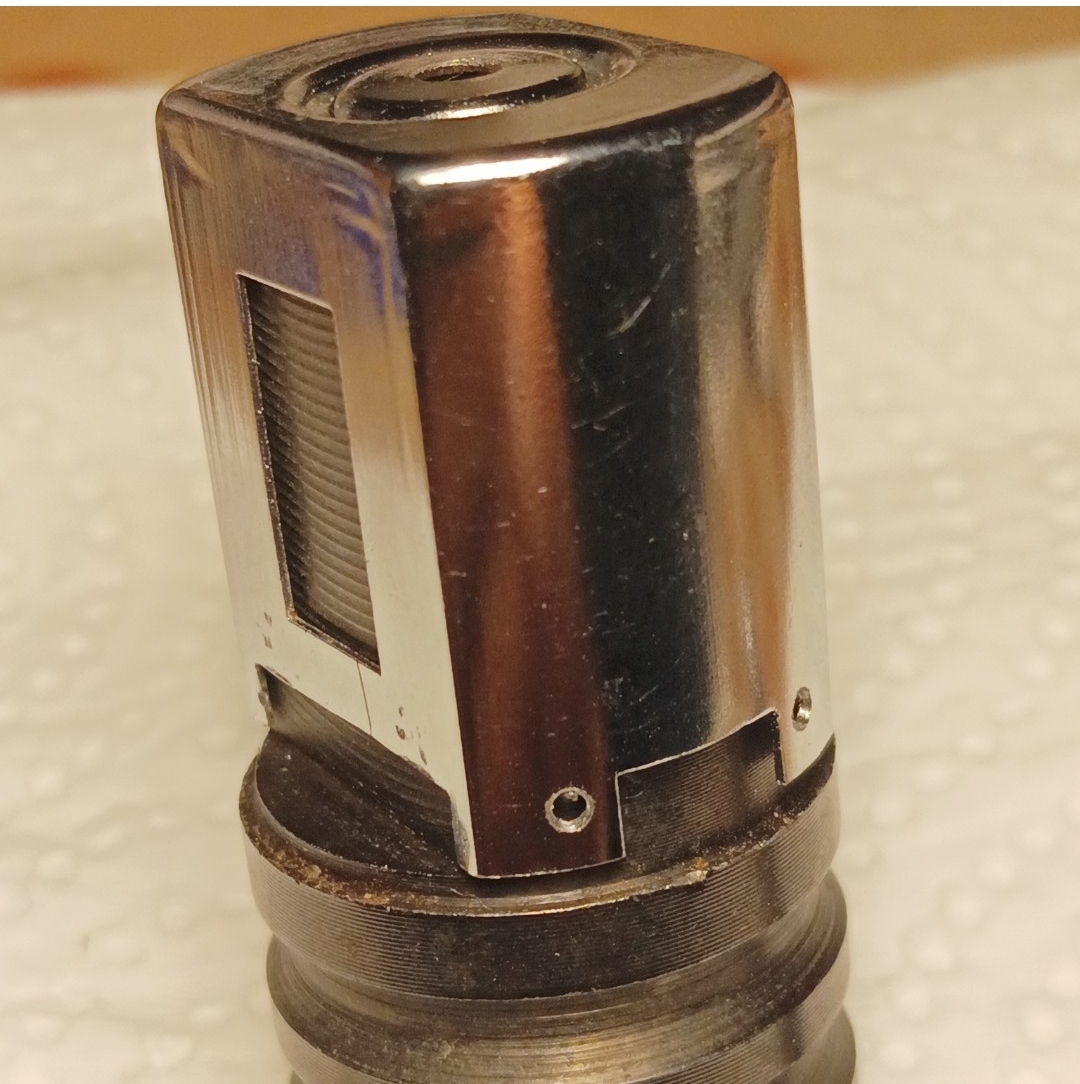

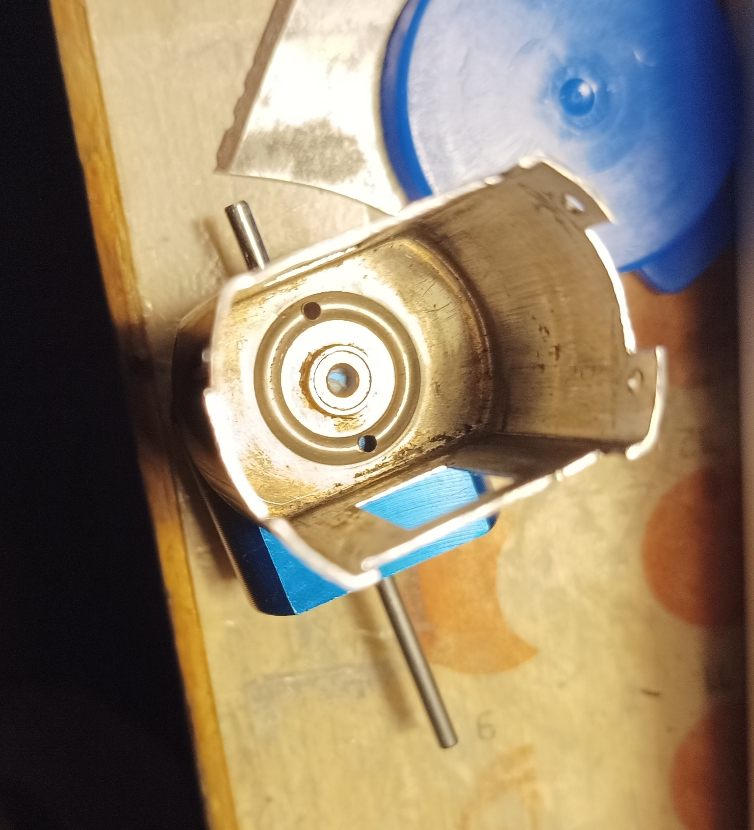

the can is now square and the holes to fix the endbell are done...

Attached Images

  • Screenshot_2026-01-15-16-29-02-282_com.mi.android.globalFileexplorer-edit.jpg

  • Larry Horner likes this
Maurizio Salerno

#5 Larry Horner

Larry Horner

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 550 posts
    • Joined: 18-March 17
  • Gender:Male
  • Location:San Francisco

Posted 15 January 2026 - 12:59 PM

Fun project Maurizio! Back in the day, I put Hemi 300 into my Dynamic Bandit and it was a real screamer ... loved that motor. I guess you'll be avoiding the issue if you replace the end-bell but the big problem for me was the wacky Strombecker brushes.


  • Jaeger Team likes this

#6 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 15 January 2026 - 04:47 PM

Alright, I've gathered some parts for this project: the can's been straightened and a bearing installed; Im torn between two endbells one is an original Champion, the other a modern 3D-printed repro. Got brush holders in both 36D and 26D sizes on hand, and of course, I'm sticking with genuine Champion magnets. As for the armatures, I've advanced the timing the old-school way: by forcing the commutator and locking it all in place with dental floss and a good dollop of epoxy, as well as the entire winding has been epoxied, it only remains to do the static balancing..

Attached Images

  • Screenshot_2026-01-15-20-30-13-176_com.miui.gallery-edit.jpg

  • dc-65x, Tex, munter and 2 others like this
Maurizio Salerno

#7 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 19 January 2026 - 07:41 AM

...now I'm going to finalize the endbell...
Maurizio Salerno

#8 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 19 January 2026 - 07:45 AM

...now I'm going to finalize the endbell...

Attached Images

  • Screenshot_2026-01-19-13-31-31-447_com.miui.gallery-edit.jpg

Maurizio Salerno

#9 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 19 January 2026 - 07:46 AM

...everything well aligned and a touch of solder..

Attached Images

  • Screenshot_2026-01-19-13-42-20-039_com.miui.gallery-edit.jpg

Maurizio Salerno

#10 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 19 January 2026 - 07:50 AM

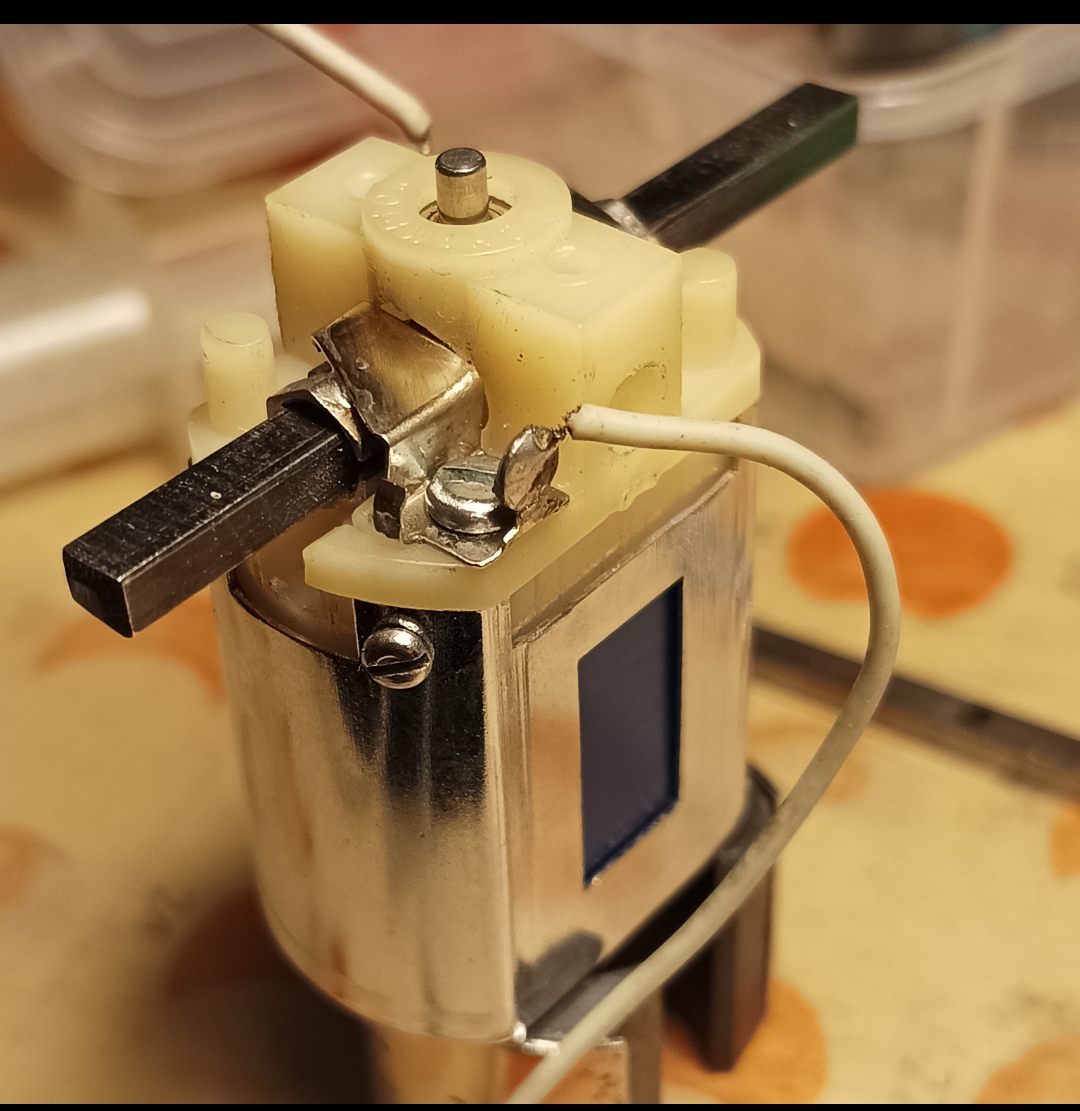

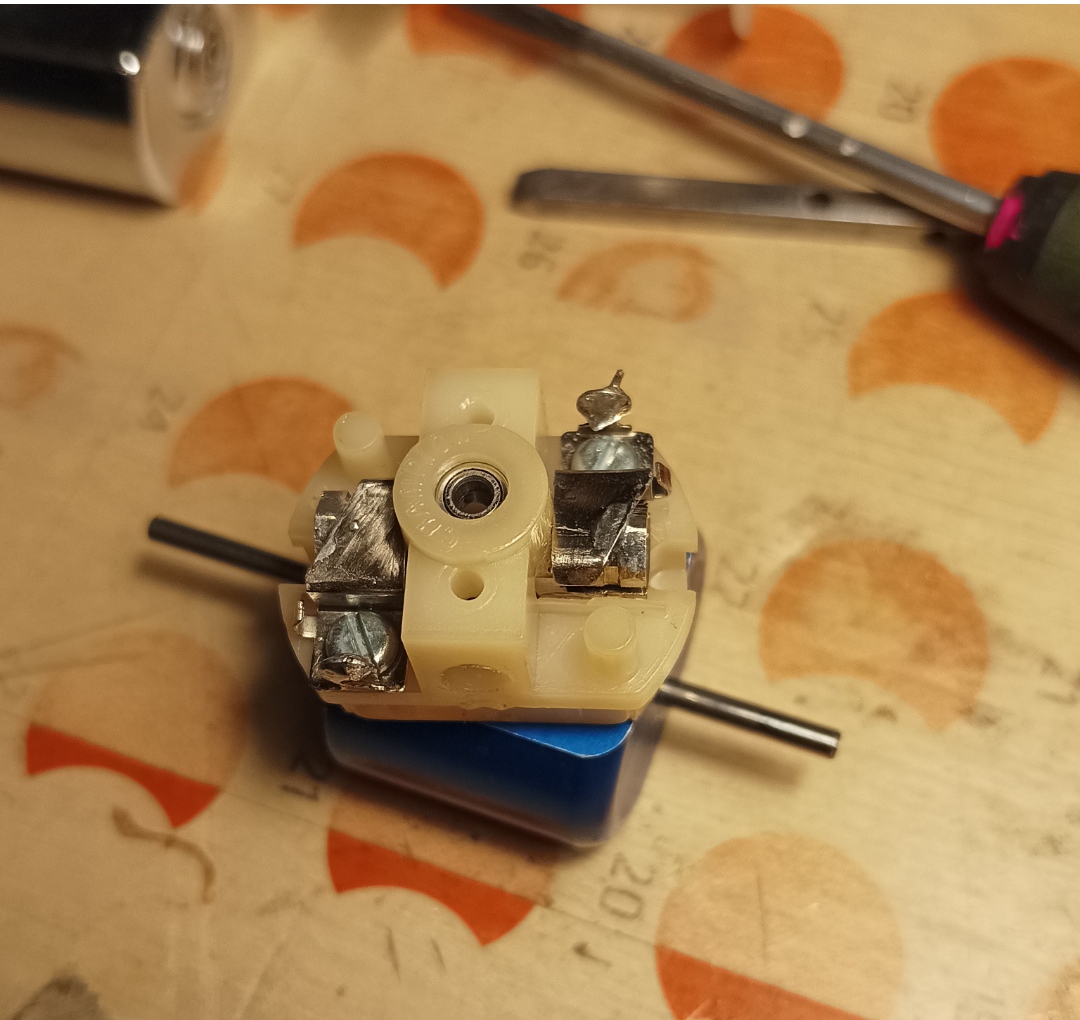

..endbell done...

Attached Images

  • Screenshot_2026-01-19-13-47-45-232_com.miui.gallery-edit.jpg

Maurizio Salerno

#11 Mark Onofri

Mark Onofri

    Posting Leader

  • Subscriber
  • PipPipPipPipPipPipPip
  • 2,981 posts
    • Joined: 18-November 20
  • Gender:Male
  • Location:Syracuse, NY

Posted 19 January 2026 - 12:00 PM

Who makes the 3d re- pos ? I need a lot of them for some Champion 16d's.

#12 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 19 January 2026 - 03:54 PM

Who makes the 3d re- pos ? I need a lot of them for some Champion 16d's.

Who makes the 3d re- pos ? I need a lot of them for some Champion 16d's.


This was produced by John Avlicek...
Maurizio Salerno

#13 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 19 January 2026 - 03:57 PM

Who makes the 3d re- pos ? I need a lot of them for some Champion 16d's.

Who makes the 3d re- pos ? I need a lot of them for some Champion 16d's.


This was produced by John Havlicek...

Attached Images

  • IMG_20260119_214833.jpg

  • NSwanberg likes this
Maurizio Salerno

#14 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 23 January 2026 - 01:17 PM

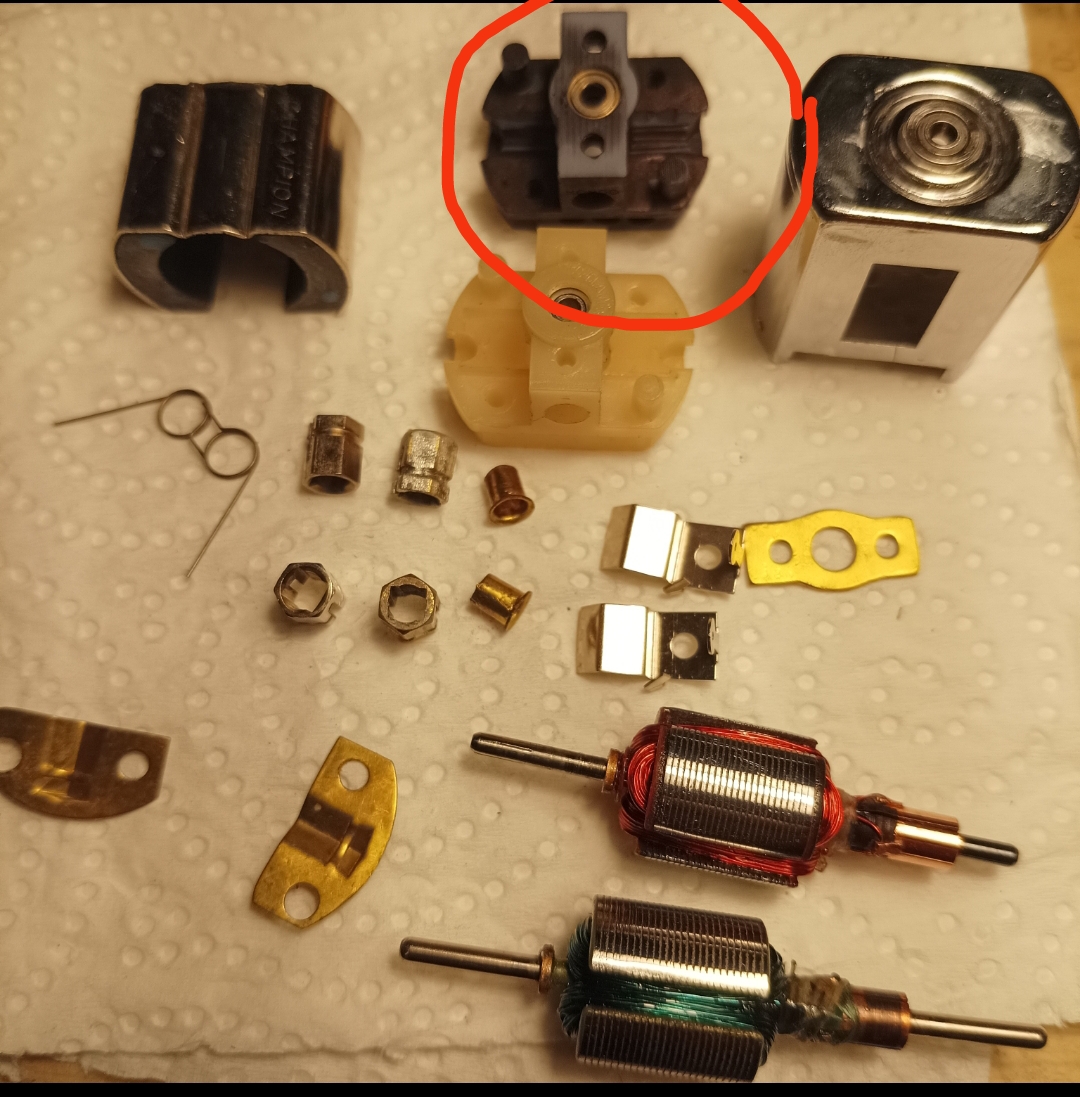

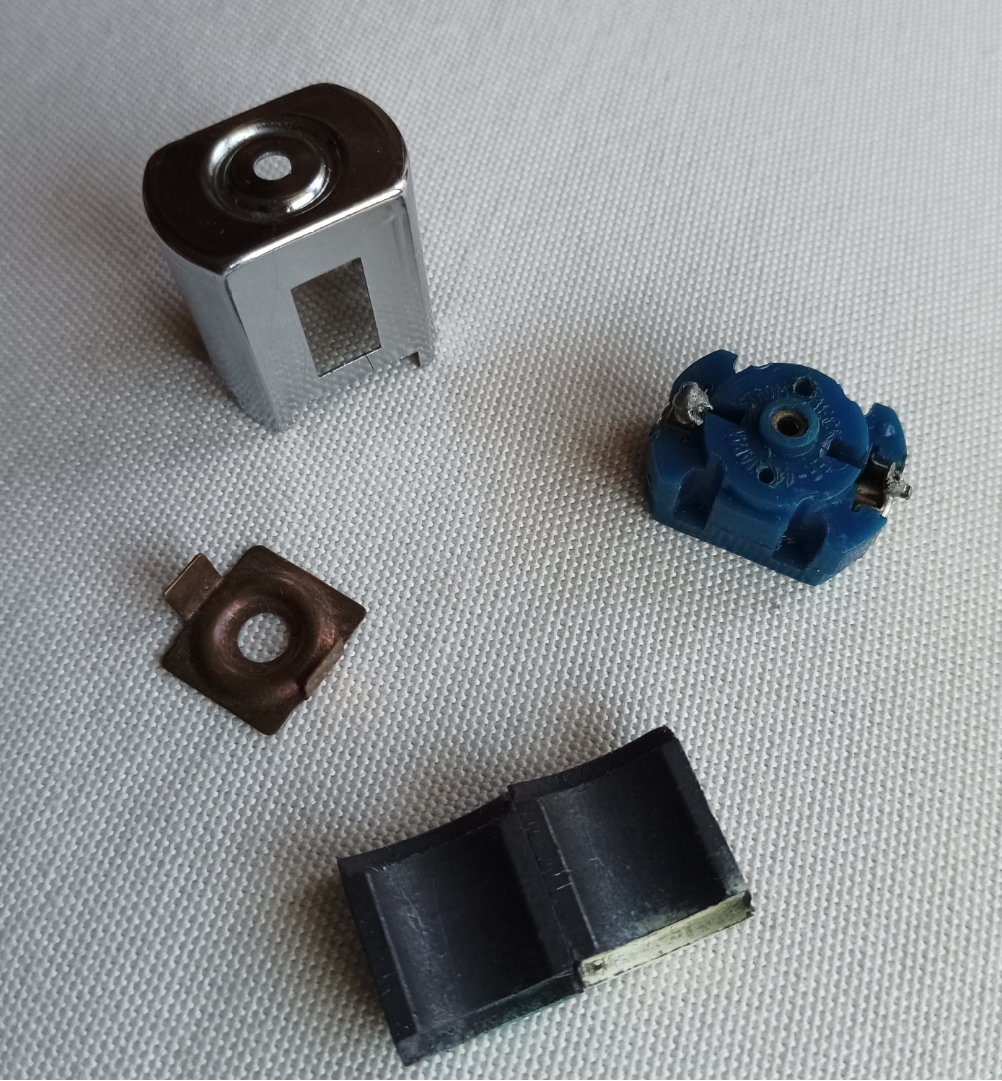

This old U-shaped shim from - I guess - the 507R motor didn't properly center the magnets due to the pressure of the single retaining spring, so I thought it'd be better to glue the magnets to the shim first...
I'll also cut the endbell to increase ventilation inside...

Attached Images

  • Screenshot_2026-01-23-19-15-11-248_com.miui.gallery-edit.jpg

  • olescratch likes this
Maurizio Salerno

#15 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 15,318 posts
    • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 23 January 2026 - 04:05 PM

You could also use individual shims behind each magnet. Some will cut the "ears" off that Champion 1-piece shim & use them.


  • Jaeger Team likes this
Bill Fernald

I intend to live forever!  So far, so good.  :laugh2:  :laugh2:

#16 John Luongo

John Luongo

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 779 posts
    • Joined: 01-August 16
  • Gender:Male
  • Location:Haverhill, MA

Posted 23 January 2026 - 05:13 PM

years ago, after straightening a can, i would make masking tape shims behind the magnets to tighten the bore a few thousants prior to align boring the magnets. seemed to make a smoother, more responsive motor.


  • Jaeger Team likes this

#17 SpeedyNH

SpeedyNH

    Old Engineer

  • Full Member
  • PipPipPipPipPip
  • 820 posts
    • Joined: 18-July 15
  • Gender:Male
  • Location:Cow Hampshire

Posted 24 January 2026 - 07:49 AM

in the 60's i used to cut pieces from a Tang jar lid to make magnet shims.


  • NSwanberg, John Luongo and Jaeger Team like this

Steve Lang

#18 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 15,318 posts
    • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 24 January 2026 - 08:22 AM

I've seen black electrical tape used too. I thought metal shims were the best material, but apparently not always.


  • John Luongo and Jaeger Team like this
Bill Fernald

I intend to live forever!  So far, so good.  :laugh2:  :laugh2:

#19 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 24 January 2026 - 05:12 PM

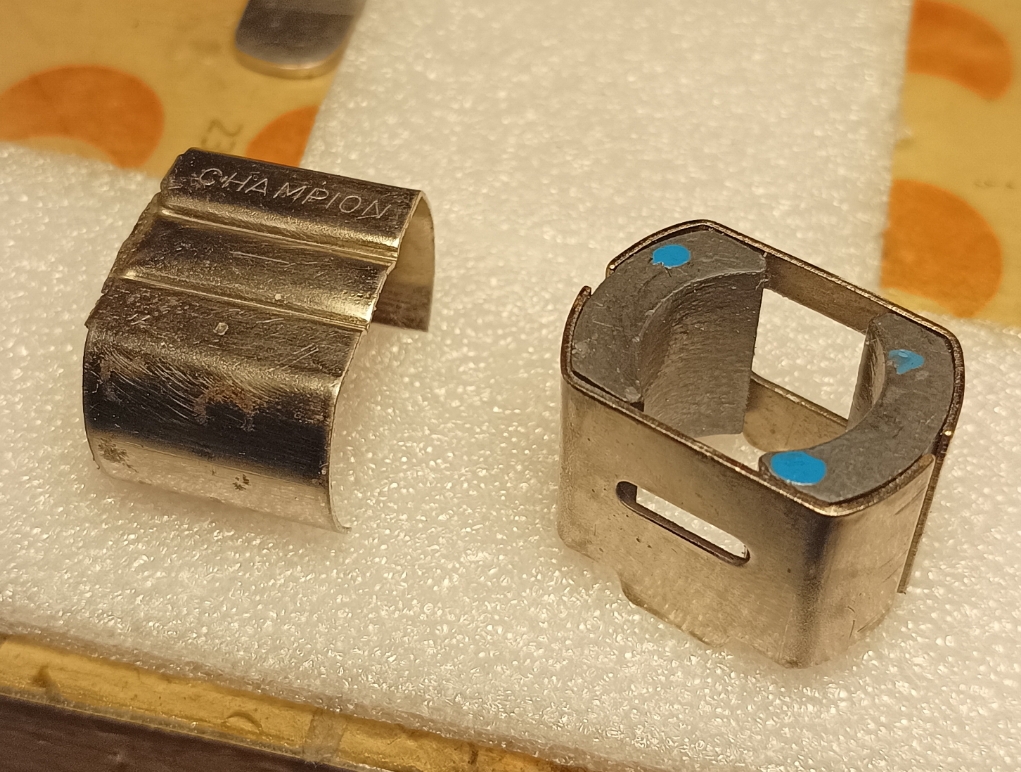

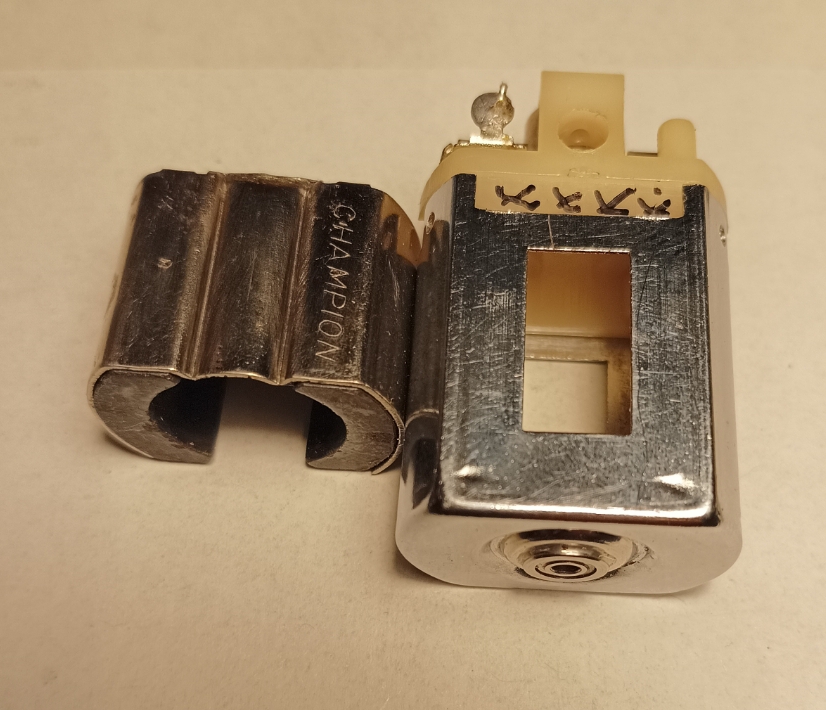

...with this two-piece shim Champion later resolved the centering problem but I'm not sure I want to use it for this build, rather I would reserve it for a future project that involves the use of a Champion can...

Attached Images

  • Screenshot_2026-01-24-22-55-14-718_com.miui.gallery-edit.jpg

Maurizio Salerno

#20 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 15,318 posts
    • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 24 January 2026 - 07:04 PM

Just compare the size of your can hole to the diameter of the arm you are using. I never ran unlimited 16D size motors, but I did C-cans for about 20 years. With them, we ran a.010" clearance on each side. (.510" arms in a .530" hole)


  • Jaeger Team likes this
Bill Fernald

I intend to live forever!  So far, so good.  :laugh2:  :laugh2:

#21 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 29 January 2026 - 05:01 PM

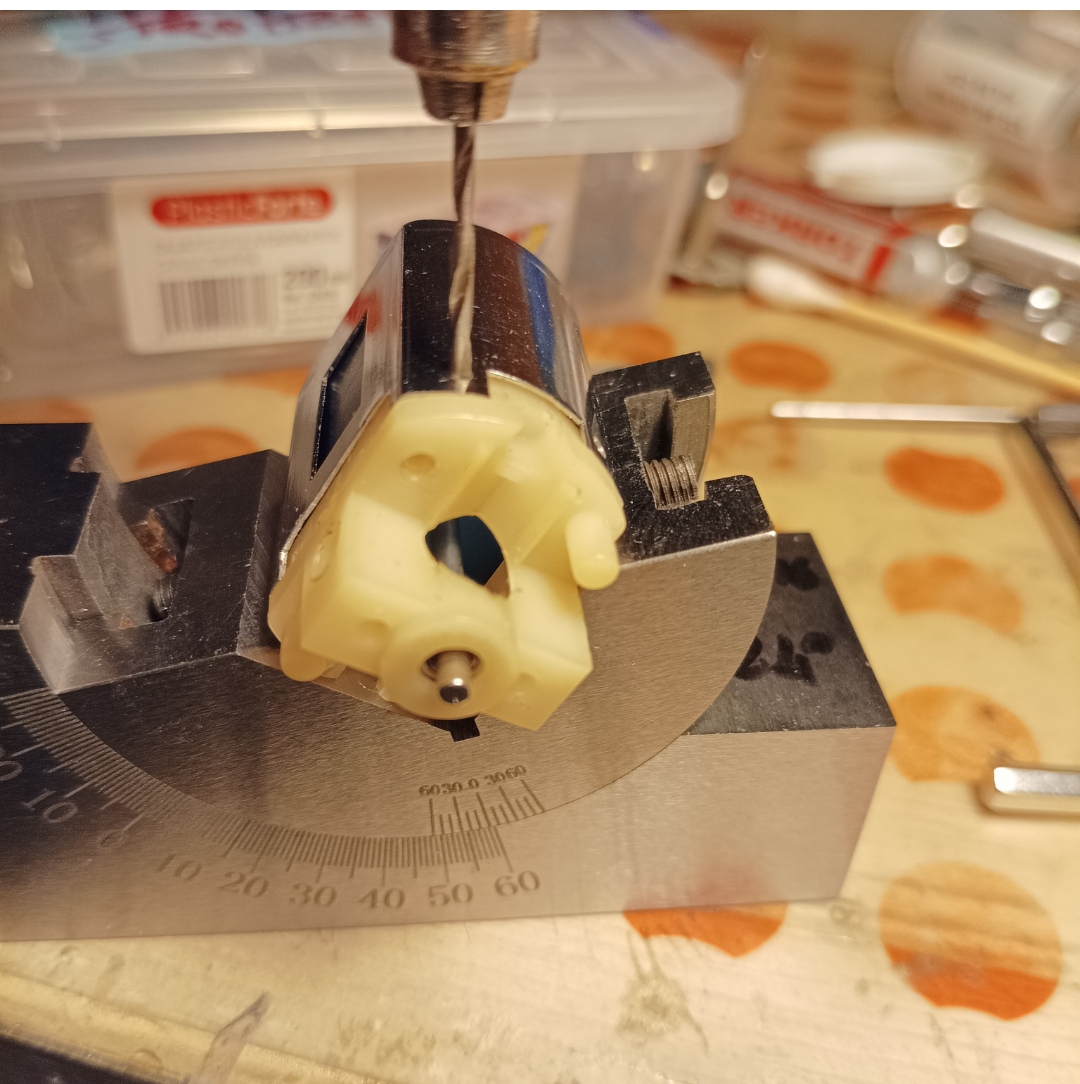

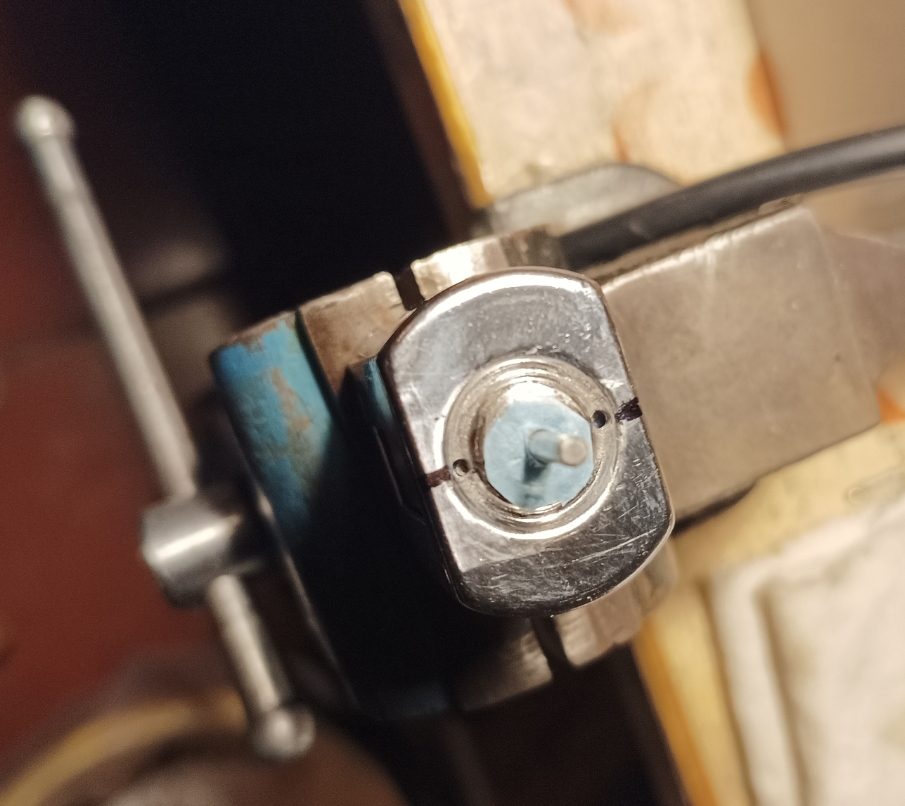

Since I don't know yet if this motor will be mounted as an endbell drive or a can drive, I marked and drilled two holes on the can...
......later I will decide how to insert and solder the nuts given the tricky shape of the can in those points...

Attached Images

  • Screenshot_2026-01-29-22-52-11-982_com.miui.gallery-edit.jpg
  • Screenshot_2026-01-29-23-14-18-667_com.miui.gallery-edit.jpg

Maurizio Salerno

#22 Bill from NH

Bill from NH

    Age scrubs away speed!

  • Full Member
  • PipPipPipPipPipPipPipPip
  • 15,318 posts
    • Joined: 02-August 07
  • Gender:Male
  • Location:New Boston, NH

Posted 29 January 2026 - 08:33 PM

Put aluminum screws in the holes from the outside of the can, screw down brass or steel nuts on the screws from inside the can & tighten them. Apply solder & flux to the nuts & unscrew the aluminum screws.


  • olescratch and Jaeger Team like this
Bill Fernald

I intend to live forever!  So far, so good.  :laugh2:  :laugh2:

#23 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 31 January 2026 - 05:11 AM

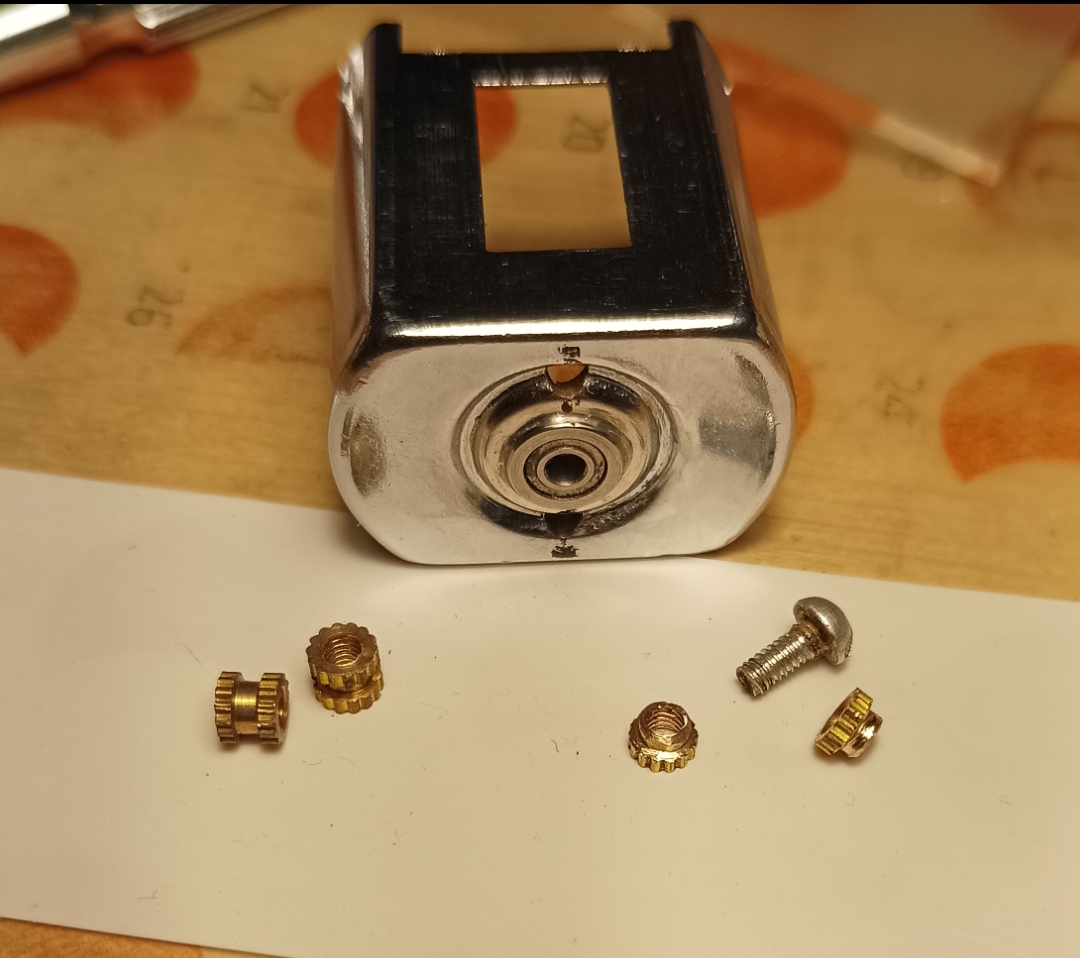

To overcome the obstacle of this rounded shape at the bottom of the can I found these nuts (left) and machined them (right) with my poor man's hand lathe...

Attached Images

  • Screenshot_2026-01-31-10-59-46-470_com.miui.gallery-edit.jpg

Maurizio Salerno

#24 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 31 January 2026 - 11:22 AM

...nut's inserts done...

Attached Images

  • Screenshot_2026-01-31-17-19-13-044_com.miui.gallery-edit.jpg

  • Pablo and Bill from NH like this
Maurizio Salerno

#25 Jaeger Team

Jaeger Team

    Race Leader

  • Full Member
  • PipPipPipPipPip
  • 586 posts
    • Joined: 27-January 17
  • Gender:Male
  • Location:Palermo, Italy

Posted 17 February 2026 - 04:30 AM

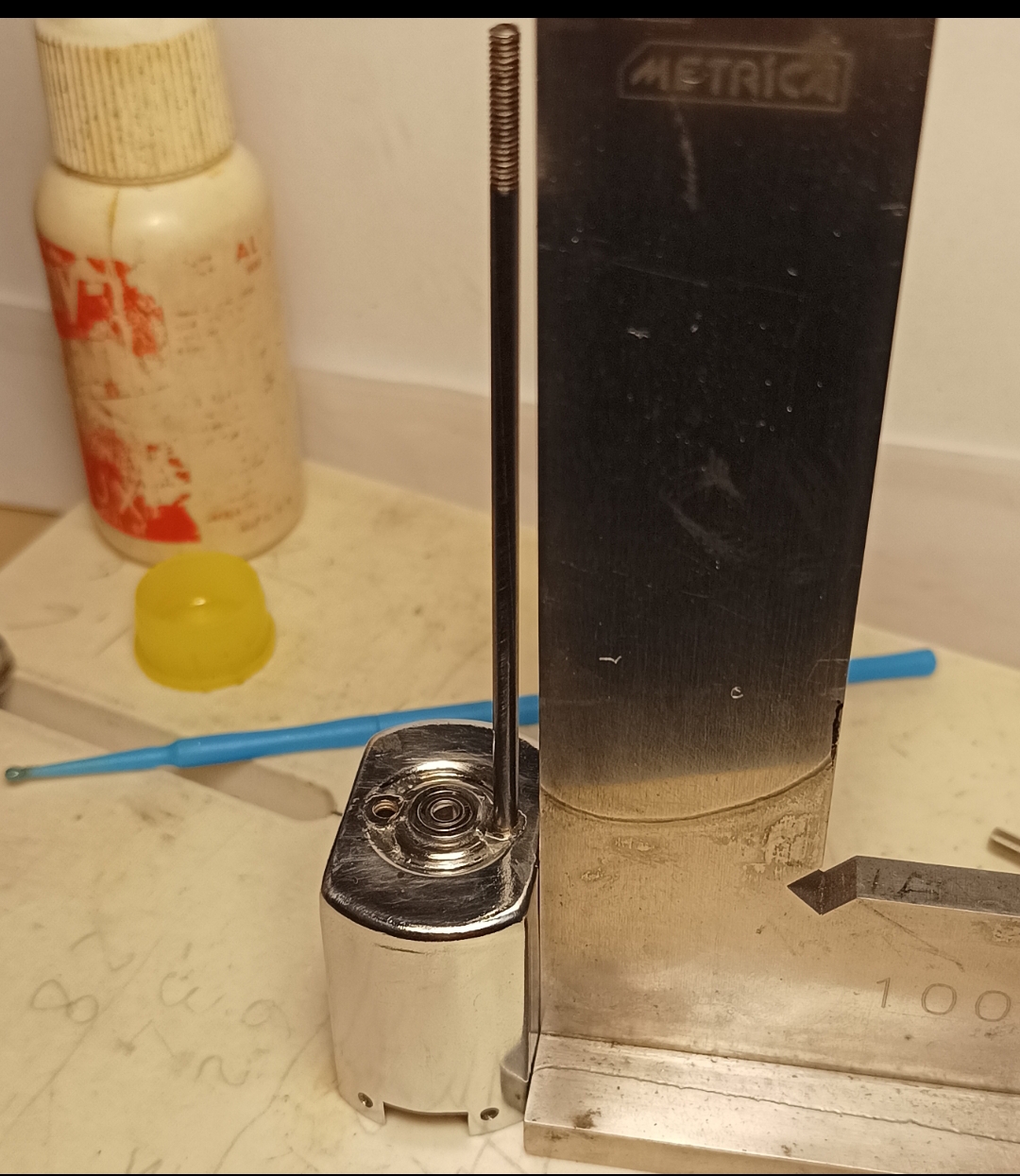

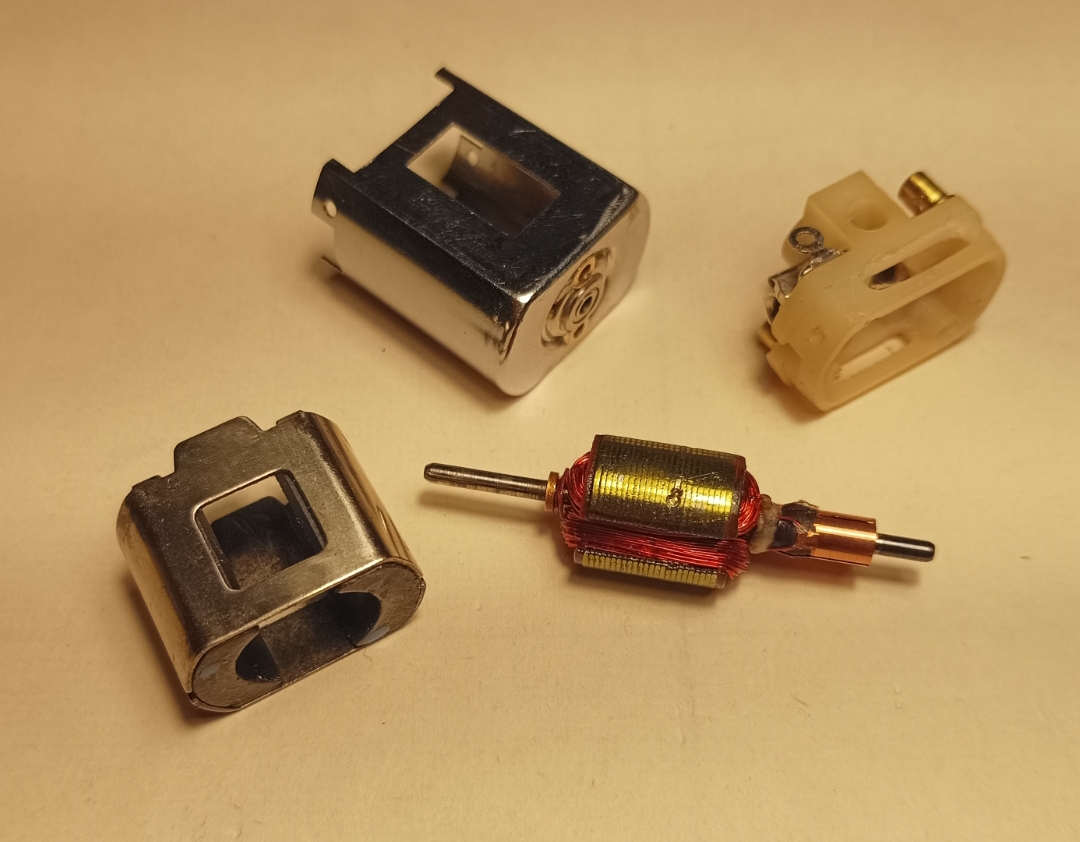

...I finally received this arm from my mate Salvo Guarnaccia's balancing department...
I have these measurements:
- arm .516
- magnet hole .536
...onward!

Attached Images

  • Screenshot_2026-02-17-10-18-59-231_com.miui.gallery-edit.jpg

  • Pablo likes this
Maurizio Salerno
