[Tim Neja]

Terry's a dremel/ hand file MASTER!!! His chassis are artwork for sure--and they WORK well too!! Beautiful in-laid hinges etc--an amazing craftsman!!!


[SlotStox#53]

Superb scratch building skills with beautiful results . Excellent work Terry

-Paul

[macman]

Works of art is putting it mildly. Those chassis are spectacular!!!

[macman]

How about if it works better than any other chassis you've ever had ?

Well Mike, we will see... here is the final itineration for now... additional bracing on nose opens the possibility of tuning fork option in the future ...

BTW Isn't the z-rail your original idea, with Ray doing the hardware development??? I remember you with respect from wingcar days when your were the team leader & premier driver for Stu.



[Duffy]

One of three pretty much alike, #75 Mama Roux.



These are 4.0" / .94" for a little more snap than my own 4.15" w/b broughams. All wire is .047" except the .063" rear bale, Duffy bracket & Swiss tongue.

51gr. with front axle.





Once they're on the track and testing, I might add a hair spring to the bite bar. The longer Gilded Splinters chassis aren't running them and seem none the worse, but one reason I made three is to do side-by-side comparison testing on at least two (& one's getting handed to a friend who may make good use of it). We'll see how it all turns out.



[MSwiss]

Nice, elegant look, even if you didn't use my tongue.



By coincidence, amazingly similar to a Gary Pearce, Dan Green, Jay Horn wire chassis from the late 80's.

(which ran great)

[SlotStox#53]

Love the design Duffy, really neat the tuning fork type front attachment for the pans ..plus the rear attachment too ,crazy wire bending skills!

[Duffy]

Nice, elegant look, even if you didn't use my tongue.



Huh? That IS your tongue. Innit?



 I don't often speak in tongues, but this is a darn fine one.

[MSwiss]

Well Mike, we will see... here is the final itineration for now... additional bracing on nose opens the possibility of tuning fork option in the future ...

BTW Isn't the z-rail your original idea, with Ray doing the hardware development??? I remember you with respect from wingcar days when your were the team leader & premier driver for Stu.




On the Z-rail, yes as it's implemented today by 99 % of the Z-rail builders.



The inspiration for the first Retro one I built, was the success of the pictured Hot Rod chassis

(still in need of a bracket replacement) I built for a customer to run this big tired, Falcon II powered class,

on my flat track.



You were worried about 3-.055" being too flexible. This thing has 3-.047".



On the success of that, I built a Retro F1 chassis for the same customer, again with the flat track in mind.

Along with running great there, it turned out to be great on the King, especially after getting some stops

installed. That same 2010 torsion pan design is pretty much what Rick Davis and Bud Bartos use on the current Z-rail,

that they been winning a lot of races with, and subsequently selling a lot of, to Retro racers all over the World.



Ray Price was the first to join the Z-Rail band wagon, has built a bunch, with his crowning achievement,

a 3rd place finish with one in Can-Am, behind Howie Ursaner and Ron Hershman, at Sano V.



Thanks for making the wingcar reference.



Coincidentally, I've recently changed my signature, at the urging of my wife, to promote my

past wingcar accomplishments.

Attached Images

•

[Preston M]

For the Cintons. This design worked flawlessly on slots a lot's king track, easily breaking the previous lap record.

[Dominator]

Sweet build Preston!

[blkdout76]

You mean Clinton's? LOL!

[Preston M]

oops, you know what i meant hahaha

[Joe Mig]

Now that work bench looks more like the real thing so is your Mom freaking out on you yet ?
No more building chassis for you Prestom now go too your room.

[Preston M]

LOL. i actually cleaned it all yesterday

[macman]

Slight rework on a 2009 chassis I updated earlier this year. The guide length was over .75 IRRA max & slightly tweaked, so now it is a legal .65 & straight.

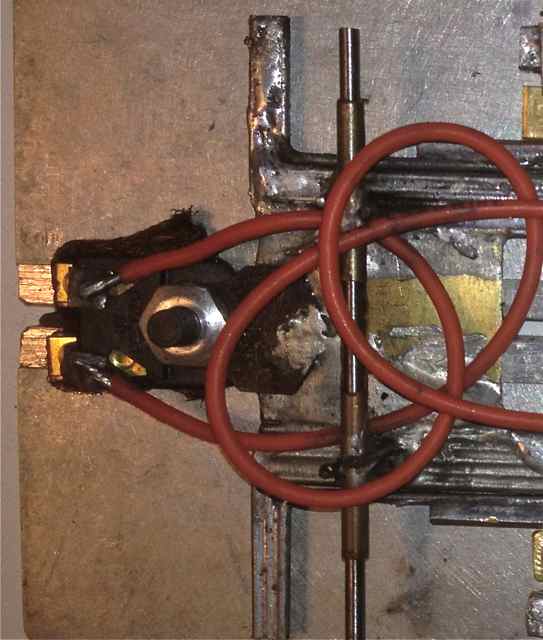

The old

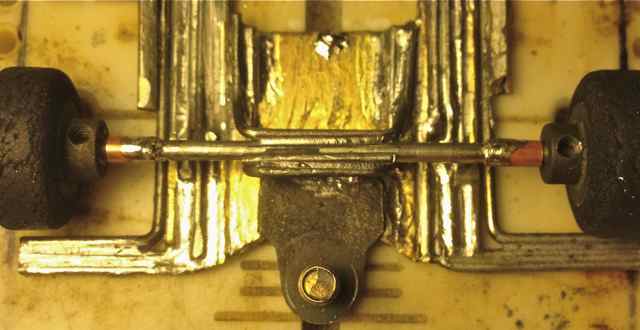

New & Improved



Think this will be easily replaceable, particularly if I prep a new spare axle as Pablo recommends.

BTW these are iPhone 4s pics.

[Preston M]

I would go over those joints with more flux and let the solder flow a bit more. It will get rid of the clumpiness. Otherwise nice job!

[Tex]

Ditto. Lotsa flux, lotsa heat.











(that's how I've cracked 2 RGEO jigs... LOL)

[macman]

You do realize that these joints have had all the excess solder accumulated during building ground off...

[Preston M]

That is one way of doing it. Another is to use more flux, less solder. Allow the solder to flow, it will prevent the need to grind off excess solder, because there won't be any.

[ejgehrken]

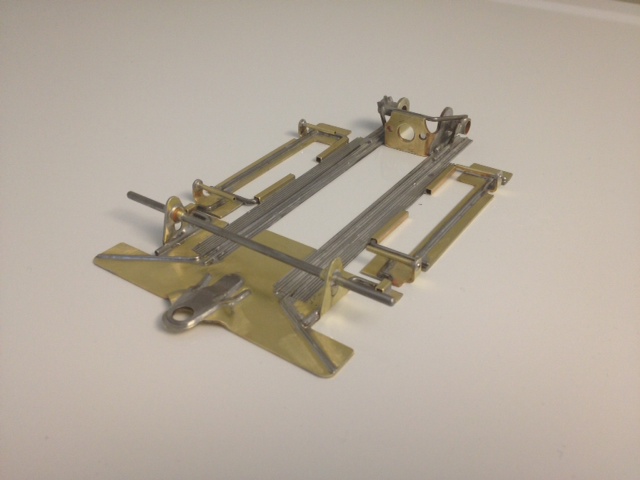

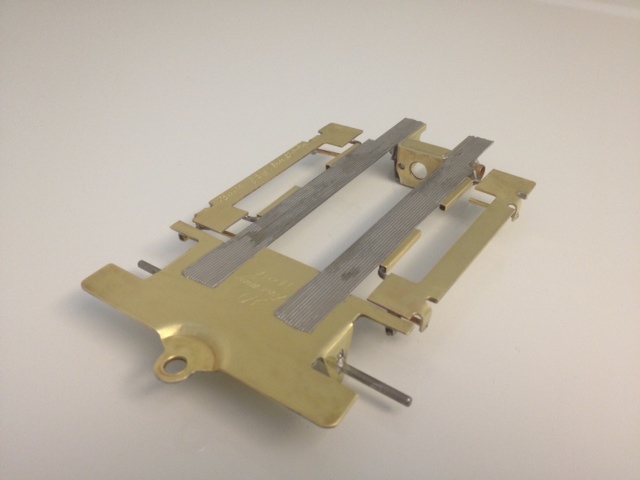

3D Racing Chassis #017



30-Rail Can-Am Chassis
30 rails of 0.032" wire

4" wheelbase, 0.940" guide lead

RGEO Samurai 3 Kit w/ 3/4" RGEO Bracket

Attached Images

•
•

[Tex]

Now, that there's a lotta rails!

[MSwiss]

Eric,

Great job, as always.



I wonder if some ambitious chassis builder will ever bother to build, an of course illegal, test mule, with 1 pc. flat spring steel rails,

just to see if it these multi-piano wire chassis, mimic a true spring steel railed car.

[Duffy]

I wonder if some ambitious chassis builder will ever bother to build, an of course illegal, test mule, with 1 pc. flat spring steel rails,

just to see if it these multi-piano wire chassis, mimic a true spring steel railed car.



Yah, but - still not the same, the disparate metals (steel/solder) wouldn't mimic the sawn plate. Too bad. Lots more fun to do this sort of thing and believe we've got a good substitute!



duf

[MSwiss]

It's of course a totally different temper.



I don't expect it to mimic it, or think it should.



I just wonder if it might, or might be superior.



But I don't wonder enough to try it myself.



That's what young men like Eric are for.
