On The Lead Lap
Posted 02 September 2013 - 04:49 AM
Posting Leader
Posted 02 September 2013 - 09:15 AM
On The Lead Lap
Posted 04 September 2013 - 01:19 AM

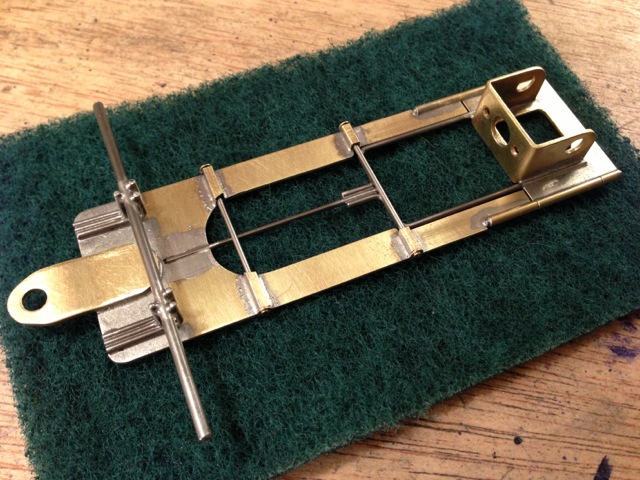

.......Here's another F1,,it's DCR #21,,,,very close to #19 in design,,,just a fuzz more flex.This one is a bit lighter also at 41.7grams........this will build a Sub 90g car.......so it will be interesting to see these light F1's run.......I think there going to be fine,,,but only testing will tell..........Shipped to it's new owner,,and if it's a "PILE" Im sure he will tell me ....LOL.................take care......................DC
On The Lead Lap
Posted 14 September 2013 - 02:43 AM
Here are two builds I did for Rich Goucher, a local at Rapid Raceway in Plainville, CT who's going to start racing retro.

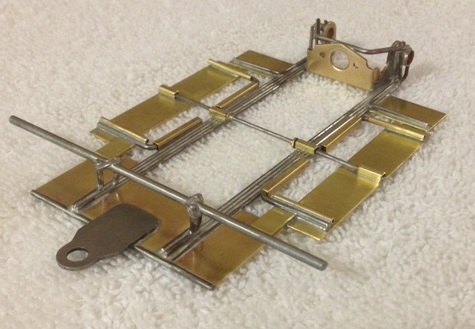

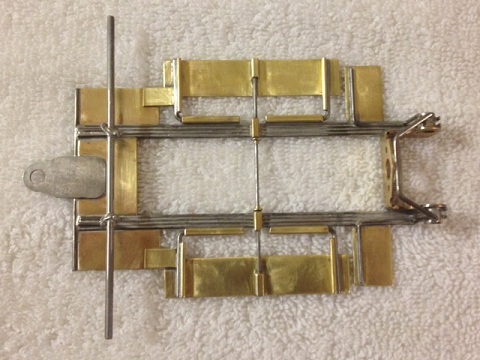

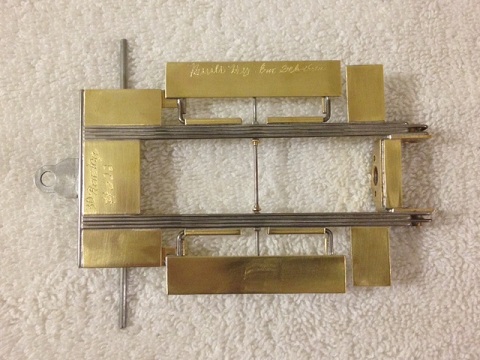

First Build:
3D Racing Chassis #022
Can-Am Chassis
8 rails of 0.047" wire
4" wheelbase, 0.940" guide lead
1" Chicagoland Versa Bracket
Chicagoland Guide Tongue

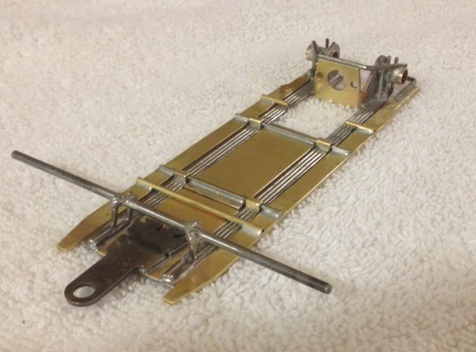

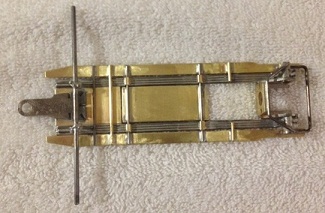

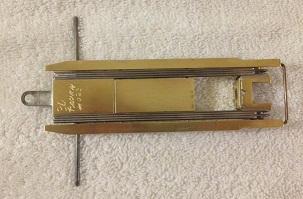

Second Build:
3D Racing Chassis #023
Formula 1 Chassis
8 rails of 0.047" wire
4.125" wheelbase, 0.940" guide lead
FSF F1/A1 Kit
Grand Champion Poster
Posted 14 September 2013 - 02:48 AM
Eric,
Both very nice.
Now get to bed. LOL
Mike Swiss
Inventor of the Low CG guide flag 4/20/18
Former IRRA® Components Committee Chairman
Five-time USRA National Champion (two G7, one G27, two G7 Senior)
Two-time G7 World Champion (1988, 1990), eight G7 main appearances
Eight-time G7 King track single lap world record holder
17B West Ogden Ave., Westmont, IL 60559, (708) 203-8003, mikeswiss86@hotmail.com (also my PayPal address)
Note: Send all USPS packages and mail to: 692 Citadel Drive, Westmont, Illinois 60559
Renegade, Mutineer
Posted 14 September 2013 - 08:43 AM

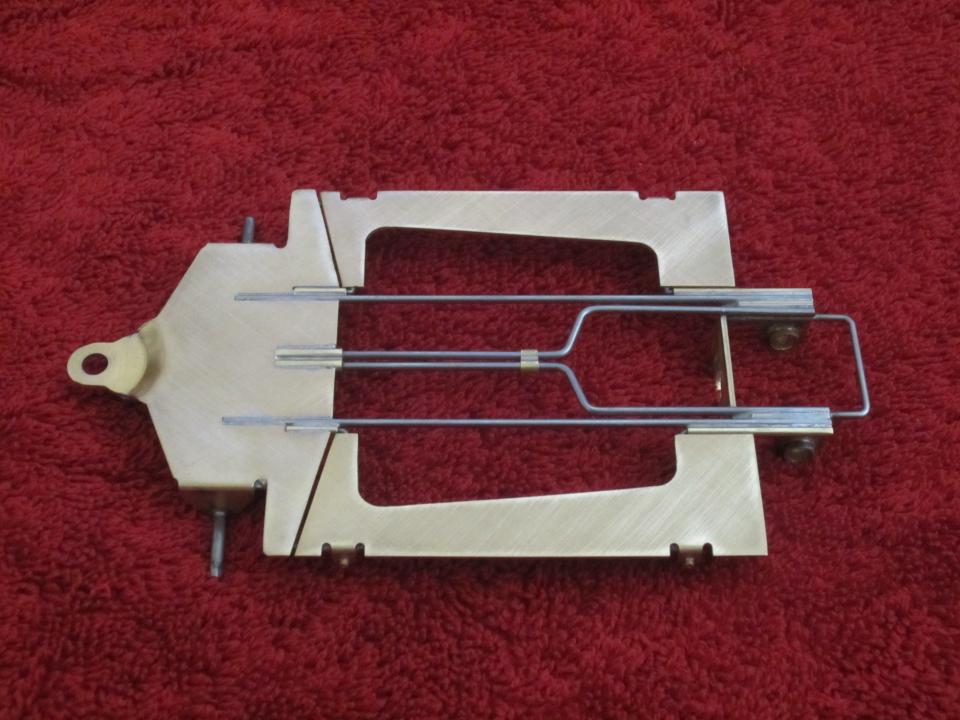

Hello everyone,,Iv been building some F1 chassis.2 are for Foamy,and the 3rd is for a customer.All 3 chassis are of the same basic design but have slightly different dimensions,in my never ending search for that "Perfect Car".........Hand cut from .040 brass,with a piano torsion bar up the center,,also these cars are very light,as DCR #19,the chassis in this photo weighs only 43g......thats going to build a 88-90g car,,,but adding weight if needed is easy.Take Care all..................DC
Don, the Warmack rear end treatment has proved incredibly successful on my F1 King Track car, and this chassis is beautiful...
Mill Conroy
AKA : TWO LAP CONROY, Anointed Trigger Monkey by Mike Swiss
Deal me life's toughest cards, without chance for hope nor fame, just let me play this one last hand, and I'll win this whole damn game.
Second Most Interesting Man in the World.
Posting Leader
Posted 14 September 2013 - 12:24 PM
Great builds Eric. Are you going to make it the NERR race at Rapids?
A motor is only as fast as the chassis it's in.
Dominic Luongo
Like Dominator Custom Chassis on Facebook
NERR photos from 2012-April 2016
NERR photos from 2016 to now
On The Lead Lap
Posted 14 September 2013 - 02:52 PM
Thanks Dom, I'll be there! Hopefully, I'll have one or two more builds to race there.
On The Lead Lap
Posted 21 September 2013 - 08:02 PM

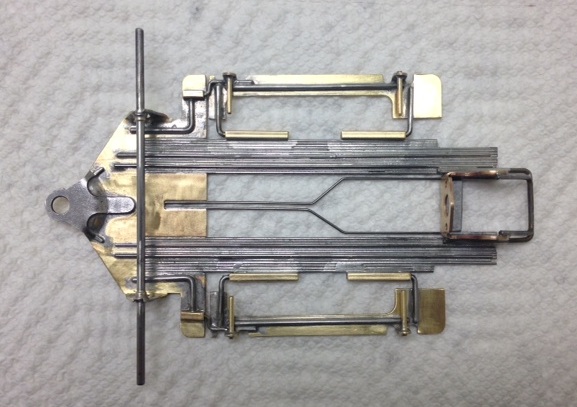

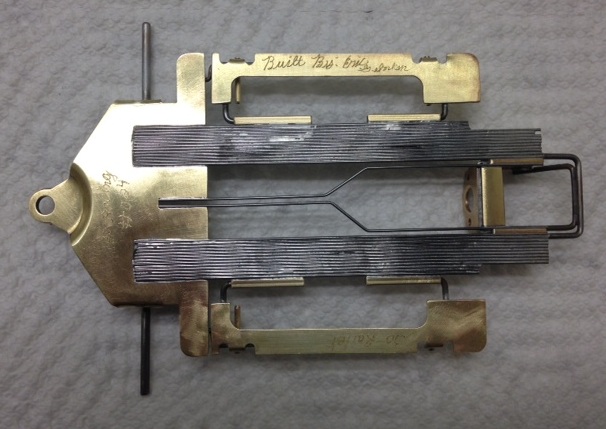

3D Racing Chassis #024
Can-Am/Coupe Chassis
30 rails of 0.032" wire
Tuning Fork w/ 0.032" wire
4" wheelbase, 0.940" guide lead
0.75" Chicagoland Versa Bracket
RGEO Samurai 3- GVP Version
Checkered Flag in Hand
Posted 22 September 2013 - 02:38 AM

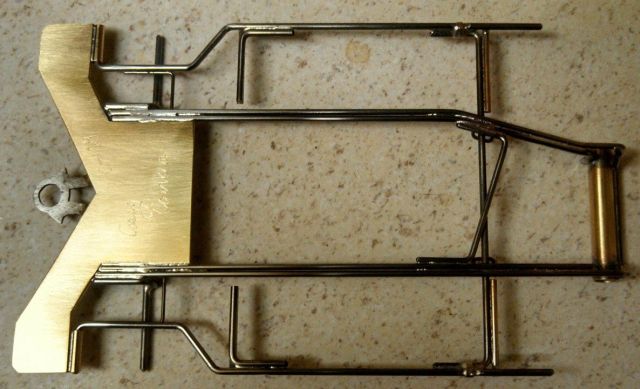

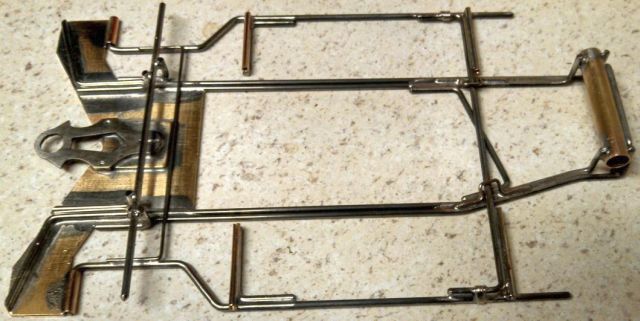

Another Saturday going by with me spending the majority of it at the bench building the next RetroPro chassis.
It was a fun challenge figuring out the pans, bite bar assembly and bracing. See below for the new sled.
Grand Champion Poster
Posted 22 September 2013 - 06:05 AM
Very nice, Craig!
Posting Leader
Posted 22 September 2013 - 07:49 AM
Posting Leader
Posted 22 September 2013 - 08:27 AM
A motor is only as fast as the chassis it's in.
Dominic Luongo
Like Dominator Custom Chassis on Facebook
NERR photos from 2012-April 2016
NERR photos from 2016 to now
On The Lead Lap
Posted 22 September 2013 - 11:36 AM
Grand Champion Poster
Posted 22 September 2013 - 12:42 PM
Rick Bennardo
'Professional Tinkerer'
scrgeo@comcast.net
R-Geo Products
Like my Facebook page for updates, new releases, and sales: Rgeo Slots...
Lead! The easy equalizer...
Stuck in the Slot
Posted 22 September 2013 - 12:49 PM
Nice work and beautiful chassis!
Race Leader
Posted 23 September 2013 - 03:05 PM
On The Lead Lap
Posted 23 September 2013 - 03:13 PM
Grand Champion Poster
Posted 23 September 2013 - 03:16 PM
Super-sweet build.
Nice bracing on the nose pc. and pans.
Ultra-clean job lightening the pans, also.
Mike Swiss
Inventor of the Low CG guide flag 4/20/18
Former IRRA® Components Committee Chairman
Five-time USRA National Champion (two G7, one G27, two G7 Senior)
Two-time G7 World Champion (1988, 1990), eight G7 main appearances
Eight-time G7 King track single lap world record holder
17B West Ogden Ave., Westmont, IL 60559, (708) 203-8003, mikeswiss86@hotmail.com (also my PayPal address)
Note: Send all USPS packages and mail to: 692 Citadel Drive, Westmont, Illinois 60559
This space for rent
Posted 23 September 2013 - 05:15 PM
"Racing makes heroin addiction look like a vague wish for something salty" - Peter Egan
Grand Champion Poster
Posted 23 September 2013 - 05:19 PM
Knowing Raisin, I bet that baby is an adjuster. LOL.
Mike Swiss
Inventor of the Low CG guide flag 4/20/18
Former IRRA® Components Committee Chairman
Five-time USRA National Champion (two G7, one G27, two G7 Senior)
Two-time G7 World Champion (1988, 1990), eight G7 main appearances
Eight-time G7 King track single lap world record holder
17B West Ogden Ave., Westmont, IL 60559, (708) 203-8003, mikeswiss86@hotmail.com (also my PayPal address)
Note: Send all USPS packages and mail to: 692 Citadel Drive, Westmont, Illinois 60559
Checkered Flag in Hand
Posted 23 September 2013 - 05:21 PM
This space for rent
Posted 23 September 2013 - 06:01 PM
"Racing makes heroin addiction look like a vague wish for something salty" - Peter Egan
Race Leader
Posted 23 September 2013 - 06:53 PM
Checkered Flag in Hand
Posted 23 September 2013 - 07:32 PM
Michael,
I built a GVP clone tuning fork car and yes, the adjuster I installed made a difference.
