147 replies to this topic

[macwest]

" I found other larger bidder besides me is SCJToys. Although I do not think with his bids he understands the narrow market these have."

If the poor quality pulls they have on ebay are anything to go by, the market will be even narrower!

I agree. For all, I lowered prices on ebay all bodies i have at 7.00 each.

[Dave Crevie]

Carefull placement of vent holes. And carefull cleaning of mold surfaces.

[Martin]

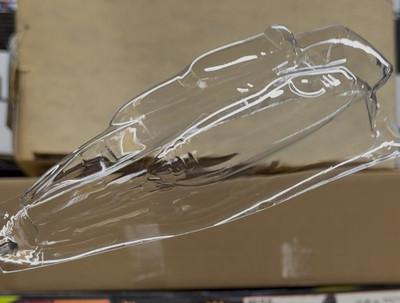

Man, I grabbed some images of repo bodies on ebay. Vent holes for sure in the correct place would help, but total rejects IMO.



Check out these, Soft exit vents on the Ford GT



Texture front windshield on the 2D and a blob of a Shelby turbine Indy car.









Hope yours are better than these Scott?

[Bill Breck]



Big_boy I believe is REH's daughter







Bob Molta at Slot Car Central told me that "Big_boy" is the boyfriend or husband of Bob Haines daughter.



He's not very knowledeable about slot car parts. He sold me a package of "Jet Flags" that were actually Starburst guides. When I asked for a return he refused even though I sent him pictures of actual Jet Flags to prove he was wrong. He blocked me from bidding on his auctions.

[Bill from NH]

The Srarburst guides I've had, have all had straighter guide posts than some of the Jet guides. But they're not valued as a vintage item. IIRC, Jet guides that had the number 5 on them were the ones we desired using because they had the straightest posts. I think the Jet guide molds were numbered 1-7 or 1-9.

[Gene/ZR1]

Carefull placement of vent holes. And carefull cleaning of mold surfaces.

Theres more to it than that.

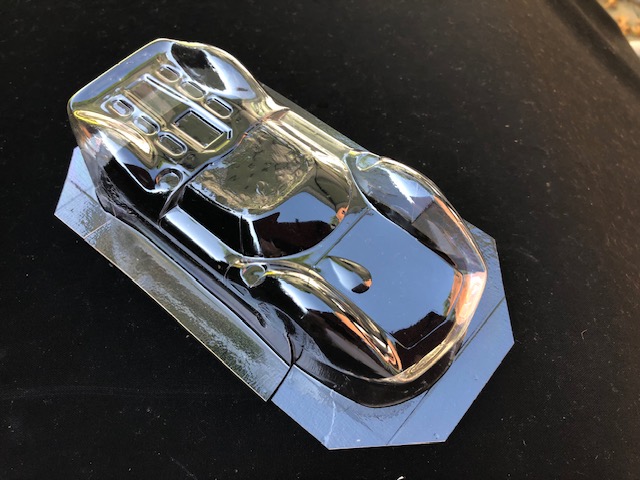

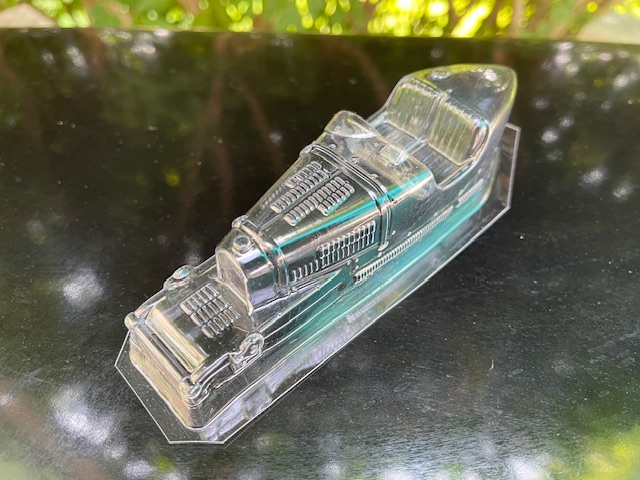

Sharp clear details

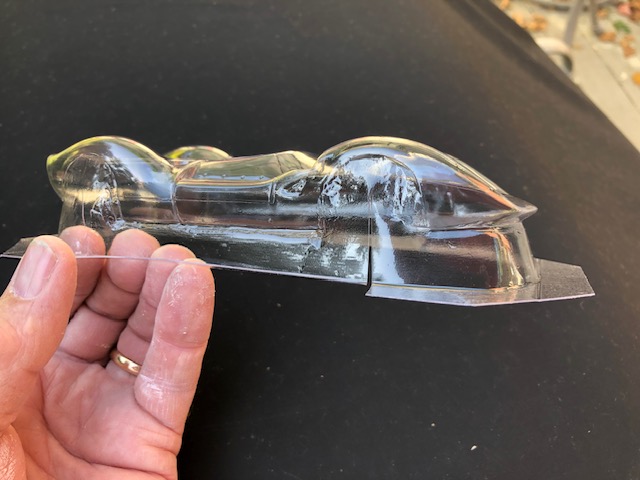

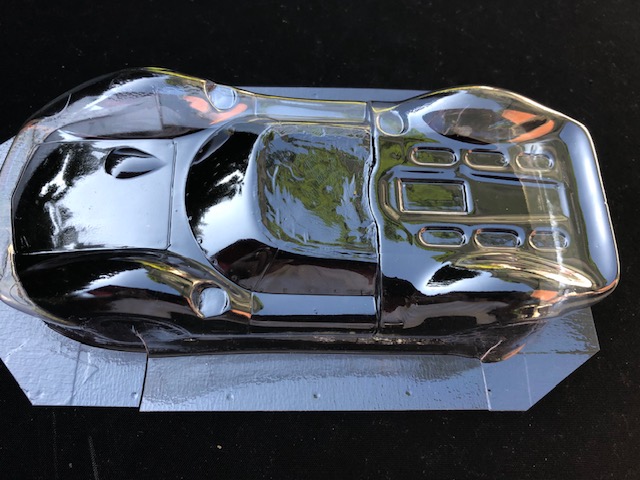

Lotus 40, deep undercuts. Bodies are clear

[Dave Crevie]

You are correct. A lot of issues present themselves depending on the complexity of the body. Your pre-war Grand Prix body is far more difficult to pull than, say, a Lotus 40.

[macwest]



Bob Molta at Slot Car Central told me that "Big_boy" is the boyfriend or husband of Bob Haines daughter.



He's not very knowledeable about slot car parts. He sold me a package of "Jet Flags" that were actually Starburst guides. When I asked for a return he refused even though I sent him pictures of actual Jet Flags to prove he was wrong. He blocked me from bidding on his auctions.



Makes sense. The names on many of the molds have been way off.

[macwest]

Theres more to it than that.



Sharp clear details




Lotus 40, deep undercuts. Bodies are clear





Those are clean runs. Very nice.

[Martin]

Beautiful Gene, you have mastered your craft. Really nice examples of how detailed and crystal clear a reproduction body can be.

[macwest]

Theres more to it than that.



Sharp clear details




Lotus 40, deep undercuts. Bodies are clear



Gene what are you doing for a clean room to remove dust and particulates?

[Mark Onofri]

Many, many tiny holes for the vacuum to suck down the plastic. It's in a thread here somewhere.

[Mad Mark]

Think I need a vacuuform machine!

[pn6]

I didnt know about the SCJToys guy doing bodies. Too bad the pulls arent nice. He has the Lola and the ford I want

[macwest]

I didnt know about the SCJToys guy doing bodies. Too bad the pulls arent nice. He has the Lola and the ford I want

I sent you a PM. Bodies on me ....paint them up and post pictures of them here so we all can enjoy them. I  just need shipping cost. I ran the bodies tonight the ford GT MKII is from TSRF remake of lancer. I did win the original today so be glad to get you another later. I thiink it will pull better I understand why lancer has a base. On the lola it is the dynamic no headlamp version This is from the original dynamic mold I bought from victor over 8 years ago. I have the lancer lola but it needs work to run. If TSRF is still making bodies, I believe victor had the lancer body since I aquired the rubber mold from him,  but not sure he is still making bodies.

[Gene/ZR1]

I sent you a PM. Bodies on me ....paint them up and post pictures of them here so we all can enjoy them. I  just need shipping cost. I ran the bodies tonight the ford GT MKII is from TSRF remake of lancer. I did win the original today so be glad to get you another later. I thiink it will pull better I understand why lancer has a base. On the lola it is the dynamic no headlamp version This is from the original dynamic mold I bought from victor over 8 years ago. I have the lancer lola but it needs work to run. If TSRF is still making bodies, I believe victor had the lancer body since I aquired the rubber mold from him,  but not sure he is still making bodies.



You can contact Victor at Welcome To TrueScale Products
Try the Contact Tab on Victors web site, as far as I know he is still producing his excellent bodies.

regards; gene

[pn6]

Great news Scott. I’ll PM you.

Yes I’ll paint’em up and post ‘em.

I do have an original Lancer body of the “Lancer Lola” that Skip Hudson drove at Riverside but I think the one you’re sending is what I’m after.
Thanks again

[macwest]

Great news Scott. I’ll PM you.

Yes I’ll paint’em up and post ‘em.

I do have an original Lancer body of the “Lancer Lola” that Skip Hudson drove at Riverside but I think the one you’re sending is what I’m after.
Thanks again



The dynamic is sweet, you will like it.  I pulled the bodies  in .015 so they should be great as runners and not to heavy.

[pn6]

Looks great!  Now I need to get some interiors for them and a 906 I'm finishing.



.015 is fine. I don't mind the .020 bodies because they are harder for me to screw up when I'm trimming.....



The Ford will go on one of my Dynamic Sidewinders which I used to set the track record on Kit Car Night in 1966!



The Lola will go on a new design printed chassis I'm fooling with!

[macwest]

Looks great!  Now I need to get some interiors for them and a 906 I'm finishing.



.015 is fine. I don't mind the .020 bodies because they are harder for me to screw up when I'm trimming.....



The Ford will go on one of my Dynamic Sidewinders which I used to set the track record on Kit Car Night in 1966!



The Lola will go on a new design printed chassis I'm fooling with!

I threw in a couple interiors I ran years ago. I also threw in a test example of the K&B Ford GT MKII interior. Not the best pull it was one of the earlier beta pulls as I was working on the mold but maybe you can make something with it.

[Gene/ZR1]

Gene what are you doing for a clean room to remove dust and particulates?



Scott

My vacuum room is located in a finished basement and has a door. Has heat and AC. I like the humidity aground 53 %.

I cut 4 x 8-foot sheet plastic for the bodies there also. This room has all my molds about a 120. Each mold is kept in a plastic bag in a drawer until needed.

The room where I make molds is about 50 feet away from the vacuum room and it can get messy in there, so clean up as you go.



Now making bodies, take a microfiber cloth and spray with glass cleaner and wipe the platen and vacuum table down, also wipe down each piece of plastic before you remove the protective film, if you don't any dust on the film will transfer to the plastic piece. Wipe your mold down with a tack cloth. Lastly where a clean T-shirt as lint from your clothes can become flyable and will transfer to your plastic.



Sounds crazy but I don't like an ugly body with dust and lint. I try my best to make a as good or better body than an original; this also includes making a high-quality mold.

I like doing this so the hobbyists can enjoy recreating there dream cars, but it can be time consuming.



Enjoy the hobby and take care

regards gene

[Martin]

I have many of Genes bodies and I can say without hesitation they are as great or better than an original.



If a builder is going to spend the time to make a nice reproduction car choose a quality body.

[macwest]

I have many of Genes bodies and I can say without hesitation they are as great or better than an original.



If a builder is going to spend the time to make a nice reproduction car choose a quality body.

My bodies are not bad but Genes and Victors are the best manufactured bodies around.  Both pull really nice and detailed bodies with out allot of dust.

[macwest]



Scott

My vacuum room is located in a finished basement and has a door. Has heat and AC. I like the humidity aground 53 %.

I cut 4 x 8-foot sheet plastic for the bodies there also. This room has all my molds about a 120. Each mold is kept in a plastic bag in a drawer until needed.

The room where I make molds is about 50 feet away from the vacuum room and it can get messy in there, so clean up as you go.



Now making bodies, take a microfiber cloth and spray with glass cleaner and wipe the platen and vacuum table down, also wipe down each piece of plastic before you remove the protective film, if you don't any dust on the film will transfer to the plastic piece. Wipe your mold down with a tack cloth. Lastly where a clean T-shirt as lint from your clothes can become flyable and will transfer to your plastic.



Sounds crazy but I don't like an ugly body with dust and lint. I try my best to make a as good or better body than an original; this also includes making a high-quality mold.

I like doing this so the hobbyists can enjoy recreating there dream cars, but it can be time consuming.



Enjoy the hobby and take care

regards gene

  Appreciate the information. Humidity is a buzz kill on bodies. I have always wondered and, should probibly try, to see if a static matt could help cut down on the static electricity the plastic gets with the protective film.

[Bill Seitz]

It's really difficult to remove or prevent static electricity with non-conductors. Use an anti-static mat, anti-static solution/spray, and an air ionizer. You might even want to try a human ground strap, so that charges on the body don't influence the plastic. Higher humidity makes the air more conductive, and ionizers are really useful, but the ionized air has to blow directly onto the material to be neutralized. In the electronics industry, we were trying to prevent static generated by non-conductors from zapping our sensitive components, and useful products were created to minimize static charges on plastics.
